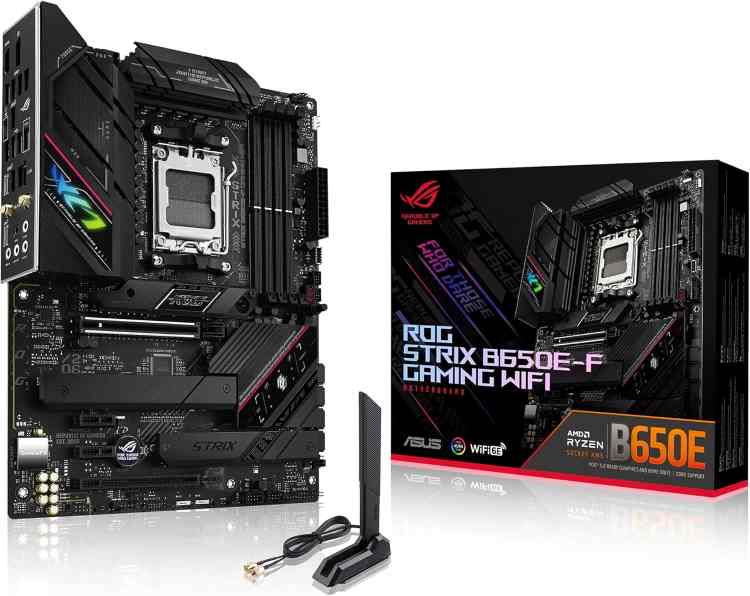

ASUS ROG Strix B650E-F Gaming WiFi

Motherboard • ASUS • $ 144.90

Add to PC Build Add to Amazon Cart Compare

Unleash Next-Gen Performance with the ASUS ROG Strix B650E-F Gaming WiFi

The ASUS ROG Strix B650E-F Gaming WiFi is a premium ATX motherboard engineered for AMD's AM5 platform, designed to harness the full potential of Ryzen 7000 and 8000 series processors. Whether you're building a high-refresh-rate gaming rig or a content creation powerhouse, this board delivers exceptional performance, robust connectivity, and striking aesthetics.

Key Features & Specifications

AMD AM5 Socket: Supports Ryzen 7000/8000 series CPUs with PCIe 5.0 support.
DDR5 Memory: Four DIMM slots, up to 128GB, with speeds up to 6400+ MHz (OC) and AMD EXPO support for one-click overclocking.
PCIe 5.0 Ready: One PCIe 5.0 x16 slot from the CPU and a blazing-fast M.2 slot for next-gen SSDs.
Comprehensive Connectivity: Wi-Fi 6E, Bluetooth 5.3, 2.5 Gb Ethernet, and a wide array of USB ports.
Immersive Audio: ROG SupremeFX 7.1-channel audio with ALC4080 codec for crystal-clear sound.

Built for Gamers and Creators

This motherboard is tailored for gamers who demand high frame rates and creators who need fast storage and reliable multitasking. The PCIe 5.0 slots ensure compatibility with the latest GPUs and SSDs, while the robust power delivery (16+2 power stages) keeps your CPU stable under heavy loads. The ROG Strix B650E-F also features AI overclocking and cooling, making it easy to squeeze out extra performance.

Connectivity and Expansion

With a comprehensive rear I/O panel including HDMI 2.1, DisplayPort 1.4, USB 3.2 Gen 2x2 Type-C, and multiple USB ports, you can connect all your peripherals with ease. The onboard headers support front-panel USB-C and additional USB ports for maximum flexibility. The dual M.2 slots (one PCIe 5.0, one PCIe 4.0) allow for blazing-fast NVMe storage configurations.

Why Choose the ROG Strix B650E-F?

ASUS ROG Strix series is known for its premium build quality, intuitive BIOS, and extensive software suite. The B650E-F Gaming WiFi offers a perfect balance of features and value for high-end AM5 builds. Its sleek design with RGB lighting and comprehensive cooling options makes it a standout choice for any enthusiast PC.

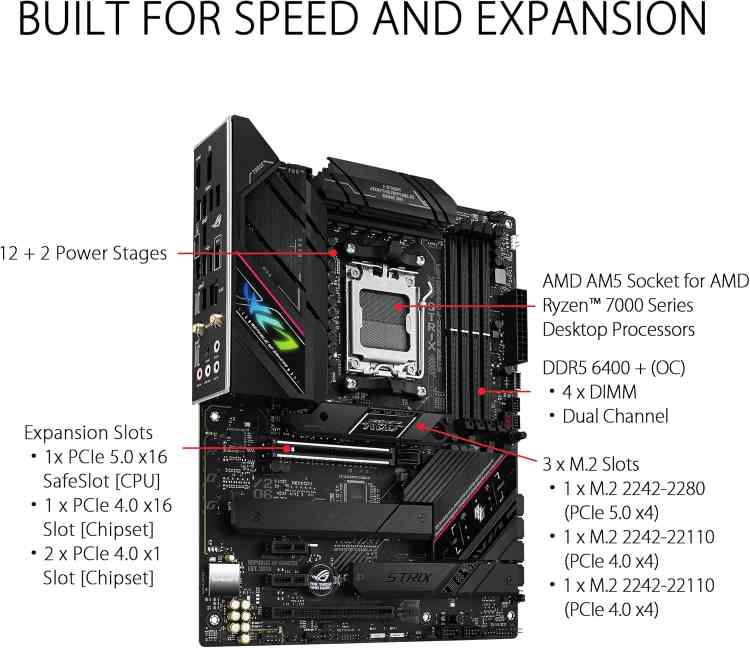

Key Specifications

Form Factor: ATX

Socket: AM5

RAM Type: DDR5 6400+ OC (dual-channel, ECC & non-ECC unbuffered, EXPO supported)

Max. RAM: 128GB

RAM Slots: 4

Chipset: AMD B650E

Connectivity

1X PCIe 5.0 x16 (from CPU), 1X PCIe 4.0 x16 (chipset, runs at x4 mode), 2X M.2 NVMe slots:, – 1× PCIe 5.0 x4 (Blazing M.2), – 1× PCIe 4.0 x4 (Hyper M.2), 4X SATA 6 Gb/s ports, 1X Realtek 2.5 GbE LAN, Wi-Fi 6E (802.11ax) + Bluetooth 5.3, Audio: ROG SupremeFX 7.1-Channel HD Audio Codec (ALC4080)

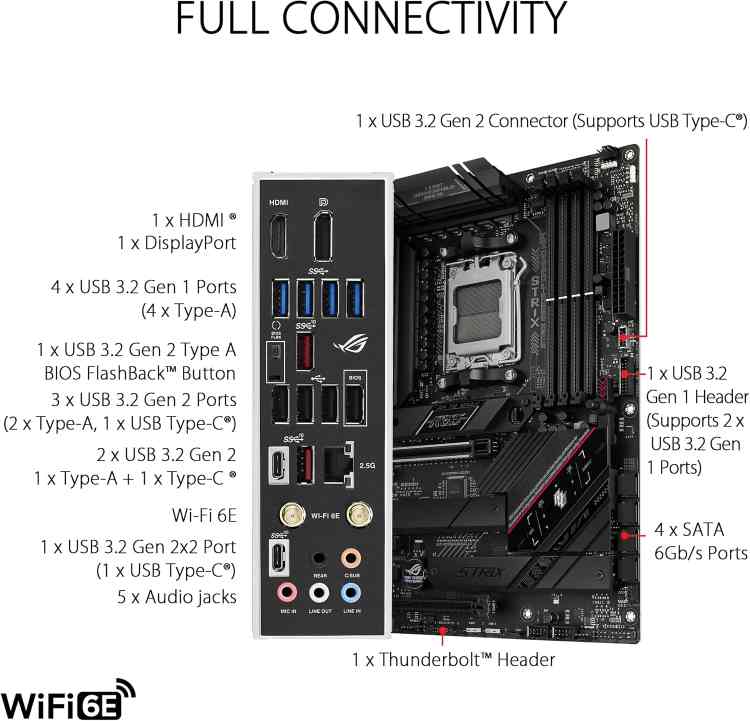

Back Panel IO

1X HDMI 2.1, 1X DisplayPort 1.4, 1X USB 3.2 Gen 2x2 Type-C, 3X USB 3.2 Gen 2 Type-A, 4X USB 2.0 Type-A, RJ45 2.5 GbE LAN port, Wi-Fi antenna connectors, Optical S/PDIF out, and 5X Audio jacks

Onboard USB Headers: 1X USB 3.2 Gen 2x2 front-panel Type-C connector 1X USB 3.2 Gen 1 header (2 ports) 2X USB 2.0 headers (support 4 ports total)

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 6400

Where to Buy

Amazon

Pros

Excellent PCIe 5.0 support for GPU and M.2 SSDs
Robust power delivery for high-end Ryzen CPUs
Comprehensive connectivity including Wi-Fi 6E and 2.5G LAN
Premium audio with SupremeFX ALC4080 codec
User-friendly BIOS with AI overclocking and cooling

Cons

Only one PCIe 5.0 M.2 slot (second is PCIe 4.0)
No PCIe 5.0 for chipset lanes (only CPU)
Price may be higher than comparable B650 boards

Frequently Asked Questions

Does the ASUS ROG Strix B650E-F Gaming WiFi support AMD Ryzen 9000 series processors?

Yes, with a BIOS update, the B650E-F supports Ryzen 9000 series CPUs. ASUS has provided AGESA updates for compatibility.

Can I use DDR4 RAM on this motherboard?

No, the B650E-F only supports DDR5 memory. It is not backward compatible with DDR4.

How many M.2 slots does the B650E-F have and what speeds?

It has two M.2 slots: one PCIe 5.0 x4 (Blazing M.2) and one PCIe 4.0 x4 (Hyper M.2). Both support NVMe SSDs.

Does the motherboard include Wi-Fi and Bluetooth?

Yes, it comes with Wi-Fi 6E (802.11ax) and Bluetooth 5.3 built-in.

What is the maximum RAM capacity and speed supported?

It supports up to 128GB of DDR5 RAM across four slots, with speeds up to 6400+ MHz (OC) when using EXPO profiles.
