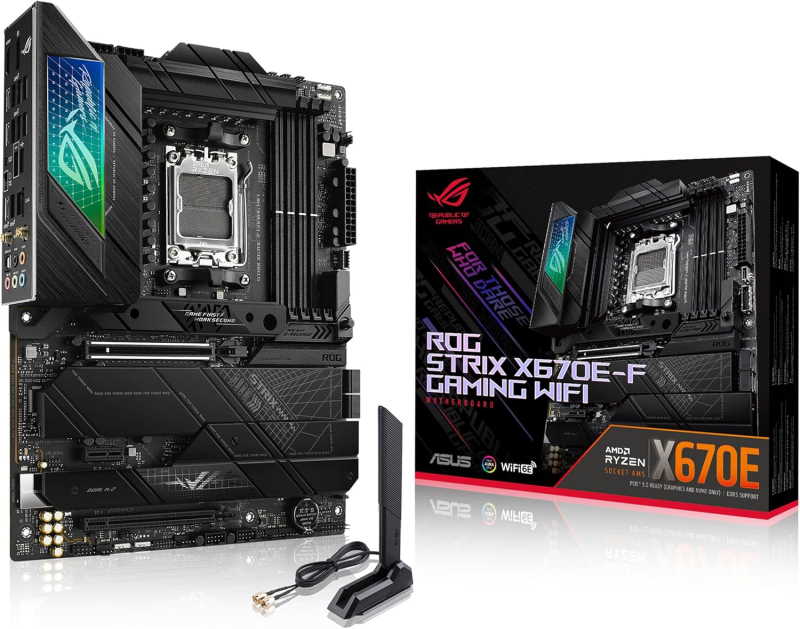

ASUS ROG Strix X670E-F Gaming WiFi

Motherboard • ASUS • $ 439.88

Add to PC Build Add to Amazon Cart Compare

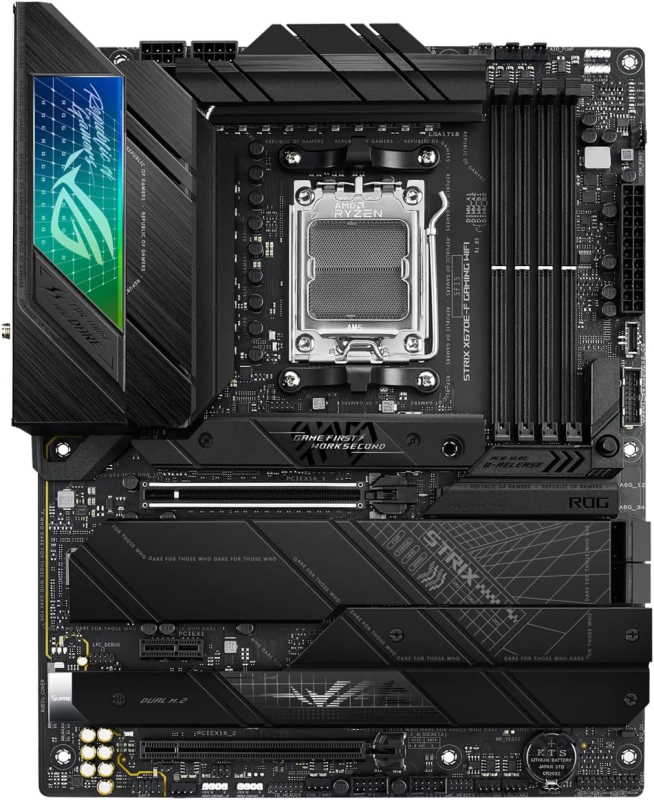

The ASUS ROG Strix X670E-F Gaming WiFi is a premium ATX motherboard engineered for AMD's AM5 platform, delivering exceptional performance for gamers, content creators, and PC enthusiasts. Built on the AMD X670E chipset, it unlocks the full potential of Ryzen 7000 and 8000 series processors, offering PCIe 5.0 support for both graphics and storage, along with blazing-fast DDR5 memory speeds.

Unleash Next-Gen Performance

With a robust 16+2 power stage design and ProCool II power connectors, this motherboard ensures stable power delivery even under heavy loads. It supports up to 128GB of DDR5 memory with speeds reaching 6400+ MHz (OC), and features AMD EXPO technology for one-click overclocking. The dual-channel architecture with ECC and non-ECC unbuffered memory support provides flexibility and reliability.

Cutting-Edge Connectivity

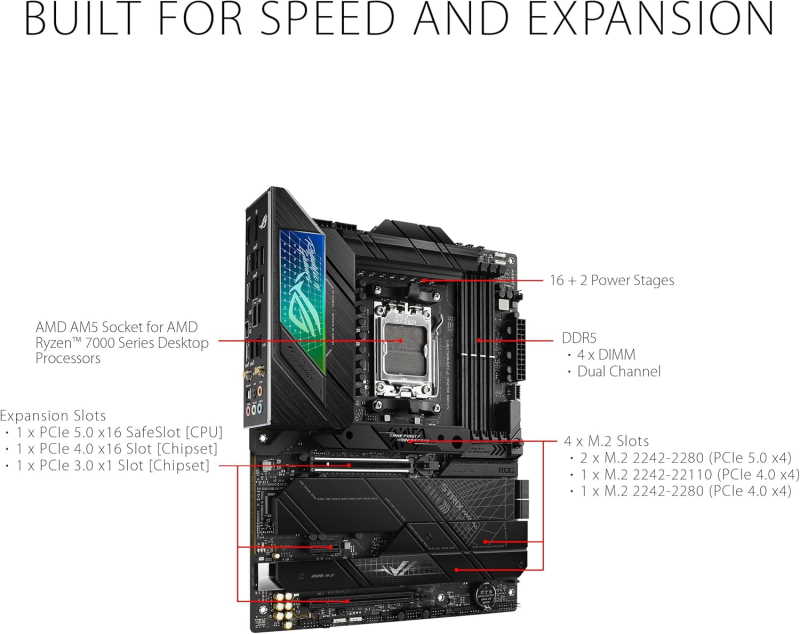

Stay ahead with PCIe 5.0 x16 slot for the latest graphics cards, plus three M.2 slots (one PCIe 5.0 and two PCIe 4.0) for ultra-fast NVMe SSDs. The board also includes four SATA 6Gb/s ports for additional storage. Networking is handled by Intel 2.5Gb Ethernet and Wi-Fi 6E with Bluetooth 5.2, ensuring low-latency online gaming and seamless streaming.

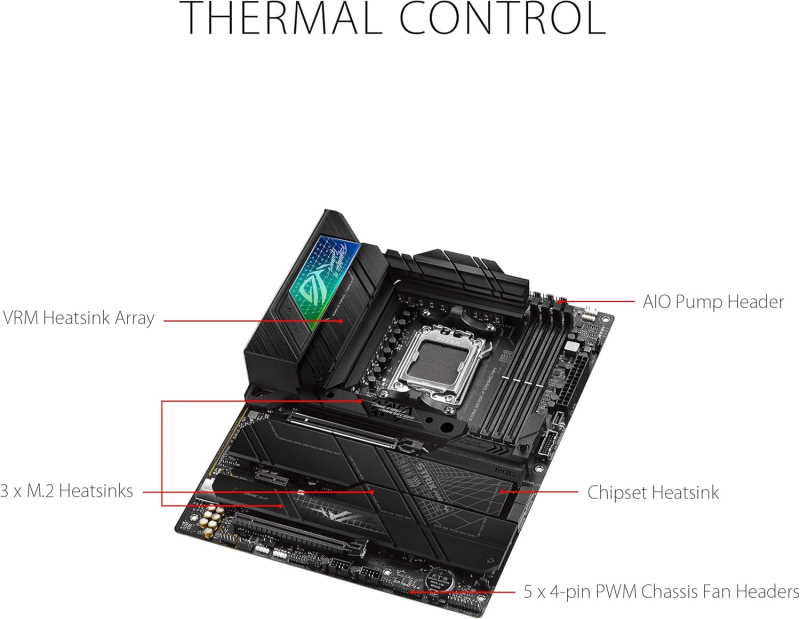

Comprehensive Cooling and Customization

ROG Strix X670E-F Gaming WiFi features comprehensive cooling options, including multiple fan headers, VRM heatsinks, and M.2 heatsinks to keep components cool under pressure. The Q-LED indicators and BIOS FlashBack button simplify troubleshooting and BIOS updates. Aura Sync RGB lighting lets you personalize your build with millions of colors and effects.

Rich I/O and Expansion

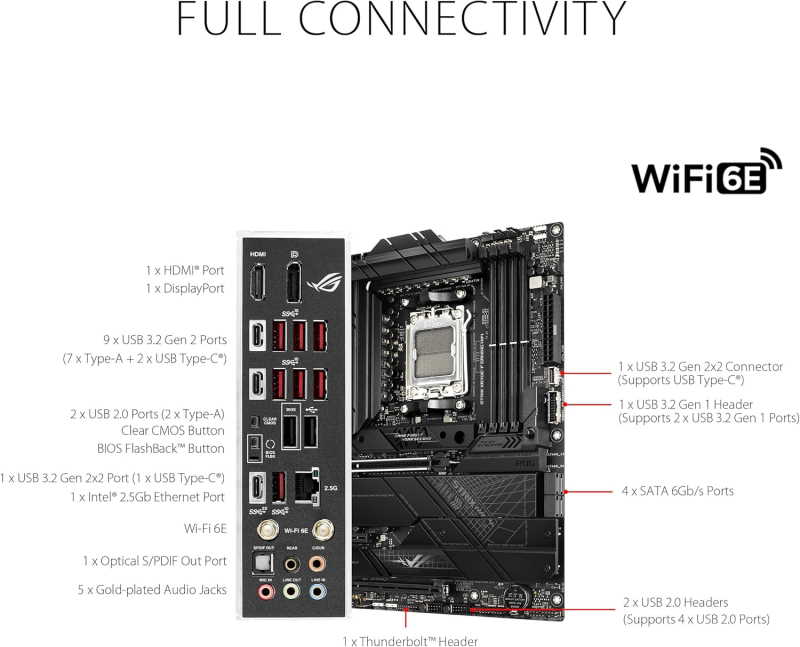

The rear I/O panel offers a USB 3.2 Gen 2x2 Type-C port, three USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 Type-A ports, DisplayPort and HDMI outputs for integrated graphics, and a full audio stack with optical S/PDIF. Front-panel headers include USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1, and USB 2.0 for comprehensive connectivity.

Who Is It For?

This motherboard is ideal for gamers building a high-end AMD rig, content creators needing fast storage and memory, and PC enthusiasts who want overclocking headroom and premium features. Its ATX form factor fits most mid-tower cases, and the robust VRM design supports even the most demanding Ryzen 9 processors.

Key Features at a Glance

AMD AM5 socket for Ryzen 7000/8000 series CPUs
DDR5 memory support up to 6400+ MHz (OC) and 128GB
PCIe 5.0 x16 slot and M.2 slot for next-gen components
Intel 2.5Gb Ethernet and Wi-Fi 6E for fast networking
Comprehensive cooling with VRM and M.2 heatsinks
Q-LED diagnostics and BIOS FlashBack for easy maintenance

Key Specifications

Form Factor: ATX

Socket: AM5

RAM Type: DDR5 6400+ OC (dual-channel, ECC & non-ECC unbuffered, EXPO supported)

Max. RAM: 128GB

RAM Slots: 4

Chipset: AMD X670E

Connectivity

1× PCIe 5.0 x16 (CPU lane), 2× PCIe 4.0 x16 (chipset, operate in x4 mode), 1× M.2 22110 (PCIe 5.0 x4, CPU), 1× M.2 2280 (PCIe 4.0 x4, CPU), 2× M.2 2280 (PCIe 4.0 x4, Chipset), 4× SATA 6 Gb/s ports, 1× Intel 2.5 GbE LAN port, Wi-Fi 6E, Bluetooth 5.2, Graphics outputs: 1× DisplayPort, 1× HDMI, VRM heatsinks, M.2 heatsinks, Q-LED

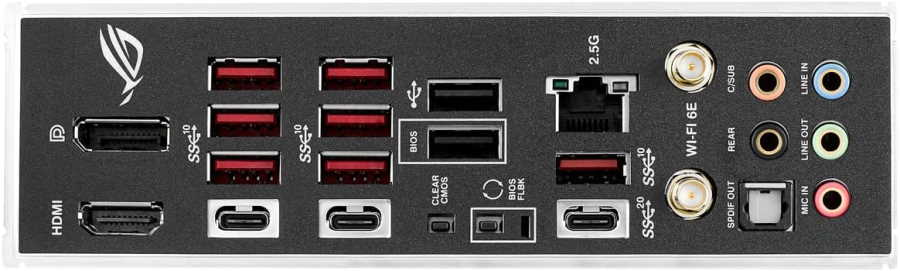

Back Panel IO

1× USB 3.2 Gen 2x2 Type-C, 3× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1 Type-A, 1× DisplayPort, 1× HDMI, 1× Intel 2.5 GbE LAN, 5× Audio jacks, 1× Optical S/PDIF Out, 1× BIOS FlashBack button, 1× Clear CMOS button, Wi-Fi Antenna connectors

Onboard USB Headers: 1× USB 3.2 Gen 2x2 front-panel Type-C connector 1× USB 3.2 Gen 1 header (supports 2 ports) 2× USB 2.0 headers (support 4 ports total)

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 6400

Where to Buy

Amazon

Pros

Robust VRM design for high-end Ryzen CPUs
PCIe 5.0 support for GPU and M.2 storage
Fast DDR5 memory with EXPO support
Integrated Wi-Fi 6E and 2.5Gb Ethernet
Comprehensive cooling and RGB lighting

Cons

Only one PCIe 5.0 M.2 slot
No PCIe 5.0 for second x16 slot (chipset lanes are 4.0)
Price may be high for budget builders

Frequently Asked Questions

What CPUs are compatible with the ASUS ROG Strix X670E-F Gaming WiFi?

This motherboard supports AMD Ryzen 7000 and 8000 series processors for the AM5 socket, including Ryzen 5, 7, and 9 models.

Does the ASUS ROG Strix X670E-F Gaming WiFi support PCIe 5.0?

Yes, it has one PCIe 5.0 x16 slot for graphics cards and one M.2 slot that supports PCIe 5.0 x4 for ultra-fast NVMe SSDs.

What is the maximum memory speed supported?

The motherboard supports DDR5 memory up to 6400+ MHz when overclocked, and it also supports AMD EXPO profiles for easy memory overclocking.

Does the motherboard have built-in Wi-Fi?

Yes, it includes Wi-Fi 6E (802.11ax) and Bluetooth 5.2, providing fast wireless connectivity.

How many M.2 slots are available?

There are four M.2 slots: one PCIe 5.0 x4 (22110), one PCIe 4.0 x4 (2280) from CPU, and two PCIe 4.0 x4 (2280) from the chipset.
