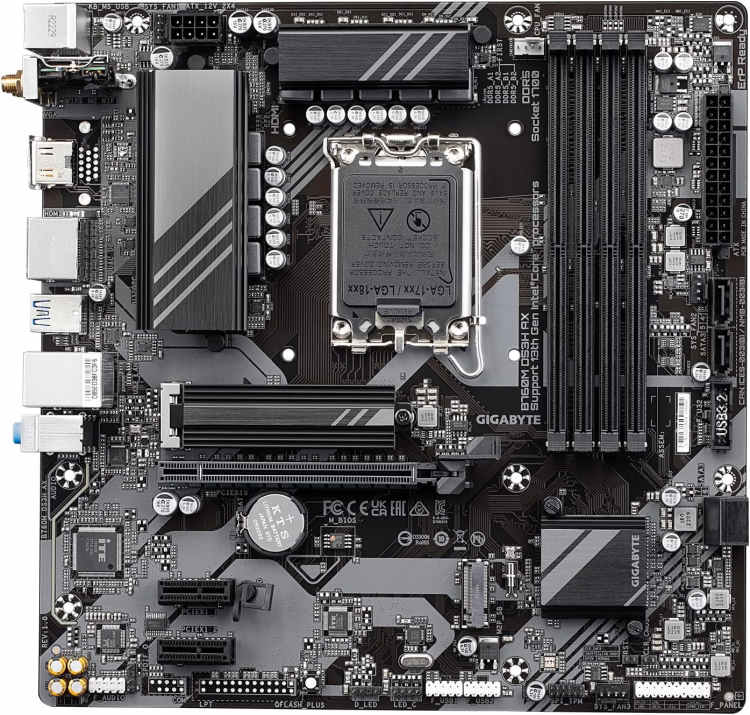

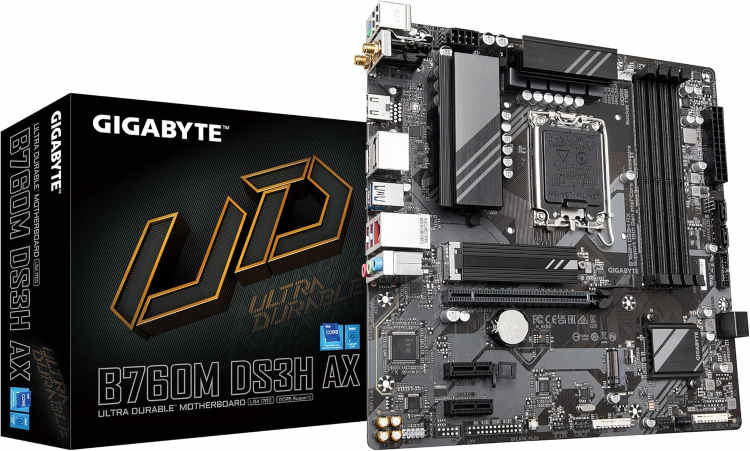

Gigabyte B760M DS3H AX DDR5 Motherboard

Motherboard • Gigabyte • $ 149.99

Add to PC Build Add to Amazon Cart Compare

Unlock Next-Gen Performance with the Gigabyte B760M DS3H AX DDR5 Motherboard

The Gigabyte B760M DS3H AX DDR5 Motherboard is a feature-rich Micro-ATX solution designed for Intel LGA 1700 processors (12th, 13th, and 14th Gen). Whether you're building a compact gaming rig, a powerful workstation, or a home theater PC, this motherboard delivers exceptional performance, modern connectivity, and robust durability at an accessible price point.

Key Features and Benefits

DDR5 Memory Support: With four DIMM slots and support for up to 128GB of DDR5 RAM, you can achieve blazing-fast speeds up to 7600 MT/s (OC) using Intel XMP 3.0. Enjoy higher bandwidth and improved system responsiveness for demanding applications.
PCIe 4.0 Connectivity: The reinforced PCIe 4.0 x16 slot (with EZ-Latch) ensures your graphics card is securely mounted and delivers full bandwidth for the latest GPUs. Two additional PCIe 3.0 x1 slots provide expansion options for capture cards, sound cards, or other peripherals.
Dual M.2 NVMe Slots: Both M.2 slots support PCIe 4.0 x4 SSDs, offering ultra-fast storage speeds for OS and game installations. The M2A_CPU slot connects directly to the CPU for minimal latency, while the M2P_SB slot uses chipset lanes for flexible configuration.
Advanced Networking: Integrated Wi-Fi 6E (802.11ax) with Bluetooth 5.3 provides wireless speeds up to 160 MHz, while the Realtek 2.5GbE LAN ensures low-latency wired connections for online gaming and high-speed file transfers.
Comprehensive I/O: The rear panel includes HDMI 2.1 and dual DisplayPort 1.4 outputs (supporting 4K@60Hz via CPU iGPU), a USB-C 3.2 Gen 2 port (10Gb/s), multiple USB 3.2 Gen 1 and USB 2.0 ports, and a Q-Flash Plus button for easy BIOS updates without a CPU.
Durable Design: Gigabyte's Ultra Durable technology includes solid capacitors, low-loss PCB, and an advanced thermal design with M.2 heatsinks to keep components cool under load.

Performance and Use Cases

This motherboard is ideal for gamers seeking a compact yet powerful platform, content creators who need fast storage and memory, and professionals building an efficient office PC. With support for Intel's latest processors, you can pair it with a Core i5-13600K or Core i7-14700K for exceptional multitasking and productivity. The B760 chipset offers PCIe 4.0 lanes and modern features without the overclocking overhead of Z790, making it a cost-effective choice for non-K CPUs.

Whether you're upgrading an existing system or building from scratch, the Gigabyte B760M DS3H AX DDR5 Motherboard delivers the perfect balance of performance, connectivity, and value.

Key Specifications

Form Factor: Micro‑ATX

Socket: LGA 1700

RAM Type: DDR5 (dual‑channel, XMP 3.0 supported, up to 7600 MT/s OC)

Max. RAM: 128 GB

RAM Slots: 4

Chipset: Intel B760

Connectivity

1X PCIe 4.0 x16 (steel‑reinforced EZ‑Latch, CPU lane), 2X PCIe 3.0 x1 (chipset lanes), 2X M.2 NVMe slots:, – 1X PCIe 4.0 x4 (via CPU, M2A_CPU), – 1X PCIe 4.0 x4 (via chipset, M2P_SB), 4X SATA 6 Gb/s ports with RAID 0/1/5/10 (Intel B760), 1X Realtek 2.5 GbE LAN (RTL8125), Wi‑Fi 6E (802.11ax, 160 MHz) with Bluetooth 5.3*, 7.1‑Channel HD Audio (Realtek ALC897 codec)

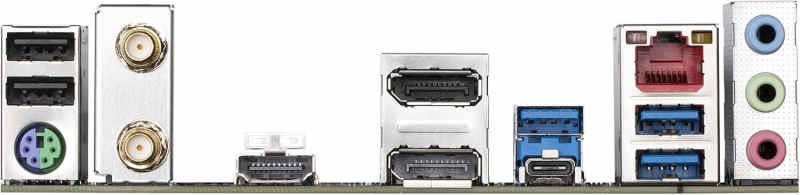

Back Panel IO

1X Q‑Flash Plus (BIOS Flashback) button, 1X PS/2 combo keyboard/mouse port, 2X SMA Wi‑Fi antenna connectors, 1X HDMI 2.1 (4K@60 Hz via CPU iGPU), 2X DisplayPort 1.4 (4K@60 Hz via CPU iGPU), 1X USB‑C 3.2 Gen 2 (10 Gb/s), 3X USB 3.2 Gen 1 Type‑A (5 Gb/s), 2X USB 2.0 Type‑A, 1X RJ‑45 2.5 GbE LAN port, 3X 3.5 mm audio jacks (Rear HD Audio)

Onboard USB Headers: 1X USB 3.2 Gen 1 header (front‑panel Type‑A, 2 ports) 2X USB 2.0 headers (front‑panel Type‑A, 4 ports)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1700
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 4
Form Factor:: Micro-ATX
Maximum RAM Speed in MHz:: 7600

Where to Buy

Amazon

Pros

Supports DDR5 up to 7600 MT/s with XMP 3.0 for high-speed memory performance
Dual PCIe 4.0 M.2 slots for fast NVMe SSDs
Integrated Wi-Fi 6E and Bluetooth 5.3 for wireless convenience
Q-Flash Plus allows BIOS updates without a CPU or memory
Reinforced PCIe x16 slot with EZ-Latch for secure GPU installation

Cons

Limited to 4 SATA ports (some competitors offer 6)
No PCIe 5.0 support (future-proofing may be a concern)
Realtek ALC897 audio codec is basic compared to higher-end boards

Frequently Asked Questions

Does the Gigabyte B760M DS3H AX support Intel 14th Gen processors?

Yes, the Gigabyte B760M DS3H AX is compatible with Intel 12th, 13th, and 14th Gen processors (LGA 1700) after a BIOS update. It supports Core i3, i5, i7, and i9 models within those generations.

Can I use DDR4 memory on this motherboard?

No, the Gigabyte B760M DS3H AX is designed exclusively for DDR5 memory. It has four DDR5 DIMM slots and does not support DDR4 modules.

What is the maximum memory speed supported?

The motherboard supports DDR5 memory up to 7600 MT/s (overclocked) when using XMP 3.0 profiles. Without overclocking, it runs at standard JEDEC speeds (e.g., 4800 MT/s).

Does the motherboard have onboard Wi-Fi?

Yes, the 'AX' in the model name indicates it includes Wi-Fi 6E (802.11ax) with Bluetooth 5.3. The package includes two SMA antenna connectors for the included antennas.

How do I update the BIOS without a CPU?

The motherboard features a Q-Flash Plus button on the rear I/O panel. Simply download the BIOS file to a USB drive, insert it into the designated USB port, and press the Q-Flash Plus button. The board will update the BIOS automatically.
