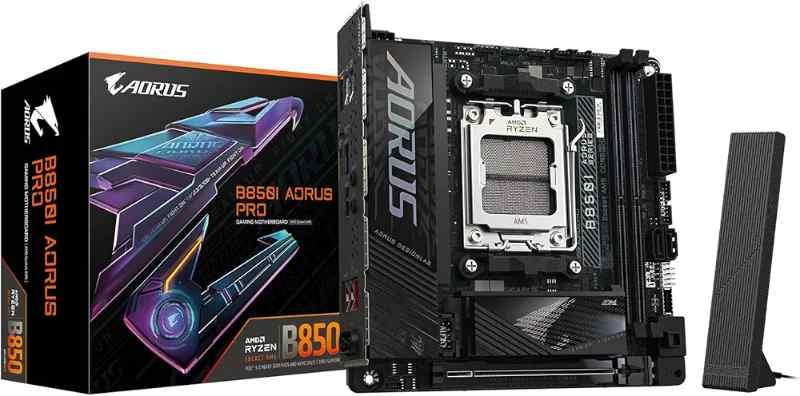

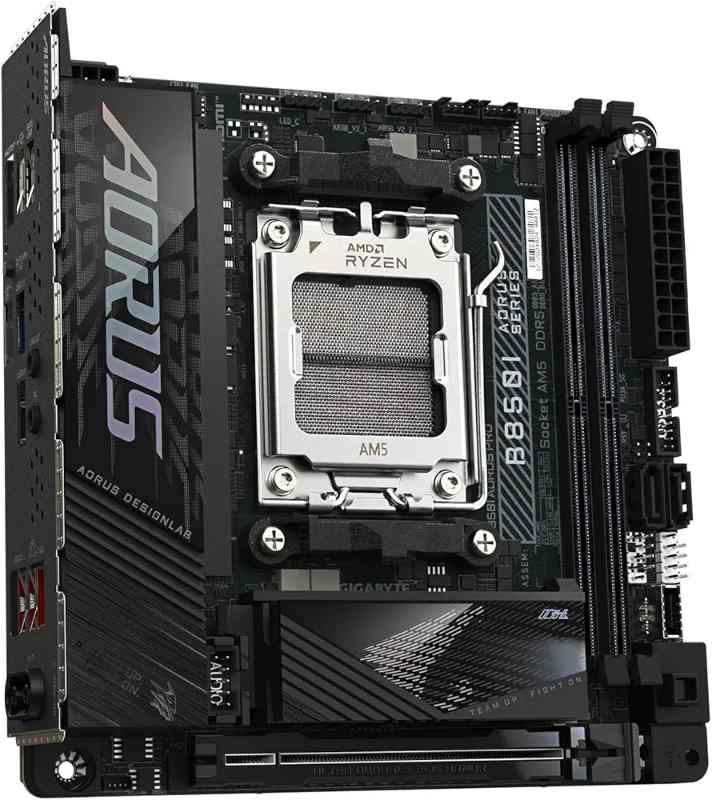

Gigabyte B850I Aorus Pro Mini ITX
The Gigabyte B850I Aorus Pro Mini ITX is a powerhouse for compact PC builds, combining the latest AMD AM5 platform with cutting-edge connectivity and storage options. Designed for enthusiasts who demand high performance in a small form factor, this motherboard supports AMD Ryzen 7000 and 8000 series processors, offering exceptional gaming and productivity capabilities.
Key Features
- AMD AM5 Socket: Compatible with Ryzen 7000/8000 series CPUs, ensuring future-proofing with DDR5 memory and PCIe 5.0 support.
- DDR5 Memory: Dual-channel architecture supports up to 128GB of DDR5 RAM with speeds up to 8000+ MT/s (OC), and both EXPO and XMP profiles for easy overclocking.
- PCIe 5.0 Ready: The primary PCIe x16 slot runs at PCIe 5.0 for the latest graphics cards, while the front M.2 slot offers PCIe 5.0 x4 for ultra-fast NVMe SSDs.
- Advanced Connectivity: Wi-Fi 7 and Bluetooth 5.4 provide cutting-edge wireless performance, while Realtek 2.5GbE LAN ensures stable wired networking.
- Dual M.2 Slots: One PCIe 5.0 x4 (front) and one PCIe 4.0 x4 (rear) for flexible storage configurations, plus two SATA III ports for additional drives.
- High-Quality Audio: Realtek ALC4080 codec delivers immersive sound for gaming and media.
Performance and Use Cases
This motherboard is ideal for small form factor (SFF) gaming rigs, HTPCs, or workstation builds where space is limited but performance cannot be compromised. With support for high-speed DDR5 and PCIe 5.0, it ensures your system can handle the most demanding games and creative workloads. The robust power delivery and thermal design keep your CPU cool even under heavy loads.
Connectivity and Expansion

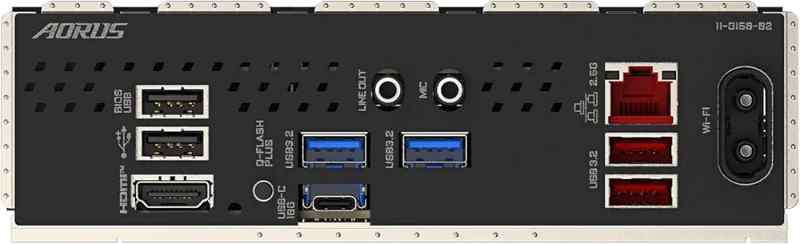

The back panel offers a comprehensive set of ports, including USB-C 3.2 Gen 2, multiple USB-A ports, HDMI output, and audio jacks. Onboard headers provide additional USB 3.2 Gen 1 and USB 2.0 connectivity for front-panel devices. The BIOS Flashback button allows easy firmware updates without a CPU installed.
Whether you're building a compact gaming powerhouse or a portable workstation, the Gigabyte B850I Aorus Pro Mini ITX delivers the performance and features you need in a tiny package.
Key Specifications
Detailed Parameters
- Platform:
- AMD
- Socket:
- AM5
- RAM Type:
- DDR5
- Number of RAM Slots:
- 2
- Maximum RAM/slot:
- 64
- Maximum RAM Capacity in GB:
- 128
- PCI Express Version:
- 5
- Form Factor:
- Mini-ITX
- Maximum RAM Speed in MHz:
- 8000
Pros
- Supports DDR5-8000+ with EXPO/XMP for high memory performance
- Dual M.2 slots with PCIe 5.0 and 4.0 support for fast storage
- Wi-Fi 7 and 2.5GbE LAN for advanced networking
- Compact Mini-ITX form factor ideal for SFF builds
- BIOS Flashback for easy firmware updates
Cons
- Only two RAM slots limit future expansion
- Limited SATA ports (2) compared to larger boards
- Rear M.2 slot may run hot in tight cases
