Gigabyte Z790 AORUS Master

Motherboard • Gigabyte • $ 299.95

Add to PC Build Add to Amazon Cart Compare

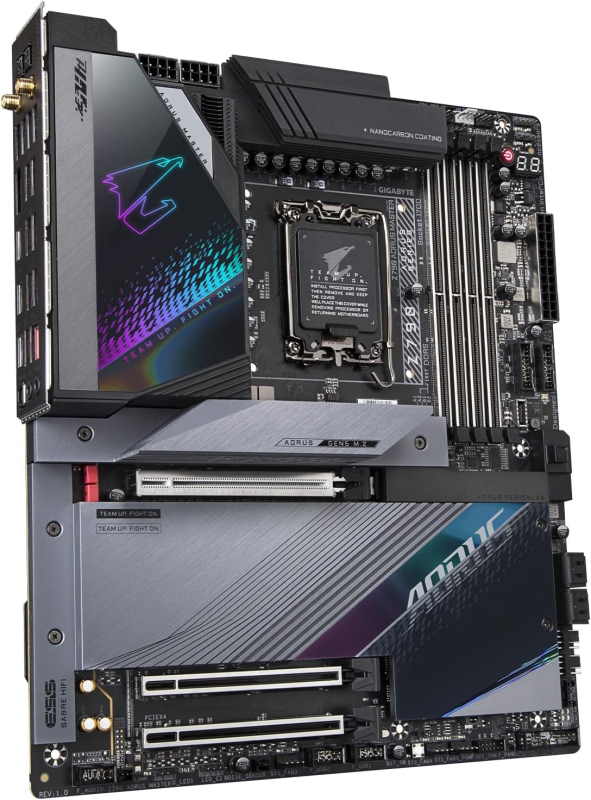

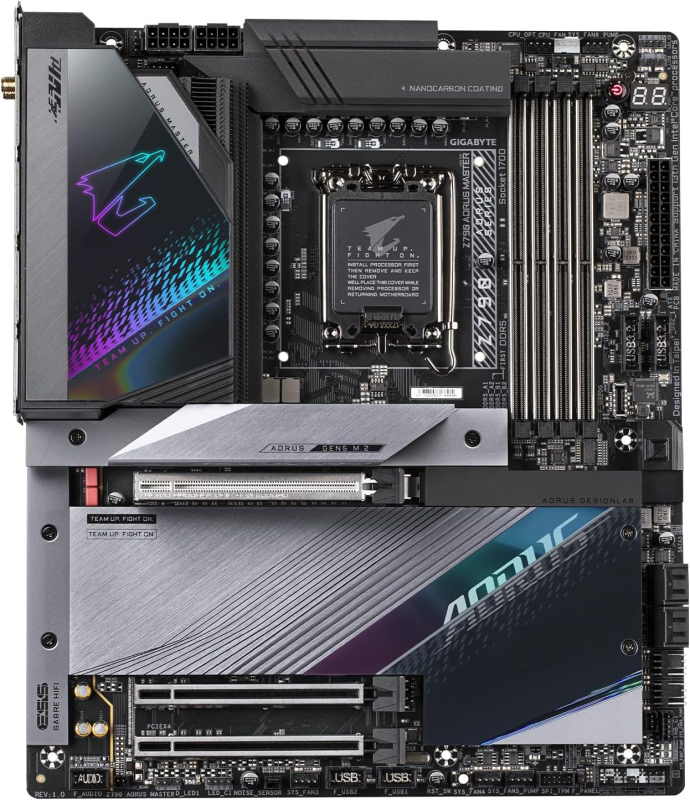

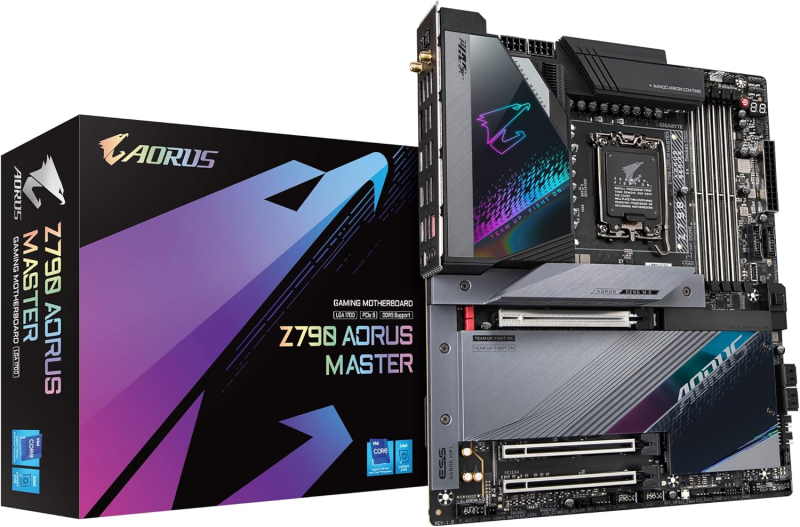

The Gigabyte Z790 AORUS Master is a flagship E-ATX motherboard engineered for Intel's 12th, 13th, and 14th generation Core processors (LGA 1700). It combines cutting-edge connectivity, robust power delivery, and premium audio to satisfy enthusiasts, overclockers, and content creators who demand uncompromising performance.

Unleash Next-Gen Performance

Built on the Intel Z790 chipset, this motherboard supports DDR5 memory up to an astonishing 8000+ MHz (OC) with XMP 3.0 and EXPO profiles. With four DIMM slots and a maximum capacity of 192GB, you can run memory-intensive applications, virtual machines, or massive multitasking workflows without breaking a sweat.

The AORUS Master features a 20+1+2 phase digital VRM design with 105A power stages, ensuring stable power delivery even under extreme overclocking loads. The Fins-Array II heatsink and heat-pipe cooling solution keep temperatures in check, allowing your CPU to sustain peak performance.

Storage and Expansion Galore

Storage flexibility is exceptional: four M.2 slots (one PCIe 5.0 x4 and three PCIe 4.0 x4) support the fastest NVMe SSDs available, while six SATA 6Gb/s ports provide additional capacity. The primary PCIe 5.0 x16 slot is reinforced with Ultra Durable PCIe Armor to support the heaviest graphics cards.

For connectivity, the board includes dual Intel 2.5GbE LAN ports and Intel Wi-Fi 6E with Bluetooth 5.3, delivering wired and wireless networking at blazing speeds. Thunderbolt 4 and USB 3.2 Gen 2x2 Type-C ports ensure rapid data transfer to external devices.

Premium Audio and User-Friendly Features

The Realtek ALC1220-VB audio codec, paired with WIMA audio capacitors and an ESS SABRE 9118 DAC, delivers studio-grade sound for immersive gaming and content creation. The board also includes convenient features like Q-Flash Plus for BIOS updates without a CPU, and a Clear CMOS button on the rear I/O.

Who Is It For?

This motherboard is ideal for PC builders who want a top-tier foundation for a high-end gaming rig, a workstation for 3D rendering or video editing, or an enthusiast platform for record-breaking overclocks. Its E-ATX form factor requires a spacious case, but the extra room allows for extensive cooling and expansion options.

In summary, the Gigabyte Z790 AORUS Master is a feature-rich, future-proof motherboard that delivers exceptional performance, connectivity, and durability for the most demanding users.

Key Specifications

Form Factor: E-ATX

Socket: LGA 1700

RAM Type: DDR5 up to 8000+ MHz OC (dual-channel, non-ECC unbuffered, XMP 3.0 & EXPO supported)

Max. RAM: 192GB

RAM Slots: 4

Chipset: Intel Z790

Connectivity

1× PCIe 5.0 x16 (CPU, x16 mode), 1× PCIe 4.0 x16 (CPU, x8 mode), 1× PCIe 4.0 x16 (chipset, operates at x4 mode), 1× PCIe 3.0 x1 (chipset), 4× M.2 slots (1× PCIe 5.0 x4 / PCIe 4.0 x4, 3× PCIe 4.0 x4, all Key M), 6× SATA 6 Gb/s ports, 2× Intel 2.5 GbE LAN (Intel I225-V), Realtek ALC1220-VB HD audio codec, Intel Wi-Fi 6E (802.11ax, 2.4/5/6 GHz, BT 5.3)

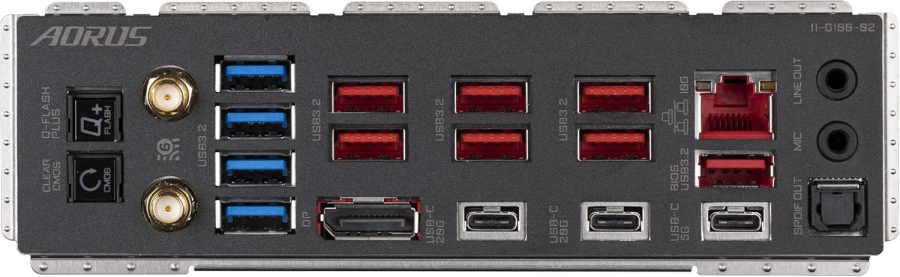

Back Panel IO

1× USB 3.2 Gen 2×2 Type-C (20 Gbps), 3× USB 3.2 Gen 2 Type-A (10 Gbps), 2× USB 3.2 Gen 1 Type-A (5 Gbps), 2× USB 2.0 Type-A, 2× Intel 2.5 GbE LAN ports, 1× HDMI 2.1, 1× Thunderbolt 4 Type-C, 5× audio jacks, 1× S/PDIF optical output, 1× Wi-Fi antenna connectors, 1× Q-Flash Plus button, 1× Clear CMOS button

Onboard USB Headers: 1× USB 3.2 Gen 2×2 front-panel Type-C header (20 Gbps) 1× USB 3.2 Gen 1 header (2 ports, 5 Gbps) 2× USB 2.0 headers (4 ports total)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1700
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 48
Maximum RAM Capacity in GB:: 192
PCI Express Version:: 5
Form Factor:: E-ATX
Maximum RAM Speed in MHz:: 8000

Where to Buy

Amazon

Pros

Robust 20+1+2 phase VRM for extreme overclocking
Supports DDR5 up to 8000+ MHz with XMP and EXPO
Four M.2 slots including PCIe 5.0 for ultra-fast storage
Dual 2.5GbE LAN and Wi-Fi 6E for versatile networking
Thunderbolt 4 and USB 3.2 Gen 2x2 for high-speed connectivity

Cons

E-ATX form factor may not fit in smaller cases
Premium price point compared to Z790 alternatives
Only one PCIe 5.0 x16 slot (second runs at x8 from CPU)

Frequently Asked Questions

What CPUs are compatible with the Gigabyte Z790 AORUS Master?

The Gigabyte Z790 AORUS Master supports Intel 12th, 13th, and 14th generation Core processors (LGA 1700 socket). This includes Core i5, i7, and i9 models, but always check the CPU compatibility list on Gigabyte's website for the latest BIOS support.

Does the Gigabyte Z790 AORUS Master support DDR4 memory?

No, this motherboard is designed exclusively for DDR5 memory. It does not have DDR4 DIMM slots, so you must use DDR5 RAM modules.

How many M.2 slots does the Gigabyte Z790 AORUS Master have and what speeds?

It has four M.2 slots: one supports PCIe 5.0 x4 (or PCIe 4.0 x4) and three support PCIe 4.0 x4. All are Key M and support NVMe SSDs. The PCIe 5.0 slot offers the fastest data transfer speeds for next-gen storage.

Does the Gigabyte Z790 AORUS Master include Wi-Fi and Bluetooth?

Yes, it comes with an Intel Wi-Fi 6E module (802.11ax) that supports 2.4/5/6 GHz bands and Bluetooth 5.3. The antenna connectors are on the rear I/O panel.
