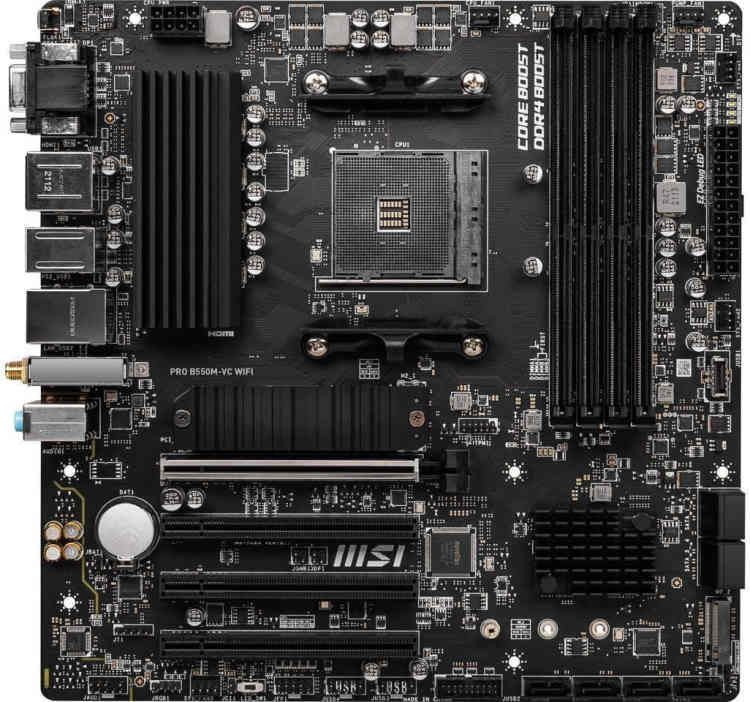

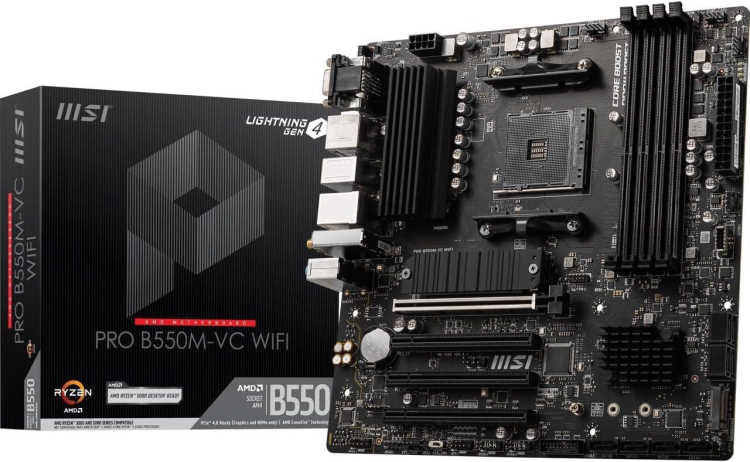

msi PRO B550M-VC WiFi ProSeries

Motherboard • MSI • $ 109.99

Add to PC Build Add to Amazon Cart Compare

Powerful Micro-ATX Foundation for AMD Ryzen

The MSI PRO B550M-VC WiFi ProSeries is a feature-rich Micro-ATX motherboard designed for AMD AM4 processors, including Ryzen 5000 and 4000 series. It delivers a perfect balance of performance, connectivity, and reliability for both productivity and gaming builds.

Key Features & Performance

AMD B550 Chipset: Supports PCIe 4.0 for the latest GPUs and NVMe SSDs, ensuring fast data transfer and future-proofing.
DDR4 Memory: Four DIMM slots support up to 128GB of DDR4 RAM with speeds up to 4400 MT/s (OC) via A-XMP, enabling smooth multitasking and responsive performance.
Dual M.2 Slots: One PCIe 4.0 x4 and one PCIe 3.0 x4 M.2 slot provide ultra-fast storage options for OS and games.
Wi-Fi 6E & Bluetooth 5.2: Built-in wireless connectivity delivers high-speed, low-latency networking, ideal for online gaming and streaming.
Robust Connectivity: Includes 8 SATA ports, multiple USB 3.2 Gen 2/Gen 1 ports, and a front-panel USB-C header for versatile peripheral support.
7.1-Channel Audio: Realtek ALC892/ALC897 codec delivers immersive sound for gaming and entertainment.

Target Audience & Use Cases

This motherboard is perfect for budget-conscious gamers, content creators, and PC builders who want a reliable foundation for a Ryzen-based system. It supports both productivity tasks like video editing and 3D rendering, as well as high-refresh-rate gaming when paired with a capable GPU.

Why Choose the MSI PRO B550M-VC WiFi?

With its Micro-ATX form factor, it fits into compact cases without sacrificing expansion options. The inclusion of Wi-Fi 6E and 2.5G LAN (Realtek RTL8111GN/HN) ensures you have both wired and wireless high-speed networking. The Flash BIOS button allows easy BIOS updates without a CPU, making it convenient for upgrades.

Key Specifications

Form Factor: Micro‑ATX

Socket: AM4

RAM Type: DDR4 (dual‑channel, A‑XMP supported, up to ~4400 MT/s OC)

Max. RAM: 128 GB

RAM Slots: 4

Chipset: AMD B550

Connectivity

1× PCIe 4.0 x16 (CPU lane), 3× PCIe 3.0 x16 (x1 mode, chipset), 2× M.2 NVMe slots:, – 1× PCIe 4.0 x4 (via CPU), – 1× PCIe 3.0 x4 (via chipset), 8× SATA 6 Gb/s ports (4 from AMD B550 + 4 from ASMedia AM1064), 1× Realtek 1 GbE LAN (RTL8111GN/HN), Wi‑Fi 6E (802.11ax) with Bluetooth 5.2, 7.1‑Channel HD Audio (Realtek ALC892/ALC897)

Back Panel IO

1× Flash BIOS Button, 1× VGA port, 1× DisplayPort (4K@60 Hz via iGPU), 1× HDMI 2.1 port (4K@60 Hz via iGPU), 2× USB 3.2 Gen 2 Type‑A (10 Gbps), 2× USB 3.2 Gen 1 Type‑A (5 Gbps), 2× USB 2.0, 1× PS/2 combo port, 1× RJ45 LAN port, 2× Wi‑Fi antenna connectors, 3× audio jacks

Onboard USB Headers: 1× USB 3.2 Gen 1 Type‑C front-panel connector (5 Gbps) 1× USB 3.2 Gen 1 header (2× ports Type‑A) 2× USB 2.0 headers (4× ports)

Detailed Parameters

Platform:: AMD
Socket:: AM4
RAM Type:: DDR4
Number of RAM Slots:: 4
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 4
Form Factor:: Micro-ATX
Maximum RAM Speed in MHz:: 4400

Where to Buy

Amazon

Pros

Supports PCIe 4.0 for fast SSDs and GPUs
Built-in Wi-Fi 6E and Bluetooth 5.2
Four DIMM slots allow up to 128GB RAM
Flash BIOS button for easy updates
Good selection of USB ports including USB-C header

Cons

Only one PCIe 4.0 M.2 slot; second is PCIe 3.0
Realtek 1GbE LAN, not 2.5GbE
Limited PCIe x16 slots (only one full-speed)

Frequently Asked Questions

Does the MSI PRO B550M-VC WiFi support Ryzen 5000 series processors?

Yes, it supports AMD Ryzen 5000 and 4000 series processors out of the box, but a BIOS update may be required for some models. The Flash BIOS button allows updating without a CPU.

Can I use two M.2 NVMe SSDs simultaneously?

Yes, the board has two M.2 slots. The first runs at PCIe 4.0 x4 via the CPU, and the second at PCIe 3.0 x4 via the chipset. Both can be used at the same time.

What is the maximum RAM speed supported?

The motherboard supports DDR4 memory up to 4400 MT/s (OC) when using A-XMP profiles. The maximum total capacity is 128GB across four slots.

Does this motherboard have Wi-Fi and Bluetooth?

Yes, it includes Wi-Fi 6E (802.11ax) and Bluetooth 5.2, providing fast wireless networking and easy connection to peripherals.
