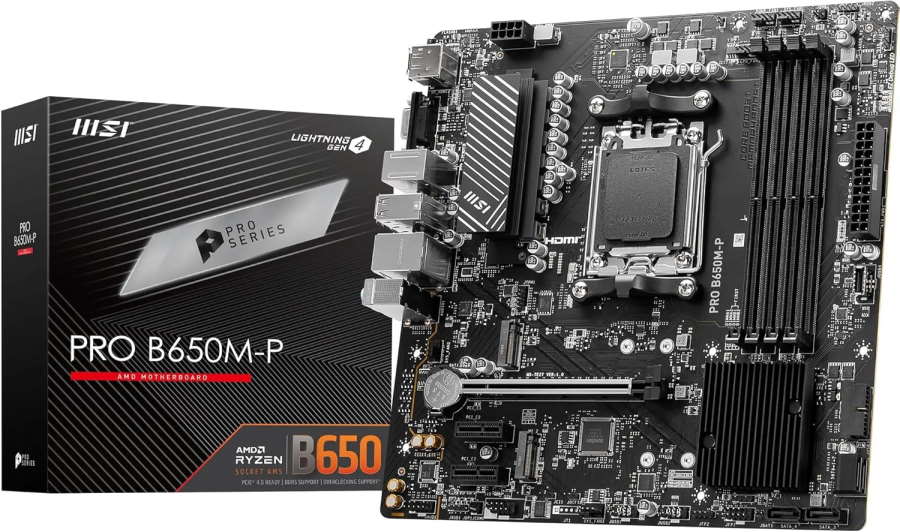

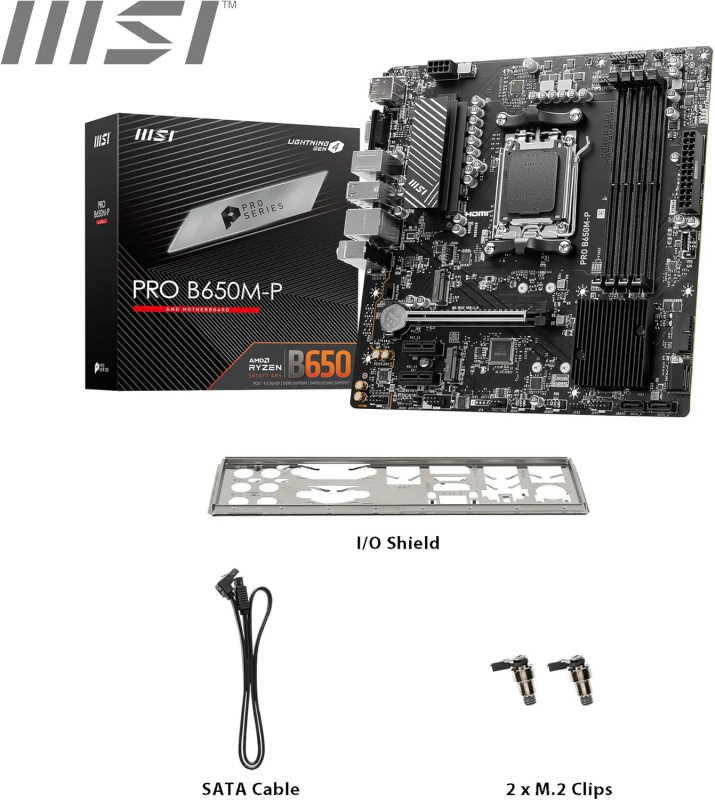

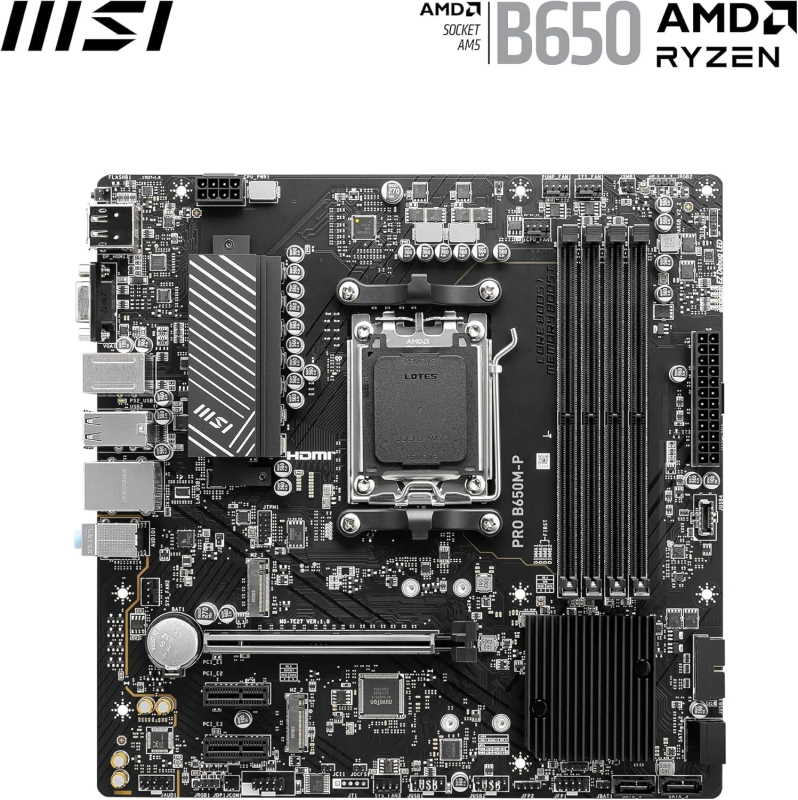

MSI PRO B650M-P V1 Micro-ATX

Motherboard • MSI • $ 124.99

Add to PC Build Add to Amazon Cart Compare

The MSI PRO B650M-P V1 is a versatile Micro-ATX motherboard designed for AMD's AM5 platform, offering a perfect balance of performance, connectivity, and value. Whether you're building a productivity workstation or a gaming rig, this board supports the latest AMD Ryzen 7000 series processors and delivers robust features that cater to both enthusiasts and professionals.

Key Features

AMD AM5 Socket: Ready for Ryzen 7000 and future compatible processors.
DDR5 Memory: Four DIMM slots support up to 256GB of DDR5 RAM, with speeds up to 7200MHz (OC) via AMD EXPO™ technology. ECC and non-ECC unbuffered memory are both supported.
PCIe 4.0 Connectivity: One PCIe 4.0 x16 slot for graphics cards and two PCIe 3.0 x1 slots for expansion cards.
Dual M.2 Slots: Both M.2 slots support PCIe 4.0 x4 for ultra-fast NVMe SSDs, ensuring rapid boot times and quick file transfers.
2.5G LAN: Realtek RTL8125BG controller provides high-speed networking for online gaming and large file transfers.
Comprehensive Display Outputs: HDMI 2.1, DisplayPort 1.4, and VGA ports allow flexible multi-monitor setups.
USB Connectivity: Back panel includes USB 3.2 Gen 2 Type-A and Type-C ports, plus additional headers for front-panel USB.
Audio: Realtek ALC897 codec delivers 7.1-channel high-definition audio for immersive sound.

Performance and Use Cases

The MSI PRO B650M-P V1 is engineered to maximize the potential of AMD's latest CPUs. With support for DDR5 memory overclocking up to 7200MHz, you can achieve exceptional memory bandwidth for demanding applications like video editing, 3D rendering, and AAA gaming. The PCIe 4.0 x16 slot ensures your graphics card runs at full speed, while the dual M.2 slots allow for blazing-fast storage configurations.

This motherboard is ideal for building a compact yet powerful system. Its Micro-ATX form factor fits into smaller cases without sacrificing essential features. Whether you're a content creator needing reliable performance or a gamer seeking smooth frame rates, the PRO B650M-P V1 delivers.

Connectivity and Expansion

Connectivity is abundant with four SATA 6Gb/s ports for traditional drives, plus two M.2 slots for NVMe SSDs. The onboard USB headers include a USB 3.2 Gen 1 Type-C connector, allowing modern cases to utilize front-panel USB-C. The 2.5G LAN port ensures low-latency networking, crucial for competitive gaming and streaming.

Why Choose the MSI PRO B650M-P V1?

This motherboard stands out for its combination of affordability and feature set. It includes a Flash BIOS button for easy firmware updates, and the robust power delivery design supports high-end Ryzen processors. With its comprehensive I/O and expansion options, the PRO B650M-P V1 is a smart choice for any AM5 build.

Key Specifications

Form Factor: Micro-ATX

Socket: AM5

RAM Type: DDR5 (Dual Channel, supports ECC & non-ECC unbuffered memory, AMD EXPO™)

Max. RAM: 256GB

RAM Slots: 4

Chipset: AMD B650

Connectivity

1x PCIe 4.0 x16 slot (from CPU), 2x PCIe 3.0 x1 slots (from Chipset), 2x M.2 slots (Key M, 1x from CPU supporting PCIe 4.0 x4, 1x from Chipset supporting PCIe 4.0 x4), 4x SATA 6Gb/s ports, Realtek® RTL8125BG 2.5G LAN, Realtek® ALC897 Codec 7.1-Channel High Definition Audio

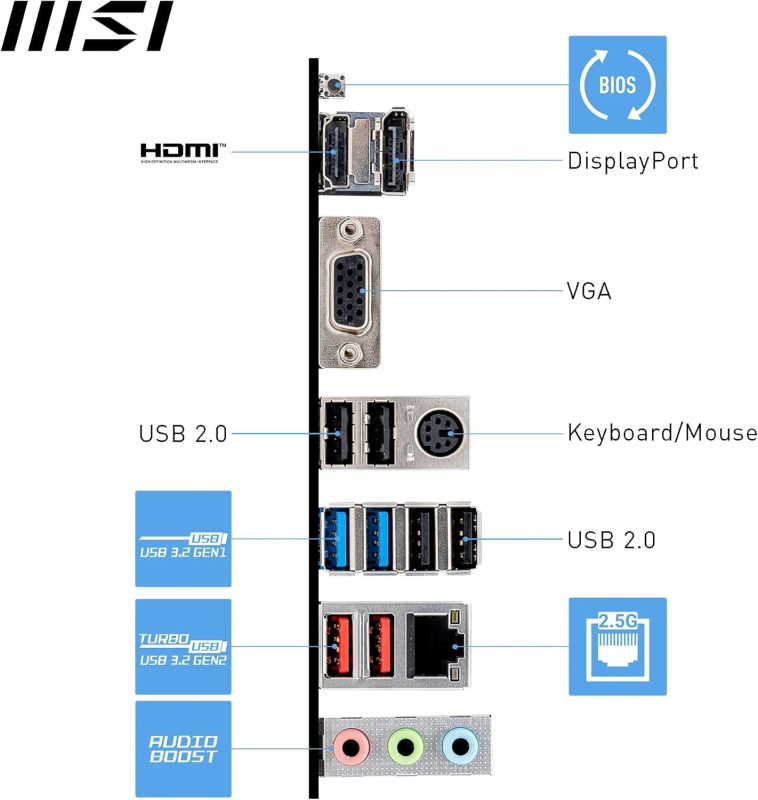

Back Panel IO

1x HDMI™ 2.1 Port, 1x DisplayPort 1.4, 1x VGA Port, 1x Flash BIOS Button, 4x USB 2.0 Type-A, 2x USB 3.2 Gen 1 5Gbps Type-A, 1x USB 3.2 Gen 2 10Gbps Type-A, 1x USB 3.2 Gen 2 10Gbps Type-C, 1x 2.5G LAN Port, 3x Audio Jacks

Onboard USB Headers: 1x USB 3.2 Gen 1 5Gbps Type-C connector (supports 1 port) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

Units / Cores: N/A

Suggested PSU: N/A

Output: N/A

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 4
Form Factor:: Micro-ATX
Maximum RAM Speed in MHz:: 7200

Where to Buy

Amazon

Pros

Supports latest AMD Ryzen 7000 series processors on AM5 socket
DDR5 memory with EXPO support up to 7200MHz (OC)
Dual M.2 slots with PCIe 4.0 x4 for fast NVMe SSDs
2.5G LAN for high-speed networking
Multiple display outputs (HDMI, DP, VGA) for flexible setups

Cons

No built-in Wi-Fi or Bluetooth
Only two PCIe x1 slots for expansion
Limited USB ports on back panel compared to ATX boards

Frequently Asked Questions

Does the MSI PRO B650M-P V1 support AMD Ryzen 5000 series CPUs?

No, this motherboard uses the AM5 socket, which is only compatible with AMD Ryzen 7000 series processors and newer. It does not support AM4 CPUs like Ryzen 5000.

Can I use ECC memory with this motherboard?

Yes, the MSI PRO B650M-P V1 supports both ECC and non-ECC unbuffered DDR5 memory. However, ECC functionality depends on the CPU and BIOS support.

Does the motherboard have built-in Wi-Fi?

No, the MSI PRO B650M-P V1 does not include built-in Wi-Fi or Bluetooth. You can add a wireless adapter via PCIe or USB if needed.

What is the maximum memory speed supported?

The motherboard supports DDR5 memory speeds up to 7200MHz (OC) when using AMD EXPO profiles. Without overclocking, it runs at standard JEDEC speeds.

How many M.2 slots are available and what speeds do they support?

There are two M.2 slots, both supporting PCIe 4.0 x4. One is connected to the CPU and the other to the chipset, providing fast storage options.
