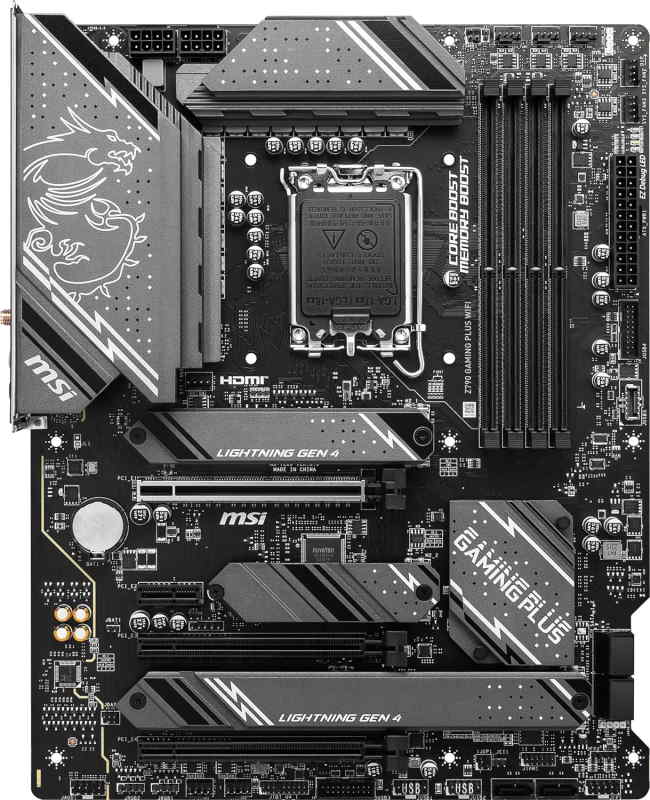

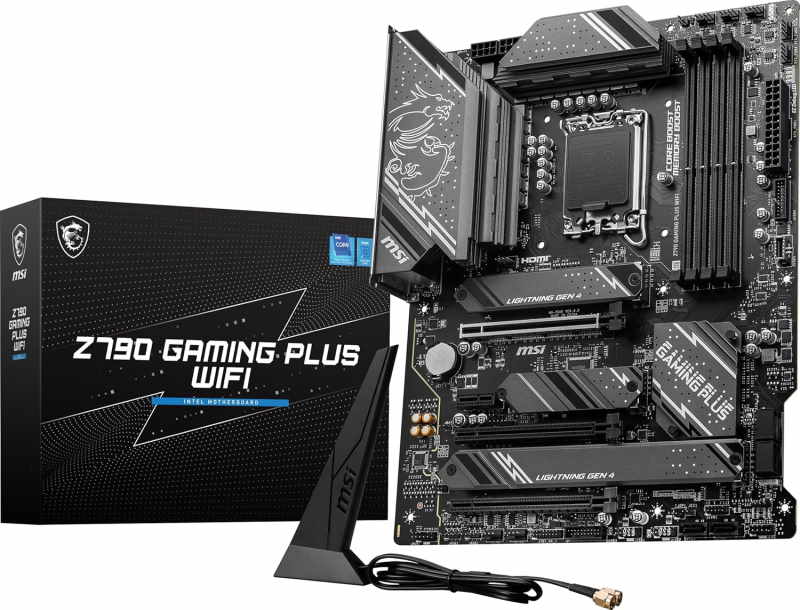

msi Z790 Gaming Plus WiFi-AMZ LGA 1700

Motherboard • msi • $ 126.56

Add to PC Build Add to Amazon Cart Compare

Unleash Your Gaming Potential with the MSI Z790 Gaming Plus WiFi-AMZ

The MSI Z790 Gaming Plus WiFi-AMZ is a feature-packed ATX motherboard designed for Intel's 12th, 13th, and 14th generation Core processors on the LGA 1700 socket. Built on the Intel Z790 chipset, it delivers the perfect balance of performance, connectivity, and value for gamers and PC enthusiasts who demand high frame rates and seamless multitasking.

Key Features and Performance

Next-Gen Memory: Supports DDR5 memory up to 7200+ MHz (OC) with Intel XMP 3.0, ensuring lightning-fast data access and responsiveness.
PCIe 5.0 Ready: The primary PCIe x16 slot runs at PCIe 5.0 x16 from the CPU, providing maximum bandwidth for the latest graphics cards.
Blazing Storage: Four M.2 slots, all supporting PCIe 4.0 x4, offer ultra-fast NVMe SSD options. Two slots also support SATA mode for flexible storage configurations.
Robust Connectivity: Integrated Intel 2.5G LAN and Wi-Fi 6E with Bluetooth 5.3 ensure low-latency networking for online gaming and streaming.
Comprehensive I/O: A rich back panel includes USB 20Gbps Type-C, USB 10Gbps Type-A, HDMI 2.1, DisplayPort 1.4, and more.

Built for Gamers and Creators

Whether you're building a high-end gaming rig, a content creation workstation, or a powerful home server, the MSI Z790 Gaming Plus WiFi-AMZ offers the versatility and reliability you need. With support for RAID 0/1/5/10 on both SATA and M.2 NVMe drives, you can create high-performance storage arrays. The board also features a user-friendly BIOS with MSI's Click BIOS 5, making overclocking and system tuning accessible to all skill levels.

Premium Audio and Aesthetics

The Realtek ALC897 codec delivers crisp 7.1-channel audio, while the board's sleek black design with subtle RGB accents (via Mystic Light) adds a touch of style to any build. The extended heatsinks keep VRMs and M.2 drives cool even under heavy loads, ensuring stable performance during marathon gaming sessions.

Upgrade your PC with the MSI Z790 Gaming Plus WiFi-AMZ and experience the power of Intel's latest processors combined with DDR5 speed and PCIe 5.0 graphics.

Key Specifications

Form Factor: ATX

Socket: LGA 1700

RAM Type: DDR5 7200+(OC) (Dual-Controller Dual-Channel mode, supports Intel® XMP3.0 OC, non-ECC, un-buffered memory)

Max. RAM: 256GB

RAM Slots: 4

Chipset: INTEL Z790

Connectivity

1x PCI-E x16 slot (PCIe 5.0 x16 from CPU), 1x PCI-E x1 slot (PCIe 3.0 x1 from Chipset), 1x PCI-E x16 slot (PCIe 4.0 x4 from Chipset), 1x PCI-E x1 slot (PCIe 3.0 x1 from Chipset), 4x M.2 NVMe slots:, M.2_1 (from CPU) supports up to PCIe 4.0 x4, M.2_2 (from Chipset) supports up to PCIe 4.0 x4, M.2_3 (from Chipset) supports up to PCIe 4.0 x4 / SATA mode, M.2_4 (from Chipset) supports up to PCIe 4.0 x4 / SATA mode, 6x SATA 6G ports, Intel® 2.5Gbps LAN, Intel® Wi-Fi 6E, Bluetooth® 5.3, 1x HDMI™ 2.1 Port (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), Realtek® ALC897 Codec 7.1-Channel High Definition Audio, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

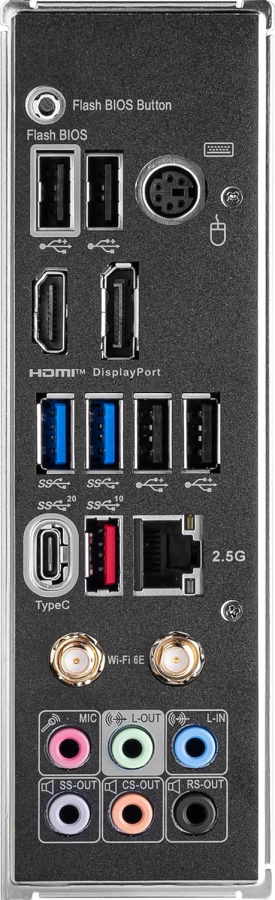

Back Panel IO

Keyboard / Mouse, DisplayPort, 4x USB 2.0, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, Audio Connectors, Flash BIOS Button, HDMI™ 2.1 Port, 2x USB 5Gbps Type A, 1x USB 20Gbps Type C, 1x USB 10Gbps Type A

Onboard USB Headers: 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1700
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 7200

Where to Buy

Amazon

Manufacturer Check site for price

Pros

Supports DDR5 memory up to 7200+ MHz (OC) for high-speed performance
Four M.2 slots with PCIe 4.0 support for extensive NVMe storage
Integrated Wi-Fi 6E and Bluetooth 5.3 for wireless connectivity
PCIe 5.0 x16 slot ready for next-gen graphics cards
Comprehensive back panel I/O including USB 20Gbps Type-C

Cons

Only one PCIe 5.0 slot; other slots are PCIe 3.0/4.0
Audio codec is entry-level Realtek ALC897, not premium
No built-in 10G Ethernet, only 2.5G LAN

Frequently Asked Questions

What CPUs are compatible with the MSI Z790 Gaming Plus WiFi-AMZ?

It supports Intel 12th, 13th, and 14th generation Core processors (LGA 1700 socket).

Does the motherboard support DDR4 memory?

No, it only supports DDR5 memory.

How many M.2 slots does it have and what speeds?

It has four M.2 slots, all supporting PCIe 4.0 x4. Two slots also support SATA mode.

Does it have built-in Wi-Fi?

Yes, it includes Intel Wi-Fi 6E and Bluetooth 5.3.

What is the maximum RAM capacity?

It supports up to 256GB of DDR5 memory across four slots.
