be quiet! Pure Base 501 DX White Mid-Tower ATX Case

be quiet! Pure Base 501 DX White Mid-Tower ATX Case

Case • be quiet! • $ 94.90

Share This Component

Overview

High-Airflow Design with Stunning ARGB

The be quiet! Pure Base 501 DX White is a premium mid-tower ATX case engineered for enthusiasts who demand both performance and aesthetics. Its white exterior, combined with a tempered glass side panel and integrated ARGB lighting, creates a clean, modern look that fits seamlessly into any high-end build. The case features a fine-mesh front panel that ensures unobstructed airflow, keeping your components cool even under heavy loads.

Key Features

  • Superior Cooling: Pre-installed with three 140mm Pure Wings 3 PWM fans, the case delivers exceptional airflow out of the box. It supports up to three 140mm fans at the front, two at the top, and one at the rear, offering extensive customization options.
  • Radiator Support: For liquid cooling enthusiasts, the front can accommodate up to a 360mm radiator, while the top supports up to 240mm, and the rear fits 120/140mm radiators—perfect for high-performance AIO coolers.
  • Modern Connectivity: The front I/O panel includes a USB-C port (10 Gbps), two USB-A ports (USB 3.2 Gen 1), and a combined headphone/mic jack, plus a dedicated ARGB control button for easy lighting customization.
  • Spacious Interior: With support for ATX, Micro-ATX, and Mini-ITX motherboards, the case offers ample room for GPUs up to 368mm, CPU coolers up to 178mm, and power supplies up to 200mm in length.
  • Flexible Storage: Configure drive bays to suit your needs—mount up to two 3.5" HDDs or five 2.5" SSDs, with tool-free installation for quick upgrades.

Built for Enthusiasts and Gamers

Whether you're building a gaming rig, a content creation workstation, or a silent productivity PC, the Pure Base 501 DX White offers the versatility and performance required. Its steel body and ABS panels provide durability, while magnetic dust filters keep the interior clean. The tempered glass side panel showcases your components and RGB lighting, making it a centerpiece of your setup.

Easy Cable Management and Expansion

The case includes seven expansion slots, allowing for multi-GPU configurations or additional PCIe cards. Thoughtful cable routing channels and Velcro straps simplify building, ensuring a clean and tidy interior. The PSU shroud hides unsightly cables and provides a mounting point for additional fans.

With a net weight of just 7.9 kg and dimensions of 450 × 231 × 463 mm, the Pure Base 501 DX White is a compact yet spacious mid-tower that fits easily on or under a desk. Its white finish and ARGB lighting make it a standout choice for those who value both form and function.

Key Specifications

Motherboard Support: ATX, Micro-ATX, Mini-ITX
Type: Mid-Tower / High-Airflow with ARGB / tempered glass window
Total USB Ports (Front I/O): 1X USB-C (10 Gbps, USB 3.2 Gen 2), 2X USB-A (USB 3.2 Gen 1), plus headphone/mic jack & ARGB control button
Weight: ≈ 7.9 kg / 17.4 lbs (net)
Radiator Compatibility: • Front – up to 360 mm radiator • Top – up to 240 mm radiator • Rear – 120 / 140 mm radiator
Drive Bays: 2X 3.5″ + 5X 2.5″ (configurable)
Expansion Slots: 7
Expansion Card Length (GPU): Up to 368 mm (with standard layout)
CPU Cooler Clearance: Up to ~ 178 mm
PSU Support (Length): Up to 200 mm (with HDD cage installed)
Cooling Fan Support: Front – 3X 140 mm Top – 2X 140 mm Rear – 1X 140 mm
Included Fans: 3X 140 mm Pure Wings 3 PWM fans
Chassis Material: Steel body + ABS / plastic panels, tempered glass side panel, mesh / magnetic dust filters

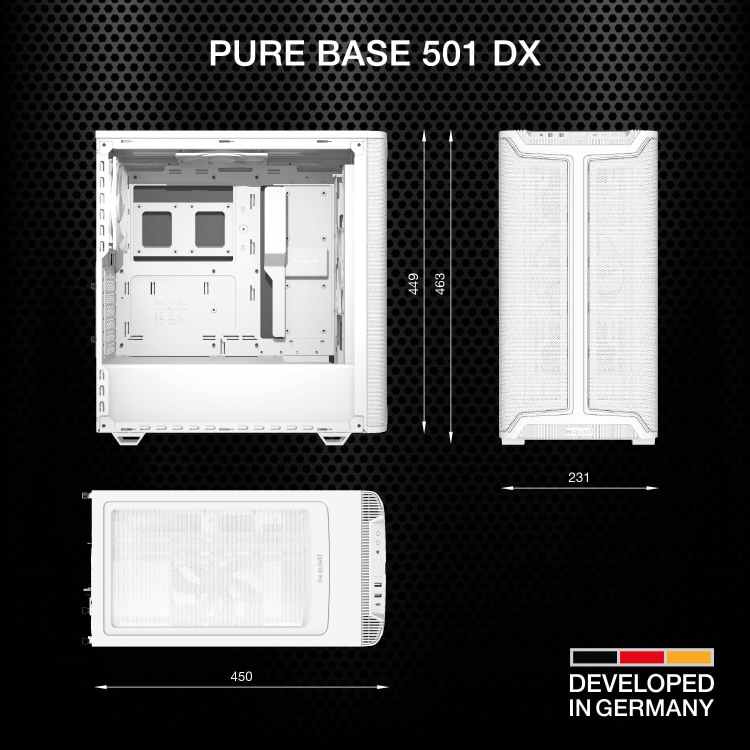

Dimensions (D × W × H): 450 × 231 × 463 mm

Detailed Parameters

Supported Form Factors:
Micro-ATX, ATX, Mini-ITX
Supported PSU Form Factors:
ATX, EPS
Maximum GPU Length in mm:
368
Maximum Cooler Height in mm:
178
Maximum Radiator Length in mm:
360

Where to Buy

Pros

  • Excellent airflow with three pre-installed 140mm Pure Wings 3 PWM fans
  • Supports up to 360mm radiator for high-performance liquid cooling
  • Modern front I/O includes USB-C 10Gbps and ARGB control button
  • Spacious interior fits large GPUs and CPU coolers
  • Clean white design with tempered glass and ARGB lighting

Cons

  • Top radiator support limited to 240mm (not 280mm)
  • No included RGB fans (only ARGB lighting strips)
  • White finish may show dust more easily

Frequently Asked Questions

Does the be quiet! Pure Base 501 DX White include fans?

Yes, it comes with three 140mm Pure Wings 3 PWM fans pre-installed (two front, one rear). These fans offer excellent airflow and quiet operation.

Can I install a 360mm radiator in the front of this case?

Yes, the front panel supports up to a 360mm radiator. However, ensure your GPU length does not exceed 368mm if the radiator is mounted in the front with fans.

What is the maximum GPU length supported?

The maximum GPU length is 368mm with the standard layout. If you install a front radiator, you may need to check clearance, but 368mm is the maximum without obstruction.

Does the case have RGB lighting?

Yes, it features integrated ARGB lighting strips on the front and inside, which can be controlled via the front I/O button or compatible motherboard software.

Is the side panel tempered glass?

Yes, the left side panel is made of tempered glass, allowing you to showcase your components and RGB lighting.
