be quiet! Pure Base 501 LX White Mid-Tower ATX Case

be quiet! Pure Base 501 LX White Mid-Tower ATX Case

Case • be quiet! • $ 119.90

Share This Component

High-Airflow ARGB Mid-Tower Excellence

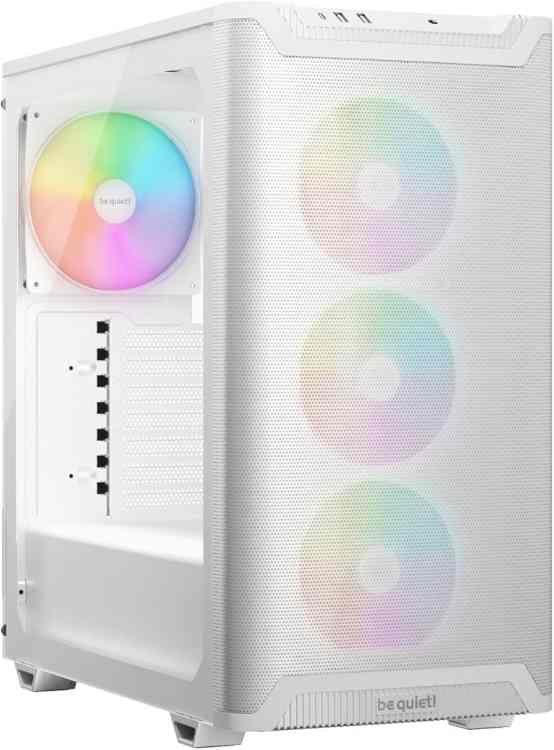

The be quiet! Pure Base 501 LX White is a premium mid-tower ATX case designed for enthusiasts who demand both striking aesthetics and exceptional thermal performance. This white edition features a clean, minimalist exterior with a tempered glass side panel that showcases your build and the vibrant ARGB lighting from the pre-installed fans.

Engineered for Superior Airflow

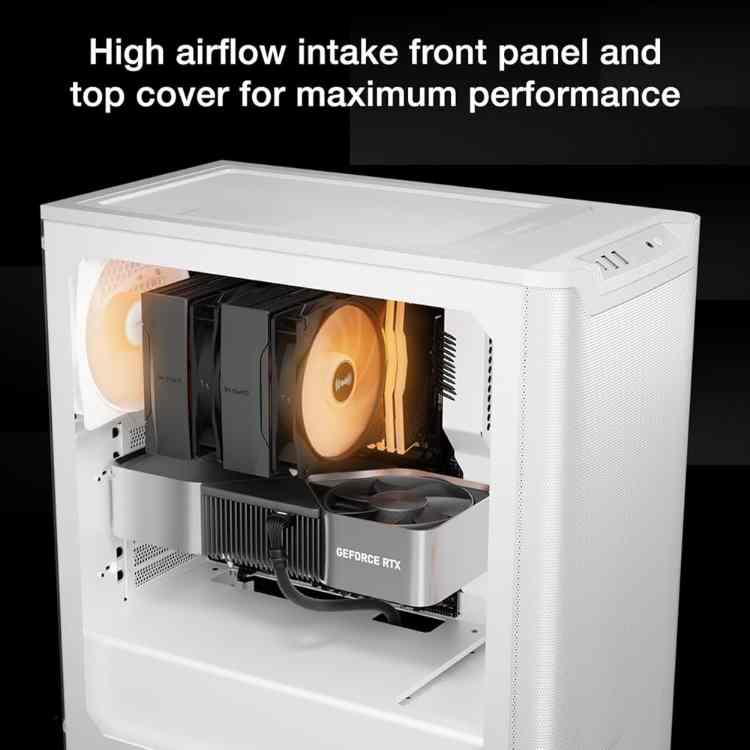

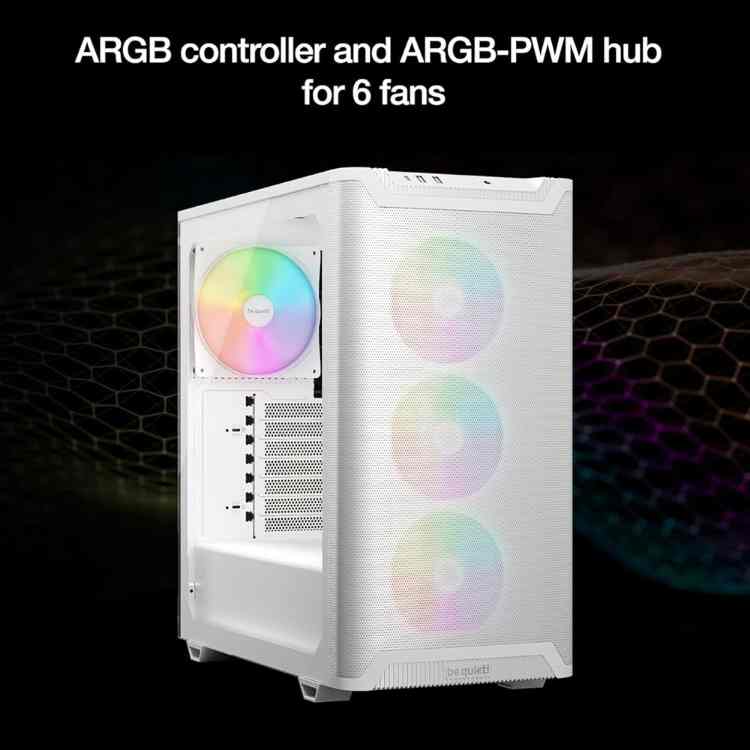

With a focus on high airflow, the Pure Base 501 LX comes equipped with four pre-installed Light Wings LX fans – three 120mm PWM fans at the front and one 140mm PWM fan at the rear. These fans are not only efficient but also feature addressable RGB lighting that can be controlled via the integrated ARGB hub or your motherboard's software. The mesh front panel ensures unobstructed intake, keeping your components cool even under heavy loads.

Versatile Compatibility and Space

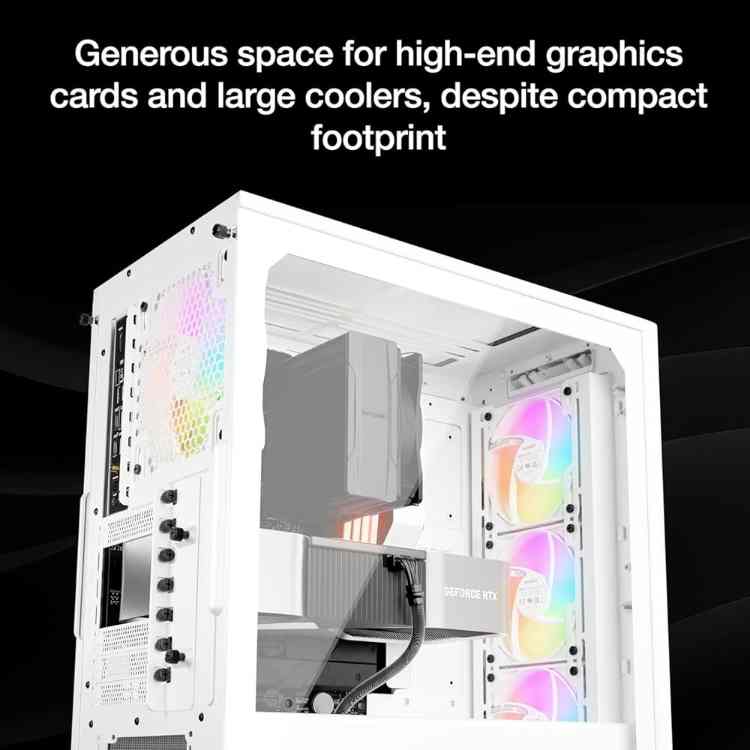

This case supports ATX, Micro-ATX, and Mini-ITX motherboards, offering flexibility for various build configurations. It provides ample room for high-end hardware, with clearance for graphics cards up to 368mm and CPU coolers up to 178mm. For liquid cooling enthusiasts, the case supports radiators up to 360mm in the front and 240mm on top, allowing for powerful custom loops or all-in-one coolers.

Modern Connectivity and Storage Options

The front I/O panel includes a USB 3.2 Gen-2 Type-C port for fast data transfers, along with two USB 3.2 Gen-1 Type-A ports and an audio combo jack. Storage is well catered for with two 3.5-inch drive bays and five 2.5-inch mounting points, ensuring plenty of space for SSDs and HDDs. The case also features seven expansion slots, supporting multi-GPU setups or additional PCIe cards.

Build Quality and Aesthetics

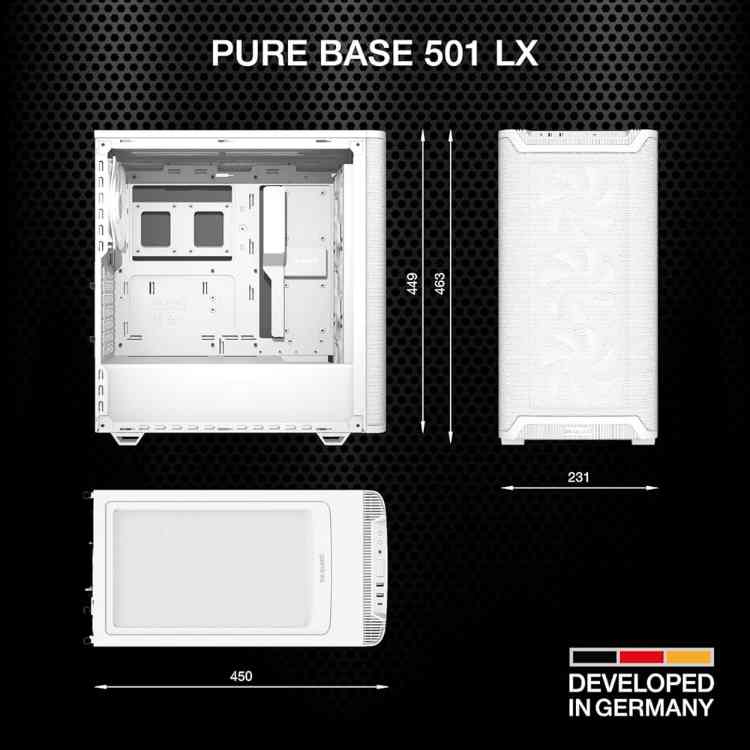

Constructed from durable steel, tempered glass, and ABS plastic, the Pure Base 501 LX is built to last. The white finish is complemented by subtle cable management grommets and a PSU shroud, keeping your build tidy. With dimensions of 450 x 231 x 463mm and a weight of approximately 7.8kg, it strikes a balance between spaciousness and desk-friendly footprint.

Who Is It For?

This case is ideal for gamers, PC builders, and content creators who want a visually stunning, high-performance chassis that doesn't compromise on cooling or features. Whether you're building a high-end gaming rig or a professional workstation, the Pure Base 501 LX White offers the perfect blend of style and substance.

Key Specifications

Form Factor: Mid-Tower
Motherboard Support: ATX / Micro-ATX / Mini-ITX
Type: High-airflow / ARGB variant; comes with pre-installed ARGB fans and hub; tempered glass side panel
Total USB Ports: 1X USB 3.2 Gen-2 Type-C, 2X USB 3.2 Gen-1 Type-A, headphone/mic combo jack
Weight: ≈ 7.8-7.9 kg (net)
Radiator Compatibility: Front – up to 360 mm Top – up to 240 mm Rear – 120 / 140 mm
Drive Bays: 2X 3.5″; 5X 2.5″
Expansion Slots: 7
Expansion Card Length / GPU Clearance: Up to ~ 368 mm (GPU length)
CPU Cooler Clearance: Up to ~ 178-190 mm
PSU Support: ATX PS/2; maximum length ~ 200 mm
Cooling Fan Support: Front – 3X 120 mm or 2X 140 mm Top – 2X 120 mm or 2X 140 mm Rear – 1X 140 mm or 1X 120 mm
Included Fans: 4 pre-installed (3X Light Wings LX 120 mm PWM White front, 1X Light Wings LX 140 mm PWM White rear)
Chassis Material: Steel, tempered glass, ABS plastic components
Dimensions (D×W×H): 450 × 231 × 463 mm (including feet)
Front I/O: 1X USB 3.2 Gen-2 Type-C, 2X USB 3.2 Gen-1 Type-A, audio combo jack, power & reset buttons

Detailed Parameters

Supported Form Factors:
Micro-ATX, ATX, Mini-ITX
Supported PSU Form Factors:
ATX, EPS
Maximum GPU Length in mm:
368
Maximum Cooler Height in mm:
178
Maximum Radiator Length in mm:
360

Where to Buy

Cons

  • CPU cooler clearance of 178mm may limit some of the tallest air coolers
  • Top radiator support limited to 240mm, not suitable for 280mm+
  • No built-in fan controller for non-ARGB fans (requires motherboard or hub)

Frequently Asked Questions

Does the be quiet! Pure Base 501 LX White come with RGB fans?

Yes, it comes with four pre-installed Light Wings LX PWM fans (3x 120mm front, 1x 140mm rear) that feature addressable RGB lighting. They can be controlled via the included ARGB hub or your motherboard's RGB software.

What is the maximum GPU length supported by this case?

The case supports graphics cards up to 368mm in length, which accommodates most high-end GPUs, including the latest RTX 40-series and RX 7000-series models.

Can I install a 360mm radiator in the front of the Pure Base 501 LX?

Yes, the front panel supports radiators up to 360mm. You can mount a 360mm radiator with three 120mm fans, or opt for a 280mm radiator with two 140mm fans.

Does the case include a USB-C port on the front I/O?

Yes, the front I/O panel features one USB 3.2 Gen-2 Type-C port, along with two USB 3.2 Gen-1 Type-A ports and an audio combo jack.
