Fractal Design Meshify C

Fractal Design Meshify C

Case • Fractal Design • $ 128.75

Share This Component

Overview

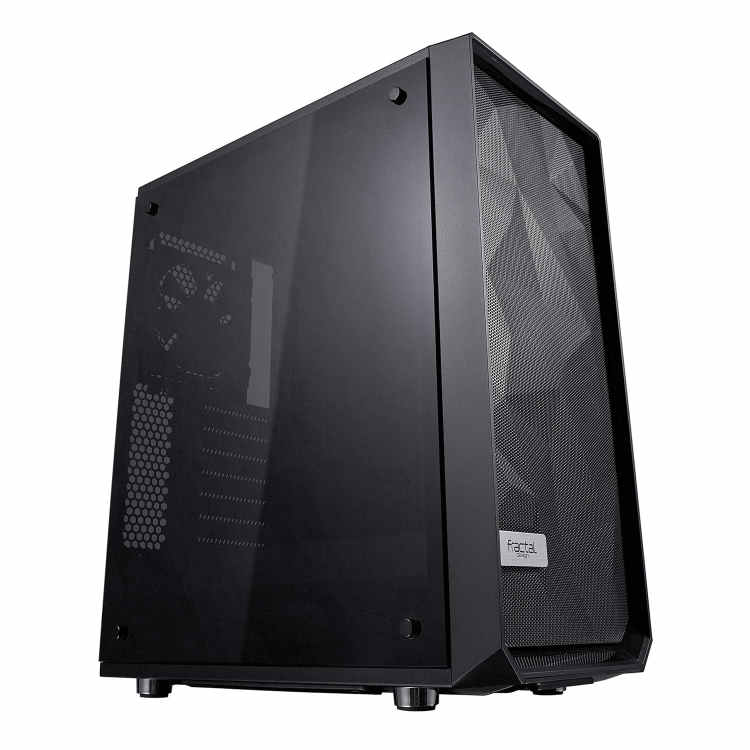

The Fractal Design Meshify C is a high-performance mid-tower case engineered for enthusiasts who demand exceptional airflow without sacrificing a compact footprint. Its distinctive angular mesh front panel not only gives it a bold, stealthy aesthetic but also maximizes intake, ensuring your components stay cool under heavy loads.

Designed for Airflow and Performance

The Meshify C features a fully vented front panel with a fine nylon mesh that filters dust while allowing air to flow freely. This design, combined with the included Dynamic X2 GP-12 fans (one front, one rear), creates a positive pressure environment that efficiently exhausts heat. The case supports up to three 120mm or two 140mm front fans, and radiators up to 360mm in the front, making it an excellent choice for high-end air or liquid cooling setups.

Compact Yet Spacious Interior

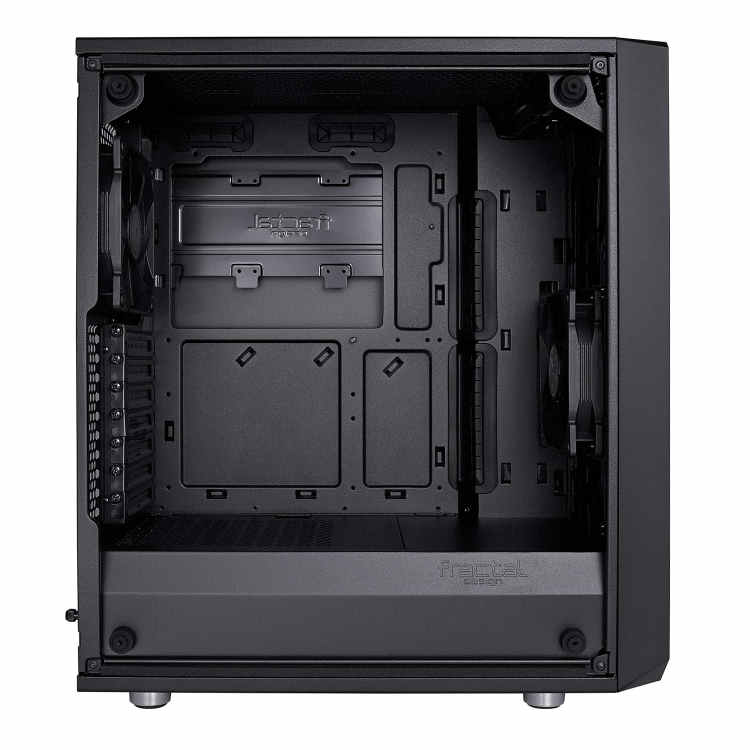

Despite its compact exterior (only 395mm deep), the Meshify C can accommodate graphics cards up to 315mm with front fans installed (335mm without) and CPU coolers up to 170mm tall. The interior is thoughtfully laid out with a PSU shroud that hides cables and drives, promoting a clean, uncluttered build. It supports ATX, Micro-ATX, and Mini-ITX motherboards, giving you flexibility for your preferred platform.

Versatile Storage and Expansion

Storage options include two 3.5-inch drive bays (compatible with 2.5-inch) and three dedicated 2.5-inch mounts, allowing you to configure your system with multiple SSDs and HDDs. The seven expansion slots provide ample room for multi-GPU setups or additional cards, while the rear 120mm fan mount and top 240mm radiator support ensure your system stays cool even during intense gaming or content creation sessions.

Premium Build Quality and Aesthetics

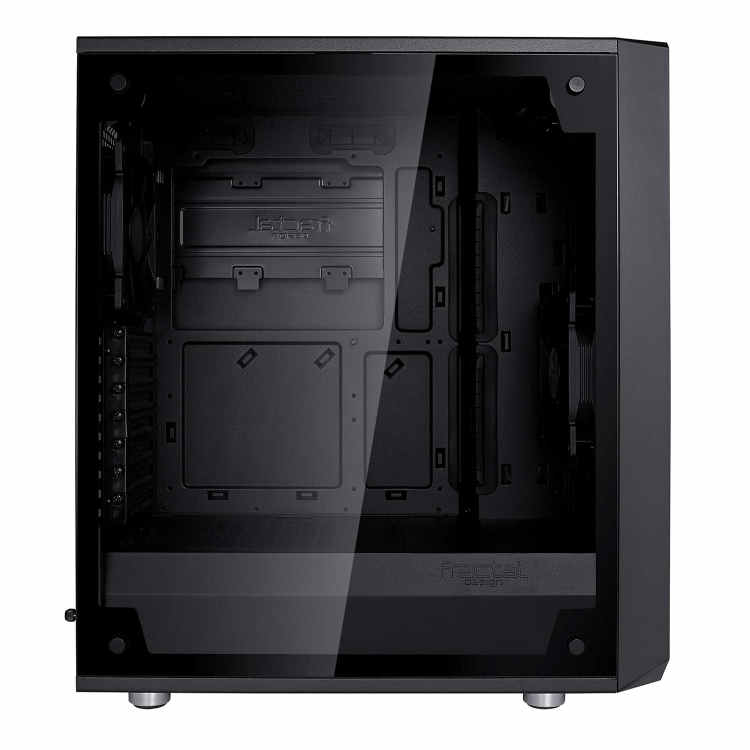

Constructed from steel, tempered glass, and high-quality plastic, the Meshify C feels robust and durable. The tempered glass side panel showcases your components and RGB lighting, while the interior is designed for easy cable management with Velcro straps and routing holes. The front I/O includes two USB 3.0 ports, headphone and mic jacks, and a reset button, providing convenient access.

Who Is It For?

The Fractal Design Meshify C is ideal for PC builders who prioritize airflow and performance in a compact mid-tower. Whether you're assembling a high-end gaming rig with a large GPU and liquid cooler, or a professional workstation requiring multiple drives and expansion cards, this case offers the versatility and cooling headroom to meet your needs. Its sleek, understated design also appeals to those who prefer a minimalist aesthetic without compromising on functionality.

Key Specifications

Motherboard Support: ATX, Micro‑ATX, Mini‑ITX
Type: Mid‑Tower
Total USB Ports: USB 3.0 X2, plus headphone & mic jacks
Weight: 6.5 kg (14.3 lb)
Radiator Compatibility: Front – up to 360 mm; Top – up to 240 mm; Rear – 120 mm
Drive Bays: 2X 3.5″, 3X 2.5″
Expansion Slots: 7
Expansion Card Length: Up to 315 mm with front fans; 335 mm without
CPU Cooler Clearance: Up to 170 mm
PSU Support: Standard ATX PSU, up to 175 mm length with HDD cage
Cooling Fan Support: Front – up to 3X 120 mm or 2X 140 mm; Rear – 1X 120 mm; Top – 2X 120/140 mm; Bottom – 1X 120 mm
Included Fans: 2X Dynamic X2 GP-12 120 mm (1 front, 1 rear)
Chassis Material: Steel, tempered glass, plastic
Dimensions (D×W×H): 395 × 212 × 440 mm (case only); 409 × 217 × 453 mm (w/ feet, screws, and protrusions)
Front I/O: 2X USB 3.0, headphone & mic jacks, Power button, Reset button

Detailed Parameters

Supported Form Factors:
Micro-ATX, Mini-ITX, ATX
Supported PSU Form Factors:
ATX, EPS
Maximum GPU Length in mm:
315
Maximum Cooler Height in mm:
172
Maximum Radiator Length in mm:
360

Where to Buy

Pros

  • Excellent airflow thanks to the mesh front panel
  • Compact mid-tower size with spacious interior
  • Supports large GPUs and CPU coolers
  • Tempered glass side panel showcases components
  • Easy cable management with Velcro straps

Cons

  • Only two USB ports on front I/O (no USB-C)
  • Top radiator support limited to 240mm
  • Included fans are not PWM (only 3-pin)

Frequently Asked Questions

Does the Fractal Design Meshify C support a 360mm radiator?

Yes, the front of the case supports up to a 360mm radiator. However, you may need to remove the HDD cage to accommodate longer radiators, and the GPU length may be limited when a front radiator is installed.

What is the maximum GPU length that fits in the Meshify C?

The maximum GPU length is 315mm with front fans installed, and up to 335mm without front fans. This allows for most high-end graphics cards, but always check your specific GPU dimensions.

Does the Meshify C come with fans included?

Yes, it includes two Dynamic X2 GP-12 120mm fansu2014one mounted at the front and one at the rear. This provides good airflow out of the box, but you can add more fans for enhanced cooling.

Can I install a top radiator in the Meshify C?

Yes, the top supports up to a 240mm radiator (or two 120mm or 140mm fans). However, ensure your RAM and CPU cooler height do not interfere with the radiator/fan installation.
