Lian Li Lancool 205M Mesh Micro-ATX RGB

Case • Lian Li • $ 99.74

Add to PC Build Add to Amazon Cart Compare

Key Features

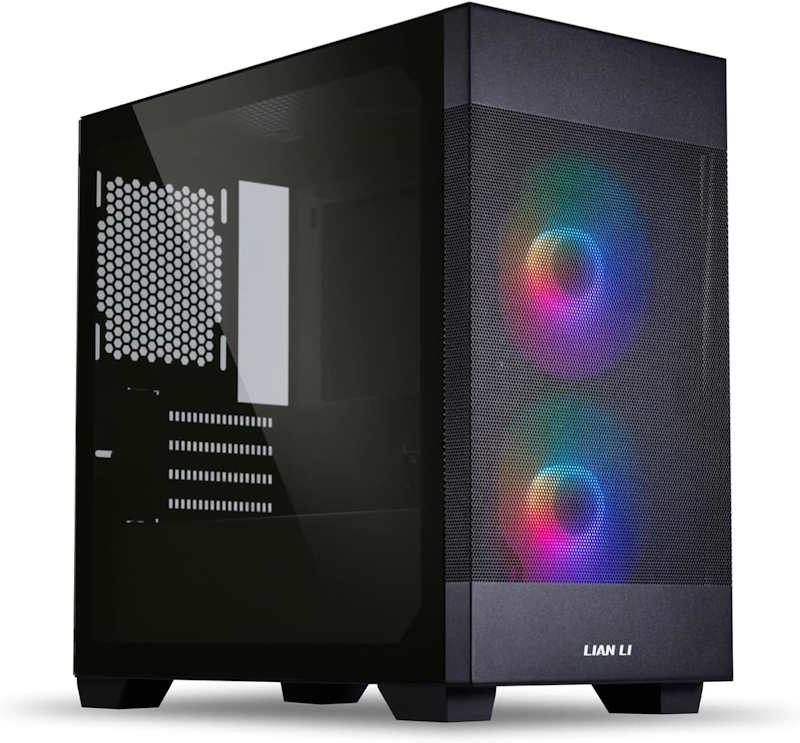

The Lian Li Lancool 205M Mesh Micro-ATX RGB is a compact mid-tower case engineered for high-airflow builds. Its mesh front panel and tempered glass side panel combine striking aesthetics with serious cooling potential. Two pre-installed 120mm ARGB fans at the front deliver vibrant lighting and efficient intake, while the spacious interior accommodates powerful components.

Smart Cooling & Compatibility

With support for up to 240mm radiators at the front and top, plus a rear 120mm fan mount, the 205M Mesh is ready for liquid cooling or air cooling setups. It fits GPUs up to 350mm, CPU coolers up to 160mm, and ATX power supplies up to 180mm, making it ideal for modern gaming rigs.

Build-Friendly Design

The case offers four horizontal expansion slots, two internal drive bays (2x 3.5" or 2x 2.5"), and a front I/O panel with two USB 3.0 Type-A ports and HD audio. Cable management is straightforward thanks to thoughtful routing cutouts and tie-down points.

Who Is It For?

This case is perfect for gamers and enthusiasts building a Micro-ATX or Mini-ITX system who want a balance of compact size, cooling performance, and RGB flair. Whether you're assembling a new rig or upgrading an existing one, the Lancool 205M Mesh delivers a premium experience at an accessible price.

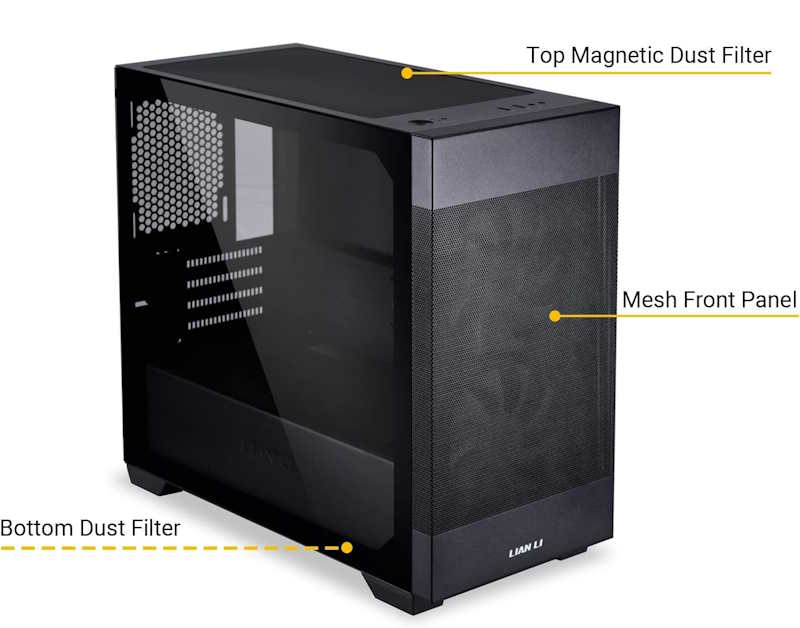

Mesh front panel for unrestricted airflow

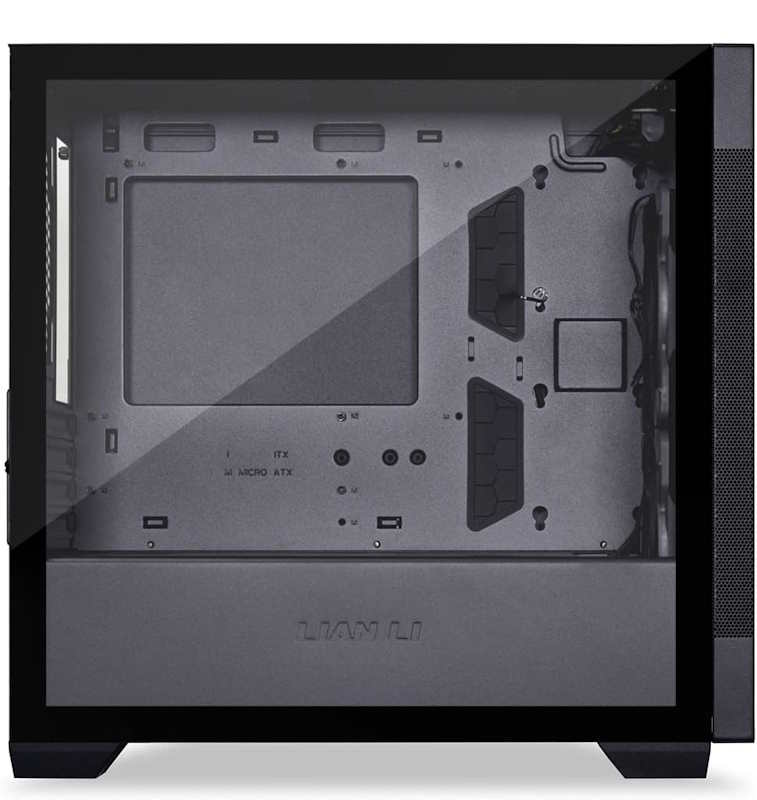

Tempered glass side panel showcases internal hardware
Two 120mm ARGB fans included
Supports up to 240mm radiators (front and top)
Accommodates GPUs up to 350mm and CPU coolers up to 160mm

Key Specifications

Form Factor: Micro-ATX Mid-Tower

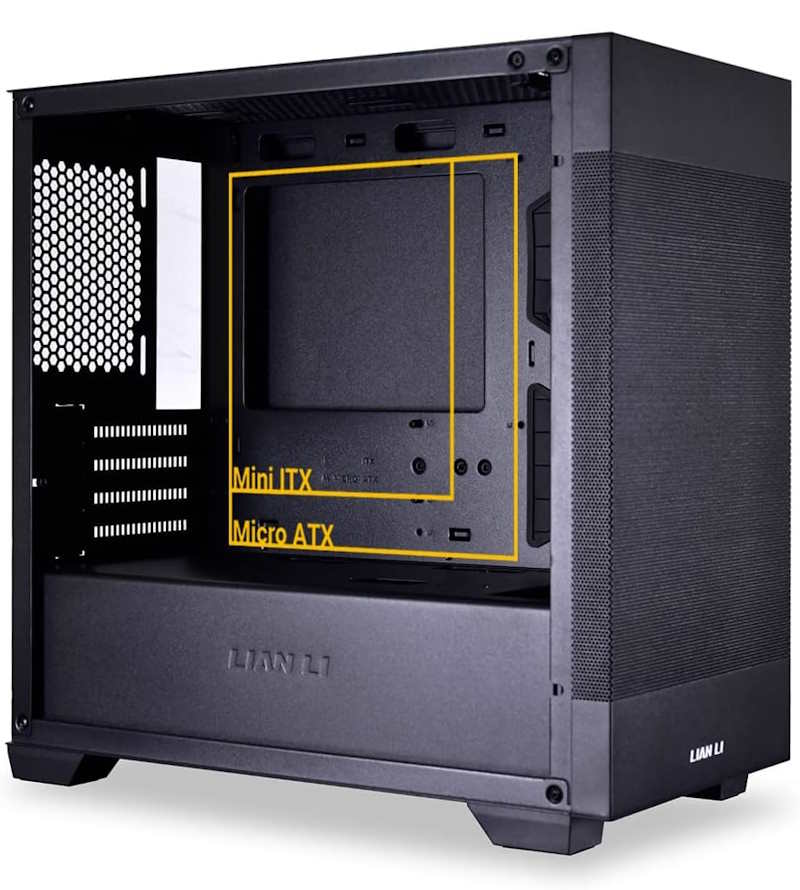

Motherboard Support: Micro-ATX / Mini-ITX

Type: Mesh Front Panel Mid-Tower with Tempered Glass Side Panel

Total USB Ports: 2X USB 3.0 Type-A, 1X HD Audio

Weight: ≈ 6.2 kg (net)

Radiator Compatibility: Front – up to 240mm Top – up to 240mm

Drive Bays: 2X 3.5\" or 2X 2.5\" (internal)

Expansion Slots: 4 horizontal

GPU Clearance: Up to 350mm

CPU Cooler Clearance: Up to 160mm

PSU Support: Up to 180mm length

Cooling Fan Support: Front – 2X 140mm ARGB PWM Fan Rear – 1X 120mm PWM Fan

Included Fans: 2X 120 mm ARGB fans (front)

Chassis Material: Steel, Tempered Glass, Mesh

Dimensions (D×W×H): 402.5 × 210 × 400 mm

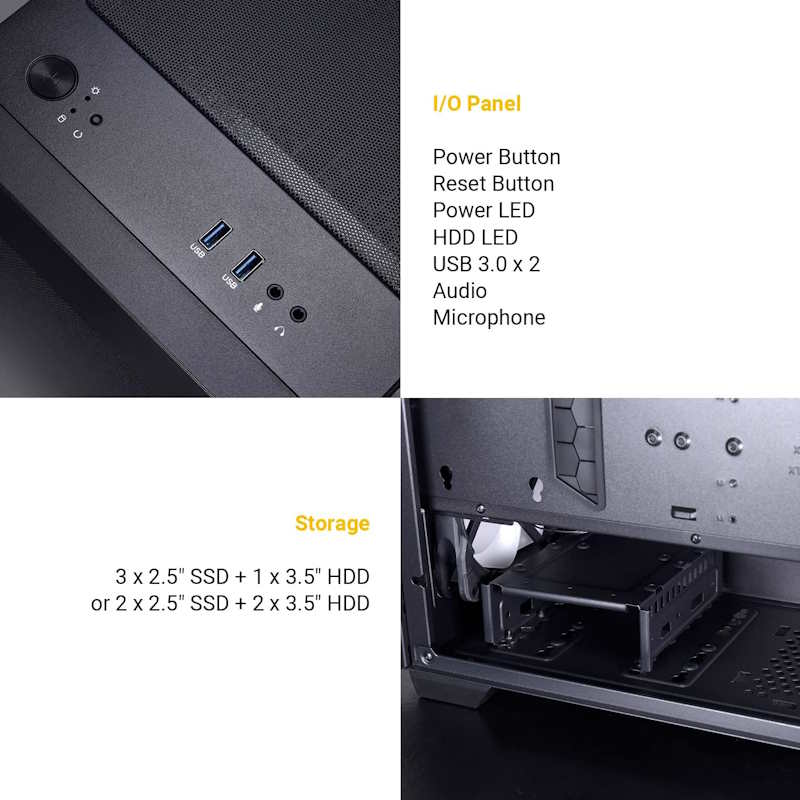

Front I/O: 2X USB 3.0 Type-A, 2X HD Audio, Power Button

Detailed Parameters

Supported Form Factors:: Micro-ATX, Mini-ITX
Supported PSU Form Factors:: ATX
Maximum GPU Length in mm:: 350
Maximum Cooler Height in mm:: 160
Maximum Radiator Length in mm:: 240

Where to Buy

Amazon

Pros

Excellent airflow thanks to mesh front panel
Includes two ARGB fans for vibrant lighting
Tempered glass side panel shows off components
Supports high-end GPUs up to 350mm
Compact Micro-ATX size with flexible cooling options

Cons

Limited to Micro-ATX and Mini-ITX motherboards
Only two USB ports on front I/O
Cable management space could be tight for beginners

Frequently Asked Questions

What is the maximum GPU length supported by the Lian Li Lancool 205M Mesh?

The case supports graphics cards up to 350mm in length, accommodating most high-end GPUs.

Can I install a 240mm radiator in this case?

Yes, you can mount a 240mm radiator at the front or top of the case.

Does the case come with RGB fans?

Yes, it includes two 120mm ARGB fans pre-installed at the front.

What motherboard sizes are compatible?

The case supports Micro-ATX and Mini-ITX motherboards.

What is the maximum CPU cooler height?

CPU coolers up to 160mm tall are supported.
