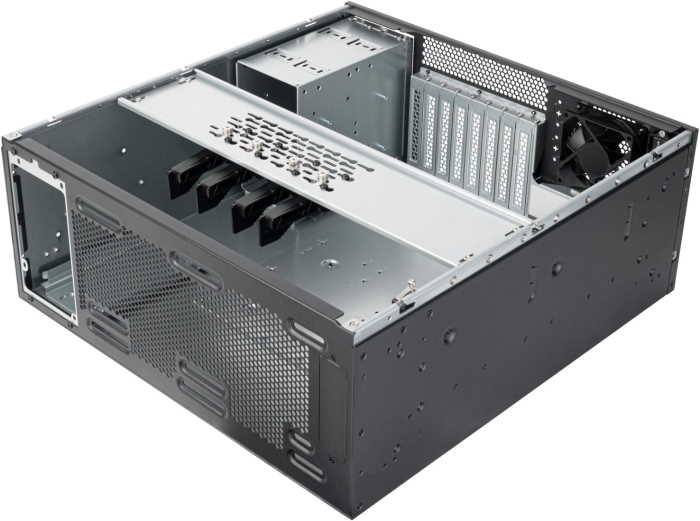

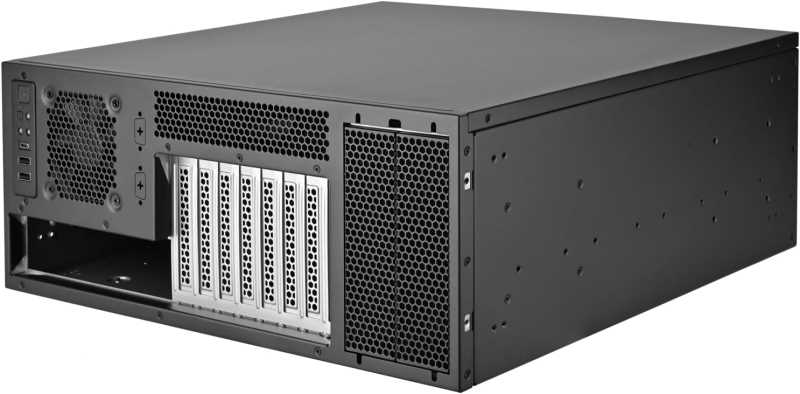

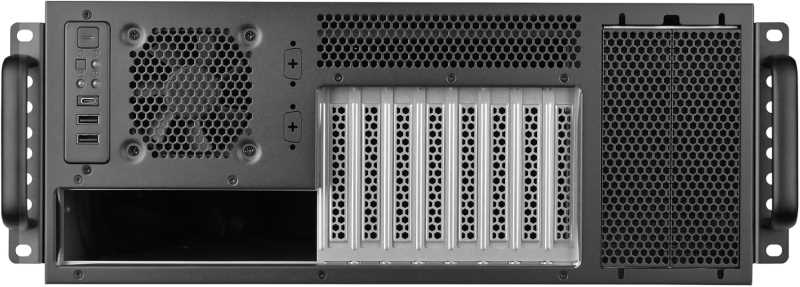

SilverStone Technology RM46-502-I 4U Interchangeable Rackmount Chassis
Overview
Overview
The SilverStone Technology RM46-502-I is a versatile 4U rackmount chassis engineered for professionals who demand flexibility and performance. Its interchangeable front and rear panels allow you to customize I/O, drive bays, and PSU mounting to suit your specific server or workstation needs. Supporting motherboards up to SSI-EEB and E-ATX, this chassis accommodates high-end components while maintaining excellent airflow and cooling.
Key Features
- Interchangeable Front/Rear Design: Swap the front panel I/O, 5.25” drive bay, PSU mounts, and rackmount handles between front and rear to optimize cable management and accessibility.
- Broad Motherboard Support: Compatible with Flex-ATX, Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-CEB, and SSI-EEB boards, making it ideal for dual-socket servers or high-end workstations.
- Excellent Cooling Options: Supports up to two 160mm fans or a single 280mm radiator, ensuring efficient heat dissipation for demanding CPUs and GPUs.
- Ample Expansion: Eight standard-height expansion slots accommodate full-size GPUs up to 437mm in length, perfect for multi-GPU setups or professional accelerators.
- Tool-less Rail Mounting: Pre-drilled holes allow quick installation of sliding rails (sold separately), simplifying rack deployment.
- Modern Front I/O: Includes two USB 3.0 ports and one USB Type-C port for fast data transfer and connectivity.
Performance and Cooling
With support for high-TDP processors and multiple GPUs, the RM46-502-I ensures stable operation under heavy loads. The chassis can house a 280mm radiator or dual 160mm fans, providing ample airflow to keep temperatures in check. The internal layout is optimized for clean cable routing, reducing airflow obstruction and improving overall thermal performance.
Build Quality and Design
Constructed from robust steel, this full-tower chassis weighs 36.6 lbs, offering durability and stability in rack environments. The interchangeable panels are a standout feature, allowing you to reconfigure the chassis as your needs evolve. Whether you're building a network server, a storage array, or a rendering workstation, the RM46-502-I adapts to your requirements.
Target Audience
This chassis is perfect for IT professionals, system integrators, and enthusiasts who need a reliable, flexible rackmount solution for data centers, labs, or home server rooms. Its support for enterprise-grade motherboards and power supplies (including CRPS and 2U) makes it a future-proof investment.
Conclusion
The SilverStone RM46-502-I 4U interchangeable rackmount chassis combines versatility, durability, and performance in a single package. Its unique design and broad compatibility make it an excellent choice for anyone building a high-performance server or workstation in a rack form factor.
Key Specifications
Detailed Parameters
- Supported Form Factors:
- E-ATX, ATX, Micro-ATX, Mini-ITX, Flex-ATX, EEB, CEB
- Supported PSU Form Factors:
- ATX, SFX, SFX-L, 2U, CRPS
- Maximum GPU Length in mm:
- 437
- Maximum Cooler Height in mm:
- 138
- Maximum Radiator Length in mm:
- 280
Pros
- Interchangeable front/rear panels offer unmatched flexibility
- Supports large E-ATX and SSI-EEB motherboards
- Accommodates GPUs up to 437mm and 280mm radiators
- Multiple PSU form factors including CRPS and 2U
- Pre-drilled holes for quick rail installation
Cons
- Heavy at 36.6 lbs, may require two people to install
- CPU cooler height limited to 138mm, restricting some air coolers
- Rails and handles sold separately
