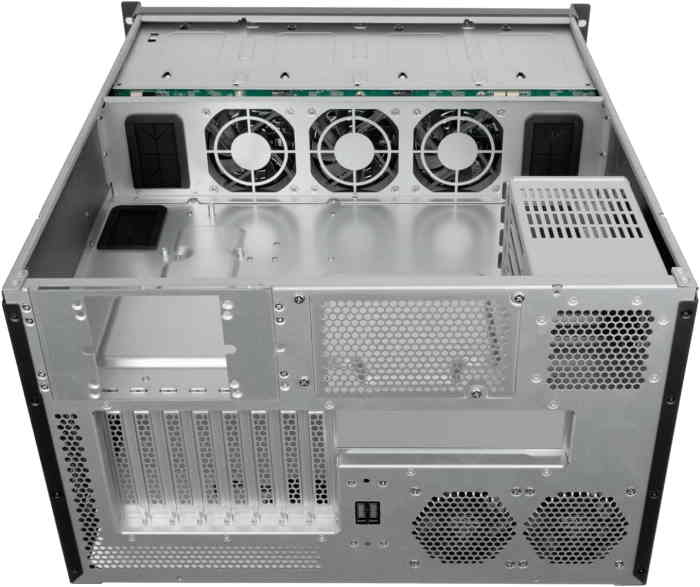

SilverStone Technology RM61-312 6U 12-Bay Rackmount Chassis
Overview
Overview
The SilverStone Technology RM61-312 is a premium 6U rackmount chassis engineered for high-density storage and demanding server environments. With 12 hot-swappable 2.5-inch or 3.5-inch drive bays and support for dual power supplies, this chassis delivers exceptional flexibility and reliability for enterprise data centers, media production studios, and homelab enthusiasts.
Key Features
- 12 Hot-Swap Bays: Tool-less drive trays with integrated backplane supporting SAS/SATA up to 12 Gb/s, enabling rapid drive replacement and RAID configurations.
- Dual PSU Support: Accommodates ATX, CRPS, or 2U power supplies for redundant power setups, ensuring maximum uptime.
- Broad Motherboard Compatibility: Supports E-ATX, SSI-EEB, SSI CEB, ATX, Micro-ATX, and Mini-ITX boards, making it versatile for various builds.
- Excellent Cooling: Supports up to three 360mm radiators or multiple fans, providing superior thermal management for high-performance components.
- Security and Convenience: Removable front door with lock, tool-less drive trays, and support for upright or horizontal orientation.
- Expansion Capability: Up to 8 expansion slots for GPUs, RAID controllers, or other add-in cards.
Performance and Use Cases
The RM61-312 is ideal for network-attached storage (NAS), virtualization servers, video editing workstations, and data backup systems. Its robust construction and hot-swap capabilities make it a favorite among IT professionals who require 24/7 operation and easy maintenance. The chassis supports GPUs up to 340mm in length and CPU coolers up to 150mm, accommodating powerful processors and graphics cards for compute-intensive tasks.
Build Quality and Design
Constructed with heavy-duty steel, the RM61-312 weighs 46.6 lbs, ensuring stability in rack environments. The front door with security lock protects drives from unauthorized access, while the tool-less design simplifies installation. The chassis can be mounted in either orientation, offering flexibility in rack layouts.
Conclusion
Whether you're building a high-capacity storage server or a powerful workstation, the SilverStone RM61-312 delivers the features, durability, and performance needed for professional environments. Its combination of hot-swap bays, dual PSU support, and extensive cooling options makes it a top-tier choice.
Key Specifications
Detailed Parameters
- Supported Form Factors:
- E-ATX, ATX, Micro-ATX, Mini-ITX, Flex-ATX, EEB, CEB
- Supported PSU Form Factors:
- ATX, CRPS, 2U
- Maximum GPU Length in mm:
- 340
- Maximum Cooler Height in mm:
- 150
- Maximum Radiator Length in mm:
- 360
Pros
- 12 hot-swap bays with 12Gb/s backplane for easy drive management
- Dual PSU support for redundant power configurations
- Broad motherboard compatibility including SSI-EEB and E-ATX
- Supports up to three 360mm radiators for excellent cooling
- Removable front door with lock for security
Cons
- Heavy at 46.6 lbs, may require two people for installation
- Large 6U size may not suit small home offices
- Limited CPU cooler height (150mm) may restrict some air coolers
