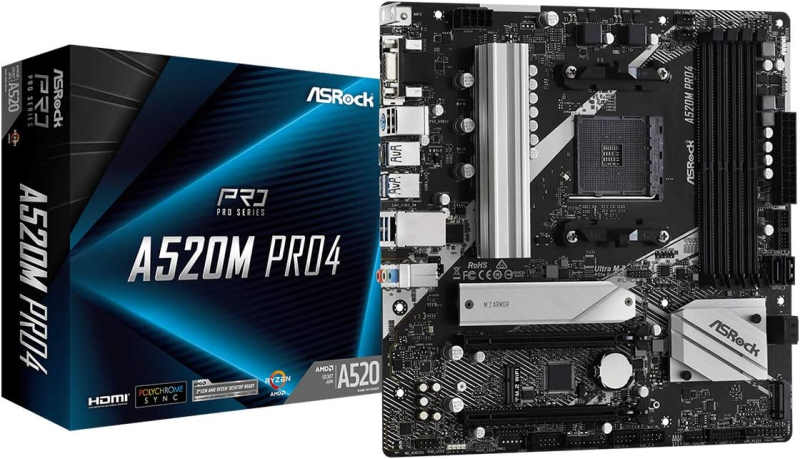

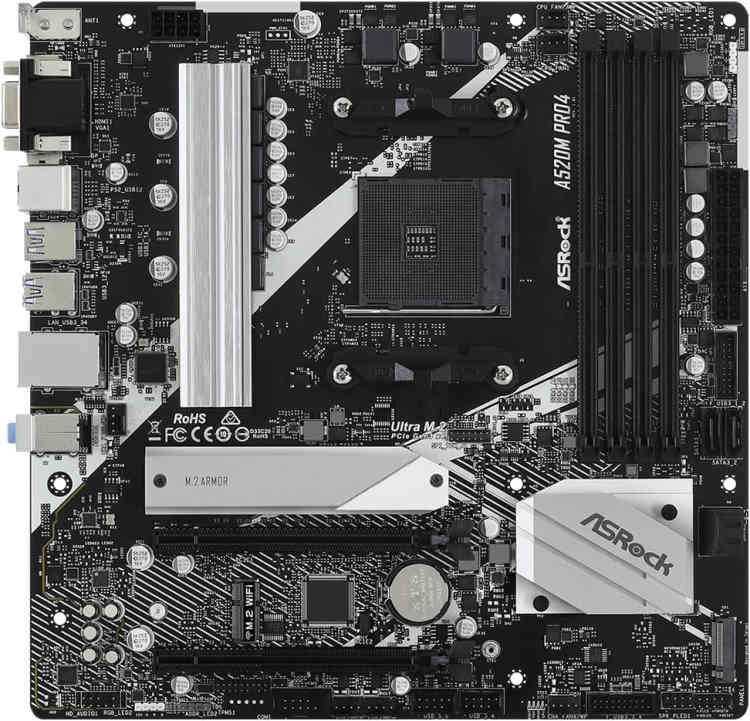

ASRock A520M Pro4
Unlock the Potential of Your AMD Ryzen Processor
The ASRock A520M Pro4 is a feature-packed Micro-ATX motherboard designed for AMD AM4 processors, including the latest Ryzen 5000 series. Whether you're building a budget gaming rig, a productivity workstation, or a home theater PC, this board offers a solid foundation with modern connectivity and robust performance.
Key Features and Performance
- AMD A520 Chipset: Optimized for 3rd Gen and newer AMD Ryzen processors, providing a stable and efficient platform.
- DDR4 Memory Support: Four DIMM slots support up to 128GB of DDR4 RAM, with overclocking speeds up to 4733+ MHz (depending on CPU and memory). XMP profiles are supported for easy one-click overclocking.
- Dual M.2 Slots: One Ultra M.2 slot runs at PCIe 3.0 x4 for blazing-fast NVMe SSDs, while the second M.2 slot supports PCIe 3.0 x2 or SATA mode, giving you flexible storage options.
- PCIe 3.0 Slots: A reinforced PCIe 3.0 x16 slot (from CPU) for your graphics card, plus an additional PCIe 3.0 x16 slot (from chipset, x2 mode) for expansion cards.
- Comprehensive Connectivity: Includes 4 SATA 6Gb/s ports, Realtek 1GbE LAN, and 7.1-Channel HD Audio with the Realtek ALC1200 codec for immersive sound.

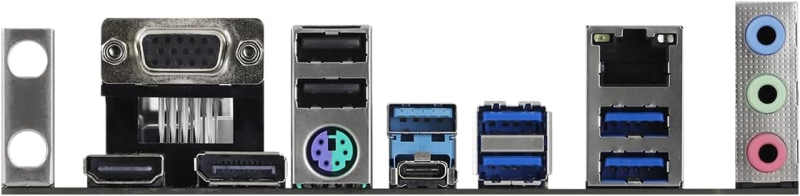

- Rich Back Panel I/O: Features a PS/2 combo port, VGA, HDMI, DisplayPort 1.4, USB-C (USB 3.2 Gen1), multiple USB 3.2 Gen1 Type-A ports, USB 2.0 ports, and audio jacks.
Who Is It For?
The ASRock A520M Pro4 is perfect for budget-conscious builders who want to use AMD Ryzen processors without sacrificing essential features. It's an excellent choice for entry-level gaming PCs, office builds, and media centers. With support for up to 128GB of RAM and dual M.2 storage, it can handle multitasking and content creation tasks with ease.
Build Quality and Design
ASRock's Pro4 series is known for its reliable components and clean aesthetics. The board features a sleek black and white design with subtle RGB accents (via headers) to complement any build. The reinforced PCIe slot ensures your graphics card stays secure, and the M.2 heatsink (on the Ultra M.2 slot) helps keep your NVMe SSD cool under load.
Conclusion
If you're looking for an affordable AM4 motherboard that doesn't compromise on essential features, the ASRock A520M Pro4 is a smart pick. It offers a great balance of performance, connectivity, and value, making it a top contender in the budget motherboard segment.
Key Specifications
Detailed Parameters
- Platform:
- AMD
- Socket:
- AM4
- RAM Type:
- DDR4
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 32
- Maximum RAM Capacity in GB:
- 128
- PCI Express Version:
- 3
- Form Factor:
- Micro-ATX
- Maximum RAM Speed in MHz:
- 4733
- ECC:
- No
- Chipset:
- A520
- SupportedPlatforms:
- AMD Consumer
Pros
- Supports AMD Ryzen 5000 series out of the box
- Dual M.2 slots for flexible storage options
- Four DIMM slots allow up to 128GB DDR4
- Rich back panel I/O including USB-C and DisplayPort
- Budget-friendly price point
Cons
- No PCIe 4.0 support (limited to PCIe 3.0)
- No onboard Wi-Fi or Bluetooth
- Second PCIe x16 slot runs at x2 mode only
