ASRock B650 PG Lightning

Motherboard • ASRock • $ 124.19

Add to PC Build Add to Amazon Cart Compare

Overview

Unleash Your AMD Ryzen 7000 with the ASRock B650 PG Lightning

The ASRock B650 PG Lightning is a feature-packed ATX motherboard designed for AMD's AM5 platform, offering an exceptional balance of performance, connectivity, and value. Whether you're building a high-end gaming rig, a content creation workstation, or a future-proof productivity system, this motherboard provides the foundation you need to get the most out of your AMD Ryzen 7000 series processor.

Key Features and Performance

At the heart of the B650 PG Lightning is support for the latest DDR5 memory, with speeds up to an impressive 7200+ MT/s (OC). With four DIMM slots and a maximum capacity of 192GB, you can enjoy blazing-fast memory bandwidth for gaming, multitasking, and memory-intensive applications. The board also supports AMD EXPO and Intel XMP profiles for easy one-click overclocking.

Storage is a breeze with four M.2 slots, including one blazing-fast PCIe 5.0 x4 slot for next-generation NVMe SSDs, delivering sequential read speeds of up to 12,000 MB/s. Additional PCIe 4.0 M.2 slots and four SATA 6Gb/s ports provide ample room for all your drives, with RAID 0/1/10 support for data redundancy or performance.

Connectivity is comprehensive: a 2.5GbE LAN port (Dragon RTL8125BG) ensures low-latency networking for online gaming and large file transfers, while Wi-Fi 6E and Bluetooth 5.3 (via M.2 module) offer wireless flexibility. The rear I/O panel includes a USB 3.2 Gen 2x2 Type-C port (20Gbps), multiple USB 3.2 Gen 1 and USB 2.0 ports, HDMI 2.1 for integrated graphics, and a BIOS Flashback button for easy firmware updates.

Built for Gamers and Creators

With PCIe 4.0 x16 slots (one running at x16 from the CPU, another at x2 from the chipset), you can install the latest graphics cards and expansion cards. The board also features 7.1-channel HD audio with Nahimic audio enhancement, delivering immersive sound for gaming and entertainment.

The ASRock B650 PG Lightning is an ideal choice for gamers seeking a reliable, high-performance motherboard without breaking the bank. It's also perfect for content creators who need fast storage and memory, and for PC enthusiasts who want a solid foundation for their AMD build.

Why Choose the ASRock B650 PG Lightning?

AMD AM5 Socket: Supports Ryzen 7000 series processors.
DDR5 Overclocking: Up to 7200+ MT/s with EXPO/XMP.
PCIe 5.0 M.2: Blazing-fast storage speeds.
Robust Connectivity: 2.5GbE LAN, Wi-Fi 6E, USB 3.2 Gen 2x2.
Easy BIOS Flashback: Update without CPU or RAM.

Upgrade your build with the ASRock B650 PG Lightning and experience the power of AMD's latest platform.

Key Specifications

Form Factor: ATX

Socket: AM5

RAM Type: DDR5 (dual‑channel, EXPO/XMP supported, up to 7200+ MT/s OC)

Max. RAM: 192GB

RAM Slots: 4

Chipset: AMD B650

Connectivity

1X PCI Express 5.0 x4 M.2 (Blazing M.2) + multiple PCIe 4.0 lanes;, – 1X PCIe 4.0 x16 (CPU), – 1X PCIe 4.0 x16 (x2 chipset), 2X PCIe 4.0 x1, 4X M.2 slots: 1× PCIe Gen5 x4, 1× PCIe Gen4 x4, 1× PCIe Gen4 x2, 1× M.2 Key‑E, 4X SATA 6 Gb/s, RAID 0/1/10 support, 2.5 GbE LAN (Dragon RTL8125BG), Wi‑Fi 6E & Bluetooth 5.3 via M.2 module (antenna connectors onboard), 7.1‑Channel HD Audio (Realtek ALC897 with Nahimic)

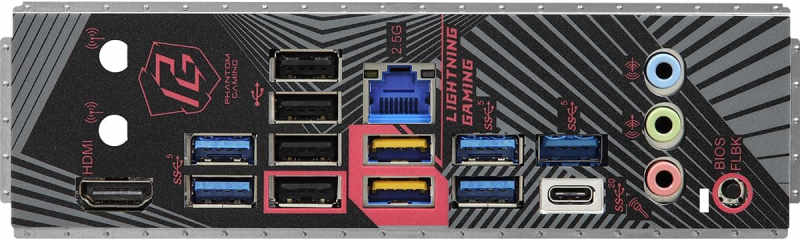

Back Panel IO

1X HDMI 2.1, 1X USB 3.2 Gen 2×2 Type‑C (20 Gbps), 1X USB 3.2 Gen 2 Type‑C (front header), 7X USB 3.2 Gen 1 Type‑A, 4X USB 2.0 Type‑A, 2X Wi‑Fi antenna connectors, 1X RJ45 2.5 GbE LAN, 3X analog audio jacks + Optical S/PDIF‑OUT, 1X BIOS Flashback Button

Onboard USB Headers: 1X USB 3.2 Gen 2 Type‑C front‑panel header 1X USB 3.2 Gen 1 header (2 ports) 2X USB 2.0 headers (4 ports) 1X SPI TPM header

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 48
Maximum RAM Capacity in GB:: 192
PCI Express Version:: 4
Form Factor:: ATX
Maximum RAM Speed in MHz:: 7200

Where to Buy

Amazon

Pros

Excellent DDR5 overclocking support up to 7200+ MT/s
PCIe 5.0 M.2 slot for ultra-fast storage
Comprehensive connectivity including Wi-Fi 6E and 2.5GbE LAN
BIOS Flashback for easy updates without CPU
Great value for AM5 platform

Cons

Only one PCIe 5.0 M.2 slot (others are PCIe 4.0)
Audio codec is basic (ALC897) compared to premium boards
Limited PCIe 4.0 x16 slots (only one full-speed from CPU)

Frequently Asked Questions

Does the ASRock B650 PG Lightning support AMD Ryzen 7000 series processors?

Yes, the ASRock B650 PG Lightning is designed for AMD's AM5 socket and supports all Ryzen 7000 series processors, including the latest X3D models, with a BIOS update if needed.

What is the maximum memory speed supported by the B650 PG Lightning?

The motherboard supports DDR5 memory up to 7200+ MT/s (OC). With AMD EXPO or Intel XMP profiles, you can easily enable high-speed memory settings for optimal performance.

How many M.2 slots does the ASRock B650 PG Lightning have?

It has four M.2 slots: one PCIe 5.0 x4 (Blazing M.2), one PCIe 4.0 x4, one PCIe 4.0 x2, and one M.2 Key-E slot for Wi-Fi modules. This provides ample storage options for NVMe SSDs.

Does the motherboard come with built-in Wi-Fi?

The ASRock B650 PG Lightning includes Wi-Fi 6E and Bluetooth 5.3 support via an M.2 Key-E module. The board has onboard antenna connectors, but the Wi-Fi module may need to be purchased separately or included in the package depending on the retailer.
