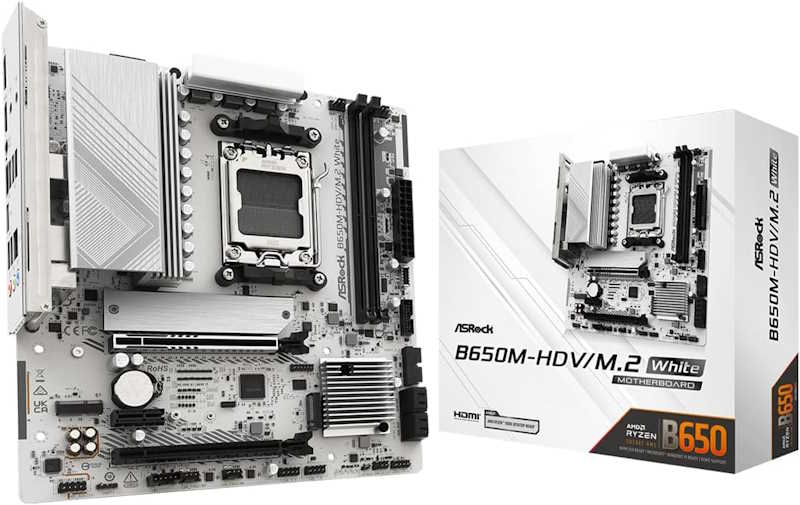

ASRock B650M-HDV/M.2

Motherboard • ASRock • $ 99.99

Add to PC Build Add to Amazon Cart Compare

Key Features of the ASRock B650M-HDV/M.2

The ASRock B650M-HDV/M.2 is a Micro-ATX motherboard built for AMD's AM5 platform, offering a compelling blend of performance, connectivity, and value. Whether you're building a compact gaming rig or a productivity workstation, this board delivers the essentials without unnecessary frills.

AMD B650 Chipset: Supports AMD Ryzen 7000, 8000, and 9000 series processors.
DDR5 Memory: Two DIMM slots support up to 128GB (64GB per slot) and speeds up to DDR5-7200 (OC) with AMD EXPO and Intel XMP profiles.
PCIe 5.0 M.2: One M.2 Key M slot runs at PCIe 5.0 x4 directly from the CPU, ensuring future-proof storage performance.
Robust Power Delivery: VRM heatsinks and an M.2 heatsink help maintain stable operation under load.
2.5GbE LAN: Realtek RTL8125BG provides fast wired networking.
USB Connectivity: Includes USB 3.2 Gen 2 Type-C and Type-A ports, plus front-panel USB 3.2 Gen 2 Type-C header.
BIOS Flashback: Easily update BIOS without a CPU, memory, or graphics card installed.

Performance and Compatibility

With support for the latest AMD Ryzen processors, the B650M-HDV/M.2 is ready for high-performance computing. The dual-channel DDR5 memory architecture, combined with EXPO/XMP support, allows users to extract maximum memory bandwidth for gaming and content creation. The PCIe 5.0 x16 slot (CPU lane) ensures compatibility with current and next-gen graphics cards, while the additional PCIe 4.0 x4 slot (chipset) provides room for expansion cards.

Connectivity and Expansion

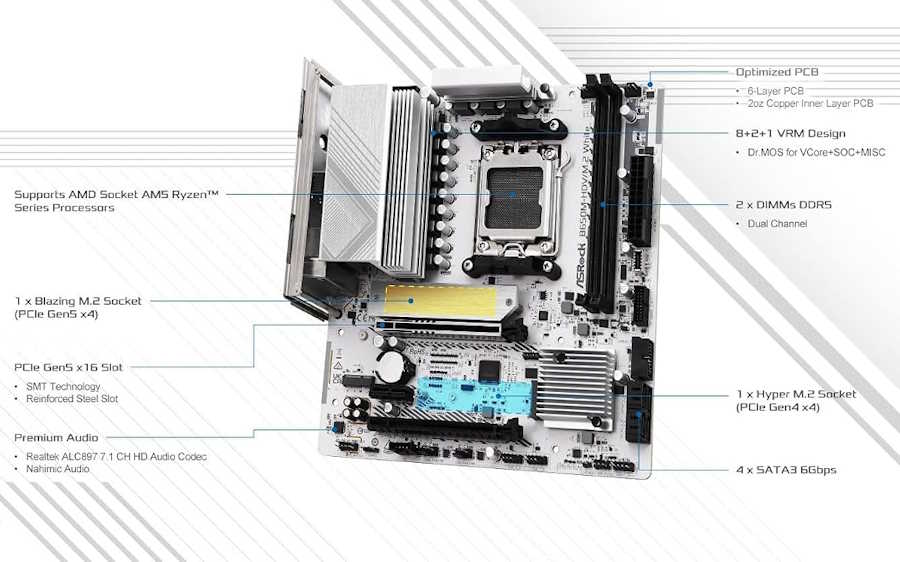

Storage options are plentiful: one PCIe 5.0 x4 M.2 slot, one PCIe 4.0 x4 M.2 slot, and four SATA 6 Gb/s ports. The rear I/O includes HDMI 2.1 and DisplayPort 1.4 for integrated graphics, 2.5GbE LAN, and a total of eight USB ports (including Type-C). Onboard headers add another USB 3.2 Gen 1 header, two USB 2.0 headers, and a USB 3.2 Gen 2 Type-C front-panel header.

Who Is It For?

This motherboard is ideal for budget-conscious builders who don't want to compromise on essential features. It's perfect for small form-factor builds, HTPCs, and general-purpose gaming systems. The inclusion of BIOS Flashback and a pre-mounted I/O shield simplifies the building process.

Why Choose the ASRock B650M-HDV/M.2?

If you're looking for a reliable, no-nonsense AM5 motherboard that covers the basics and then some, the ASRock B650M-HDV/M.2 is a solid choice. It offers PCIe 5.0 storage, DDR5 support, and 2.5GbE networking at an attractive price point.

Key Specifications

Form Factor: Micro-ATX

Socket: AM5

RAM Type: DDR5 7200+ OC (dual-channel, non-ECC unbuffered, AMD EXPO & Intel XMP supported)

Max. RAM: 128GB

RAM Slots: 2

Chipset: AMD B650

Connectivity

1× PCIe 4.0 x16 (CPU lane), 1× PCIe 4.0 x4 (chipset), 1× M.2 Key M (PCIe 5.0 x4, CPU lane), 1× M.2 Key M (PCIe 4.0 x4, chipset), 4× SATA 6 Gb/s ports, 1× 2.5 GbE LAN (Realtek RTL8125BG), Graphics outputs: 1× HDMI 2.1, 1× DisplayPort 1.4, VRM heatsinks, M.2 heatsink

Back Panel IO

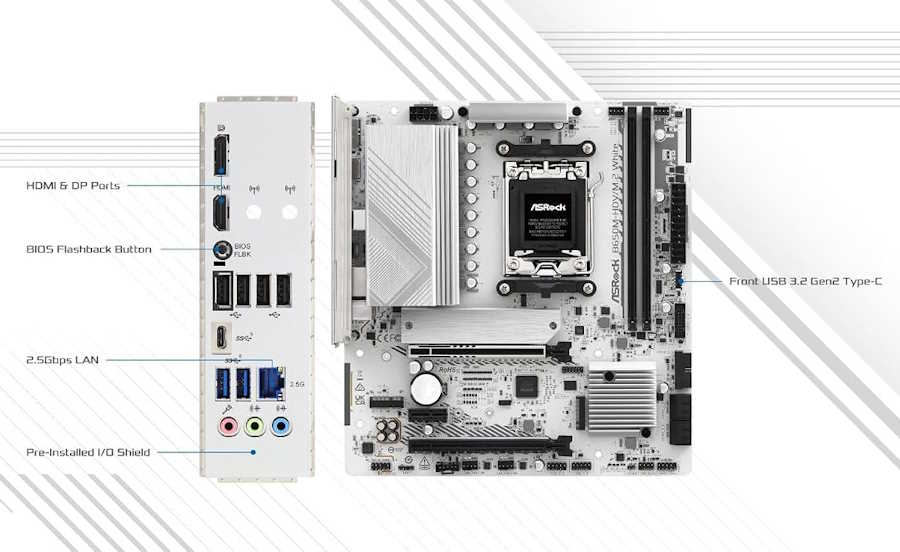

1× USB 3.2 Gen 2 Type-C, 1× USB 3.2 Gen 2 Type-A, 2× USB 3.2 Gen 1 Type-A, 4× USB 2.0 Type-A, 1× HDMI, 1× DisplayPort, 1× 2.5 GbE LAN, 3× audio jacks, 1× BIOS Flashback button

Onboard USB Headers: 1× USB 3.2 Gen 1 header (2 ports) 2× USB 2.0 headers (4 ports total) 1× USB 3.2 Gen 2 Type-C front-panel header

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 2
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 5
Form Factor:: Micro-ATX
Maximum RAM Speed in MHz:: 7200

Where to Buy

Amazon

Pros

Supports PCIe 5.0 M.2 for future-proof storage
DDR5 memory up to 7200 MHz (OC) with EXPO/XMP
2.5GbE LAN for fast networking
BIOS Flashback for easy BIOS updates without CPU
VRM and M.2 heatsinks for thermal management

Cons

Only two RAM slots, limiting maximum memory capacity to 128GB
No Wi-Fi included; requires a separate adapter
Limited PCIe expansion slots (one x16 and one x4)

Frequently Asked Questions

Does the ASRock B650M-HDV/M.2 support AMD Ryzen 9000 series processors?

Yes, with a BIOS update, the motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors. You can use the BIOS Flashback feature to update without a CPU.

What is the maximum memory speed supported?

The board supports DDR5 memory up to 7200 MHz (OC) when using AMD EXPO or Intel XMP profiles. Actual speeds depend on the memory kit and CPU capabilities.

Can I use two M.2 NVMe drives simultaneously?

Yes, there are two M.2 slots: one PCIe 5.0 x4 (CPU) and one PCIe 4.0 x4 (chipset). Both can be populated at the same time.

Does it have built-in Wi-Fi?

No, the ASRock B650M-HDV/M.2 does not include Wi-Fi. You can add a Wi-Fi card via the PCIe x4 slot or use a USB Wi-Fi adapter.

Is there a front-panel USB Type-C header?

Yes, there is one USB 3.2 Gen 2 Type-C front-panel header for connecting a compatible case port.
