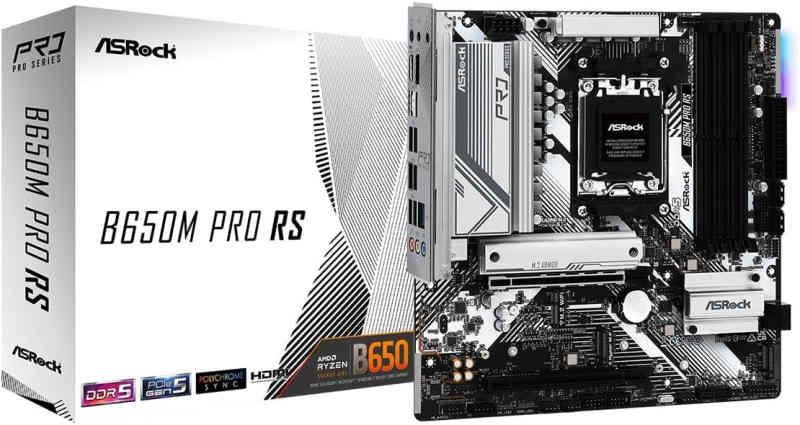

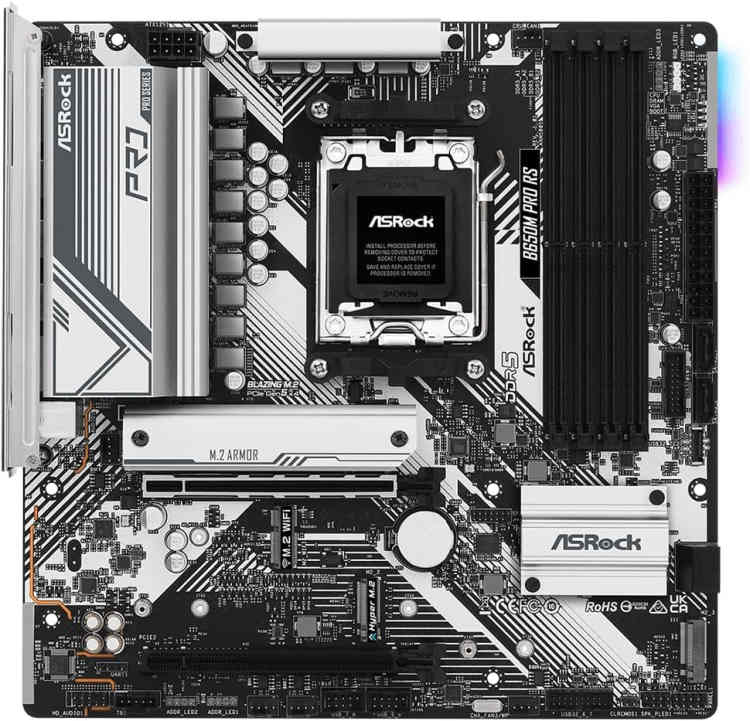

ASRock B650M Pro RS
Unlock the Power of AMD Ryzen with the ASRock B650M Pro RS
The ASRock B650M Pro RS is a feature-packed Micro-ATX motherboard designed for AMD's AM5 platform. Whether you're building a high-performance gaming rig, a content creation workstation, or a future-proof productivity system, this board delivers exceptional value with cutting-edge connectivity and robust power delivery.
Key Features and Performance
- AMD AM5 Socket: Supports AMD Ryzen 7000/8000 series processors, offering the latest in CPU performance and efficiency.
- DDR5 Memory Support: Four DIMM slots support up to 256GB of DDR5 RAM, with speeds up to 7200+ MT/s (OC) via EXPO/XMP profiles for blazing-fast performance.
- PCIe 5.0 Ready: The reinforced PCIe 4.0 x16 slot (from CPU) and a dedicated Blazing M.2 slot with PCIe Gen5 x4 provide incredible bandwidth for next-gen GPUs and SSDs.
- Triple M.2 Storage: Three M.2 slots (Gen5 x4, Gen4 x4, Gen4 x2) offer flexible, high-speed storage options, while four SATA 6Gb/s ports support RAID configurations.
- Advanced Connectivity: Integrated Wi-Fi 6E (Intel AX210) and Bluetooth 5.2, plus a 2.5GbE LAN (Realtek Dragon RTL8125BG) ensure fast, reliable networking.
- Rich I/O: HDMI 2.1 and DisplayPort 1.4 for integrated graphics, multiple USB 3.2 Gen2 ports (Type-A and Type-C), and a BIOS Flashback button for easy updates.
Built for Gamers and Creators
With its robust 8+2+1 phase power design and premium components, the B650M Pro RS handles demanding workloads with ease. The 7.1-channel HD audio with Nahimic software delivers immersive sound for gaming and entertainment. The board's Micro-ATX form factor fits neatly into compact cases without sacrificing expandability.
Why Choose the ASRock B650M Pro RS?
- Ideal for budget-conscious builders who want high-end features.
- Perfect for small form factor (SFF) gaming PCs and HTPCs.
- Future-proof with PCIe 5.0 M.2 support and DDR5 memory.
- Comprehensive cooling options with multiple fan headers and heatsinks.
Upgrade your build with the ASRock B650M Pro RS and experience the perfect balance of performance, connectivity, and value.
Key Specifications
Form Factor: Micro‑ATX
Socket: AM5
RAM Type: DDR5 (dual‑channel, EXPO/XMP supported, up to 7200+ MT/s OC)
Max. RAM: 256 GB
RAM Slots: 4
Chipset: AMD B650
Connectivity
1X PCIe 4.0 x16 (reinforced SafeSlot, from CPU), 1X PCIe 3.0 x16 (operates at x4 mode via B650 chipset), 3X M.2 NVMe slots:, – 1X Blazing M.2 PCIe Gen5 x4 (CPU lane), – 1X Hyper M.2 PCIe Gen4 x4 (chipset lane), – 1X PCIe Gen4 x2 (chipset lane), 4X SATA 6 Gb/s ports (support RAID 0/1/10 via chipset), 2.5 GbE LAN (Realtek Dragon RTL8125BG), Wi‑Fi 6E (802.11ax dual-band) + Bluetooth 5.2 (Intel AX210 CNVi module), 7.1‑Channel HD Audio (Realtek ALC897 codec with Nahimic software)

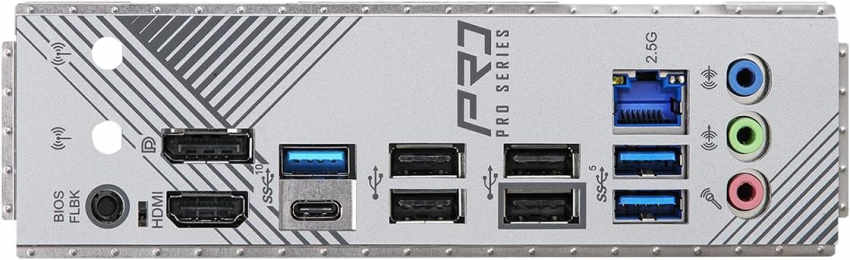

Back Panel IO
1X HDMI 2.1 (via CPU iGPU, max 4K@120 Hz), 1X DisplayPort 1.4 (via CPU iGPU, max 4K@120 Hz), 1X USB 3.2 Gen 2 Type‑A (10 Gbps), 1X USB 3.2 Gen 2 Type‑C (10 Gbps), 2X USB 3.2 Gen 1 Type‑A (5 Gbps), 4X USB 2.0 Type‑A, 2X SMA antenna connectors (Wi-Fi), 1X RJ45 2.5 GbE LAN (Dragon LAN), 3X 3.5 mm analog audio jacks + 1X BIOS Flashback Button
Onboard USB Headers: 1X USB 3.2 Gen 1 front‑panel Type‑C header (10 Gbps)
1X USB 3.2 Gen 1 header (connects up to 2 × USB‑A ports)
2X USB 2.0 headers (support up to 4 × USB‑A ports)
1X SPI TPM header
Detailed Parameters
- Platform:
- AMD
- Socket:
- AM5
- RAM Type:
- DDR5
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 64
- Maximum RAM Capacity in GB:
- 256
- PCI Express Version:
- 4
- Form Factor:
- Micro-ATX
- Maximum RAM Speed in MHz:
- 7200
Pros
- Excellent value for AM5 platform
- Supports PCIe 5.0 M.2 for ultra-fast storage
- Integrated Wi-Fi 6E and Bluetooth 5.2
- Robust power delivery for high-end Ryzen CPUs
- Multiple M.2 slots with generous cooling
Cons
- Only one PCIe 4.0 x16 slot (second is x4 mode)
- Audio codec is basic (ALC897)
- Limited USB ports on rear I/O compared to ATX boards
Frequently Asked Questions
Does the ASRock B650M Pro RS support AMD Ryzen 5000 series processors?
No, the B650M Pro RS is designed for AMD's AM5 socket, which supports Ryzen 7000 and 8000 series processors only. It is not compatible with AM4 CPUs like Ryzen 5000.
Can I use DDR4 RAM with this motherboard?
No, this motherboard only supports DDR5 memory. It has four DDR5 DIMM slots and does not support DDR4.
Does the ASRock B650M Pro RS have onboard Wi-Fi?
Yes, it comes with an Intel AX210 Wi-Fi 6E module, providing dual-band 802.11ax wireless connectivity and Bluetooth 5.2.
What is the maximum memory speed supported?
The motherboard supports DDR5 memory up to 7200+ MT/s (overclocked) when using EXPO/XMP profiles. Actual speeds may vary depending on the CPU and memory modules used.
How many M.2 slots are there and what speeds do they support?
There are three M.2 slots: one PCIe Gen5 x4 (Blazing M.2), one PCIe Gen4 x4 (Hyper M.2), and one PCIe Gen4 x2. All support NVMe SSDs.
