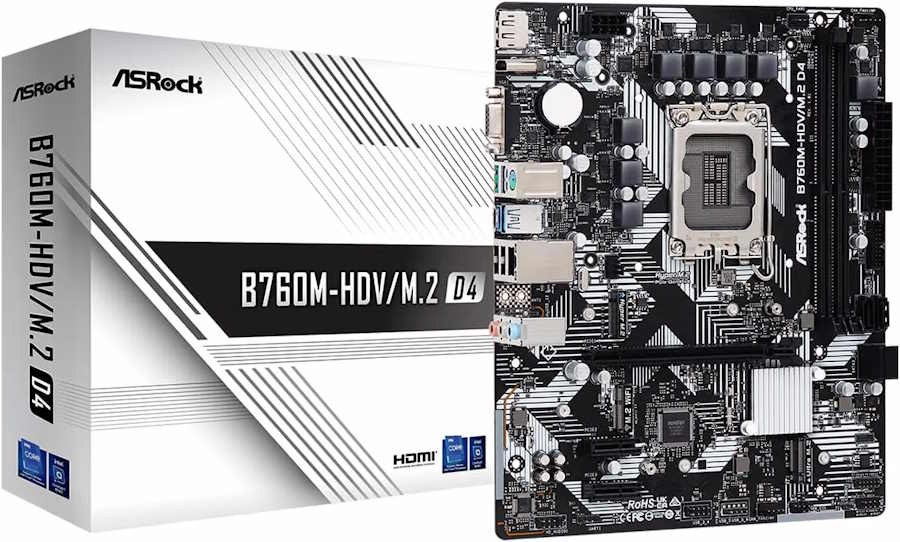

ASRock B760M-HDV/M.2 D4
Key Features of the ASRock B760M-HDV/M.2 D4

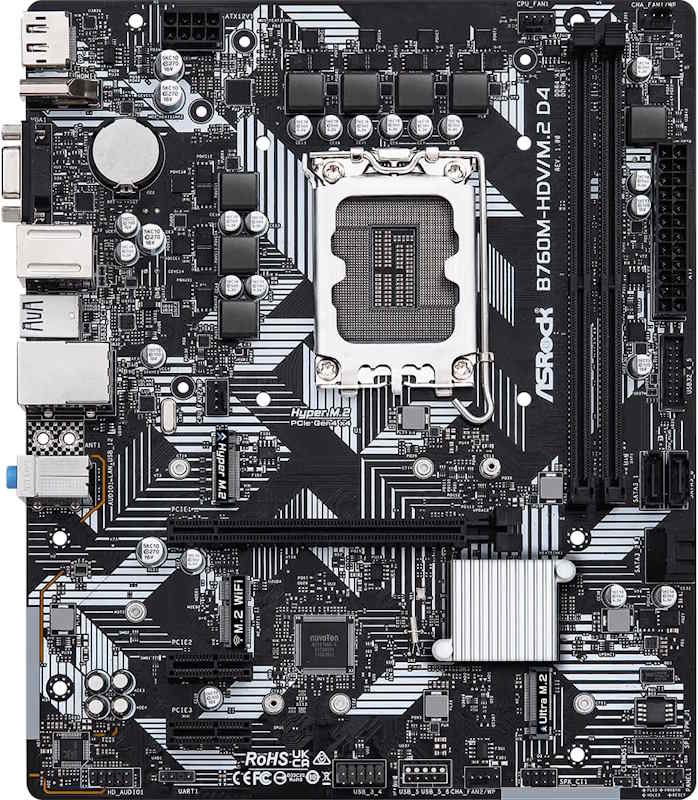

The ASRock B760M-HDV/M.2 D4 is a Micro ATX motherboard built for Intel's LGA 1700 platform, supporting 12th, 13th, and 14th Gen Core processors. It combines the efficiency of the Intel B760 chipset with DDR4 memory compatibility, offering a cost-effective foundation for gaming, productivity, and home theater PCs.
- Socket LGA 1700: Compatible with Intel Core i9, i7, i5, i3 (12th-14th Gen).
- DDR4 Support: Dual-channel, up to 64GB, speeds up to 5333+ OC with XMP 2.0.
- PCIe 4.0: One x16 slot (CPU) and two M.2 Key M slots (one CPU, one chipset) for high-speed storage.
- Connectivity: 4 SATA 6Gb/s, Realtek 1 GbE LAN, HDMI, DisplayPort, and D-Sub outputs.
- USB: Rear USB 3.2 Gen 1 Type-C and Type-A, plus internal headers for expansion.

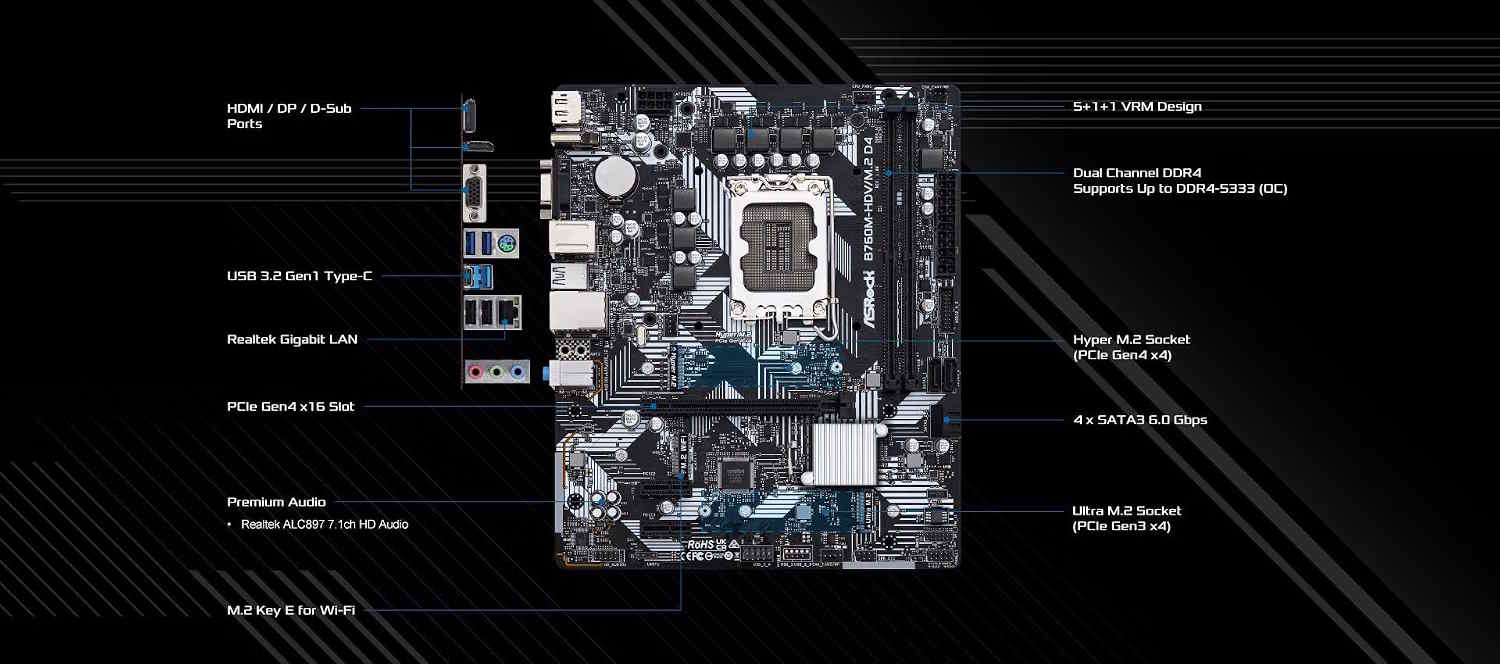

Performance and Expansion
The B760M-HDV/M.2 D4 delivers solid performance for mainstream users. The PCIe 4.0 x16 slot ensures full bandwidth for modern graphics cards, while the dual M.2 slots (both PCIe 4.0 x4) enable lightning-fast NVMe SSDs. With four SATA ports, you can build a spacious storage array. The VRM heatsinks and M.2 heatsink help maintain stable operation under load.
Target Audience and Use Cases
This motherboard is ideal for budget-conscious gamers, office users, and DIY builders who want a reliable Micro ATX board without unnecessary frills. Its triple display outputs (HDMI, DisplayPort, VGA) make it suitable for productivity setups, while the PS/2 combo port and legacy VGA support cater to specialized industrial or point-of-sale systems.
Why Choose the ASRock B760M-HDV/M.2 D4?
With support for high-speed DDR4 memory, dual M.2 storage, and a comprehensive rear I/O, this board offers excellent value. ASRock's proven BIOS and build quality ensure a smooth building experience. Whether you're upgrading an older system or starting a new build, the B760M-HDV/M.2 D4 provides a dependable foundation.
Key Specifications
Detailed Parameters
- Platform:
- Intel
- Socket:
- LGA 1700
- RAM Type:
- DDR4
- Number of RAM Slots:
- 2
- Maximum RAM/slot:
- 32
- Maximum RAM Capacity in GB:
- 64
- PCI Express Version:
- 4
- Form Factor:
- Micro ATX
- Maximum RAM Speed in MHz:
- 5333
Pros
- Supports high-speed DDR4 memory up to 5333+ OC
- Dual PCIe 4.0 M.2 slots for fast storage
- Comprehensive rear I/O with USB Type-C
- VRM and M.2 heatsinks for thermal stability
- Affordable Micro ATX form factor
Cons
- Only two RAM slots limit future memory expansion
- No integrated Wi-Fi or Bluetooth
- 1 GbE LAN may be slow for heavy networking
