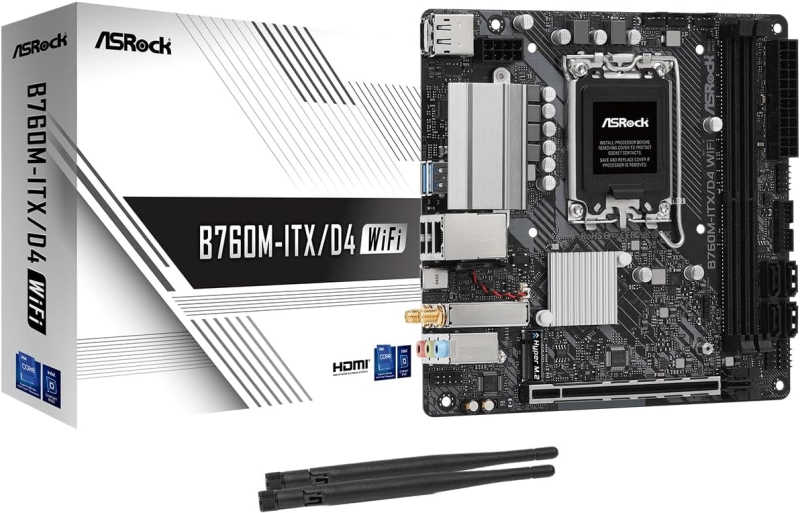

ASRock B760M‑ITX/D4 WiFi

Motherboard • ASRock • $ 129.99

Add to PC Build Add to Amazon Cart Compare

Compact Powerhouse for Intel Builds

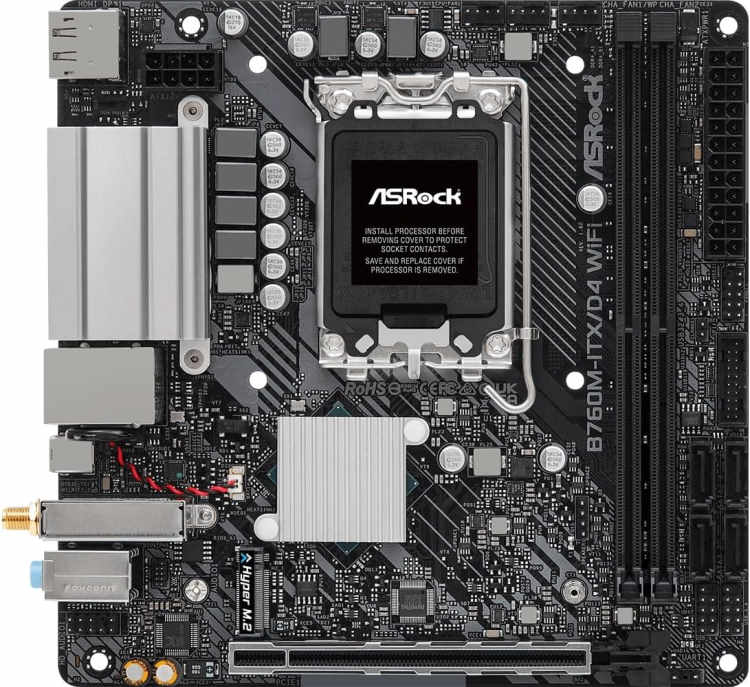

The ASRock B760M-ITX/D4 WiFi is a Mini-ITX motherboard engineered for Intel's 12th, 13th, and 14th Gen Core processors. Its LGA1700 socket and Intel B760 chipset deliver robust performance in a space-saving design, making it an excellent choice for small form factor (SFF) gaming rigs, HTPCs, and productivity workstations.

Key Features & Performance

Memory & Storage: Supports up to 64GB DDR4 RAM with speeds up to 5333 MT/s (OC) via two slots. Includes one Hyper M.2 PCIe Gen4 x4 slot for ultra-fast NVMe SSDs and four SATA 6Gb/s ports with RAID support.
Connectivity: Features a reinforced PCIe 4.0 x16 slot for graphics cards, Wi-Fi 6E (802.11ax) and Bluetooth 5.3 for wireless, and Realtek Gigabit LAN for stable wired networking.
Audio & I/O: 7.1-channel HD audio with Nahimic enhancement. Rear panel includes HDMI 2.1 and DisplayPort 1.4 for high-res displays, USB 3.2 Gen2x2 Type-C (20Gbps), and multiple USB ports.

Who It's For

Ideal for builders seeking a compact yet feature-rich foundation for a mini-ITX PC. Whether you're crafting a portable gaming machine, a home theater PC, or a powerful workstation, the B760M-ITX/D4 WiFi offers the essentials without compromise.

Why Choose This Board?

With its support for the latest Intel CPUs, DDR4 memory (cost-effective), and modern connectivity, this motherboard balances performance and value. The reinforced PCIe slot ensures durability for heavy GPUs, while the comprehensive I/O covers all your peripherals.

Key Specifications

Form Factor: Mini‑ITX

Socket: LGA 1700 (supports 14th/13th/12th Gen Intel® Core™)

RAM Type: DDR4 (dual‑channel, XMP 2.0 supported; up to 5333 MT/s OC)

Max. RAM: 64 GB

RAM Slots: 2

Chipset: Intel B760

Connectivity

1X PCIe 4.0 ×16 (reinforced SafeSlot, CPU lane), 1X Hyper M.2 socket (Key M, PCIe Gen 4 ×4, CPU lane), 4X SATA 6 Gb/s ports, RAID 0/1/5/10 support, 1X Realtek Gigabit LAN (RTL8111H), Wi‑Fi 6E (Intel CNVi, dual‑band 2×2, 802.11ax, Bluetooth 5.3)¹, 7.1‑Channel HD Audio (Realtek ALC897, Nahimic audio)

Back Panel IO

1X HDMI 2.1 (4K@60 Hz via iGPU), 1X DisplayPort 1.4 (up to 8K@60/5K@120Hz via iGPU), 1X USB 3.2 Gen 2×2 Type‑C (20 Gb/s, rear), 2X USB 3.2 Gen 1 Type‑A (5 Gb/s, rear), 2X USB 2.0 Type‑A (rear), 1X PS/2 combo (keyboard/mouse) port, 1X RJ45 1 GbE LAN port, 3X audio jacks (Line‑In, Front Speaker, Mic‑In), 2X Wi‑Fi antenna ports

Onboard USB Headers: 1X USB 3.2 Gen 1 header (supports up to 2 front-panel Type‑A ports) 2X USB 2.0 headers (supports up to 4 ports total)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1700
RAM Type:: DDR4
Number of RAM Slots:: 2
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 64
PCI Express Version:: 2
Form Factor:: Mini-ITX
Maximum RAM Speed in MHz:: 5333
ECC:: No
Chipset:: B760
SupportedPlatforms:: Intel Consumer

Where to Buy

Amazon

Pros

Compact Mini-ITX size fits small cases
Supports latest Intel 14th Gen CPUs
DDR4 memory keeps costs down
Wi-Fi 6E and Bluetooth 5.3 built-in
Reinforced PCIe slot for heavy GPUs

Cons

Only 2 RAM slots limit upgrade path
No PCIe 5.0 support (uses PCIe 4.0)
Limited rear USB ports compared to ATX boards

Frequently Asked Questions

Does the ASRock B760M-ITX/D4 WiFi support Intel 14th Gen CPUs out of the box?

Yes, the board supports Intel 14th, 13th, and 12th Gen Core processors with the LGA1700 socket. However, a BIOS update may be required for optimal compatibility with 14th Gen CPUs, so check the ASRock website for the latest BIOS.

Can I use DDR5 RAM with this motherboard?

No, this motherboard is designed for DDR4 memory only. It has two DDR4 DIMM slots supporting up to 64GB total and speeds up to 5333 MT/s (OC).

What is the maximum RAM speed supported?

The maximum memory speed is 5333 MT/s when overclocked (OC). Without overclocking, it supports standard DDR4 speeds up to 3200 MT/s (depending on CPU).

Does it have Wi-Fi and Bluetooth?

Yes, it includes Intel Wi-Fi 6E (802.11ax) with dual-band 2x2 and Bluetooth 5.3, providing fast wireless connectivity.
