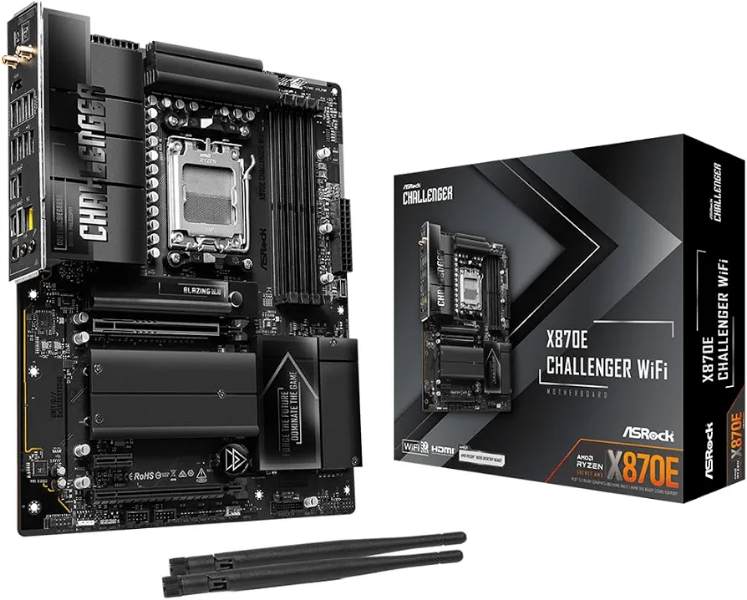

ASRock X870E Challenger Wi-Fi AM5 ATX Motherboard
Built for AMD Ryzen 9000 and Beyond
The ASRock X870E Challenger Wi-Fi is an ATX motherboard designed for AMD's AM5 platform, supporting Ryzen 9000, 8000, and 7000 series processors. It combines the flagship AMD X870E chipset with a robust power delivery system, making it a solid foundation for high-performance gaming, content creation, and workstation builds.
Key Features
- PCIe 5.0 Connectivity: A primary PCIe 5.0 x16 slot (x16 or x8/x8) plus a PCIe 5.0 x4 M.2 slot for next-gen SSDs and GPUs.
- Quad M.2 Storage: Four M.2 NVMe slots (1× PCIe 5.0 x4, 3× PCIe 4.0 x4) and four SATA 6 Gb/s ports provide extensive storage options.
- DDR5 8000+ OC: Four DIMM slots support up to 256GB of DDR5 memory with AMD EXPO and Intel XMP profiles for easy overclocking.

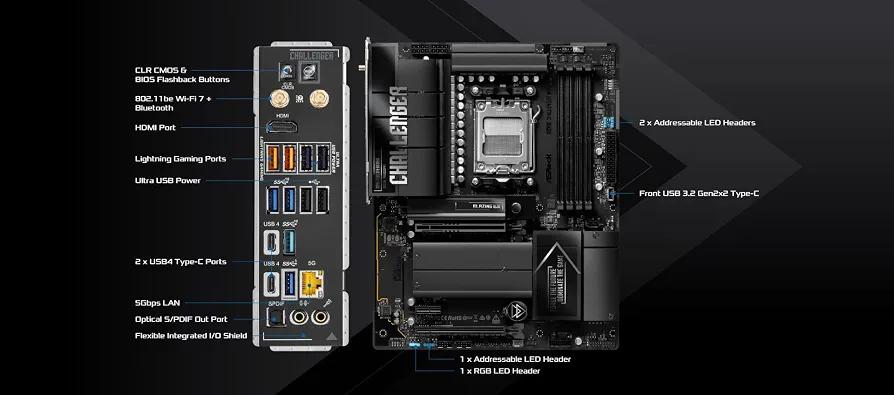

- Advanced Networking: Wi-Fi 7 (802.11be) with Bluetooth 5.4, plus 5 GbE and 2.5 GbE LAN ports for ultra-fast wired connections.
- USB4 & Front-Panel USB-C: Two USB4 Type-C (40 Gb/s) on the rear I/O and a USB 3.2 Gen 2×2 front-panel header.
- Comprehensive Cooling: VRM heatsinks, M.2 heatsinks, and a chipset heatsink ensure stable operation under load.
Performance and Use Cases
With its 14+2+1 power phase design (typical for this class), the X870E Challenger Wi-Fi can handle flagship Ryzen CPUs like the Ryzen 9 9950X without throttling. The PCIe 5.0 x16 slot supports the latest graphics cards, while the PCIe 5.0 M.2 slot delivers sequential speeds up to 14 GB/s. Dual Ethernet and Wi-Fi 7 make it ideal for competitive gamers and streamers who need low-latency networking.
Whether you're building a 4K gaming rig, a video editing workstation, or a virtualization server, this motherboard offers the connectivity and expansion needed for demanding tasks. The BIOS Flashback and Clear CMOS buttons simplify troubleshooting and updates.
Who Is It For?
This motherboard targets enthusiasts and professionals who want a future-proof AM5 platform with the latest connectivity standards. It's a strong choice for those upgrading from older AM4 systems or building a new high-end PC around Ryzen 9000 series processors.
Key Specifications
Detailed Parameters
- Platform:
- AMD
- Socket:
- AM5
- RAM Type:
- DDR5
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 64
- Maximum RAM Capacity in GB:
- 256
- PCI Express Version:
- 5

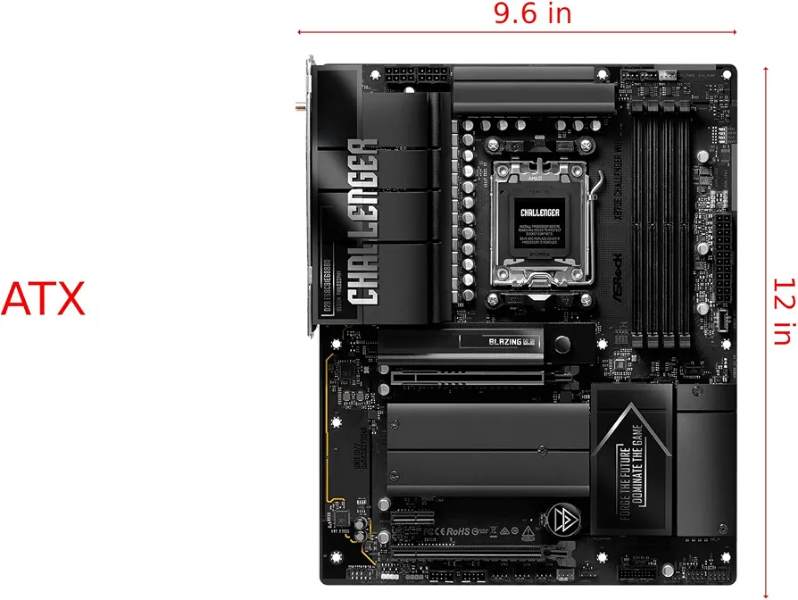

- Form Factor:
- ATX
- Maximum RAM Speed in MHz:
- 8000
Pros
- Supports PCIe 5.0 for both graphics and M.2 storage
- Wi-Fi 7 and dual LAN (5 GbE + 2.5 GbE) for excellent networking
- Four M.2 slots and four SATA ports offer extensive storage flexibility
- USB4 Type-C ports provide 40 Gb/s connectivity
- Robust VRM cooling with heatsinks for stable high-performance operation
Cons
- No Thunderbolt support (USB4 only)
- Premium price point compared to B650/X670 alternatives
- Limited PCIe 4.0 x16 slot runs at x4 mode, reducing bandwidth for add-in cards
