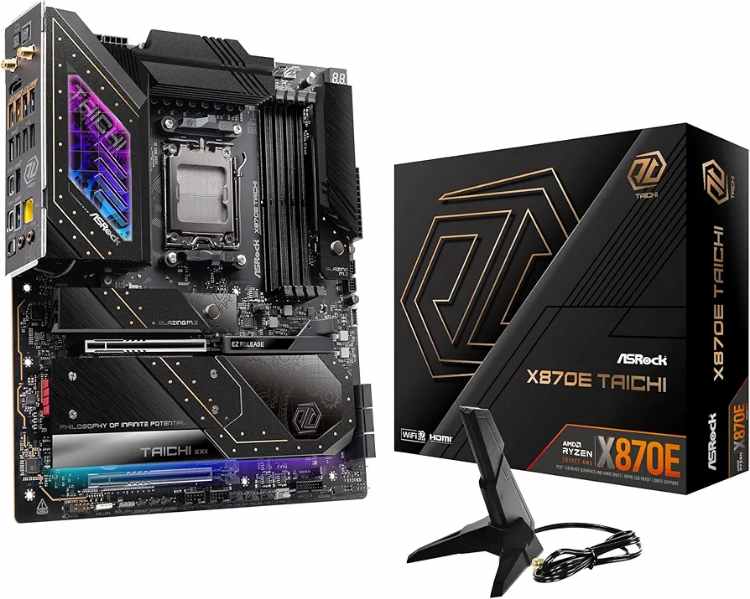

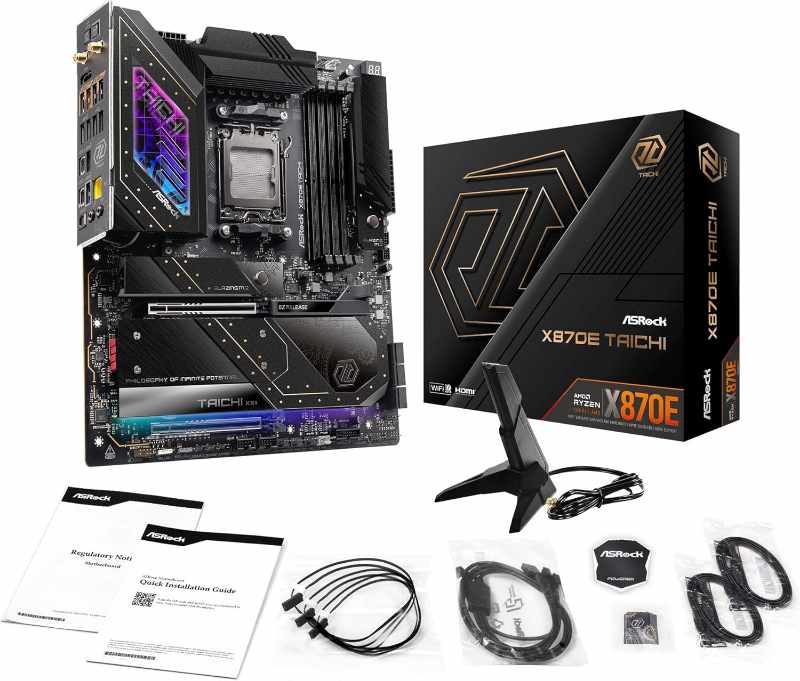

AsRock X870E Taichi OCF AM5 EATX Motherboard

Motherboard • AsRock • $ 329.99

Add to PC Build Add to Amazon Cart Compare

The AsRock X870E Taichi OCF is a flagship EATX motherboard engineered for AMD AM5 enthusiasts and extreme overclockers. Built on the powerful X870E chipset, it delivers uncompromising performance, cutting-edge connectivity, and robust power delivery to unleash the full potential of Ryzen 7000/8000/9000 series processors.

Who Is It For?

This board targets PC builders who demand the absolute best: hardcore gamers, content creators, and competitive overclockers. If you need maximum memory bandwidth, multiple high-speed storage options, and premium networking, the Taichi OCF is your ultimate foundation.

Key Features & Performance

Overclocking DNA: Equipped with a 24+2+2 phase SPS Dr.MOS power design, optimized memory traces, and a dedicated OC mode, it supports DDR5 modules up to 8200+ MHz (OC) and beyond.
PCIe 5.0 Ready: Two PCIe 5.0 x16 slots (one running at x16, the other at x8/x8) provide blazing-fast GPU connectivity and multi-GPU support.
Storage Flexibility: Four M.2 sockets (one PCIe 5.0 x4 and three PCIe 4.0 x4) plus six SATA ports offer ample room for high-speed NVMe RAID arrays.
Dual 10G-Class Networking: Marvell AQtion 5GbE and Realtek 2.5GbE LAN ensure ultra-low latency for online gaming and rapid file transfers.
Wi-Fi 7 & Bluetooth 5.4: Next-gen wireless connectivity with 2×2 802.11be support for lag-free streaming and downloads.
USB4 Type-C: Two 40Gbps USB4 ports with DisplayPort alt-mode enable high-resolution displays and lightning-fast external storage.
Premium Audio: Realtek ALC4082 codec paired with ESS SABRE9219 DAC and WIMA capacitors delivers studio-grade sound.

Build & Aesthetics

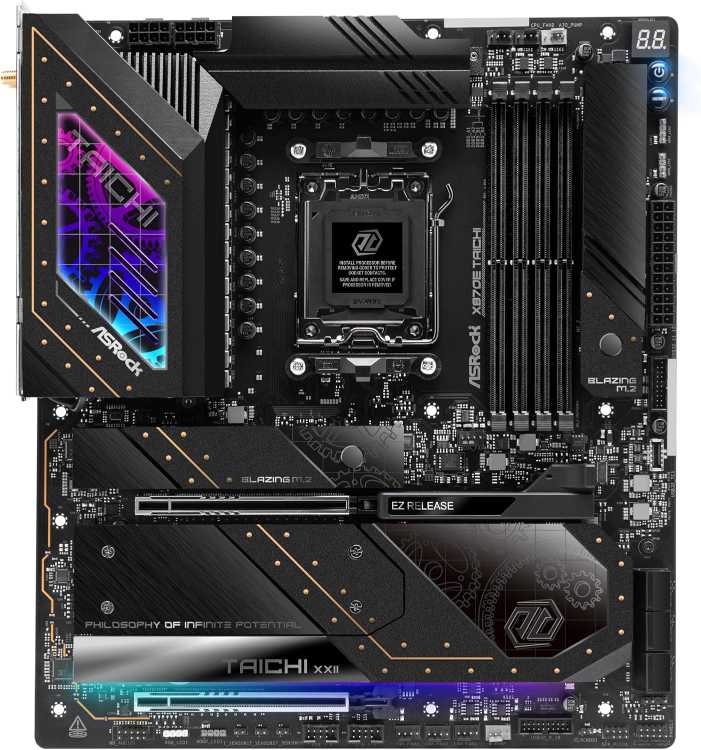

The EATX form factor accommodates extensive circuitry and cooling. A large integrated I/O shield, reinforced PCIe slots, and a sleek black-and-gold Taichi design make it a centerpiece for any high-end build. Onboard power/reset buttons and a Dr.Debug LED simplify troubleshooting.

Use Cases

Perfect for enthusiast gaming rigs, workstation builds, and benchmark machines. Whether you're pushing memory frequency records or rendering 8K video, the X870E Taichi OCF provides the stability and headroom required.

Key Specifications

Form Factor: E‑ATX

Socket: AM5

RAM Type: DDR5 (dual‑channel, up to 8200+ MHz OC)

Max. RAM: 256GB

RAM Slots: 4

Chipset: AMD X870E

Connectivity

1X PCIe 5.0 x16 (GPU slot, CPU lanes), 1X PCIe 5.0 x16 (second slot, bifurcated CPU lanes x8/x8), 1X PCIe 4.0 x1 (chipset lanes), 6X SATA 6 Gb/s ports (RAID 0/1/10 supported), 5X M.2 slots (primary storage): 1X PCIe 5.0 x4 (Blazing slot), 3X PCIe 4.0 x4 (Hyper slots) (total four onboard M.2 sockets; external Wi‑Fi Key‑E or SATA combos may expand count), 1X Marvell AQtion AQC113C 5 GbE LAN, 1X Realtek 2.5 GbE LAN (RTL8126), Wi‑Fi 7 (802.11be, 2×2) + Bluetooth 5.4, Audio: Realtek ALC4082 HD Audio Codec with ESS SABRE9219 DAC & WIMA capacitors (5.1‑channel output)

Back Panel IO

2X USB4 Type‑C (40 Gbps, DP alt‑mode), 1X USB 3.2 Gen 2×2 Type‑C (20 Gbps), 5X USB 3.2 Gen 2 Type‑A (10 Gbps), 3X USB 3.2 Gen 1 Type‑A (5 Gbps), 2X USB 2.0 Type‑A, 1X HDMI 2.1 output, 1X BIOS Flashback (Q‑Flash Plus) button, 1X Clear CMOS button, 2X RJ‑45 LAN jacks (5 GbE & 2.5 GbE), Wi‑Fi antenna connectors, 5X 3.5 mm audio jacks + 1X optical S/PDIF‑OUT

Onboard USB Headers: 1X USB 3.2 Gen 2 ×2 Type‑C front‑panel header (supports up to 60 W PD/QC) 2X USB 3.2 Gen 1 headers (up to 4 ports total) 2X USB 2.0 headers (up to 4 ports total) 1X SPI TPM header Additional internal: fan/pump headers, RGB & ARGB headers, onboard Power/Reset buttons, Dr.Debug LED display

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 5
Form Factor:: E-ATX
Maximum RAM Speed in MHz:: 8200

Where to Buy

Amazon

Pros

Exceptional overclocking capability with DDR5-8200+ support
Dual 5GbE and 2.5GbE LAN for ultra-fast networking
Four M.2 slots including PCIe 5.0 for blazing storage
USB4 Type-C ports with 40Gbps transfer speeds
Premium audio solution with ESS DAC

Cons

E-ATX form factor may not fit smaller cases
High price point compared to other X870E boards
Only one PCIe 5.0 x16 slot runs at full x16; second is x8

Frequently Asked Questions

What CPUs are compatible with the AsRock X870E Taichi OCF?

It supports AMD Ryzen 7000, 8000G, and 9000 series processors on the AM5 socket. Always update the BIOS to the latest version for optimal compatibility.

Does the AsRock X870E Taichi OCF support DDR5 memory overclocking?

Yes, it supports DDR5 memory overclocking up to 8200+ MHz (OC) and beyond, thanks to its optimized memory traces and dedicated OC mode.

How many M.2 slots does the AsRock X870E Taichi OCF have?

It has four onboard M.2 sockets: one PCIe 5.0 x4 and three PCIe 4.0 x4. Additional M.2 support may be available via expansion cards.

What networking options are available on this motherboard?

It features dual LAN: a Marvell AQtion 5GbE and a Realtek 2.5GbE, plus Wi-Fi 7 (802.11be) and Bluetooth 5.4 for wireless connectivity.
