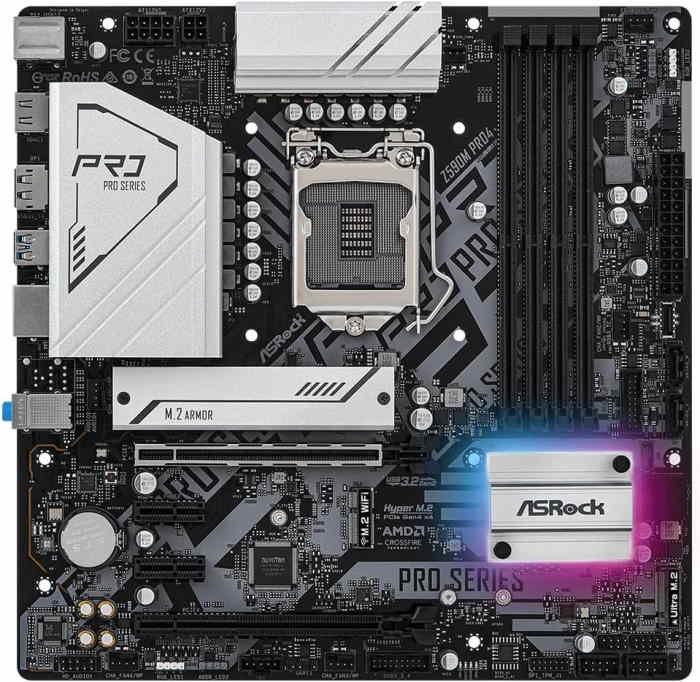

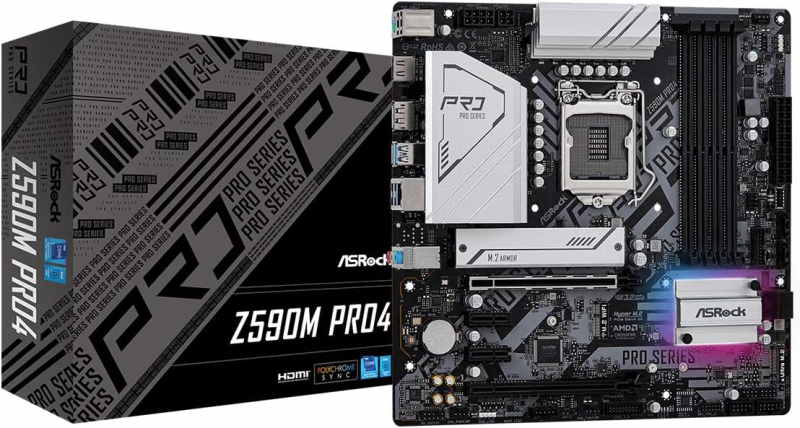

ASRock Z590M Pro4 Micro ATX Motherboard
Unleash Your Intel Build with the ASRock Z590M Pro4
The ASRock Z590M Pro4 Micro ATX Motherboard is a feature-rich foundation for Intel 10th and 11th Gen processors. Designed for gamers, content creators, and PC enthusiasts who demand performance without sacrificing space, this compact board packs a punch with PCIe 4.0 support, robust power delivery, and a suite of modern connectivity options.
Key Features and Performance
Built on the Intel Z590 chipset, the Z590M Pro4 supports 10th Gen (Comet Lake) and 11th Gen (Rocket Lake) CPUs, unlocking PCIe 4.0 lanes for the latest graphics cards and NVMe SSDs. With a 10-phase Dr.MOS power design, it delivers stable power for overclocking and heavy workloads. The board supports up to 128GB of DDR4 memory at speeds up to 4800MHz (OC), ensuring snappy multitasking and smooth gameplay.
- PCIe 4.0 Ready: Two PCIe 4.0 x16 slots (one runs at x16, the other at x4) and two PCIe 3.0 x1 slots provide ample expansion for GPUs, capture cards, and other peripherals.
- Dual M.2 Sockets: One Hyper M.2 (PCIe Gen4 x4) and one Ultra M.2 (PCIe Gen3 x4) offer blazing-fast storage options, with heatsinks to keep drives cool.
- High-Speed Connectivity: Includes 2.5G LAN for lag-free networking, USB 3.2 Gen2 (10 Gb/s) ports, and HDMI/DisplayPort outputs for integrated graphics.
- Durable Design: ASRock's premium components, including 2oz copper PCB and solid capacitors, ensure long-term reliability.
Who Is It For?
This motherboard is perfect for builders creating a compact gaming rig, a powerful workstation, or a home theater PC. Its Micro-ATX form factor fits in most cases while still offering the features of larger ATX boards. Whether you're pairing it with an Intel Core i5-11600K for gaming or an i9-11900K for content creation, the Z590M Pro4 delivers exceptional value.
Connectivity and Expansion

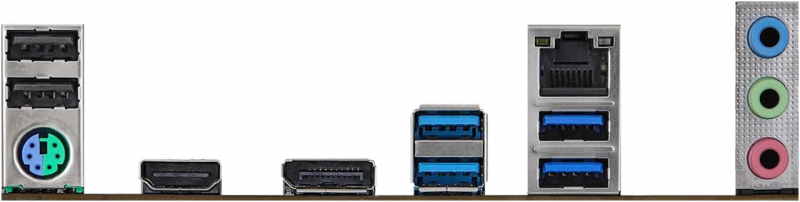

With 4 SATA 6Gb/s ports, dual M.2 slots, and a full array of rear I/O including PS/2, HDMI, DisplayPort, and multiple USB ports, you can connect all your devices with ease. The board also features Intel Gigabit LAN (though the spec lists 2.5G, ensure to check the exact model) for stable online gaming.
In summary, the ASRock Z590M Pro4 Micro ATX Motherboard is a smart choice for those who want high-end features in a compact package. Its combination of PCIe 4.0, DDR4 overclocking, and robust power delivery makes it a standout option for Intel builds.
Key Specifications
Detailed Parameters
- Platform:
- Intel
- Socket:
- LGA 1200
- RAM Type:
- DDR4
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 32
- Maximum RAM Capacity in GB:
- 128
- PCI Express Version:
- 4
- Form Factor:
- Micro-ATX
- Maximum RAM Speed in MHz:
- 4800
- ECC:
- No
- Chipset:
- Z590
- SupportedPlatforms:
- Intel Consumer
Pros
- Supports PCIe 4.0 for latest GPUs and NVMe SSDs
- Dual M.2 slots with heatsinks for fast storage
- Robust 10-phase power design for overclocking
- Compact Micro-ATX form factor fits small cases
- Plenty of USB ports including USB 3.2 Gen2
Cons
- Only one PCIe 4.0 x16 slot runs at full x16 (the second is x4)
- No built-in Wi-Fi (requires M.2 Key E card)
- Micro-ATX layout may limit expansion compared to ATX
