1 / 4

ASRock Z890 Phantom Gaming Z890i Nova Mini ITX WiFi 7

Motherboard • ASRock • $ 312.49

Add to PC Build Add to Amazon Cart Compare

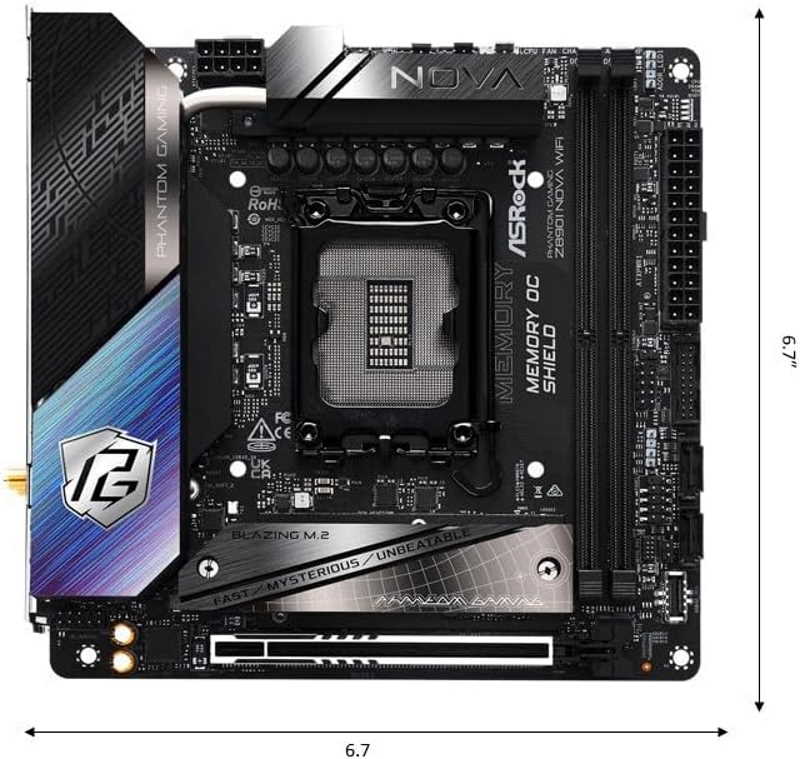

The ASRock Z890 Phantom Gaming Z890i Nova is a premium Mini-ITX motherboard engineered for Intel Core Ultra processors (LGA 1851). It packs enthusiast-grade features into a compact 17x17cm form factor, making it the perfect foundation for high-performance small form factor (SFF) gaming PCs and workstation builds.

Unleash Next-Gen Performance

With the Intel Z890 chipset and support for DDR5 memory up to 9866+ MT/s (OC), this board delivers exceptional bandwidth for gaming and content creation. The dual-channel architecture supports up to 128GB of RAM, and XMP 3.0 profiles ensure one-click overclocking. The PCIe 5.0 x16 slot is ready for the latest graphics cards, while three M.2 slots (one Gen5, two Gen4) provide blazing-fast storage options.

Connectivity and Networking

Stay ahead with integrated WiFi 7 (802.11be) and Bluetooth 5.4, plus dual LAN ports (2.5GbE and 1GbE) for stable wired connections. The rear I/O includes HDMI 2.1 and DisplayPort 1.4 for integrated graphics, and a USB 3.2 Gen2x2 Type-C port (20 Gb/s) for high-speed peripherals.

Cooling and Customization

Robust VRM heatsinks and M.2 thermal guards keep components cool under load. The board features four fan headers (CPU, CPU/Water Pump, and two chassis) and supports both addressable RGB and standard RGB LED strips, allowing you to personalize your build with ASRock's Polychrome RGB software.

Who Is It For?

This motherboard is ideal for enthusiasts building a compact gaming rig, a portable workstation, or a home theater PC that demands top-tier performance. Its combination of cutting-edge specs and space-saving design makes it a top choice for SFF builders.

Key Specifications

Form Factor: Mini-ITX

Socket: LGA 1851

RAM Type: DDR5 9866+ OC (dual-channel, non-ECC unbuffered, XMP 3.0 supported)

Max. RAM: 128GB

RAM Slots: 2

Chipset: Intel Z890

Connectivity

1× PCIe 5.0 x16 Slot (from CPU), 1× Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (CPU lane), 1× Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (chipset), 1× Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (chipset, back), 2× SATA3 6.0 Gb/s ports, 1× Dragon 2.5 Gigabit LAN, 1× Intel 1 Gigabit LAN, 802.11be WiFi 7 Module + Bluetooth 5.4, Graphics outputs: 1× HDMI 2.1, 1× DisplayPort 1.4, Realtek ALC1220 7.1 CH HD Audio, VRM heatsinks, M.2 heatsinks, 4× Fan Connectors (1× CPU, 1× CPU/Water Pump, 2× Chassis), 1× Addressable LED Header, 1× RGB LED Header

Back Panel IO

1× HDMI Port, 1× DisplayPort 1.4, 1× USB 3.2 Gen2x2 Type-C Port (20 Gb/s), 1× USB 3.2 Gen2 Type-A Port (10 Gb/s), 2× USB 3.2 Gen1 Type-A Ports (5 Gb/s), 2× USB 2.0 Ports, 1× RJ-45 LAN Port (1GbE), 1× RJ-45 LAN Port (2.5GbE), 2× Antenna Ports, 1× Optical SPDIF Out Port, 5× Audio Jacks, 1× Flashback Button

Onboard USB Headers: 1× USB 3.2 Gen2x2 Front Panel Type-C Header (20 Gb/s) 1× USB 3.2 Gen1 Header (supports 2 USB 3.2 Gen1 ports) 1× USB 2.0 Header (supports 2 USB 2.0 ports)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1851
RAM Type:: DDR5
Number of RAM Slots:: 2
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 5
Form Factor:: Mini-ITX
Maximum RAM Speed in MHz:: 9866
ECC:: No
Chipset:: Z890
SupportedPlatforms:: Intel Consumer

Where to Buy

Amazon

Pros

Supports DDR5 up to 9866+ MT/s for extreme memory performance
Triple M.2 slots including PCIe 5.0 for ultra-fast storage
Integrated WiFi 7 and dual LAN (2.5GbE + 1GbE) for versatile connectivity
Compact Mini-ITX design perfect for SFF builds without sacrificing features
Robust VRM cooling and multiple fan headers for thermal management

Cons

Only 2 RAM slots limit future expansion (though up to 128GB is supported)
Mini-ITX form factor may be challenging for beginners to build with
Premium features come at a higher price point compared to ATX counterparts

Frequently Asked Questions

What CPU socket does the ASRock Z890 Phantom Gaming Z890i Nova support?

It supports Intel Core Ultra processors (Series 2) using the LGA 1851 socket, which is designed for the Intel Z890 chipset.

How many M.2 slots does this motherboard have and what speeds?

It has three M.2 slots: one PCIe Gen5x4 (up to 128 Gb/s) and two PCIe Gen4x4 (up to 64 Gb/s each), all supporting 2280 form factor SSDs.

Does the ASRock Z890i Nova support overclocking?

Yes, it supports memory overclocking via XMP 3.0 and CPU overclocking (if the processor is unlocked) through the BIOS, along with extensive VRM design for stability.

What are the networking options on this motherboard?

It includes an 802.11be WiFi 7 module with Bluetooth 5.4, plus two LAN ports: a Dragon 2.5 Gigabit LAN and an Intel 1 Gigabit LAN.
