ASRock Z890 Taichi

Motherboard • AsRock • $ 492.44

Add to PC Build Add to Amazon Cart Compare

The ASRock Z890 Taichi is a flagship ATX motherboard engineered for Intel's latest Core Ultra processors (Arrow Lake) on the LGA 1851 socket. It combines cutting-edge performance, premium connectivity, and a striking design that appeals to enthusiasts, gamers, and content creators who demand the best.

Unleash Next-Gen Performance

Built on the Intel Z890 chipset, the Taichi supports DDR5 memory up to an astonishing 9600MHz+ (OC), with four slots and a maximum capacity of 256GB. This ensures blazing-fast data access for memory-intensive tasks like 4K video editing, 3D rendering, and high-end gaming. The board also features a PCIe 5.0 x16 slot from the CPU for the latest graphics cards, delivering double the bandwidth of PCIe 4.0 for future-proofing.

Storage and Expansion Galore

With six M.2 NVMe slots, including one PCIe 5.0 x4, the Z890 Taichi offers incredible storage flexibility. Five additional M.2 slots run at PCIe 4.0 x4, and one of them also supports SATA mode for legacy drives. Four SATA III ports provide further options for traditional HDDs or SSDs. This makes it perfect for massive game libraries, high-speed scratch disks, and RAID configurations.

Premium Connectivity and Networking

Stay ahead with dual LAN: a 5GbE port (Realtek RTL8126) and a 2.5GbE port (Realtek RTL8125) ensure ultra-fast wired networking. For wireless, Wi-Fi 7 (802.11be) and Bluetooth 5.4 offer the latest in wireless technology, ideal for low-latency gaming and high-throughput file transfers. The rear I/O includes two Thunderbolt 4 (USB4) Type-C ports, providing 40Gbps data transfer and DisplayPort support via USB-C, plus a host of USB 3.2 Gen 2 and Gen 1 ports.

High-Fidelity Audio

The integrated Realtek ALC4082 codec delivers pristine audio quality, with support for high-impedance headphones and studio-grade sound. Perfect for immersive gaming and music production.

Built for Enthusiasts

The ASRock Z890 Taichi is packed with enthusiast-friendly features: a BIOS Flashback button for easy firmware updates, a Clear CMOS button for quick overclocking resets, and robust power delivery to handle the most demanding CPUs. Its ATX form factor fits most mid-tower cases, and the premium heatsinks and RGB lighting add a touch of style.

Whether you're building a high-end gaming rig, a content creation workstation, or a powerful home server, the ASRock Z890 Taichi offers the performance, connectivity, and reliability you need.

Key Specifications

Form Factor: ATX

Socket: LGA 1851 (for Intel Core Ultra / Arrow Lake generation)

RAM Type: DDR5 9600MHz + (non-ECC, unbuffered) — supports overclocking / XMP.

Max. RAM: 256GB

RAM Slots: 4

Chipset: Intel Z890

Connectivity / Expansion: 1 × PCIe 5.0 ×16 (from CPU) 1 × PCIe 4.0 ×16 (from chips etc) Total 6 × M.2 NVMe slots. • M.2_1: PCIe 5.0 ×4 • Others: PCIe 4.0 ×4 (5 slots) • One of the M.2_3 (or one of those lower ones) also supports SATA mode 4 × SATA III (6 Gb/s) ports

Networking

1 × 5 GbE (Realtek RTL8126), 1 × 2.5 GbE (Dragon / RTL8125), Wi-Fi / Bluetooth: Wi-Fi 7 (802.11be) + Bluetooth 5.4 (module Intel BE200 or equivalent)

Audio: Realtek ALC4082 codec

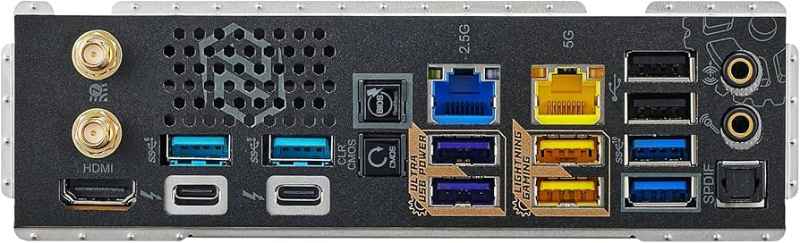

Back Panel I/O

2 × Thunderbolt 4 (Type-C, 40 Gbps / USB4), 1 × USB 3.2 Gen 2×2 Type-C (front internal header), 4 × USB 3.2 Gen 2 Type-A, 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0, 1 × HDMI 2.1 (iGPU output), DisplayPort output via USB-C on TB4 ports (i.e. Thunderbolt ports carry DP signal), 1 × RJ-45 5 GbE LAN, 2 × WiFi antenna connectors, Audio jacks + optical S/PDIF-OUT, 1 × BIOS Flashback button, 1 × Clear CMOS button

Detailed Parameters

Platform:: Intel
Socket:: LGA 1851
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 9600
ECC:: No
Chipset:: Z890
SupportedPlatforms:: Intel Consumer

Where to Buy

Amazon

Pros

Supports DDR5-9600+ for extreme memory performance
Dual Thunderbolt 4 ports for high-speed data and display
Six M.2 slots including PCIe 5.0 for massive storage
Dual LAN (5GbE + 2.5GbE) and Wi-Fi 7 for top-tier networking
Premium audio with Realtek ALC4082 codec

Cons

High price point compared to other Z890 boards
Only one PCIe 5.0 x16 slot (no multi-GPU support)
Limited SATA ports (4) for users with many legacy drives

Frequently Asked Questions

What CPU socket does the ASRock Z890 Taichi use?

The ASRock Z890 Taichi uses the LGA 1851 socket, which is compatible with Intel Core Ultra (Arrow Lake) processors.

Does the ASRock Z890 Taichi support DDR5 memory overclocking?

Yes, it supports DDR5 memory overclocking up to 9600MHz+ and is compatible with XMP profiles for easy tuning.

How many M.2 slots does the ASRock Z890 Taichi have?

It has six M.2 slots in total: one PCIe 5.0 x4 and five PCIe 4.0 x4, with one of the latter also supporting SATA mode.

Does the ASRock Z890 Taichi include Wi-Fi 7?

Yes, it comes with Wi-Fi 7 (802.11be) and Bluetooth 5.4, typically using an Intel BE200 module.

What are the Thunderbolt 4 ports on the back panel used for?

The two Thunderbolt 4 (USB4) Type-C ports provide 40Gbps data transfer and can carry DisplayPort signals for connecting high-resolution monitors.
