Asrock WRX 80 Creator

Unleash Professional Power with the ASRock WRX80 Creator

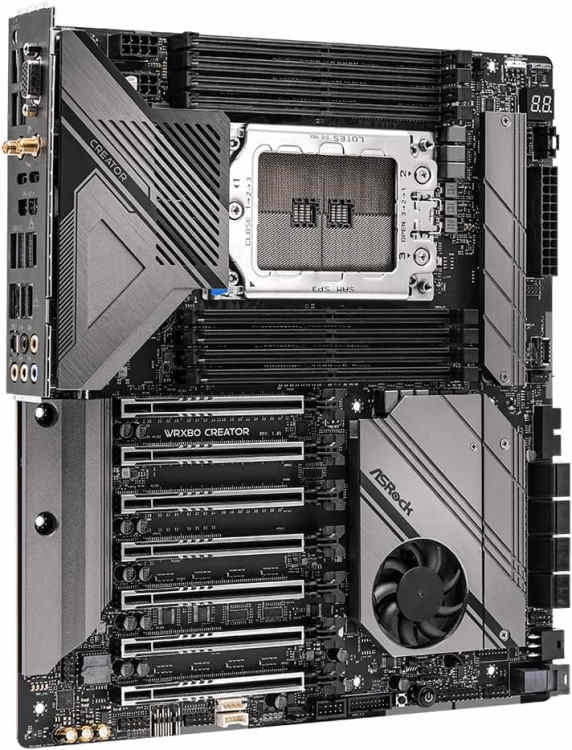

The ASRock WRX80 Creator is a flagship E-ATX motherboard engineered for AMD Ryzen Threadripper PRO processors, built on the sWRX8 socket and AMD WRX80 chipset. It is the ultimate foundation for high-end workstations, content creation, scientific computing, and AI development. With support for up to 2TB of DDR4 memory across 8 channels, this board delivers massive bandwidth for memory-intensive applications.

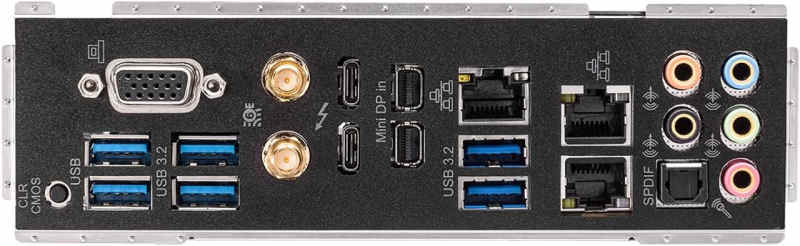

Targeted at professionals who demand uncompromising performance, the WRX80 Creator offers an impressive array of connectivity: seven PCIe 4.0 x16 slots, dual Hyper M.2 slots (PCIe Gen4 x4), a U.2 port, and eight SATA III ports. It also features dual 10 GbE LAN, a dedicated IPMI LAN for remote management, Wi-Fi 6E, Bluetooth, and Thunderbolt 4/USB4 Type-C ports. This makes it a perfect choice for video editors, 3D animators, engineers, and data scientists who need fast storage, high-speed networking, and robust expansion.

Key Features

• Massive Memory Capacity: 8 DIMM slots support up to 2TB of DDR4 RAM at 3200MHz (OC), with ECC and non-ECC, buffered/unbuffered modules.
• Unrivaled Expansion: Seven PCIe 4.0 x16 slots provide ample room for multiple GPUs, capture cards, or NVMe adapters.
• Blazing Storage: Dual Hyper M.2 slots (PCIe Gen4 x4) and one U.2 port (PCIe Gen3 x4) for ultra-fast NVMe SSDs, plus 8 SATA III ports for bulk storage.
• Advanced Networking: Dual 10 GbE LAN (Marvell AQC113) and a dedicated IPMI LAN (Realtek RTL8211E) for remote management, plus Wi-Fi 6E and Bluetooth 5.2.
• Thunderbolt 4/USB4: Two rear Type-C ports support up to 40Gbps data transfer and daisy-chaining.
• Premium Audio: Realtek ALC4050H + ALC1220 codecs deliver 7.1-channel HD audio with high SNR.

Performance and Use Cases

With 8-channel memory architecture, the WRX80 Creator maximizes the memory bandwidth of Threadripper PRO processors, which is critical for rendering, simulation, and large dataset processing. The PCIe 4.0 lanes allow for multiple GPUs to run at full x16 bandwidth, enabling faster training of AI models and real-time 3D rendering. The dual 10GbE ports ensure high-speed network transfers, ideal for collaborative workflows and NAS environments. The IPMI LAN provides out-of-band management, making it a favorite for server rooms and remote workstations.

Whether you are building a high-performance workstation for video post-production, a research machine for scientific computing, or a powerful server for virtualization, the ASRock WRX80 Creator delivers the stability, expandability, and speed required for the most demanding tasks.
