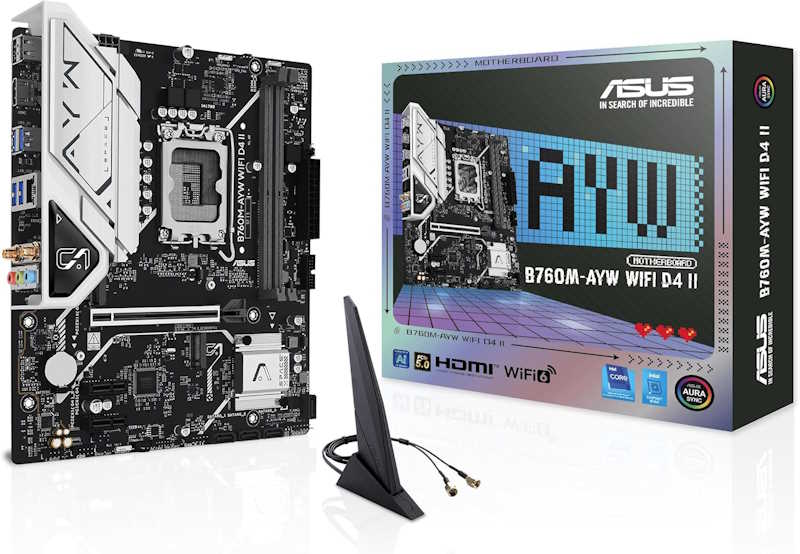

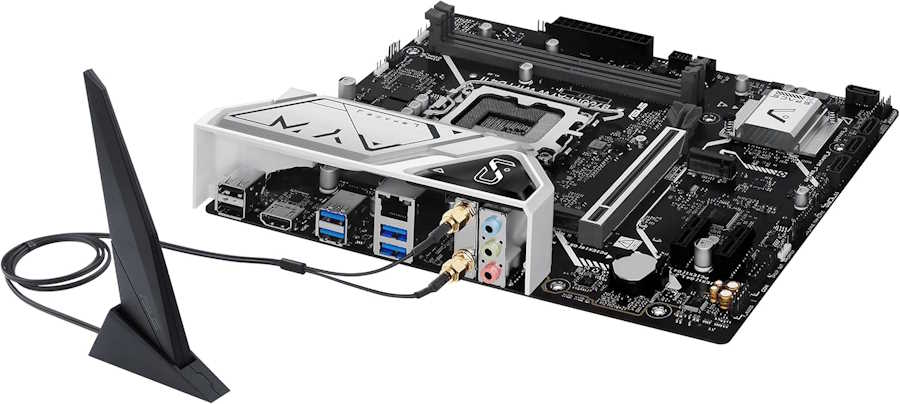

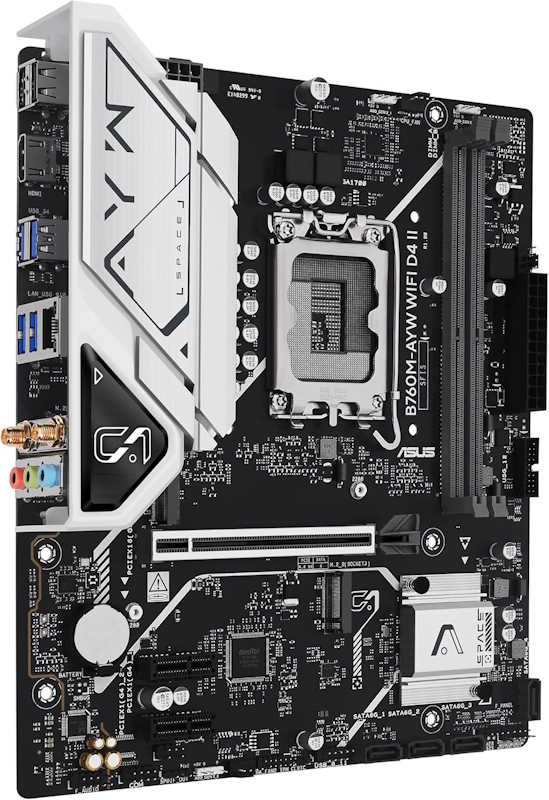

ASUS B760M-AYW WiFi D4 II LGA 1700 Micro-ATX Motherboard

Motherboard • ASUS • $ 99.99

Add to PC Build Add to Amazon Cart Compare

Power Your Intel Build with the ASUS B760M-AYW WiFi D4 II

The ASUS B760M-AYW WiFi D4 II is a feature-packed Micro-ATX motherboard designed for Intel LGA 1700 processors (12th, 13th, and 14th Gen). It combines robust performance, modern connectivity, and a compact form factor, making it an excellent choice for budget-conscious gamers, content creators, and everyday PC builders who want a reliable foundation without sacrificing essential features.

Key Features and Performance

Intel LGA 1700 Socket: Supports Intel Core processors from 12th to 14th generation, offering flexibility for upgrades.
DDR4 Memory Support: Two DIMM slots support up to 64GB of DDR4 RAM with speeds up to 5333 MHz (OC) via XMP, delivering snappy responsiveness for multitasking and gaming.
PCIe 5.0 Ready: The primary PCIe 5.0 x16 slot ensures compatibility with the latest graphics cards, providing maximum bandwidth for future-proofing.
Dual M.2 NVMe Slots: Both M.2 slots support PCIe 4.0 x4 for ultra-fast storage, with a dedicated heatsink on the primary slot to keep SSDs cool under load.
Wi-Fi 6 and 2.5Gb Ethernet: Enjoy high-speed wireless networking (Wi-Fi 6, Bluetooth 5.2) and a Realtek 2.5Gb LAN port for stable, low-latency wired connections.
Comprehensive Connectivity: A wide array of USB ports (including USB 3.2 Gen 2 Type-A), DisplayPort, HDMI, and D-Sub outputs for flexible display setups.
Robust Power Design: VRM heatsinks and a 4-pin CPU fan header ensure stable power delivery and efficient cooling for sustained performance.

Ideal Use Cases

This motherboard is perfect for building a compact gaming rig, a home office workstation, or a media center PC. Its Micro-ATX form factor fits neatly into smaller cases while still offering expansion options. With support for DDR4 memory, it provides a cost-effective upgrade path for users moving to Intel's 12th/13th/14th Gen CPUs without needing to invest in pricier DDR5 kits.

Why Choose the ASUS B760M-AYW WiFi D4 II?

ASUS is renowned for quality and BIOS support, and this board is no exception. It includes user-friendly BIOS features, comprehensive cooling controls, and robust build quality. Whether you're a first-time builder or a seasoned enthusiast, this motherboard delivers the essential features you need at a competitive price point.

Key Specifications

Form Factor: Micro-ATX

Socket: LGA 1700

RAM Type: DDR4 5333(OC) (dual-channel, Non-ECC, Un-buffered, XMP supported)

Max. RAM: 64GB

RAM Slots: 2

Chipset: Intel B760

Connectivity

1× PCIe 5.0 x16 slot, 2× PCIe 4.0 x1 slot (supports x1 mode, from Chipset), 2× M.2 NVMe slots (Key M, supporting PCIe 4.0 x4 mode), 4× SATA 6 Gb/s ports, 1× Realtek 2.5Gb Ethernet, Wi-Fi 6, Bluetooth v5.2, Graphics outputs: 1× DisplayPort, 1× HDMI, 1× D-Sub (VGA), VRM heatsink, M.2 heatsink (for M.2_1 slot), 1× 4-pin CPU Fan header, 1× 4-pin CPU OPT Fan header, 2× 4-pin Chassis Fan headers

Back Panel IO

2× USB 3.2 Gen 2 Type-A, 2× USB 3.2 Gen 1 Type-A, 4× USB 2.0 Type-A, 1× DisplayPort, 1× HDMI, 1× D-Sub (VGA), 1× Wi-Fi Module, 1× Realtek 2.5Gb Ethernet port, 3× Audio jacks, 1× PS/2 Keyboard/Mouse combo port

Onboard USB Headers: 1× USB 3.2 Gen 1 header (supports 2 ports) 2× USB 2.0 headers (support 4 ports total)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1700
RAM Type:: DDR4
Number of RAM Slots:: 2
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 64
PCI Express Version:: 5
Form Factor:: Micro-ATX
Maximum RAM Speed in MHz:: 5333
ECC:: No
Chipset:: B760
SupportedPlatforms:: Intel Consumer

Where to Buy

Amazon

Pros

Supports Intel 12th, 13th, and 14th Gen processors
DDR4 memory support reduces build cost
PCIe 5.0 x16 slot for future GPUs
Dual M.2 slots with PCIe 4.0 support
Integrated Wi-Fi 6 and Bluetooth 5.2

Cons

Only two RAM slots limit expansion
No USB 3.2 Gen 2x2 Type-C port
Micro-ATX size may limit some expansion options

Frequently Asked Questions

Does the ASUS B760M-AYW WiFi D4 II support overclocking?

The B760 chipset does not support CPU overclocking, but it does support memory overclocking via XMP profiles. You can enable XMP in the BIOS to run DDR4 RAM at speeds up to 5333 MHz (OC).

Can I use DDR5 RAM with this motherboard?

No, this motherboard is designed for DDR4 memory only. It has two DDR4 DIMM slots and does not support DDR5 modules.

What is the maximum RAM capacity?

The maximum total memory capacity is 64GB, with up to 32GB per slot. It supports dual-channel memory configurations.

Does it come with built-in Wi-Fi?

Yes, the motherboard includes Wi-Fi 6 (802.11ax) and Bluetooth 5.2, providing a convenient wireless connection without needing an additional adapter.
