ASUS H110M-K

Motherboard • ASUS • $ 69.99

Add to PC Build Add to Amazon Cart Compare

Overview

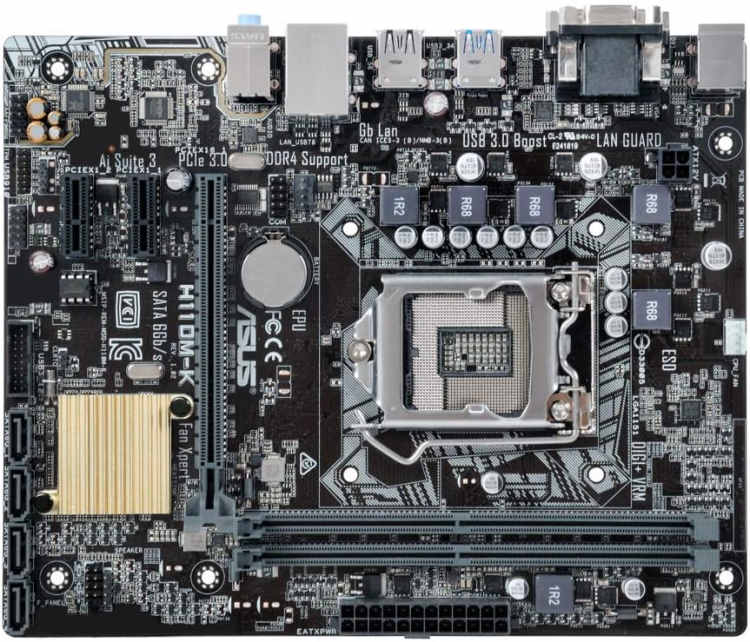

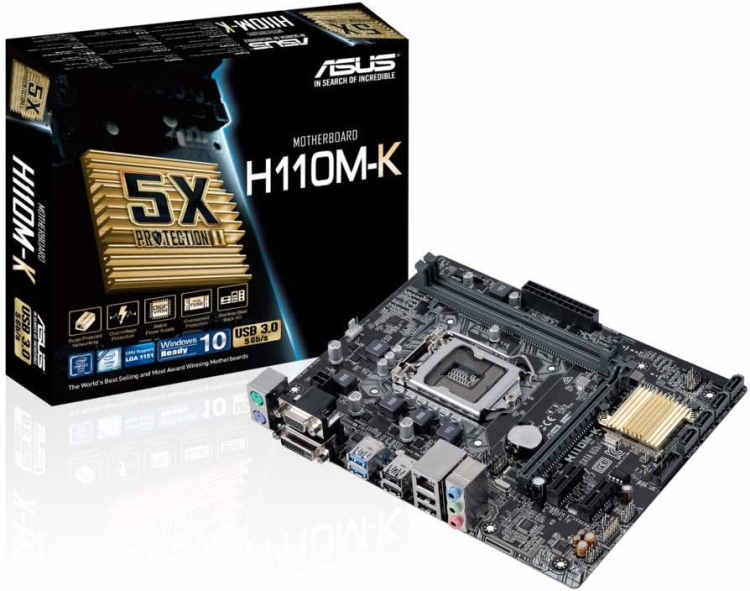

The ASUS H110M-K is a reliable and affordable Micro-ATX motherboard designed for Intel's 6th and 7th generation Core processors (LGA 1151 socket). It's an excellent choice for budget-conscious builders who want a solid foundation for everyday computing, office tasks, and light gaming. With support for DDR4 memory up to 32GB and PCIe 3.0, this board delivers dependable performance without breaking the bank.

Key Features

Intel H110 Chipset: Optimized for LGA 1151 Intel Core processors, providing stable and efficient operation.
DDR4 Memory Support: Two DIMM slots support up to 32GB of DDR4 RAM at speeds up to 2133MHz, ensuring smooth multitasking.
PCIe 3.0 x16 Slot: Full-speed PCIe 3.0 x16 slot for discrete graphics cards, enabling capable gaming and productivity.
Dual Display Outputs: VGA and DVI ports allow flexible multi-monitor setups using integrated graphics.
Realtek Gigabit LAN: Fast and stable wired networking for online gaming and streaming.
8-Channel HD Audio: Immersive audio experience with high-definition codec and premium capacitors.
Comprehensive Connectivity: Four SATA 6Gbps ports, USB 3.0, USB 2.0, and PS/2 support for legacy peripherals.

Performance and Use Cases

The ASUS H110M-K is perfect for building a compact and efficient system for home or office use. It pairs well with Intel Core i3, i5, or i7 processors (6th/7th Gen) and is ideal for everyday tasks like web browsing, document editing, media playback, and light photo editing. With a dedicated graphics card, it can handle casual gaming and even some AAA titles at lower settings. The board's Micro-ATX form factor fits easily into smaller cases, making it a great choice for space-saving builds.

Why Choose ASUS H110M-K?

ASUS is known for quality and durability, and the H110M-K is no exception. It features ASUS's 5X Protection III hardware safeguards, including LANGuard for surge protection and overvoltage protection, ensuring long-term reliability. The UEFI BIOS is user-friendly, allowing easy setup and configuration. For budget builders who need a dependable motherboard with essential features, the ASUS H110M-K is a smart choice.

Key Specifications

Form Factor: Micro-ATX

Socket: LGA 1151

RAM Type: DDR4

Max. RAM: 32GB

RAM Slots: 2

Chipset: Intel H110

Connectivity

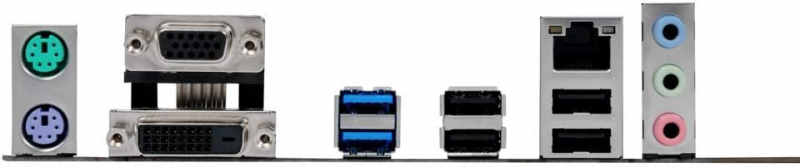

1X PCIe 3.0/2.0 x16, 2X PCIe 2.0 x1, M.2 (NA), 4X SATA 6 Gbps Ports, 1X Onboard USB 3.2 Gen 1/USB 2.0, 8 Channel audio, Realtek Gigabit LAN, 1X PS2 Mouse/Keyboard, 1X DVI, 1X VGA, 2X USB 3/4X USB 2.0 (Rear), 3X Audio Jacks

Detailed Parameters

Platform:: Intel
Socket:: LGA 1151
RAM Type:: DDR4
Number of RAM Slots:: 2
Maximum RAM/slot:: 16
Maximum RAM Capacity in GB:: 32
PCI Express Version:: 3
Form Factor:: Micro-ATX
Maximum RAM Speed in MHz:: 2133
ECC:: No
Chipset:: H110
SupportedPlatforms:: Intel Consumer

Where to Buy

Amazon

Pros

Supports 6th and 7th Gen Intel Core processors
DDR4 memory support up to 32GB
Compact Micro-ATX form factor fits small cases
Dual display outputs (VGA and DVI)
Reliable ASUS build quality with 5X Protection III

Cons

No M.2 slot for NVMe SSDs
Only two RAM slots limit future expansion
Max memory speed limited to 2133MHz

Frequently Asked Questions

Does the ASUS H110M-K support NVMe SSDs?

No, the ASUS H110M-K does not have an M.2 slot, so it does not support NVMe SSDs. You can use SATA SSDs via the four SATA 6Gbps ports.

What processors are compatible with the ASUS H110M-K?

The ASUS H110M-K supports Intel 6th generation (Skylake) and 7th generation (Kaby Lake) Core processors, including Core i3, i5, and i7 models, as well as Pentium and Celeron CPUs with LGA 1151 socket.

Can I overclock RAM on the ASUS H110M-K?

The H110 chipset does not support memory overclocking. RAM will run at its default speed up to 2133MHz, regardless of higher XMP profiles.
