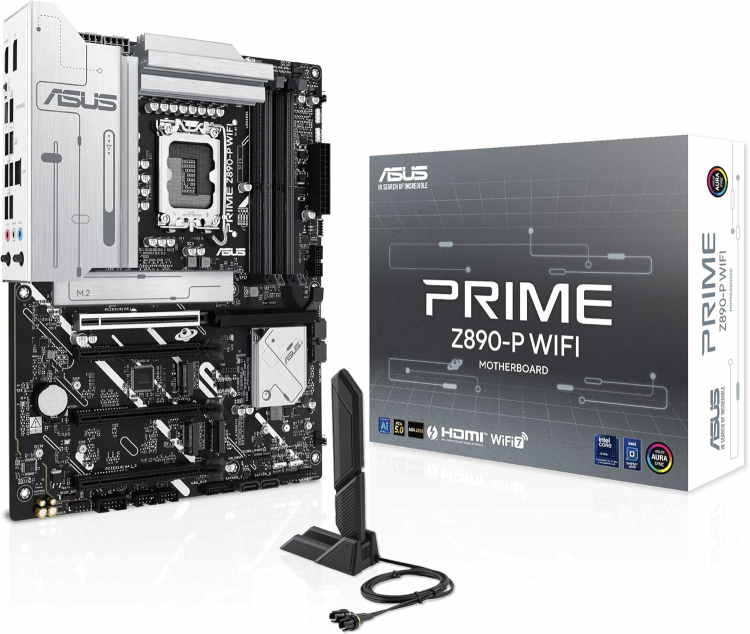

ASUS Prime Z890-P WiFi
Overview
The ASUS Prime Z890-P WiFi is a feature-rich ATX motherboard designed for Intel's latest Core Ultra processors (LGA 1851). It combines robust power delivery, cutting-edge connectivity, and AI-driven enhancements to deliver a solid foundation for high-performance builds. Whether you're a gamer, content creator, or PC enthusiast, this board offers the versatility and reliability needed for demanding workloads.
Key Features & Performance
Equipped with the Intel Z890 chipset, the Prime Z890-P WiFi supports DDR5 memory up to 9600MHz (OC) with a maximum capacity of 192GB across four DIMM slots. This ensures lightning-fast data access for gaming, multitasking, and memory-intensive applications. The board also features PCIe 5.0 slots for next-gen graphics cards and storage, delivering double the bandwidth of PCIe 4.0 for future-proof performance.
Storage options are abundant: four M.2 slots (one PCIe 5.0, three PCIe 4.0 with one supporting SATA) and four SATA 6Gb/s ports, all supporting RAID 0/1/5/10 configurations. This flexibility allows you to create high-speed arrays for large media libraries or game installations.
Connectivity & Networking
Stay connected with Wi-Fi 7 (2x2, MLO) and Bluetooth 5.4, offering ultra-low latency and multi-gigabit wireless speeds. The Realtek 2.5Gb Ethernet port ensures stable wired networking for online gaming and file transfers. The rear I/O panel includes a Thunderbolt 4 USB-C port (40Gbps), USB 3.2 Gen 2x2 Type-C, and multiple USB 3.2 Gen 2/1 ports for all your peripherals.
For display output, the board provides HDMI 2.1 and DisplayPort (via Thunderbolt alt mode), supporting integrated graphics on compatible CPUs. The 7.1-channel HD audio (Realtek ALC1220P) with S/PDIF out delivers immersive sound for gaming and media consumption.
Build Quality & Cooling
The Prime Z890-P WiFi features a robust VRM design with premium chokes and capacitors, ensuring stable power delivery even under heavy loads. Comprehensive cooling options include multiple fan headers, a dedicated M.2 heatsink, and AI cooling controls that intelligently adjust fan speeds based on system temperatures.
ASUS-exclusive technologies like AI Overclocking, AI Cooling II, and the UEFI BIOS with Q-Design make tuning and system management intuitive. The board also includes a Clear CMOS button on the rear I/O for quick reset.
Who Is It For?
This motherboard is ideal for builders targeting a high-end Intel Core Ultra (Arrow Lake) system. It suits gamers who want to leverage the latest GPUs and fast NVMe storage, content creators who need robust connectivity and memory bandwidth, and PC enthusiasts who appreciate overclocking headroom and future-ready features like Wi-Fi 7 and Thunderbolt 4.
With its balanced feature set, the ASUS Prime Z890-P WiFi offers excellent value for those seeking a reliable and expandable platform for years to come.
Key Specifications
Detailed Parameters
- Platform:
- Intel
- Socket:
- LGA 1851
- RAM Type:
- DDR5
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 48
- Maximum RAM Capacity in GB:
- 192
- PCI Express Version:
- 5
- Form Factor:
- ATX
- Maximum RAM Speed in MHz:
- 9600
Pros
- Supports DDR5 up to 9600MHz (OC) for extreme memory performance
- Includes Wi-Fi 7 and 2.5Gb Ethernet for fast networking
- Thunderbolt 4 port (40Gbps) on rear I/O for high-speed data transfer
- Four M.2 slots with PCIe 5.0 support for future storage
- Robust VRM design and comprehensive cooling options
Cons
- Only four SATA ports may be limiting for many HDDs
- PCIe x16 slots run at x4 or x1 modes when populated, reducing bandwidth
- No integrated Wi-Fi antenna in box (requires separate purchase)
