ASUS Pro WS TRX50-SAGE WiFi A AMD TR5
Built for Professional Workstations

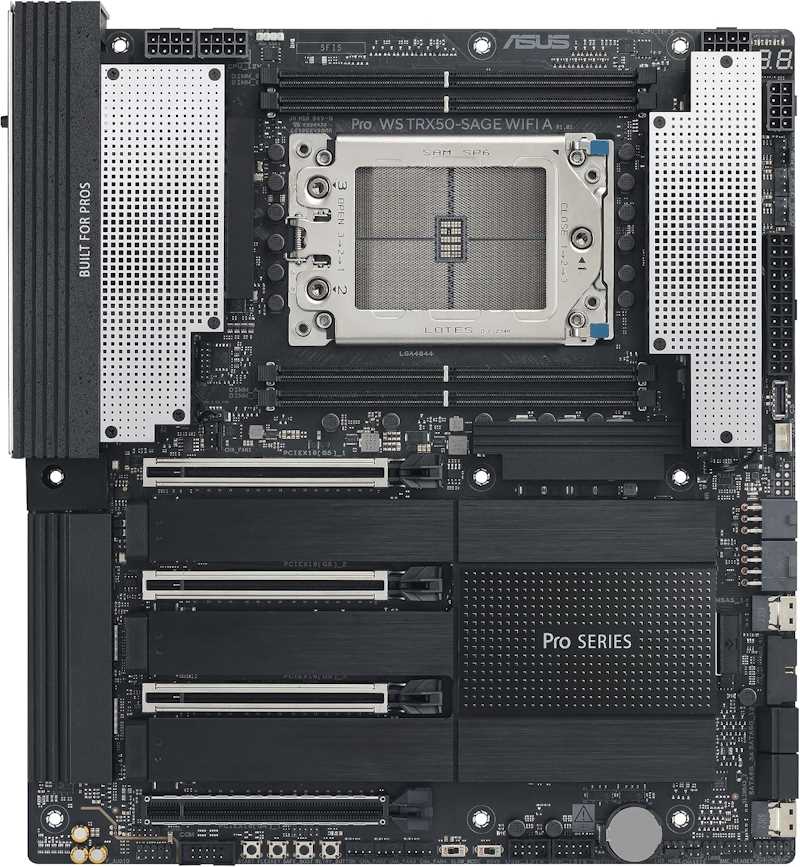

The ASUS Pro WS TRX50-SAGE WiFi A is a CEB form-factor motherboard engineered for AMD's Ryzen Threadripper 7000 series processors and the TR5 (sTR5) socket. It combines server-grade stability with workstation versatility, making it ideal for content creators, engineers, and data scientists who demand uncompromising performance.
Key Features
- Quad-Channel DDR5 with ECC: Four DIMM slots support up to 1TB of RDIMM/3DS RDIMM ECC memory, with EXPO profiles for speeds beyond 6400 MT/s.
- PCIe 5.0 Expansion: Two PCIe 5.0 x16 slots (x16/x8-x8) and two PCIe 4.0 x16 slots (x4) provide massive bandwidth for GPUs, capture cards, and NVMe storage.
- Storage Flexibility: Four M.2 NVMe slots (PCIe 5.0 x4 / PCIe 4.0 x4) and four SATA 6 Gb/s ports ensure rapid access to large datasets.
- Dual 10GbE & BMC: Marvell 10GbE LAN ports plus a dedicated Realtek 1GbE BMC management port (ASPEED AST2600) with VGA output for remote administration.
- USB4 Connectivity: Two USB4 Type-C ports on the rear I/O deliver 40 Gbps speeds and daisy-chaining.
- Robust Power & Cooling: VRM and M.2 heatsinks, plus Q-Release and BIOS FlashBack for easy maintenance.
Performance Highlights
With support for the latest AMD Threadripper processors, the TRX50-SAGE WiFi A delivers exceptional multi-threaded performance for 3D rendering, video editing, and scientific simulations. The quad-channel memory architecture and ECC support ensure data integrity during long compute tasks, while PCIe 5.0 readiness future-proofs your investment for next-gen GPUs and storage.
Use Cases
This motherboard is tailor-made for:
- Professional video editing and color grading
- 3D animation and CAD workflows
- AI/ML model training and data analysis
- Virtualization and server-like workloads
Whether you're building a high-end workstation or a reliable production machine, the ASUS Pro WS TRX50-SAGE WiFi A offers the connectivity, memory capacity, and management features that professionals require.
Key Specifications
Form Factor: CEB (ATX-compatible, 12 × 10.5 in)
Socket: TR5 (sTR5)
RAM Type: DDR5 6400+ OC (quad-channel, RDIMM/3DS RDIMM ECC registered, up to 1TB, EXPO supported)
Max. RAM: 1TB (RDIMM)
RAM Slots: 4
Chipset: AMD TRX50
Connectivity
2X PCIe 5.0 x16 (SafeSlot, support x16/x8-x8 mode), 1X PCIe 4.0 x16 (x4 mode), 1X PCIe 4.0 x16 (x4 mode), 4X M.2 NVMe slots (Key M, PCIe 5.0 x4 / PCIe 4.0 x4), 4X SATA 6 Gb/s ports, 2X Marvell 10 GbE LAN ports, 1X Realtek 1 GbE LAN dedicated for BMC management (ASPEED AST2600), Graphics outputs: 1X VGA (via BMC / AST2600), USB4 support, VRM heatsinks, M.2 heatsinks, Q-Release, BIOS FlashBack
Back Panel IO
2X USB4 Type-C, 4X USB 3.2 Gen 2 Type-A, 2X USB 2.0 Type-A, 1X VGA (AST2600 / BMC), 2X Marvell 10 GbE LAN, 1X Realtek 1 GbE (BMC), 3X audio jacks, 1X BIOS FlashBack button, 1X Clear CMOS button
Onboard USB Headers: 1X USB 3.2 Gen 2x2 front-panel Type-C connector
1X USB 3.2 Gen 1 header (2 ports)
2X USB 2.0 headers (support 4 ports total)
Detailed Parameters
- Platform:
- AMD
- Socket:
- TR5
- RAM Type:
- DDR5
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 256
- Maximum RAM Capacity in GB:
- 1024
- PCI Express Version:
- 5
- Form Factor:
- CEB
- Maximum RAM Speed in MHz:
- 6400
- ECC:
- Yes
- Chipset:
- TRX50
- SupportedPlatforms:
- AMD Workstation
Pros
- Supports up to 1TB of ECC RDIMM memory for demanding workloads
- Dual 10GbE LAN and dedicated BMC for remote management
- PCIe 5.0 x16 slots and four M.2 slots for high-speed expansion
- USB4 connectivity with 40 Gbps bandwidth
- Robust VRM and heatsinks designed for continuous operation
Cons
- CEB form factor may not fit all standard ATX cases
- Limited to four DIMM slots, which may restrict maximum memory in some configurations
- Premium price point aimed at professional users
Frequently Asked Questions
What processors are compatible with the ASUS Pro WS TRX50-SAGE WiFi A?
This motherboard supports AMD Ryzen Threadripper 7000 series processors and AMD Ryzen Threadripper PRO 7000 WX series processors using the TR5 (sTR5) socket.
Does this motherboard support ECC memory?
Yes, it supports ECC RDIMM and 3DS RDIMM memory modules, which are essential for data integrity in professional workloads.
What is the purpose of the BMC port?
The dedicated Realtek 1GbE BMC port, powered by ASPEED AST2600, provides out-of-band management for remote monitoring and control, independent of the main OS.
Can I use multiple GPUs with this motherboard?
Yes, the two PCIe 5.0 x16 slots support x16/x8-x8 mode, allowing for multi-GPU configurations, though SLI/NVLink support depends on the specific GPUs.
Is WiFi included?
Yes, the 'WiFi A' in the model name indicates integrated Wi-Fi 6E (or newer) and Bluetooth connectivity.
