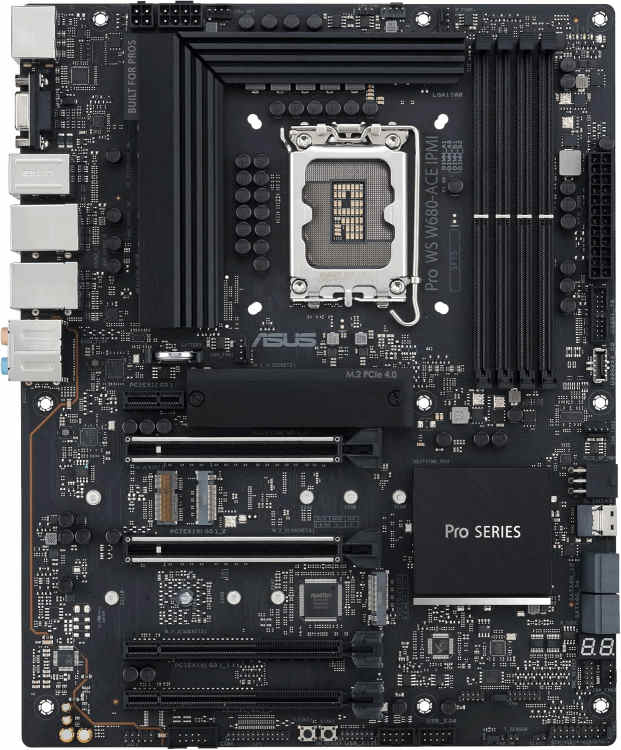

ASUS Pro WS W680-ACE IPMI
The ASUS Pro WS W680-ACE IPMI is a professional ATX motherboard engineered for content creators, engineers, and IT professionals who demand uncompromising stability, remote manageability, and high-performance computing. Built on the Intel W680 chipset and supporting 12th, 13th, and 14th Gen Intel Core processors (LGA 1700), this board bridges the gap between consumer and workstation platforms, offering ECC memory support and advanced management features typically found in server-grade hardware.
Unleash Professional Performance
With four DDR5 DIMM slots supporting up to 128GB of memory (up to 6000+ MHz when overclocked), the W680-ACE IPMI delivers exceptional bandwidth for memory-intensive tasks such as 3D rendering, video editing, and virtual machines. Both ECC and non-ECC unbuffered modules are supported, ensuring data integrity for critical workloads. The dual-channel architecture and Intel XMP 3.0 profiles allow users to maximize memory throughput with ease.
Extensive Expansion and Storage
This motherboard provides a versatile expansion layout: two PCIe 5.0 x16 slots (running at x16 or x8/x8) for the latest GPUs or accelerators, two PCIe 3.0 x16 slots (x4 electrical) for additional cards, and one PCIe 3.0 x1 slot. Storage options are abundant with three M.2 NVMe slots (all PCIe 4.0 x4), eight SATA 6Gb/s ports, and a SlimSAS connector that can support up to four additional SATA devices via a cable—perfect for high-capacity NAS or RAID configurations.
Integrated IPMI for Remote Management
The standout feature is the onboard ASPEED AST2600 BMC controller, which provides out-of-band management via a dedicated Realtek 1GbE LAN port. IT administrators can remotely monitor system health, control power states, and access the BIOS through a web-based interface—even when the OS is offline. This makes the W680-ACE IPMI an ideal choice for server rooms, labs, and edge deployments where physical access is limited.
Robust Networking and Connectivity

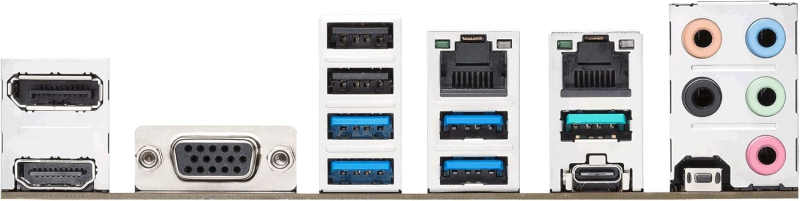

Dual Intel 2.5GbE LAN ports ensure high-speed, reliable networking for data transfer and team collaboration. The rear I/O panel includes a comprehensive set of USB ports (including USB 3.2 Gen 2 Type-A and Type-C), video outputs (DisplayPort, HDMI, VGA) driven by the BMC for basic display, and audio jacks. Onboard headers provide additional USB connectivity for front-panel devices.
Built for Endurance
ASUS has equipped this board with premium components: reinforced PCIe slots, robust VRM heatsinks, M.2 heatsinks, and hybrid fan headers that support both PWM and DC fans. The BIOS FlashBack button allows for easy firmware updates without a CPU, ensuring future compatibility. Whether you're building a high-end workstation, a home server, or a compact render farm, the ASUS Pro WS W680-ACE IPMI delivers the performance, reliability, and manageability you need.
Key Specifications
Detailed Parameters
- Platform:
- Intel
- Socket:
- LGA 1700
- RAM Type:
- DDR5
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 32
- Maximum RAM Capacity in GB:
- 128
- PCI Express Version:
- 5
- Form Factor:
- ATX
- Maximum RAM Speed in MHz:
- 6000
Pros
- Integrated IPMI (AST2600) for remote management and monitoring
- Supports ECC DDR5 memory for data integrity
- Dual PCIe 5.0 x16 slots for multi-GPU or accelerator setups
- Triple M.2 slots with PCIe 4.0 support for fast NVMe storage
- Dual Intel 2.5GbE LAN plus dedicated BMC LAN for network flexibility
Cons
- No built-in Wi-Fi or Bluetooth
- Limited PCIe 5.0 M.2 support (only PCIe 4.0 on M.2 slots)
- Premium price compared to consumer boards
