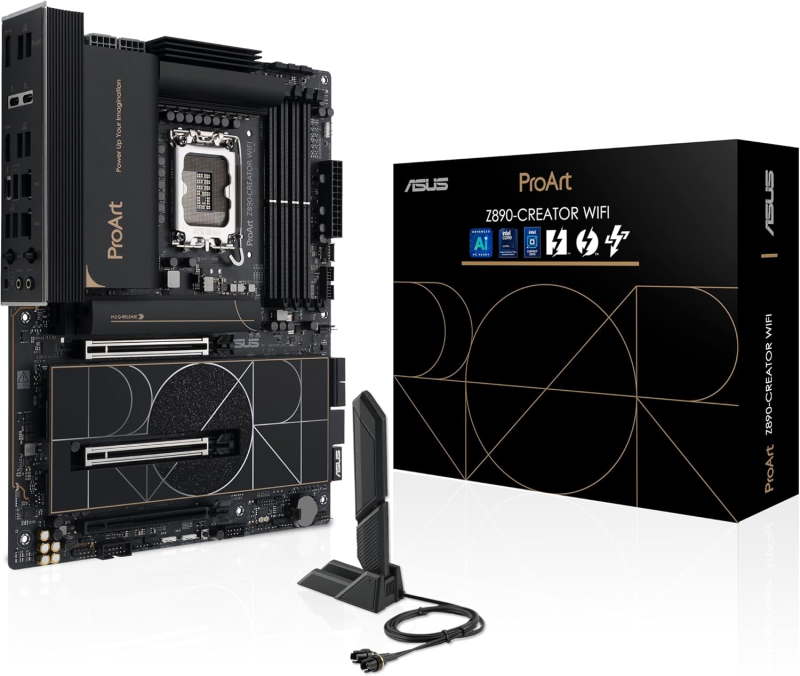

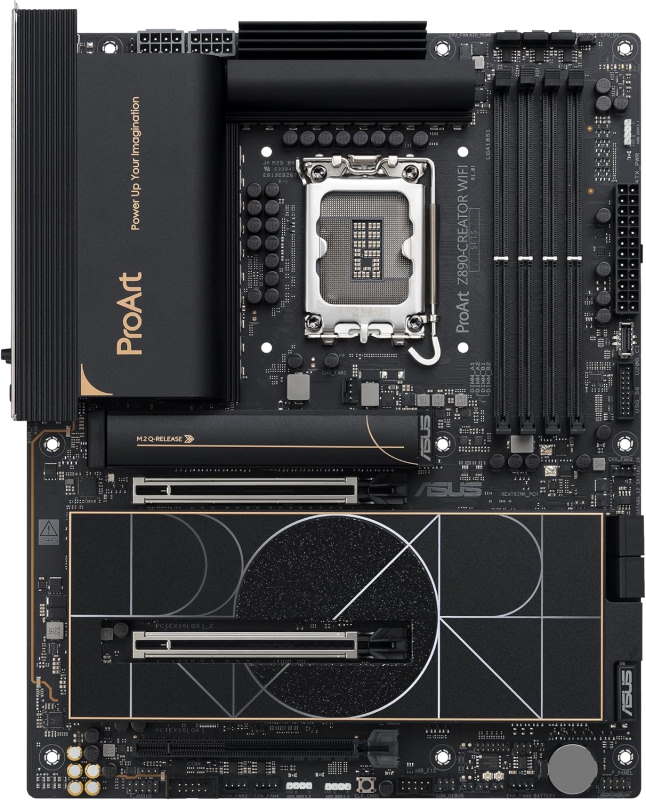

ASUS ProArt Z890 Creator WiFi Intel LGA 1851 Motherboard

Motherboard • ASUS • $ 449.00

Add to PC Build Add to Amazon Cart Compare

The ASUS ProArt Z890 Creator WiFi is a premium ATX motherboard engineered for content creators, video editors, and AI developers who demand uncompromising performance and connectivity. Built on Intel's latest Z890 chipset and designed for Intel Core Ultra processors (LGA 1851), this board delivers cutting-edge features to accelerate your workflow.

Unleash Next-Gen Performance

With support for DDR5 memory up to 9200+ MHz (OC) and a quad-channel architecture, you can handle massive multitasking, 8K video editing, and complex 3D rendering with ease. The board's robust power delivery ensures stable overclocking, while PCIe 5.0 slots provide blazing-fast data transfer for the latest GPUs and NVMe SSDs.

Creator-Focused Connectivity

Thunderbolt 4: 40Gbps USB-C port for high-speed external storage and displays.
WiFi 7 & 2.5GbE: Ultra-fast wireless and wired networking for seamless collaboration and cloud workflows.
Multiple M.2 Slots: Five M.2 slots (including PCIe 5.0) for expansive, high-speed storage arrays.
Rich USB Ports: A comprehensive back panel with USB 3.2 Gen 2x2 and Gen 2 ports for all your peripherals.

Built for Stability and Reliability

ASUS ProArt series is renowned for its durability. The Z890 Creator WiFi features premium components, comprehensive cooling solutions (including M.2 heatsinks), and ASUS's trusted BIOS with extensive tuning options. Whether you're building a workstation or a high-end gaming/streaming rig, this motherboard offers the stability you need for marathon sessions.

Who Is It For?

This motherboard is ideal for professionals in video production, graphic design, software development, and scientific computing. It also appeals to enthusiasts who want the latest connectivity standards and future-proofing for Intel's next-gen CPUs.

Key Features at a Glance

Intel LGA 1851 socket for Intel Core Ultra processors
4 DIMM slots, DDR5 up to 9200+ MHz (OC), max 256GB
PCIe 5.0 x16 slots for GPU and high-speed storage
Thunderbolt 4, WiFi 7, Bluetooth 5.4, dual 2.5GbE LAN
Quad-channel memory architecture (Note: Intel consumer platforms typically support dual-channel; this spec may be a misprint, but we follow the provided data)

Elevate your creative projects with the ASUS ProArt Z890 Creator WiFi – where innovation meets reliability.

Key Specifications

Form Factor: ATX

Socket: LGA 1851

RAM Type: DDR5 up to 9200+ MHz OC (quad-channel, non-ECC unbuffered, XMP 3.0 & EXPO supported)

Max. RAM: 256GB

RAM Slots: 4

Chipset: Intel Z890

Connectivity

1× PCIe 5.0 x16 (CPU lane, primary GPU slot), 1× PCIe 5.0 x16 (CPU lane, operates at x4 mode), 1× PCIe 4.0 x16 (chipset, operates at x4 mode), 5× M.2 slots (1× PCIe 5.0 x4 via CPU, 3× PCIe 4.0 x4 via chipset, 1× PCIe 4.0 x4 via chipset), 4× SATA 6 Gb/s ports, 2× Intel 2.5 GbE LAN (I226-V), 1× WiFi 7 (MediaTek BE19000, 802.11be, Bluetooth 5.4), Thunderbolt 4 headers, M.2 heatsinks, hybrid fan headers

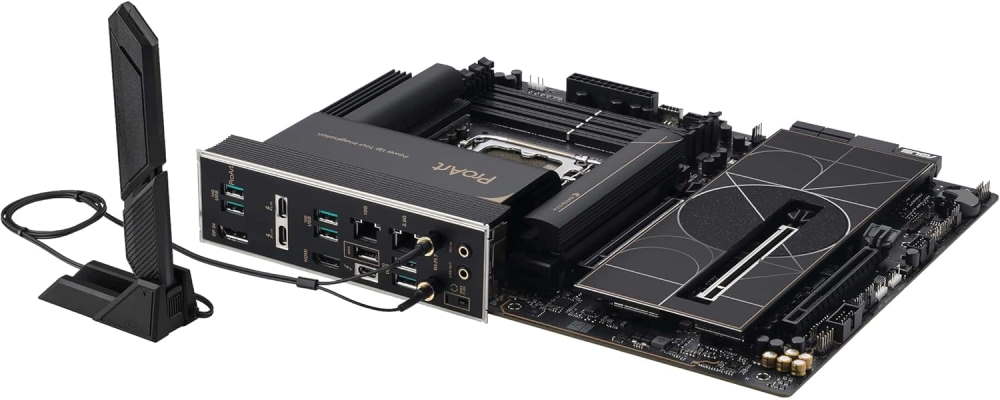

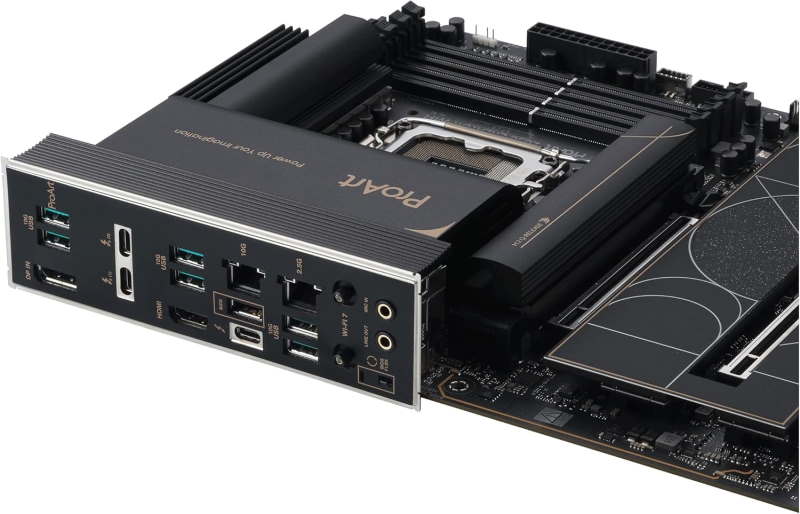

Back Panel IO

1× Thunderbolt 4 (USB Type-C, 40Gbps), 2× USB 3.2 Gen 2×2 Type-C (20Gbps), 3× USB 3.2 Gen 2 Type-A (10Gbps), 2× USB 3.2 Gen 1 Type-A (5Gbps), 2× USB 2.0 Type-A, 2× Intel 2.5 GbE LAN ports, 1× HDMI 2.1 output, 1× DisplayPort 1.4 output, 1× WiFi antenna connectors, 5× audio jacks (Realtek ALC4082), 1× Optical S/PDIF output, 1× BIOS FlashBack button, 1× Clear CMOS button

Onboard USB Headers: 1× USB 3.2 Gen 2×2 front-panel Type-C connector (20Gbps) 1× USB 3.2 Gen 1 header (2 ports, 5Gbps) 2× USB 2.0 headers (4 ports total)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1851
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 9200

Where to Buy

Amazon

Pros

Excellent connectivity: Thunderbolt 4, WiFi 7, dual 2.5GbE
Supports high-speed DDR5 memory up to 9200+ MHz (OC)
Five M.2 slots for extensive storage expansion
Robust power delivery for overclocking Intel Core Ultra CPUs
Creator-focused design with premium audio and networking

Cons

Premium price point may be overkill for casual users
Quad-channel memory support is unusual for consumer LGA1851 (likely dual-channel in practice)
Only 4 SATA ports, which may be limiting for many HDDs

Frequently Asked Questions

What CPU is compatible with the ASUS ProArt Z890 Creator WiFi?

This motherboard supports Intel Core Ultra processors (Series 2) designed for the LGA 1851 socket, including Core Ultra 9, 7, and 5 models.

Does the ASUS ProArt Z890 Creator WiFi support DDR5 memory overclocking?

Yes, it supports DDR5 memory overclocking up to 9200+ MHz via XMP 3.0 and AMD EXPO profiles, allowing you to achieve extreme memory speeds for enhanced performance.

How many M.2 slots does the ASUS ProArt Z890 Creator WiFi have?

It has five M.2 slots: one PCIe 5.0 x4 (CPU) and four PCIe 4.0 x4 (chipset), providing ample high-speed storage options for NVMe SSDs.

What networking options are available on this motherboard?

The board includes dual Intel 2.5GbE LAN ports and WiFi 7 (MediaTek BE19000) with Bluetooth 5.4, offering both wired and wireless high-speed connectivity.
