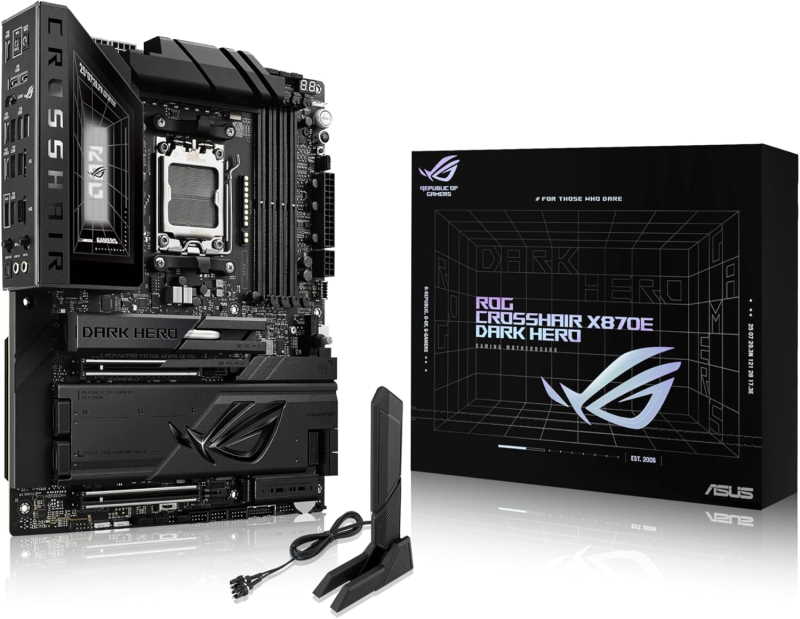

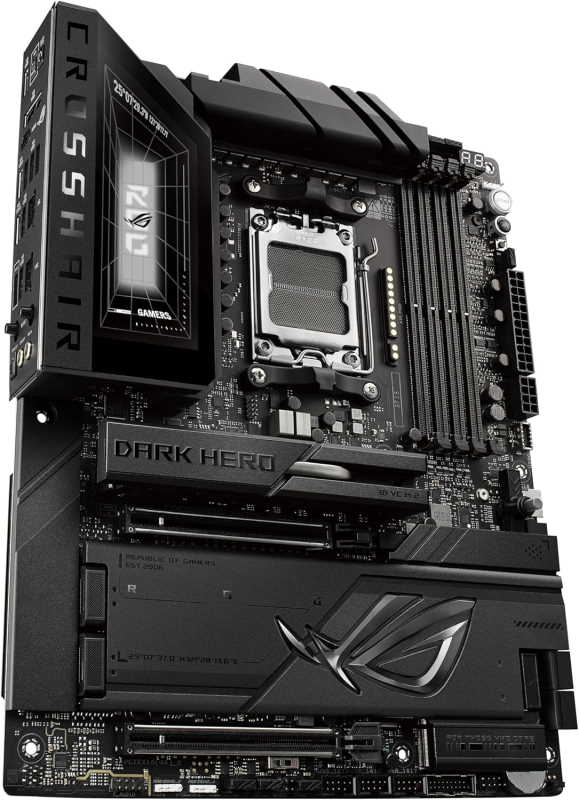

ASUS ROG Crosshair X870E Dark Hero

Motherboard • ASUS • $ 676.99

Add to PC Build Add to Amazon Cart Compare

Unleash Your AMD Ryzen with the ASUS ROG Crosshair X870E Dark Hero

The ASUS ROG Crosshair X870E Dark Hero is the pinnacle of AMD AM5 motherboards, engineered for enthusiasts, overclockers, and gamers who demand absolute performance. Built on the powerful AMD X870E chipset, this ATX board is designed to harness the full potential of AMD Ryzen 9000, 8000, and 7000 series processors. With cutting-edge connectivity, robust power delivery, and premium audio, it's the ultimate foundation for a high-end PC build.

Key Features and Performance

Next-Gen PCIe 5.0: Two PCIe 5.0 x16 slots (supporting x16 or x8/x8) and three M.2 slots with PCIe 5.0 x4 for blazing-fast graphics and storage.
DDR5 Overclocking: Four DIMM slots support up to 192GB of DDR5 memory with speeds up to 8000+ MHz (OC), compatible with both EXPO and XMP profiles.
Dual Ethernet: Marvell AQtion 10 Gb Ethernet and Intel 2.5 Gb Ethernet provide ultra-fast wired networking for lag-free gaming and rapid file transfers.
Wi-Fi 7 & Bluetooth 5.4: Enjoy the latest wireless technology with speeds up to 6.5 Gbps and low latency.
SupremeFX Audio: ROG SupremeFX 7.1 surround sound with ALC4082 codec and ESS ES9018Q2C DAC delivers immersive, high-fidelity audio.
Comprehensive Cooling: VRM heatsinks, M.2 heatsinks, and a ROG Fan Controller header ensure optimal thermal performance even under heavy loads.
Robust I/O: Dual USB4 Type-C ports (40Gbps), USB 3.2 Gen 2x2, and multiple USB 3.2 Gen 2/1 ports for all your peripherals.

Built for Overclocking and Enthusiasts

The Dark Hero series is renowned for its overclocking prowess. With a 20+2 power stage design, premium chokes and capacitors, and a comprehensive BIOS, you can push your Ryzen CPU to its limits. The board also includes BIOS FlashBack and Clear CMOS buttons for easy recovery and tuning.

Who Is It For?

This motherboard is ideal for PC builders who want the absolute best for their AMD system. Whether you're a hardcore gamer seeking maximum frame rates, a content creator handling 8K video, or an overclocker chasing records, the Crosshair X870E Dark Hero delivers. Its blend of performance, aesthetics (with RGB lighting), and durability makes it a top choice for premium builds.

Conclusion

If you're investing in a high-end AMD Ryzen 9000 series processor, the ASUS ROG Crosshair X870E Dark Hero is the perfect partner. It offers unmatched expandability, future-proof connectivity, and rock-solid stability. Elevate your PC to the next level with this flagship motherboard.

Key Specifications

Form Factor: ATX

Socket: AM5

RAM Type: DDR5 8000+ OC (dual-channel, ECC & non-ECC unbuffered, XMP & EXPO supported)

Max. RAM: 192GB

RAM Slots: 4

Chipset: AMD X870E

Connectivity

2X PCIe 5.0 x16 slots (CPU lanes, support x16 / x8-x8 mode), 3X M.2 slots (Key M, supporting PCIe 5.0 x4 mode), 2X M.2 slots (Key M, supporting PCIe 4.0 x4 mode), 4X SATA 6 Gb/s ports, 1X Marvell AQtion 10 Gb Ethernet, 1X Intel 2.5 Gb Ethernet, Wi-Fi 7 (802.11be), Bluetooth 5.4, ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 + ESS ES9018Q2C DAC, VRM heatsinks, M.2 heatsinks, ROG Fan Controller header

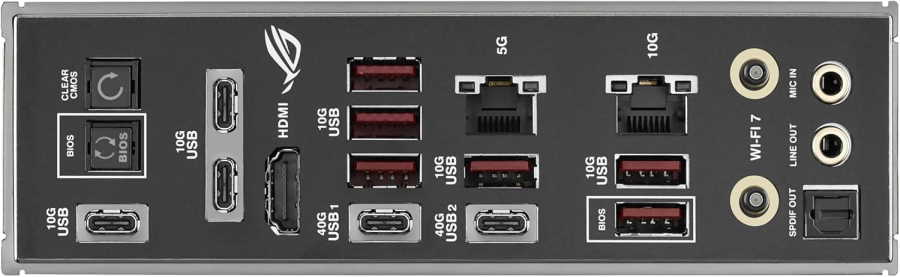

Back Panel IO

2X USB4 Type-C ports, 1X USB 3.2 Gen 2x2 Type-C port, 4X USB 3.2 Gen 2 Type-A ports, 4X USB 3.2 Gen 1 Type-A ports, 1X Marvell AQtion 10 Gb Ethernet port, 1X Intel 2.5 Gb Ethernet port, 2X Wi-Fi antenna connectors, 5X Audio jacks, 1X Optical S/PDIF out port, 1X BIOS FlashBack button, 1X Clear CMOS button

Onboard USB Headers: 1X USB 3.2 Gen 2x2 front-panel Type-C connector 1X USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) 2X USB 2.0 headers (supports 4 additional USB 2.0 ports)

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 48
Maximum RAM Capacity in GB:: 192
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 8000

Where to Buy

Amazon

Pros

Excellent power delivery for overclocking Ryzen 9000 series
Dual PCIe 5.0 x16 slots and three PCIe 5.0 M.2 slots for future-proofing
10 Gb Ethernet plus Wi-Fi 7 for ultimate networking
Premium audio with ESS DAC for immersive sound
Comprehensive cooling and fan control options

Cons

High price point, not for budget builders
Only four SATA ports, limited for many drives
May require BIOS update for older Ryzen 7000 CPUs

Frequently Asked Questions

Is the ASUS ROG Crosshair X870E Dark Hero compatible with Ryzen 7000 series processors?

Yes, the X870E Dark Hero supports AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket. However, for Ryzen 7000, a BIOS update may be required to ensure full compatibility and optimal performance.

Does the motherboard support DDR5 memory overclocking?

Absolutely. It supports DDR5 memory up to 8000+ MHz (OC) and is compatible with both AMD EXPO and Intel XMP profiles, allowing you to easily enable high-speed memory profiles.

What are the benefits of the dual Ethernet ports?

The board features a Marvell AQtion 10 Gb Ethernet port for ultra-fast wired networking, ideal for NAS, large file transfers, and online gaming. The Intel 2.5 Gb Ethernet provides a reliable secondary connection, and you can even combine them for increased throughput.

How many M.2 slots are available and what speeds do they support?

There are five M.2 slots total: three support PCIe 5.0 x4 (up to 128 Gbps) and two support PCIe 4.0 x4 (up to 64 Gbps). This allows for multiple high-speed NVMe SSDs in RAID configurations.
