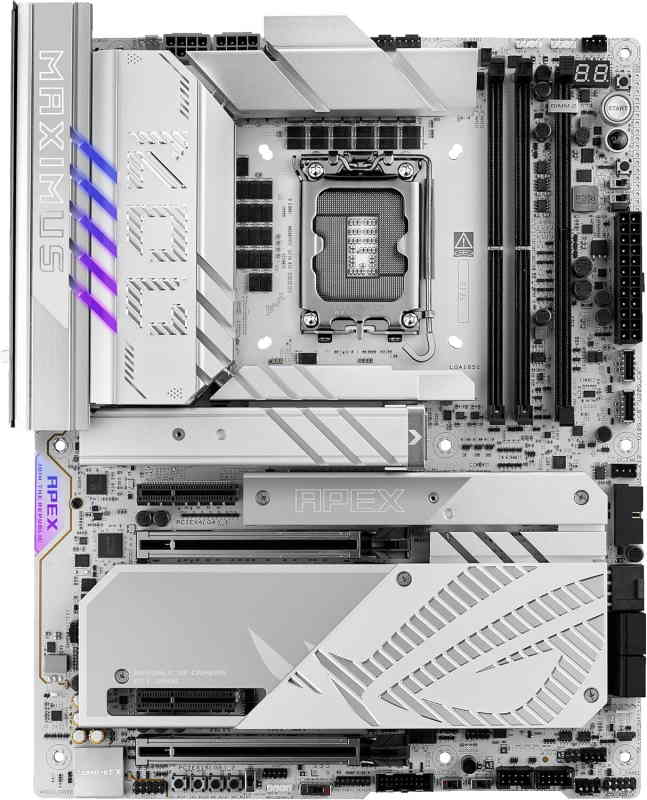

ASUS ROG Maximus Z890 Apex
Overview
The ASUS ROG Maximus Z890 Apex is a flagship ATX motherboard engineered for Intel Core Ultra processors (LGA 1851) and the Intel Z890 chipset. Designed for extreme overclocking and high-performance builds, it combines cutting-edge connectivity with robust power delivery to push your system to its limits.
Unleash Maximum Performance
With a 20+1+2 power stage design and premium alloy chokes, the Z890 Apex delivers clean, stable power to the CPU, enabling enthusiasts to achieve record-breaking overclocks. The dual-channel DDR5 memory architecture supports speeds up to 8400+ MT/s (OC) via two reinforced DIMM slots, maximizing memory bandwidth for gaming and productivity.
Next-Gen Connectivity
- PCIe 5.0: Two PCIe 5.0 x16 slots (from CPU) support multi-GPU configurations (x16/x0 or x8/x8).
- Storage: One PCIe 5.0 M.2 slot (CPU) and four PCIe 4.0 M.2 slots (chipset, two via DIMM.2 card) for lightning-fast NVMe SSDs.
- Networking: Intel 2.5 GbE LAN, Wi-Fi 7, and Bluetooth 5.4 ensure lag-free online gaming and fast file transfers.
- Thunderbolt 4 / USB4: Onboard header and dedicated controller provide 40 Gbps connectivity for external devices.

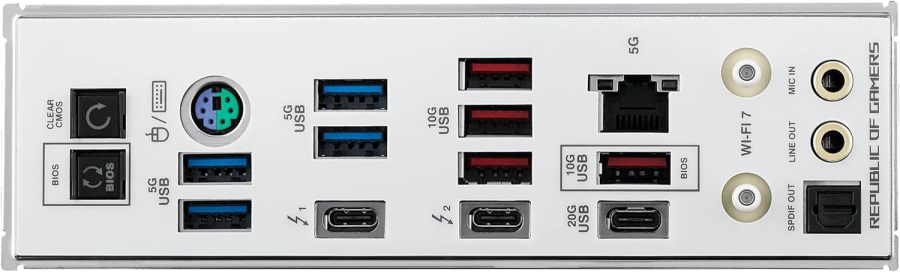

- USB Ports: Back panel includes USB 3.2 Gen 2x2 Type-C, five USB 3.2 Gen 2 Type-A, and four USB 3.2 Gen 1 Type-A.
Built for Enthusiasts
The Apex series is renowned for its overclocking-friendly design. Features include BIOS FlashBack, Clear CMOS button, and extensive voltage control. The board also includes comprehensive cooling options: multiple fan headers, water cooling headers, and dedicated VRM and M.2 heatsinks to keep temperatures in check.
Target Audience
Ideal for hardcore gamers, PC enthusiasts, and competitive overclockers who demand the absolute best performance and features from their platform. Whether you're chasing world records or building a no-compromise gaming rig, the ROG Maximus Z890 Apex delivers.
Key Specifications
Detailed Parameters
- Platform:
- Intel
- Socket:
- LGA 1851
- RAM Type:
- DDR5
- Number of RAM Slots:
- 2
- Maximum RAM/slot:
- 64
- Maximum RAM Capacity in GB:
- 128
- PCI Express Version:
- 5
- Form Factor:
- ATX
- Maximum RAM Speed in MHz:
- 8400
Pros
- Exceptional overclocking capability with robust VRM and BIOS
- Supports ultra-fast DDR5 memory up to 8400+ MT/s
- Multiple PCIe 5.0 and M.2 slots for future-proof storage and GPU
- Premium networking: Wi-Fi 7, 2.5 GbE, and Thunderbolt 4
- Comprehensive cooling and fan control options
Cons
- Only 2 DIMM slots limit maximum capacity (128GB) and upgrade path
- High price point may be overkill for average users
- Requires latest Intel Core Ultra CPUs (LGA 1851), not backward compatible
