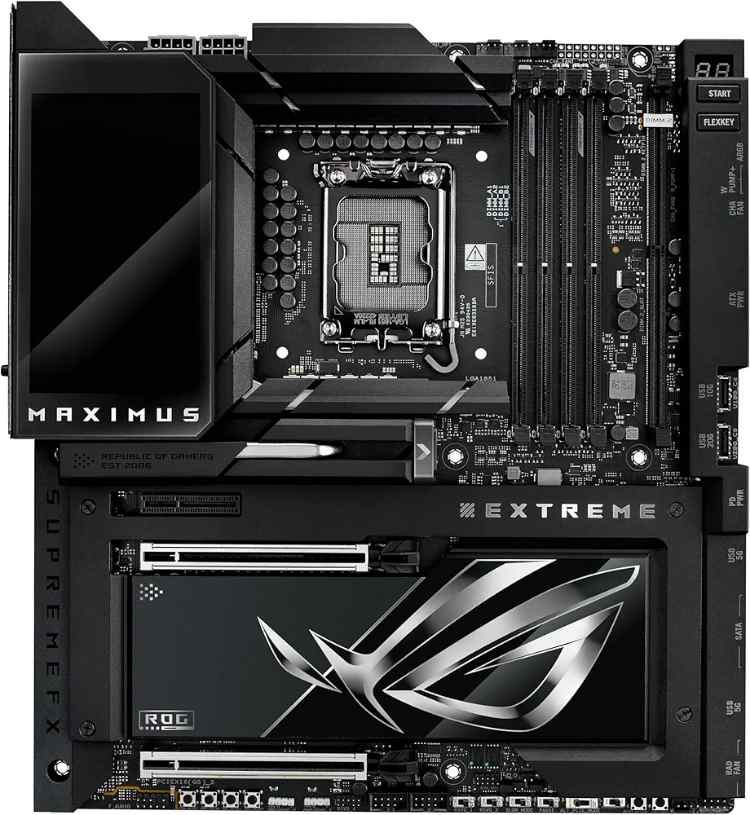

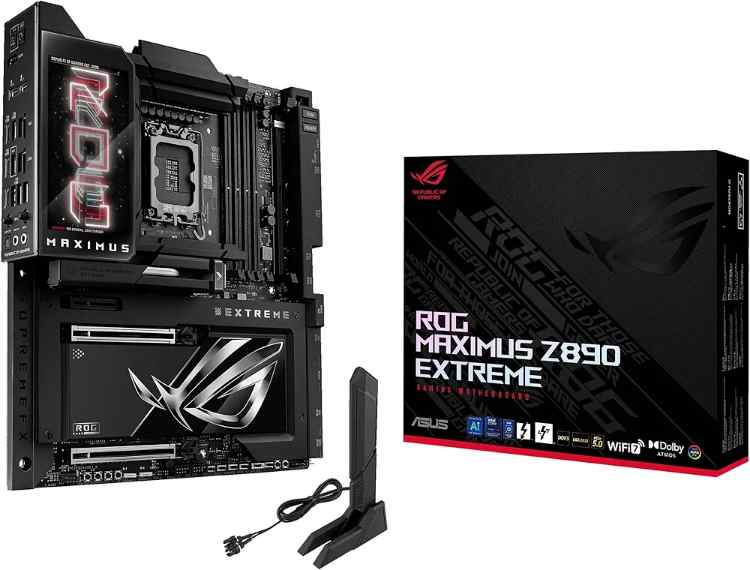

Asus ROG Maximus Z890 Extreme

Motherboard • Asus • $ 749.99

Add to PC Build Add to Amazon Cart Compare

Overview

Unleash the Power of Intel Core Ultra Series 2

The Asus ROG Maximus Z890 Extreme is the pinnacle of Intel Z890 motherboards, engineered for enthusiasts and overclockers who demand absolute performance. Built around the LGA 1851 socket, it fully supports Intel Core Ultra Series 2 processors, delivering unprecedented computing power for gaming, content creation, and AI workloads.

Unmatched Performance and Overclocking

With a robust 24+1+2+2 power stage design and ProCool II connectors, the Z890 Extreme ensures stable power delivery even under extreme overclocking. The AI Overclocking feature intelligently tunes your system for optimal performance, while AI Cooling II keeps temperatures in check. Memory support reaches an astonishing DDR5-9200+ MT/s (OC) with NitroPath and DIMM Flex/Fit technologies, allowing you to push your RAM to its limits.

Next-Gen Connectivity and Storage

Connectivity is future-proof with dual PCIe 5.0 x16 slots, six M.2 NVMe slots (three PCIe 5.0), and Thunderbolt 5 USB-C ports delivering up to 120 Gb/s with Bandwidth Boost. The integrated 10GbE and 2.5GbE LAN, along with Wi-Fi 7 and Bluetooth 5.4, ensure blazing-fast networking for online gaming and large file transfers.

Immersive Audio and Visuals

The SupremeFX ALC4082 codec with ESS ES9219 QUAD DAC delivers pristine 7.1-channel audio, while the onboard 5-inch LCD display allows you to monitor system stats or showcase custom animations. HDMI 2.1 output supports 8K@60Hz for stunning visuals.

Built for Enthusiasts

This E-ATX motherboard is packed with premium features: Q-Release Slim for easy GPU removal, M.2 PowerBoost for faster SSD performance, dual BIOS for safety, and a comprehensive array of USB headers. The integrated I/O shield and Q-LED diagnostics simplify installation and troubleshooting.

Whether you're building a high-end gaming rig, a workstation for 3D rendering, or an AI development platform, the Asus ROG Maximus Z890 Extreme is the ultimate foundation.

Key Specifications

Form Factor: E‑ATX

Socket: LGA 1851 (Intel Core Ultra Series 2)

RAM Type: DDR5 (dual‑channel, XMP/AEMP III with NitroPath & DIMM Flex/Fit support, up to 9200+ MT/s OC)

Max. RAM: 256 GB

RAM Slots: 4

Chipset: Intel Z890

Connectivity

2× PCIe 5.0 x16 slots (SafeSlot, bifurcation: x16, x8/x8, x8/x4/x4), 1× PCIe 4.0 x4 slot, 6× M.2 NVMe slots:, – 3× PCIe 5.0 x4, – 1× PCIe 4.0 x4, – 2× PCIe 4.0 x4 via ROG Q‑DIMM.2 card, 4× SATA 6 Gb/s ports (RAID 0/1/10), 10 GbE LAN (Marvell Aqtion) & 2.5 GbE LAN (Intel), Wi‑Fi 7 (802.11be) + Bluetooth 5.4 (Intel), 7.1‑Channel HD Audio (SupremeFX ALC4082 + ESS ES9219 QUAD DAC), Onboard 5\" LCD display, AI Overclocking & AI Cooling II, Extensive power delivery (e.g., 24+1+2+2 power stages, ProCool II connectors), Q-LED, Q‑Release Slim, M.2 PowerBoost, integrated I/O shield, dual BIOS, and more

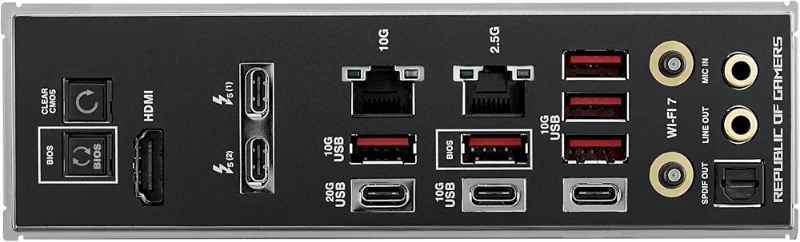

Back Panel IO

1× HDMI 2.1 (DSC, up to 8K@60 Hz), 2× Thunderbolt 5 USB‑C ports (up to 80 Gb/s, 120 Gb/s with Bandwidth Boost), 1× USB‑C front‑panel connector (20 Gb/s, QC4+ up to 60 W), 7× USB 10 Gb/s ports (5× Type‑A, 2× Type‑C), additional USB Type‑C 10 Gb/s, plus multiple USB 5 Gb/s and USB 2.0 internally, BIOS FlashBack and Clear CMOS buttons, Optical S/PDIF‑Out, LED‑illuminated audio jacks, Wi‑Fi antenna connectors

Onboard USB Headers: 1× USB‑C 20 Gbps front‑panel header (QC4+ supported) USB 10 Gbps A/C and additional USB 5 Gbps & USB 2.0 headers

Detailed Parameters

Platform:: Intel
Socket:: LGA 1851
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 9200

Where to Buy

Amazon

Pros

Exceptional power delivery for extreme overclocking
Supports DDR5-9200+ MT/s with NitroPath and DIMM Flex
Triple PCIe 5.0 M.2 slots for ultra-fast storage
Thunderbolt 5 and 10GbE for future-proof connectivity
Onboard LCD and premium audio solution

Cons

Very high price point
E-ATX form factor may not fit smaller cases
Only 4 SATA ports (limited for legacy drives)

Frequently Asked Questions

What CPU socket does the Asus ROG Maximus Z890 Extreme use?

It uses the LGA 1851 socket, compatible with Intel Core Ultra Series 2 processors (e.g., Core Ultra 9 285K).

Does the Z890 Extreme support DDR5 memory overclocking?

Yes, it supports DDR5 memory up to 9200+ MT/s (OC) with XMP 3.0 and AEMP III, plus NitroPath and DIMM Flex/Fit for enhanced stability.

How many M.2 slots does the Asus ROG Maximus Z890 Extreme have?

It has six M.2 slots: three PCIe 5.0 x4, one PCIe 4.0 x4, and two additional PCIe 4.0 x4 via the included ROG Q-DIMM.2 card.

What networking options are available on the Z890 Extreme?

It features both 10GbE (Marvell Aqtion) and 2.5GbE (Intel) LAN, plus Wi-Fi 7 (802.11be) and Bluetooth 5.4.

Does the motherboard have Thunderbolt 5 ports?

Yes, it includes two Thunderbolt 5 USB-C ports on the rear I/O, supporting up to 80 Gb/s (or 120 Gb/s with Bandwidth Boost).
