ASUS ROG Strix B860-I Gaming WiFi

Motherboard • ASUS • $ 239.38

Add to PC Build Add to Amazon Cart Compare

Overview

The ASUS ROG Strix B860-I Gaming WiFi is a premium Mini-ITX motherboard engineered for gamers and PC enthusiasts who demand top-tier performance in a compact form factor. Built on Intel's latest B860 chipset, it supports Intel Core Ultra processors (LGA 1851) and delivers exceptional connectivity, robust power delivery, and advanced cooling—all within a space-saving design.

Designed for Compact Power

This motherboard packs a punch with its 8+1+1 power stages and premium alloy chokes, ensuring stable power delivery for even the most demanding CPUs. The Mini-ITX form factor makes it perfect for small form factor (SFF) builds, LAN party rigs, or sleek HTPCs, without compromising on features.

Unleash Next-Gen Performance

With dual DDR5 slots supporting up to 128GB and speeds up to 9066MHz (OC), you can achieve blistering memory bandwidth for gaming, content creation, and multitasking. The PCIe 5.0 x16 slot (SafeSlot) is ready for the latest graphics cards, while two M.2 slots (one PCIe 5.0, one PCIe 4.0) provide lightning-fast storage options. RAID 0/1/5/10 support adds flexibility for data redundancy or performance.

Cutting-Edge Connectivity

The ROG Strix B860-I is future-proof with Wi-Fi 7 (2x2 802.11be) and Bluetooth 5.4 for wireless freedom. Thunderbolt 4 via USB-C (40Gbps) enables ultra-fast data transfers and daisy-chaining of peripherals. Intel 2.5Gb Ethernet ensures stable, low-latency wired networking. A comprehensive rear I/O panel includes multiple USB ports, HDMI, DisplayPort, and audio jacks with optical S/PDIF.

Immersive Audio and Cooling

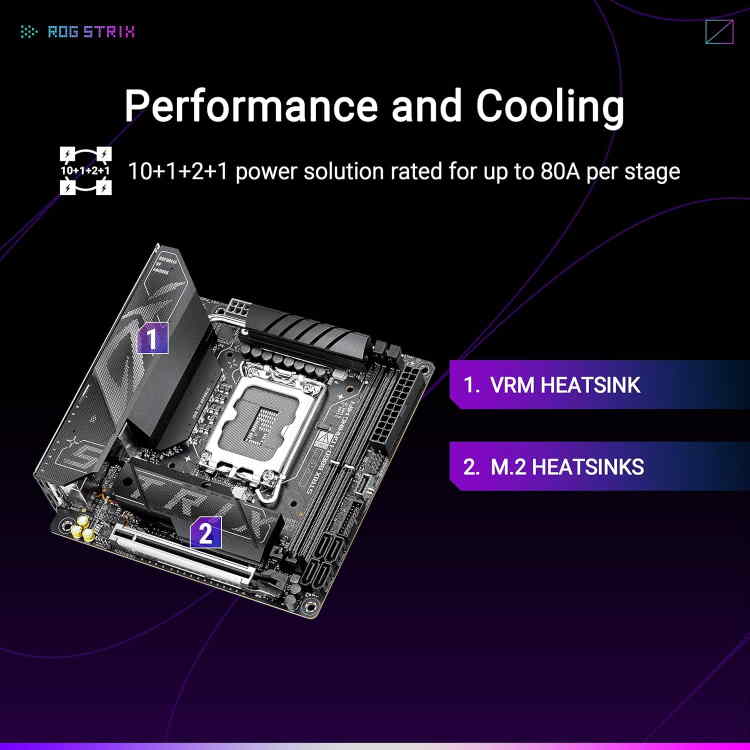

Enjoy high-fidelity sound with the Realtek ALC1220P codec and Savitech amplifier, supporting 7.1-channel audio and Dolby Atmos. The motherboard features comprehensive cooling controls via Fan Xpert, allowing you to fine-tune fan curves for optimal thermal performance. Heatsinks on M.2 slots and the VRM area keep temperatures in check during intense sessions.

Perfect for Enthusiasts

Whether you're building a compact gaming powerhouse, a creative workstation, or a home server, the ASUS ROG Strix B860-I Gaming WiFi offers the perfect blend of performance, features, and aesthetics. Its ROG Strix design language, with subtle RGB accents, adds a touch of style to any build.

Key Specifications

Form Factor: Mini‑ITX

Socket: LGA 1851

RAM Type: DDR5

Max. RAM: 128 GB

RAM Slots: 2

Chipset: Intel B860

Connectivity

1X PCI Express 5.0 x16 (SafeSlot CPU),, 2X M.2 NVMe (1× PCIe 5.0, 1× PCIe 4.0),, 4X SATA 6 Gb/s,, RAID 0/1/5/10 support,, Intel 2.5 GbE LAN,, Wi‑Fi 7 (2×2 802.11be),, Bluetooth 5.4,, Thunderbolt 4 (USB‑C, 40 Gbps),, 7.1‑Channel HD Audio (Realtek ALC1220P with Savitech amp, Dolby Atmos support)

Back Panel IO

1X Thunderbolt 4 (USB‑C),, 1X USB 3.2 Gen 2x2 Type‑C (20 Gbps),, 1X USB 3.2 Gen 2 Type‑A (10 Gbps),, 3X USB 3.2 Gen 1 Type‑A (5 Gbps),, 2X USB 2.0 Type‑A,, 1X HDMI,, 1X DisplayPort,, 1X LAN (RJ45, 2.5 GbE),, 2X Antenna connectors,, 5X Audio jacks + 1X Optical S/PDIF‑OUT,, 1X Clear CMOS button

Onboard USB Headers: 1X USB 3.2 Gen 2x2 (20 Gbps) Type‑C front panel, 1X USB 3.2 Gen 2 header (supports 2 ports), 1X USB 2.0 header (supports 2 ports)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1851
RAM Type:: DDR5
Number of RAM Slots:: 2
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 5
Form Factor:: Mini-ITX
Maximum RAM Speed in MHz:: 9066

Where to Buy

Amazon

Pros

Compact Mini-ITX design ideal for SFF builds
Supports latest Intel Core Ultra CPUs (LGA 1851)
Wi-Fi 7 and Thunderbolt 4 for cutting-edge connectivity
High-speed DDR5 support up to 9066MHz (OC)
Robust power delivery and cooling for stable performance

Cons

Only 2 RAM slots limit future expansion
No PCIe slots beyond the single x16
Premium price compared to ATX B860 boards

Frequently Asked Questions

What CPU socket does the ASUS ROG Strix B860-I Gaming WiFi use?

It uses the LGA 1851 socket, compatible with Intel Core Ultra processors (Arrow Lake).

Does the ASUS ROG Strix B860-I support DDR5 memory overclocking?

Yes, it supports DDR5 memory overclocking up to 9066MHz via XMP and ASUS OC profiles.

How many M.2 slots does the B860-I have and what speeds?

It has two M.2 slots: one supports PCIe 5.0 x4 and the other PCIe 4.0 x4, both supporting NVMe SSDs.

Does the motherboard include Wi-Fi and Bluetooth?

Yes, it features Wi-Fi 7 (2x2 802.11be) and Bluetooth 5.4 for wireless connectivity.

Is the ASUS ROG Strix B860-I suitable for a small form factor gaming PC?

Absolutely. Its Mini-ITX form factor is perfect for compact builds, and it offers high-end features like PCIe 5.0 and Thunderbolt 4.
