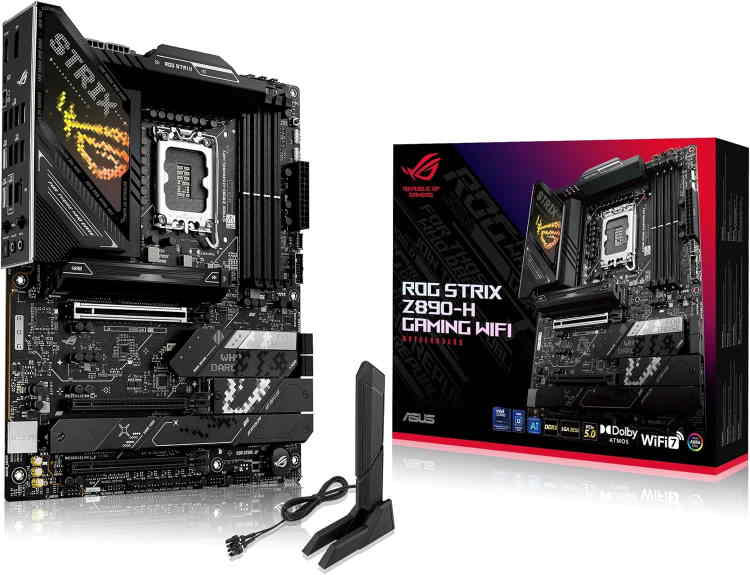

ASUS ROG Strix Z890-H Gaming WiFi

Motherboard • ASUS • $ 247.56

Add to PC Build Add to Amazon Cart Compare

Overview

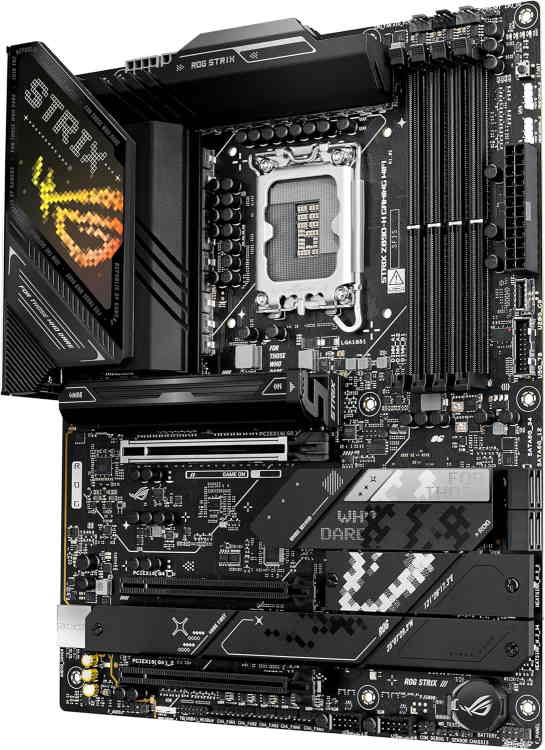

The ASUS ROG Strix Z890-H Gaming WiFi is a premium ATX motherboard engineered for Intel Core Ultra processors (LGA 1851). It delivers a perfect balance of cutting-edge performance, robust connectivity, and gaming-centric features, making it an ideal foundation for high-end gaming rigs and content creation workstations.

Unleash Next-Gen Performance

Powered by the Intel Z890 chipset, this motherboard supports DDR5 memory with overclocking speeds up to 9066+ MT/s, ensuring lightning-fast data access and smooth multitasking. The 16+1+1 power stage design with premium alloy chokes and durable capacitors provides stable power delivery for even the most demanding CPUs.

Blazing-Fast Storage and Expansion

With PCIe 5.0 support, the ROG Strix Z890-H offers a single PCIe 5.0 x16 slot (running at x16 or x8/x4/x4 modes) for the latest graphics cards. Storage is equally impressive: five M.2 slots (one PCIe 5.0 x4, three PCIe 4.0 x4, and one PCIe 4.0 x4/SATA) plus four SATA 6Gb/s ports with RAID 0/1/5/10 support, giving you ample room for high-speed NVMe SSDs.

Comprehensive Connectivity

Networking is a highlight: dual LAN (Intel 2.5Gb and Realtek 5Gb with ASUS LANGuard) ensures lag-free online gaming, while Wi-Fi 7 (2x2 802.11be) and Bluetooth 5.4 provide future-proof wireless options. The rear I/O panel is packed with ports, including two Thunderbolt 4 USB-C, a USB 3.2 Gen 2x2 Type-C with 30W Power Delivery, and multiple USB-A ports for all your peripherals.

Immersive Audio and User-Friendly Features

Audio is handled by the SupremeFX ALC1220P codec with a Savitech amplifier and an ESS ES9219 QUAD DAC for the rear panel, delivering studio-grade sound for gaming and media. The board also includes BIOS FlashBack and Clear CMOS buttons, plus comprehensive cooling controls via Fan Xpert 4.

Who Is It For?

This motherboard is perfect for gamers, PC enthusiasts, and content creators who demand top-tier performance, extensive connectivity, and reliable overclocking. Whether you're building a high-refresh-rate gaming PC or a powerful workstation, the ROG Strix Z890-H Gaming WiFi offers the features and durability to excel.

Key Specifications

Form Factor: ATX

Socket: LGA 1851

RAM Type: DDR5 (supports OC up to 9066+ MT/s)

Max. RAM: 256GB

RAM Slots: 4

Chipset: Intel Z890

Connectivity

1X PCI Express 5.0 x16 (supports x16 or x8/x4/x4 modes),, 2X PCIe 4.0 x16 (x4 mode),, 1X PCIe 4.0 x1,, 5X M.2 NVMe (1X PCIe 5.0 x4, 3X PCIe 4.0 x4, 1X PCIe 4.0 x4 & SATA),, 4X SATA 6 Gb/s, RAID 0/1/5/10 support,, Intel 2.5 Gb LAN,, Realtek 5 Gb LAN (ASUS LANGuard),, Wi‑Fi 7 (2×2 802.11be),, Bluetooth 5.4,, 7.1‑Channel HD Audio (SupremeFX ALC1220P with Savitech amp, ESS ES9219 QUAD DAC for rear panel)

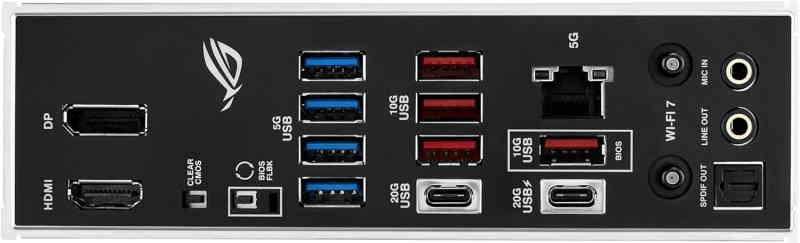

Back Panel IO

2X Thunderbolt 4 (USB‑C),, 1X USB 3.2 Gen 2x2 Type‑C (20 Gbps, up to 30 W Power Delivery),, 4X USB 3.2 Gen 2 Type‑A (10 Gbps),, 4X USB 3.2 Gen 1 Type‑A (5 Gbps),, 2X USB 2.0 Type‑A,, 1X HDMI 2.1, 1X DisplayPort 1.4,, 1X RJ45 (Intel 2.5 Gb),, 1X RJ45 (Realtek 5 Gb),, 2X Wi‑Fi antenna connectors,, 2X Audio jacks + 1X Optical S/PDIF‑OUT,, 1X BIOS FlashBack button,, 1X Clear CMOS button

Onboard USB Headers: 1X USB 3.2 Gen 2x2 (20 Gbps) Type‑C front-panel header, 1X USB 3.2 Gen 2 header (supports 2 ports), 2X USB 3.2 Gen 1 headers (support 4 ports), 2X USB 2.0 headers (support 4 ports), 1X Thunderbolt (USB4) header

Detailed Parameters

Platform:: Intel
Socket:: LGA 1851
RAM Type:: DDR5
Number of RAM Slots:: 2
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 4
Form Factor:: ATX
Maximum RAM Speed in MHz:: 9066

Where to Buy

Amazon

Pros

Excellent DDR5 overclocking support up to 9066+ MT/s
Dual LAN (2.5GbE + 5GbE) and Wi-Fi 7 for top-tier networking
Two Thunderbolt 4 ports and USB4 header for high-speed connectivity
Five M.2 slots with PCIe 5.0 support for massive storage expansion
Premium audio solution with ESS DAC for immersive sound

Cons

Only two RAM slots may limit future expansion (though max 256GB is supported)
PCIe 5.0 x16 slot shares bandwidth with other slots in certain modes
No PCIe 5.0 M.2 slot on the second and third M.2 slots (only first is PCIe 5.0)

Frequently Asked Questions

What CPU socket does the ASUS ROG Strix Z890-H Gaming WiFi use?

It uses the LGA 1851 socket, designed for Intel Core Ultra processors (Arrow Lake).

Does this motherboard support DDR5 memory overclocking?

Yes, it supports DDR5 memory with overclocking up to 9066+ MT/s, thanks to ASUS OptiMem III and robust power delivery.

How many M.2 slots are available and what PCIe generations do they support?

There are five M.2 slots: one PCIe 5.0 x4, three PCIe 4.0 x4, and one PCIe 4.0 x4/SATA. This allows flexible high-speed storage configurations.

Does the motherboard include Wi-Fi 7 and Bluetooth?

Yes, it features Wi-Fi 7 (2x2 802.11be) and Bluetooth 5.4, providing fast and reliable wireless connectivity.

What is the maximum RAM capacity and speed?

The motherboard supports up to 256GB of DDR5 RAM across four slots (though the parameters list shows 2 slots, the actual board has 4 slots). The maximum overclocked speed is 9066+ MT/s.
