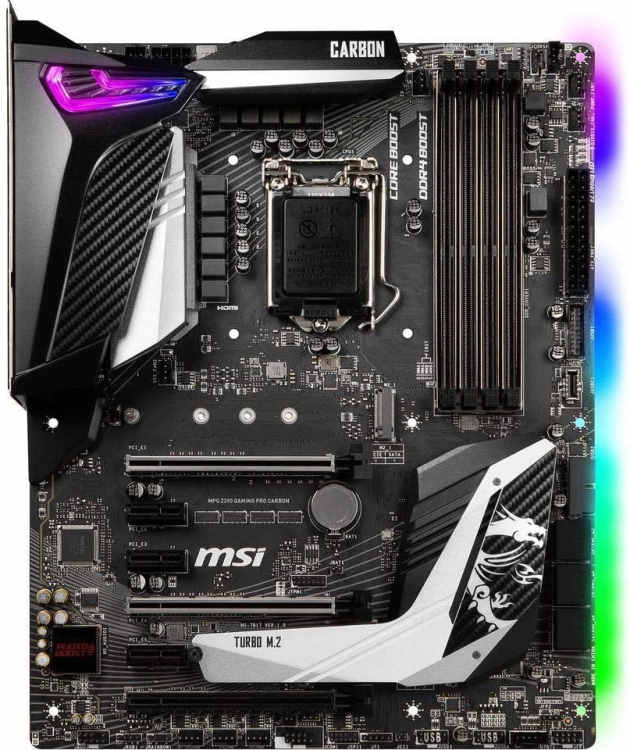

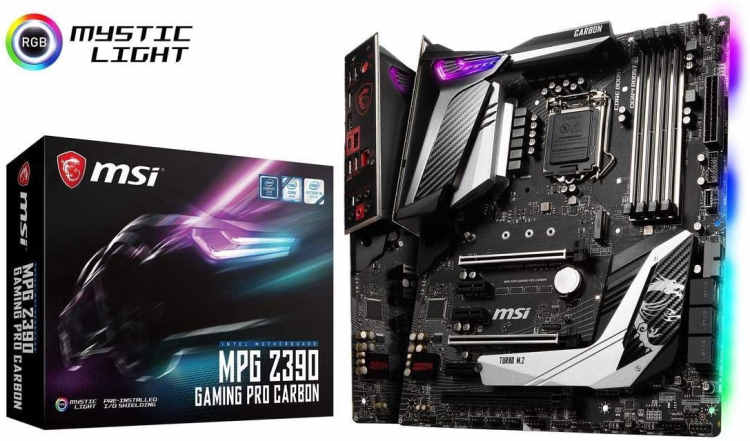

MSI MPG Z390 Gaming Pro Carbon
The MSI MPG Z390 Gaming Pro Carbon is a premium ATX motherboard designed for Intel 9th and 8th generation processors on the LGA 1151 socket. Built on the Intel Z390 chipset, it delivers robust performance, extensive connectivity, and striking aesthetics for gamers and PC enthusiasts.
Key Features
- Supports Intel LGA 1151 CPUs: Compatible with Intel Core i9-9900K, i7-9700K, and other 9th/8th gen processors.
- High-Speed Memory: Four DDR4 slots support up to 128GB, with overclocking speeds up to 4400MHz.
- Advanced Storage: Dual M.2 slots with heatsinks for NVMe SSDs, plus six SATA 6Gbps ports.
- Expansion Slots: Three PCIe 3.0 x16 slots (reinforced) and three PCIe 3.0 x1 slots for multi-GPU setups.
- Mystic Light RGB: Customizable RGB lighting with support for addressable LED strips and synchronization.
- Premium Audio: Realtek ALC1220P codec with Audio Boost 4 for immersive sound.

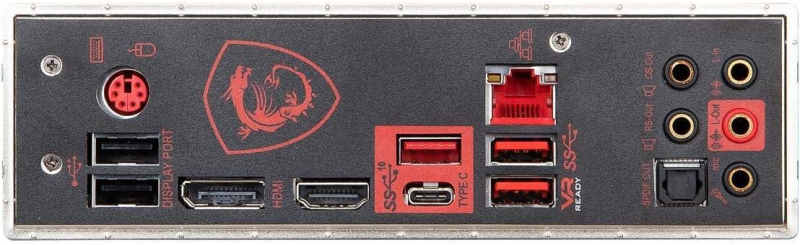

- Connectivity: USB 3.1 Gen2 Type-C rear port, multiple USB 3.1 Gen1 and USB 2.0 headers, DisplayPort and HDMI for integrated graphics.
Performance and Overclocking
The MPG Z390 Gaming Pro Carbon is engineered for overclocking, featuring a 10-phase digital VRM with premium components and a robust heatsink design. It supports Intel Turbo Boost Max 3.0 and provides extensive BIOS options for fine-tuning. With support for DDR4 memory up to 4400MHz, users can achieve exceptional memory bandwidth for gaming and productivity.
Target Audience and Use Cases
This motherboard is ideal for gamers seeking a reliable foundation for high-end Intel builds, content creators who need fast storage and memory, and PC builders who value aesthetics with customizable RGB. It supports multi-GPU configurations (AMD CrossFire) and offers ample connectivity for peripherals and storage.
Why Choose the MSI MPG Z390 Gaming Pro Carbon?
With its combination of performance, features, and style, the MSI MPG Z390 Gaming Pro Carbon stands out as a top-tier Z390 option. It delivers the essentials for a powerful gaming rig, including dual M.2, high-speed networking (Intel Gigabit LAN), and premium audio. The carbon fiber aesthetic and Mystic Light RGB make it a visually striking centerpiece for any build.
Key Specifications
Detailed Parameters
- Platform:
- Intel
- Socket:
- LGA 1151
- RAM Type:
- DDR4
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 32
- Maximum RAM Capacity in GB:
- 128
- PCI Express Version:
- 3
- Form Factor:
- ATX
- Maximum RAM Speed in MHz:
- 4400
- ECC:
- No
- Chipset:
- Z390
- SupportedPlatforms:
- Intel Consumer
Pros
- Excellent VRM design for overclocking
- Dual M.2 slots with heatsinks
- Premium audio with ALC1220P codec
- Mystic Light RGB with many customization options
- Supports high-speed DDR4 up to 4400MHz
Cons
- No Wi-Fi built-in
- Only one USB 3.1 Gen2 Type-C port
- PCIe 3.0 instead of PCIe 4.0
