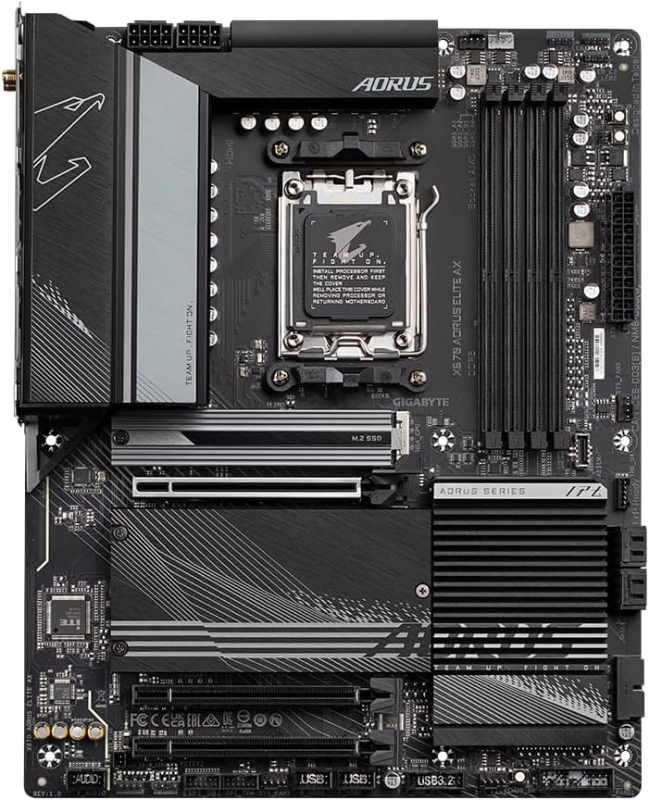

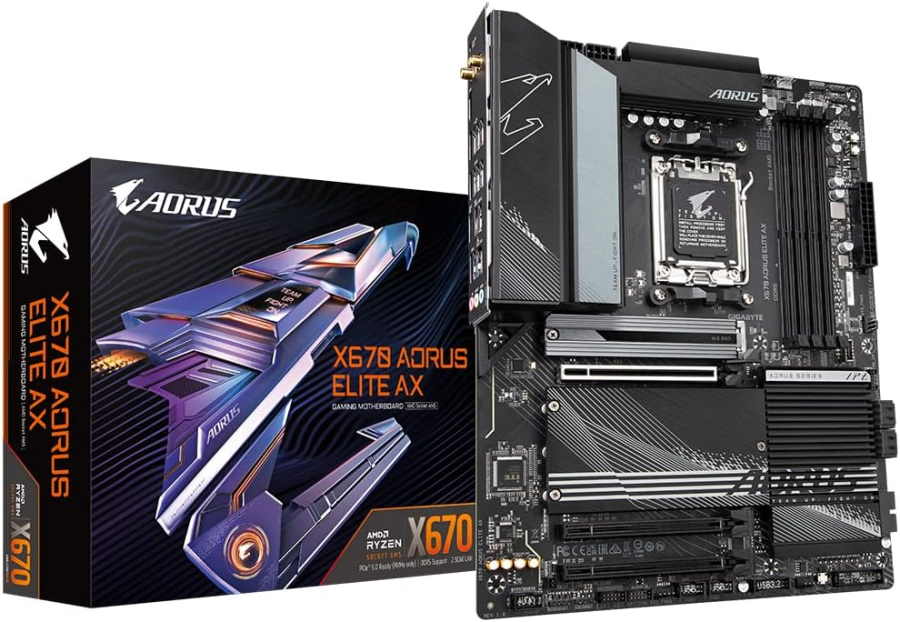

Gigabyte AORUS Elite AX AMD X670

Motherboard • Gigabyte • $ 298.82

Add to PC Build Add to Amazon Cart Compare

Overview

The Gigabyte AORUS Elite AX AMD X670 is a feature-rich ATX motherboard designed to unlock the full potential of AMD's Ryzen 7000 and 8000 series processors. Built on the AMD X670 chipset with an AM5 socket, it supports DDR5 memory up to 8000+ MHz (OC) and delivers cutting-edge PCIe 5.0 connectivity for graphics cards and NVMe SSDs. Whether you're building a high-end gaming rig, a content creation workstation, or a future-proof productivity system, this board offers the performance, connectivity, and durability you need.

Key Features & Performance

Next-Gen Memory: Four DDR5 slots support up to 256GB, with dual-channel architecture and AMD EXPO & Intel XMP profiles for easy overclocking. Achieve blazing-fast speeds of 8000+ MHz (OC) for superior system responsiveness.
PCIe 5.0 Ready: The primary PCIe x16 slot runs at full PCIe 5.0 speeds, perfect for the latest GPUs. Additionally, one M.2 slot is wired directly to the CPU for PCIe 5.0 NVMe SSDs, delivering sequential read speeds beyond 10,000 MB/s.
Robust Power Design: A 16+2+2 phase digital VRM with 70A power stages ensures stable power delivery even under heavy loads, making it ideal for overclocking the flagship Ryzen 9 processors.
Comprehensive Connectivity: Includes Wi-Fi 6E (AMD RZ616) with Bluetooth 5.2, Realtek 2.5GbE LAN, and a rich array of USB ports (including USB 3.2 Gen 2x2 Type-C). Onboard headers support front-panel USB-C and multiple USB 3.2/2.0 connections.
Storage Flexibility: Four M.2 slots (one PCIe 5.0, three PCIe 4.0) and four SATA 6Gb/s ports provide ample options for high-speed SSDs and HDDs. All M.2 slots feature dedicated heatsinks to prevent thermal throttling.
Convenient Features: Q-Flash Plus allows BIOS updates without a CPU or memory installed. Hybrid fan headers with smart fan control keep your system cool and quiet.

Who Is It For?

This motherboard is perfect for gamers seeking maximum frame rates, content creators who need fast storage and memory, and PC enthusiasts who want a reliable platform for overclocking. Its ATX form factor fits most mid-tower cases, and the sleek AORUS design with RGB Fusion lighting adds a premium aesthetic.

Conclusion

With its impressive feature set, robust build quality, and future-proofing capabilities, the Gigabyte AORUS Elite AX AMD X670 is an excellent choice for any high-performance AM5 build. Whether you're upgrading or building from scratch, this motherboard delivers the performance and reliability you expect from the AORUS brand.

Key Specifications

Form Factor: ATX

Socket: AM5

RAM Type: DDR5 8000+ OC (dual-channel, ECC & non-ECC unbuffered, AMD EXPO & Intel XMP supported)

Max. RAM: 256GB

RAM Slots: 4

Chipset: AMD X670

Connectivity

1X PCIe 5.0 x16 (CPU lane), 1X PCIe 4.0 x16 (chipset, operates in x4 mode), 1X PCIe 3.0 x16 (chipset, operates in x2 mode), 1X M.2 NVMe slot (CPU, Key M, PCIe 5.0 x4/x2 SSD support), 1X M.2 NVMe slot (CPU, Key M, PCIe 4.0 x4/x2 SSD support), 2X M.2 NVMe slots (chipset, Key M, PCIe 4.0 x4/x2 SSD support), 4X SATA 6 Gb/s ports, 1X Realtek 2.5 GbE LAN, Wi-Fi 6E (AMD Wi-Fi 6E RZ616) with Bluetooth 5.2, Graphics outputs: 1X DisplayPort, 1X HDMI (requires CPU with integrated graphics), Hybrid fan headers, VRM heatsinks, M.2 heatsinks

Back Panel IO

1X USB 3.2 Gen 2x2 Type-C, 2X USB 3.2 Gen 2 Type-A, 3X USB 3.2 Gen 1 Type-A, 4X USB 2.0/1.1 Type-A, 1X DisplayPort, 1X HDMI, 1X RJ-45 port (2.5GbE LAN), 2X SMA antenna connectors (2T2R), 1X optical S/PDIF Out, 2X audio jacks, 1X Q-Flash Plus button

Onboard USB Headers: 1X USB 3.2 Gen 2 front-panel Type-C connector 1X USB 3.2 Gen 1 header (supports 2 ports) 2X USB 2.0/1.1 headers (support 4 ports total)

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 8000

Where to Buy

Amazon

Pros

Supports DDR5-8000+ with EXPO/XMP for extreme memory performance
PCIe 5.0 for both GPU and one M.2 SSD, ensuring future-proofing
Robust 16+2+2 phase VRM design for overclocking high-core-count CPUs
Integrated Wi-Fi 6E and 2.5GbE LAN for fast, reliable networking
Four M.2 slots with heatsinks and ample USB connectivity

Cons

Only one PCIe 5.0 M.2 slot; other M.2 slots are PCIe 4.0
No PCIe 5.0 support for additional M.2 slots (chipset-limited)
Limited to 4 SATA ports, which may be insufficient for many HDDs

Frequently Asked Questions

Does the Gigabyte AORUS Elite AX AMD X670 support DDR5 memory overclocking?

Yes, it supports DDR5 memory overclocking up to 8000+ MHz (OC) via AMD EXPO and Intel XMP profiles. The board features four DIMM slots and can handle high-speed modules for enhanced performance.

What CPUs are compatible with this motherboard?

It uses the AM5 socket and is compatible with AMD Ryzen 7000 series (Zen 4) and Ryzen 8000 series (Zen 5) processors. Always check the CPU support list on Gigabyte's website for the latest BIOS updates.

How many M.2 slots does it have and what speeds?

It has four M.2 slots: one PCIe 5.0 x4 (CPU), one PCIe 4.0 x4 (CPU), and two PCIe 4.0 x4 (chipset). All support NVMe SSDs and come with heatsinks to prevent thermal throttling.

Does it have built-in Wi-Fi and Bluetooth?

Yes, it includes AMD Wi-Fi 6E RZ616 module with Bluetooth 5.2, providing fast wireless connectivity. It also has a 2.5GbE LAN port for wired networking.
