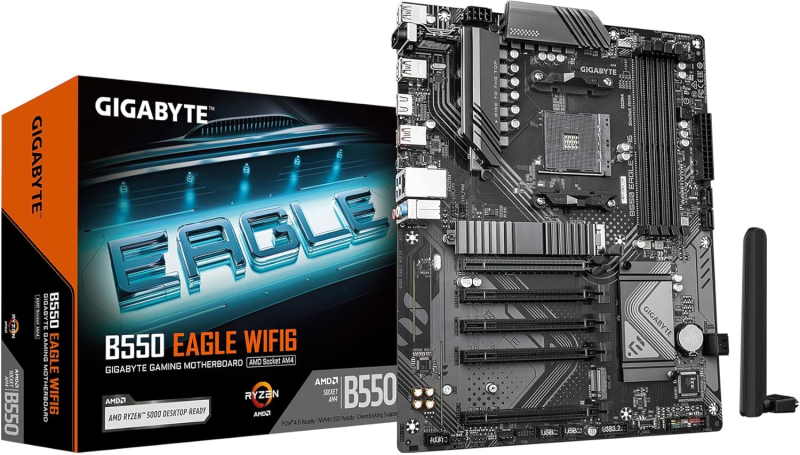

GIGABYTE B550 Eagle WiFi 6 AMD AM4 ATX Motherboard
Overview
The GIGABYTE B550 Eagle WiFi 6 is a feature-rich ATX motherboard designed for AMD AM4 processors, including the latest Ryzen 5000 series. It strikes an ideal balance between performance, connectivity, and value, making it a top choice for gamers, content creators, and PC enthusiasts building a modern mid-range system.
Key Features and Performance
Built on the AMD B550 chipset, this motherboard supports PCIe 4.0 for the primary M.2 slot and the main PCIe x16 slot, delivering blazing-fast data transfer speeds for the latest SSDs and graphics cards. With four DDR4 memory slots, you can install up to 128GB of RAM and overclock speeds up to 4400MHz (with XMP support) for enhanced system responsiveness.
Connectivity is a standout: it includes an Intel 2.5GbE LAN for high-speed wired networking, plus integrated WiFi 6 (802.11ax) and Bluetooth 5.2 for wireless flexibility. The rear I/O panel offers a wide array of USB ports, including USB 3.2 Gen 2 Type-A and Type-C, ensuring fast peripheral connections.
Storage and Expansion
For storage, the board provides two M.2 slots: one supports PCIe 4.0 x4 (via CPU) and the other PCIe 3.0 x4 (via chipset), both also supporting SATA mode. Additionally, six SATA 6Gb/s ports allow for traditional HDDs or SSDs. Expansion options include one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot (running at x4), and one PCIe 3.0 x1 slot, giving you room for multiple GPUs, capture cards, or other add-in cards.
Audio and Cooling
The Realtek ALC887 audio codec delivers clear sound for gaming and media. GIGABYTE's Smart Fan 6 technology ensures efficient cooling with multiple temperature sensors and hybrid fan headers, keeping your system quiet and cool under load.
Who Is It For?
This motherboard is perfect for builders who want to pair a Ryzen 5000 CPU with a high-performance GPU and NVMe SSD without breaking the bank. It's also great for those who need reliable WiFi and Bluetooth built-in, eliminating the need for extra adapters.
In summary, the GIGABYTE B550 Eagle WiFi 6 offers a robust feature set, modern connectivity, and solid performance, making it a smart foundation for any AM4-based PC build.
Key Specifications
Detailed Parameters
- Platform:
- AMD
- Socket:
- AM4
- RAM Type:
- DDR4
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 32
- Maximum RAM Capacity in GB:
- 128
- PCI Express Version:
- 4
- Form Factor:
- ATX
- Maximum RAM Speed in MHz:
- 4400
Pros
- PCIe 4.0 support for GPU and M.2 SSD
- Integrated WiFi 6 and Bluetooth 5.2
- 2.5GbE LAN for high-speed wired networking
- Supports up to 128GB DDR4 RAM with overclocking
- Good selection of USB ports including Type-C
Cons
- Only one PCIe 4.0 M.2 slot (second is PCIe 3.0)
- Audio codec is basic (Realtek ALC887)
- No optical S/PDIF output on rear I/O
