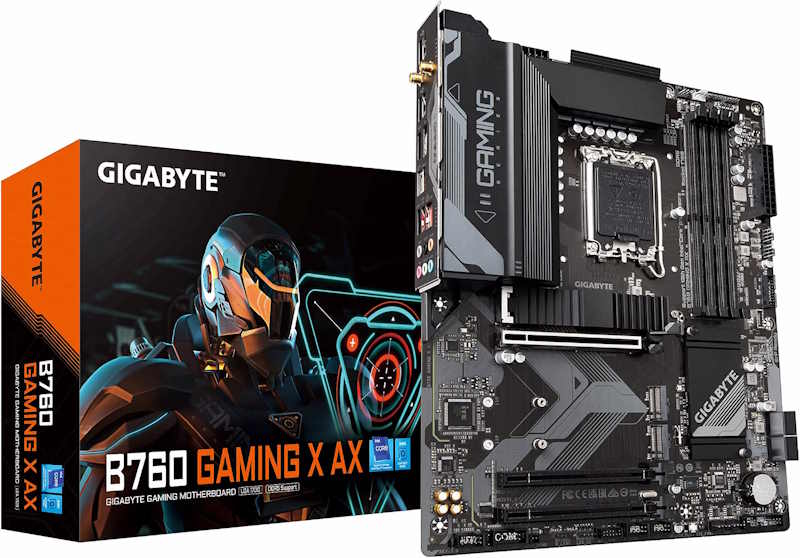

Gigabyte B760 Gaming X AX
Key Features

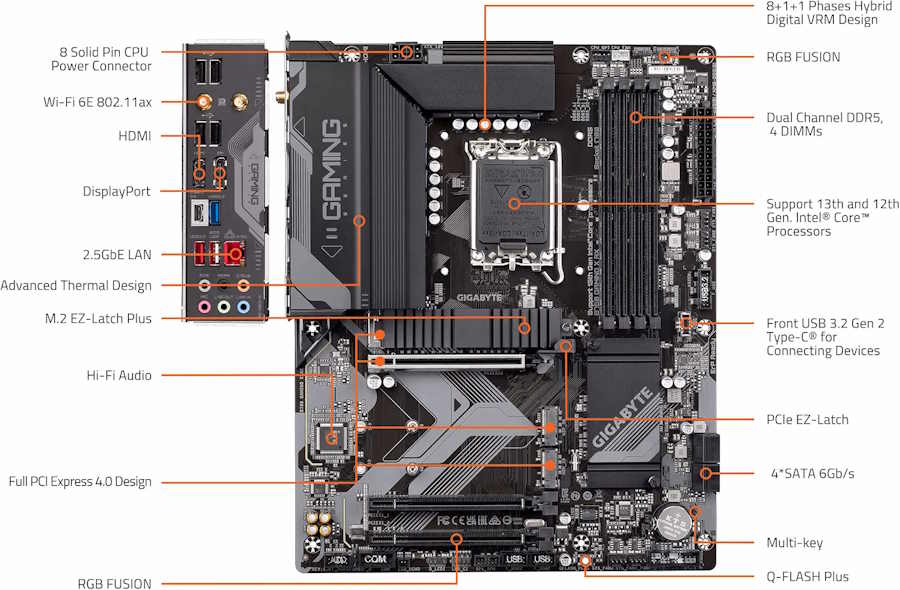

The Gigabyte B760 Gaming X AX is a feature-packed ATX motherboard built for Intel's LGA 1700 platform, supporting 12th, 13th, and 14th Gen processors. It combines robust power delivery with the latest connectivity, making it an excellent foundation for gaming and productivity builds.
- DDR5 Performance: Four DIMM slots support up to 192GB of DDR5 memory with speeds reaching 7600+ MHz (OC) via XMP 3.0, ensuring fast load times and smooth multitasking.
- PCIe 4.0 Expansion: A reinforced PCIe 4.0 x16 slot (CPU) delivers full bandwidth for modern graphics cards, while additional PCIe 3.0 slots accommodate capture cards, sound cards, or extra NVMe drives.
- Triple M.2 Storage: Three M.2 NVMe slots (one PCIe 4.0 x4 from CPU, two PCIe 4.0 x4 from chipset) provide ultra-fast storage options, complemented by four SATA 6 Gb/s ports for traditional drives.
- Advanced Networking: Realtek 2.5 GbE LAN and Intel Wi-Fi 6E AX211 (with Bluetooth 5.3) deliver low-latency, high-speed connectivity for online gaming and content streaming.
- Comprehensive Cooling: VRM and M.2 heatsinks ensure stable performance under load, while Smart Fan 6 technology allows precise fan curve adjustments.
- RGB Fusion 2.0: Personalize your build with addressable RGB headers and synchronization across compatible devices.
Performance and Use Cases

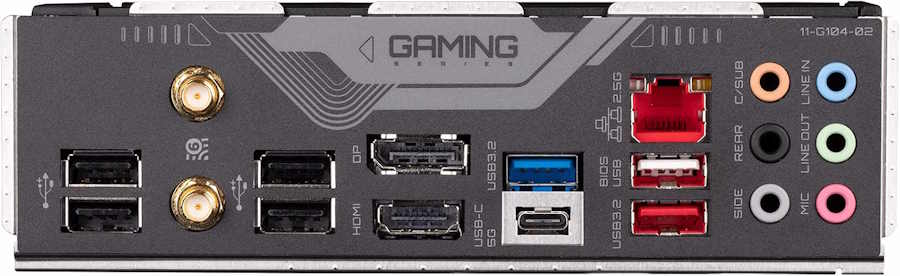

Whether you're a competitive gamer, a content creator, or a professional needing reliable performance, the B760 Gaming X AX delivers. The robust VRM design (12+1+1 phases) handles high-core-count CPUs like the Core i7-14700K without throttling, while PCIe 4.0 and DDR5 support future-proof your investment. The board's extensive USB connectivity—including USB 3.2 Gen 2x2 Type-C—makes it ideal for VR setups and high-speed peripherals.
Design and Build Quality

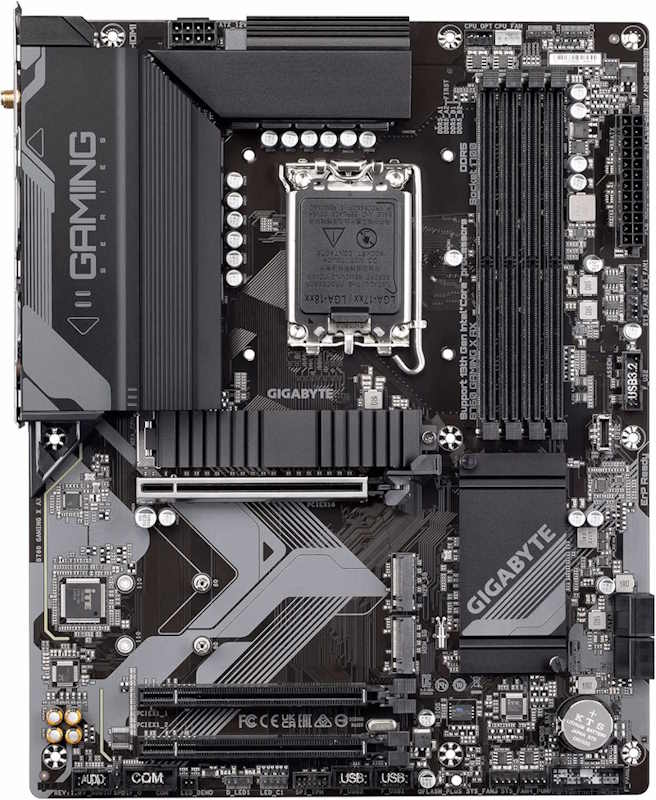

With its sleek black PCB and subtle RGB accents, the B760 Gaming X AX fits seamlessly into any build theme. The ATX form factor offers ample room for expansion, and the pre-installed I/O shield simplifies installation. Q-Flash Plus allows BIOS updates without a CPU, adding convenience for builders.
Backed by Gigabyte's reputation for durability, this motherboard is a smart choice for anyone building a mid-to-high-end Intel system.
Key Specifications
Detailed Parameters
- Platform:
- Intel
- Socket:
- LGA 1700
- RAM Type:
- DDR5
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 48
- Maximum RAM Capacity in GB:
- 192
- PCI Express Version:
- 4.0
- Form Factor:
- ATX
- Maximum RAM Speed in MHz:
- 7600
- ECC:
- No
- Chipset:
- B760
- SupportedPlatforms:
- Intel Consumer
Pros
- Supports high-speed DDR5 memory up to 7600+ MHz (OC)
- Triple M.2 slots and PCIe 4.0 for fast storage and graphics
- Built-in Wi-Fi 6E and 2.5 GbE LAN for excellent connectivity
- Robust VRM cooling with heatsinks ensures stable performance
- Q-Flash Plus allows BIOS updates without CPU
Cons
- No PCIe 5.0 support, limiting future GPU compatibility
- Only one CPU-connected M.2 slot; others share chipset bandwidth
- No Thunderbolt header, limiting high-speed external devices
