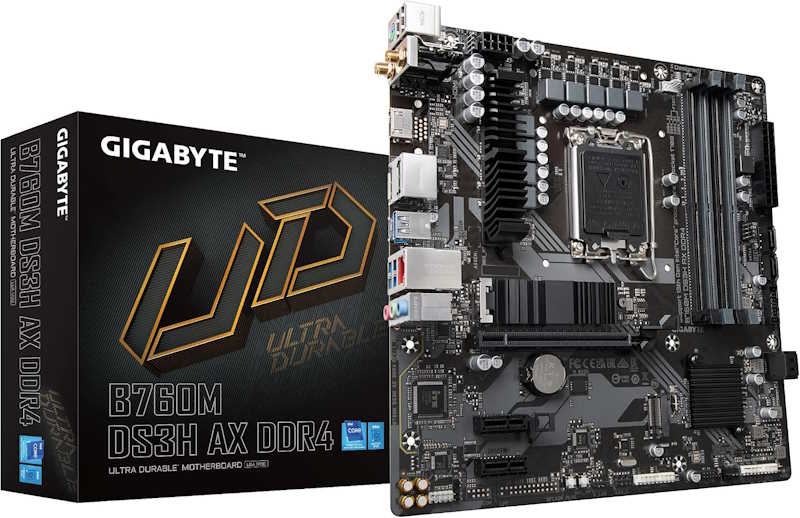

GIGABYTE B760M DS3H AX DDR4 LGA 1700

Motherboard • GIGABYTE • $ 138.99

Add to PC Build Add to Amazon Cart Compare

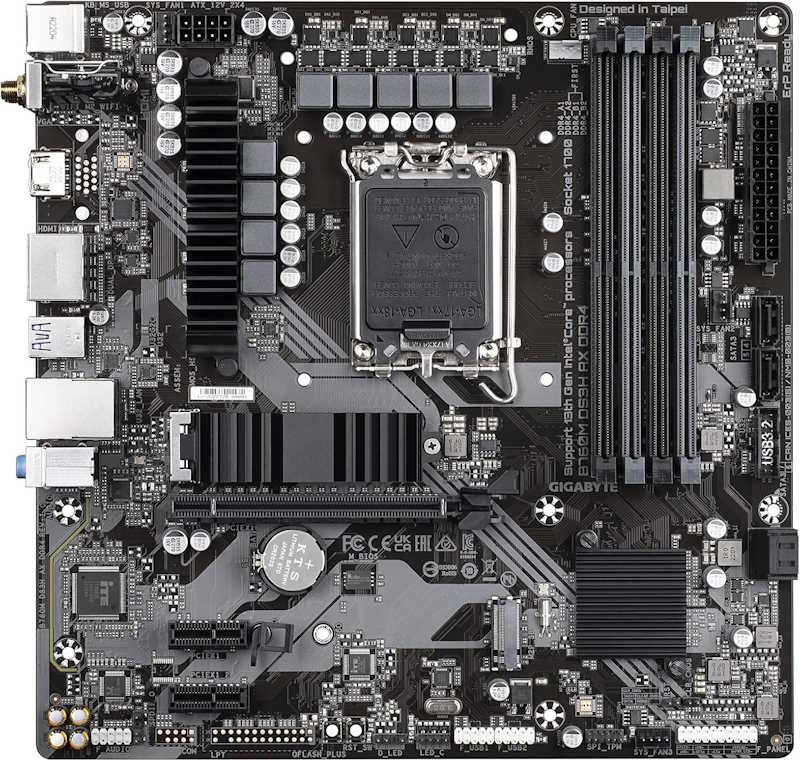

Key Features of the GIGABYTE B760M DS3H AX DDR4

The GIGABYTE B760M DS3H AX DDR4 is a Micro ATX motherboard built for Intel's LGA 1700 platform, supporting 12th, 13th, and 14th Gen processors. It combines DDR4 memory compatibility with modern connectivity, making it an excellent choice for budget-conscious builders who want reliable performance without adopting pricier DDR5.

Robust Power and Memory Support

With a 6+2+1 hybrid digital VRM design and heatsinks, this board delivers stable power to your CPU. Four DIMM slots support up to 128GB of DDR4 RAM, with overclocking speeds reaching 5333MHz (OC) when paired with compatible modules. XMP profiles make memory tuning effortless.

Storage and Expansion

Two M.2 NVMe slots (both PCIe 4.0 x4) provide lightning-fast storage options, while four SATA 6Gb/s ports handle additional drives. The primary PCIe 4.0 x16 slot is reinforced for heavy graphics cards, and two PCIe 3.0 x1 slots accommodate add-in cards.

Connectivity and Networking

Stay connected with Intel Wi-Fi 6E (2.4/5/6GHz) and Realtek 2.5GbE LAN. The rear I/O includes USB 3.2 Gen 2 Type-A and Type-C, three USB 3.2 Gen 1 Type-A, two USB 2.0, DisplayPort, HDMI, and a Q-Flash Plus button for BIOS updates without CPU or memory.

Who Is It For?

This motherboard is ideal for gamers, content creators, and office users building a compact Micro ATX system. It suits those who already own DDR4 memory or want to save money for a better GPU. The included M.2 heatsink and VRM cooling ensure stable operation under load.

Performance Highlights

Supports Intel Core i9, i7, i5, i3 (12th-14th Gen)
DDR4 memory up to 5333MHz (OC) for high-speed multitasking
PCIe 4.0 x16 slot for modern graphics cards
Dual M.2 PCIe 4.0 x4 for ultra-fast SSDs
Wi-Fi 6E and 2.5GbE LAN for low-latency networking

With a balanced feature set and solid build quality, the GIGABYTE B760M DS3H AX DDR4 offers great value for mainstream PC builds.

Key Specifications

Form Factor: Micro ATX

Socket: LGA 1700

RAM Type: DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz (dual-channel, non-ECC unbuffered, XMP supported)

Max. RAM: 128GB

RAM Slots: 4

Chipset: Intel B760

Connectivity

1× PCIe 4.0 x16 (CPU lane), 2× PCIe 3.0 x1 (chipset), 2× M.2 NVMe slots (1× PCIe 4.0 x4, 1× PCIe 4.0 x4), 4× SATA 6 Gb/s ports, 1× Realtek 2.5 GbE LAN, 1× Intel Wi-Fi 6E AX211 (2.4/5/6 GHz), Graphics outputs: 1× DisplayPort, 1× HDMI, VRM heatsinks, M.2 heatsink

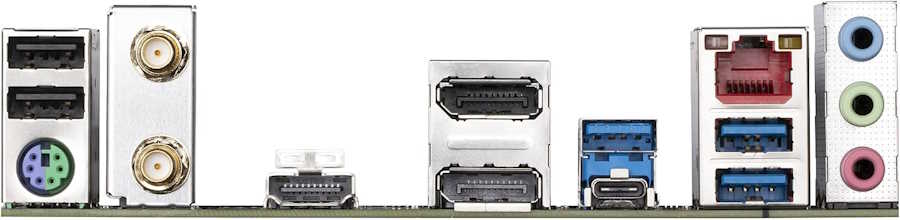

Back Panel IO

1× USB 3.2 Gen 2 Type-A, 1× USB 3.2 Gen 2 Type-C, 3× USB 3.2 Gen 1 Type-A, 2× USB 2.0 Type-A, 1× DisplayPort, 1× HDMI, 1× Realtek 2.5 GbE LAN, 2× SMA antenna connectors (2T2R), 3× audio jacks, 1× Q-Flash Plus button

Onboard USB Headers: 1× USB 3.2 Gen 1 header (2 ports) 2× USB 2.0 headers (support 4 ports total)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1700
RAM Type:: DDR4
Number of RAM Slots:: 4
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 4
Form Factor:: Micro ATX
Maximum RAM Speed in MHz:: 5333
ECC:: No
Chipset:: B760
SupportedPlatforms:: Intel Consumer

Where to Buy

Amazon

Pros

Supports DDR4 memory, reducing build cost
Wi-Fi 6E and 2.5GbE LAN for fast networking
Dual PCIe 4.0 M.2 slots with heatsink
Q-Flash Plus for easy BIOS updates
Solid VRM with heatsinks for stable performance

Cons

No PCIe 5.0 support
Only one USB 3.2 Gen 2 Type-C port
Limited PCIe lanes for expansion

Frequently Asked Questions

Does the GIGABYTE B760M DS3H AX DDR4 support Intel 14th Gen processors?

Yes, it supports Intel 12th, 13th, and 14th Gen processors via the LGA 1700 socket, though a BIOS update may be required for 14th Gen.

What is the maximum RAM speed supported?

It supports DDR4 memory up to 5333MHz (OC) when using XMP profiles, with a maximum capacity of 128GB across four slots.

Does this motherboard have built-in Wi-Fi?

Yes, it includes Intel Wi-Fi 6E AX211 for wireless connectivity on 2.4GHz, 5GHz, and 6GHz bands.

Can I update the BIOS without a CPU?

Yes, the Q-Flash Plus button on the rear I/O allows BIOS updates without a CPU, memory, or graphics card installed.

How many M.2 slots are available?

There are two M.2 NVMe slots, both supporting PCIe 4.0 x4 for high-speed SSDs.
