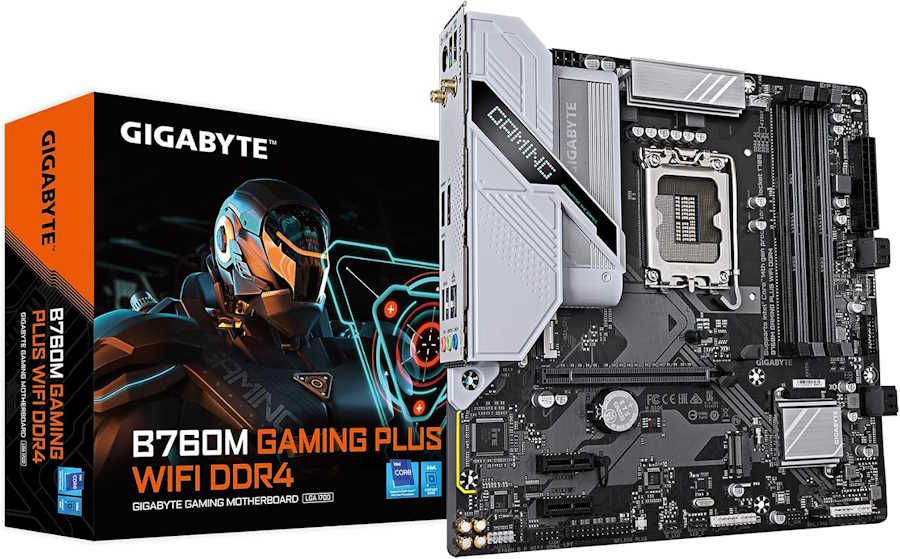

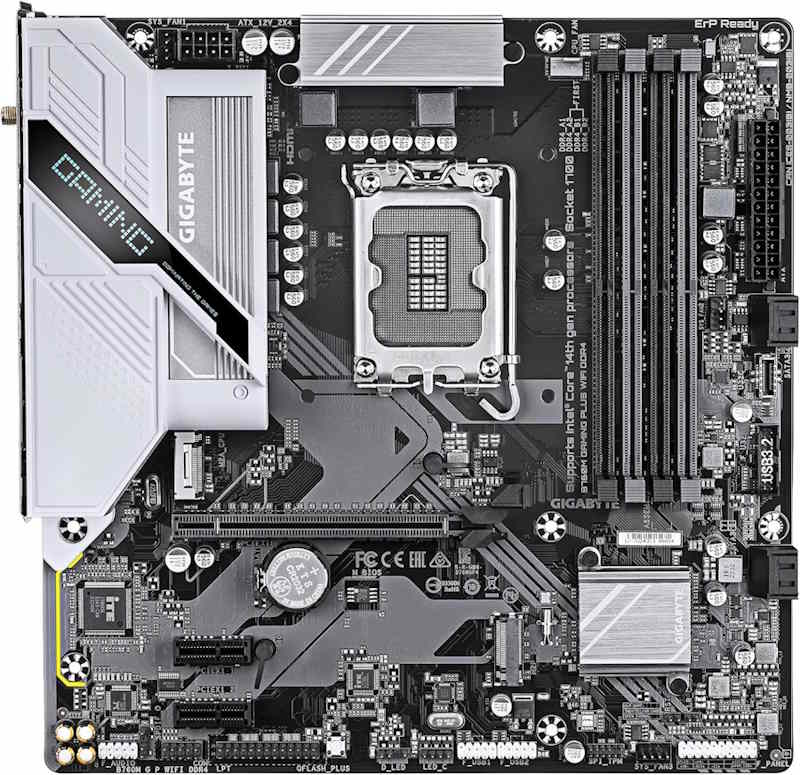

GIGABYTE B760M Gaming Plus WiFi DDR4 LGA 1700

Motherboard • GIGABYTE • $ 139.59

Add to PC Build Add to Amazon Cart Compare

Key Features of the GIGABYTE B760M Gaming Plus WiFi DDR4

The GIGABYTE B760M Gaming Plus WiFi DDR4 is a micro ATX motherboard built for Intel's LGA 1700 platform, supporting 12th, 13th, and 14th Gen processors. It combines DDR4 memory compatibility with PCIe 4.0 expansion, making it an excellent choice for budget-conscious gamers and builders who want to reuse existing DDR4 RAM.

Performance and Connectivity

With four DIMM slots supporting up to 128GB of DDR4 memory at speeds up to 5333MHz (OC), this board delivers ample memory bandwidth for gaming and multitasking. The primary PCIe 4.0 x16 slot ensures full-speed graphics card performance, while two M.2 NVMe slots (both PCIe 4.0 x4) provide ultra-fast storage options. Four SATA 6Gb/s ports handle additional drives.

Networking and Audio

Stay connected with Wi-Fi 6 (802.11ax) and Bluetooth 5.2, plus a Realtek 2.5GbE LAN port for high-speed wired networking. The rear I/O includes USB 3.2 Gen 2 Type-C and Type-A ports, four USB 3.2 Gen 1 ports, and two USB 2.0 ports. DisplayPort and HDMI outputs support integrated graphics, while three audio jacks deliver immersive sound.

Who Is It For?

This motherboard is ideal for gamers, content creators, and office users building a compact micro ATX system. It's particularly suited for those upgrading from an older DDR4 platform or looking to maximize value without sacrificing modern features like PCIe 4.0 and Wi-Fi 6.

Why Choose This Motherboard?

Supports Intel 12th-14th Gen processors out of the box (may require BIOS update for 14th Gen).
DDR4 memory compatibility reduces build cost compared to DDR5 alternatives.
Dual M.2 slots and PCIe 4.0 ensure fast storage and graphics performance.
Wi-Fi 6 and 2.5GbE LAN provide flexible, high-speed networking.
Micro ATX form factor fits smaller cases without compromising expansion.

With robust power delivery and a comprehensive feature set, the GIGABYTE B760M Gaming Plus WiFi DDR4 is a smart foundation for a mid-range gaming or productivity PC.

Key Specifications

Form Factor: Micro ATX

Socket: LGA 1700

RAM Type: DDR4 5333+ OC (dual-channel, non-ECC unbuffered, XMP supported)

Max. RAM: 128GB

RAM Slots: 4

Chipset: Intel B760

Connectivity

1X PCIe 4.0 x16 (CPU lane), 1X PCIe 3.0 x16 (chipset, operates in x4 mode), 2X M.2 NVMe slots (1X PCIe 4.0 x4, 1X PCIe 4.0 x4), 4X SATA 6 Gb/s ports, 1X Realtek 2.5 GbE LAN, Wi-Fi 6 (802.11ax) + Bluetooth 5.2, Graphics outputs: 1X DisplayPort, 1X HDMI

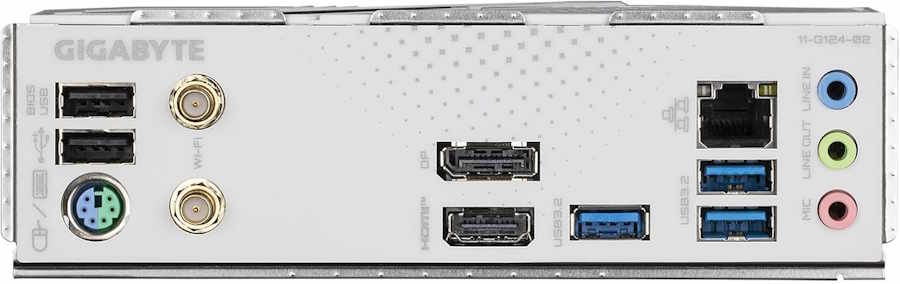

Back Panel IO

1X USB 3.2 Gen 2 Type-C, 1X USB 3.2 Gen 2 Type-A, 4X USB 3.2 Gen 1 Type-A, 2X USB 2.0 Type-A, 1X DisplayPort, 1X HDMI, 1X Realtek 2.5 GbE LAN, 3X audio jacks, 2X antenna connectors

Onboard USB Headers: 1X USB 3.2 Gen 1 header (2 ports) 2X USB 2.0 headers (4 ports total)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1700
RAM Type:: DDR4
Number of RAM Slots:: 4
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 4
Form Factor:: Micro ATX
Maximum RAM Speed in MHz:: 5333
ECC:: No
Chipset:: B760
SupportedPlatforms:: Intel Consumer

Where to Buy

Amazon

Pros

Supports DDR4 memory, reducing overall build cost
Dual PCIe 4.0 M.2 slots for high-speed storage
Wi-Fi 6 and 2.5GbE LAN for fast networking
Micro ATX form factor fits compact builds
Comprehensive USB connectivity including Type-C

Cons

No DDR5 support, limiting future upgrade path
Second PCIe x16 slot runs at x4 mode only
May require BIOS update for 14th Gen CPUs

Frequently Asked Questions

Does the GIGABYTE B760M Gaming Plus WiFi DDR4 support Intel 14th Gen processors?

Yes, it supports Intel 12th, 13th, and 14th Gen processors with a BIOS update. Check GIGABYTE's website for the latest BIOS version.

What is the maximum RAM speed supported?

It supports DDR4 memory up to 5333MHz (OC) when using XMP profiles, depending on the CPU's memory controller.

How many M.2 slots does this motherboard have?

It has two M.2 NVMe slots, both PCIe 4.0 x4, allowing for fast SSD storage.

Does it have built-in Wi-Fi?

Yes, it includes Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for wireless connectivity.

What form factor is this motherboard?

It is Micro ATX, which is smaller than standard ATX but larger than Mini-ITX, fitting many mid-tower and smaller cases.
