GIGABYTE X870E AORUS Master

Motherboard • GIGABYTE • $ 489.00

Add to PC Build Add to Amazon Cart Compare

GIGABYTE X870E AORUS Master: Flagship AM5 Performance

The GIGABYTE X870E AORUS Master is a premium ATX motherboard built for AMD's AM5 platform, pairing the AMD X870E chipset with a robust power delivery system and enthusiast-grade connectivity. Whether you're assembling a high-refresh-rate gaming rig or a content creation workstation, this board delivers the bandwidth and stability that top-tier Ryzen processors demand.

Built for Speed and Expansion

With support for DDR5 memory up to 8200+ MT/s (OC) across four DIMM slots and a maximum capacity of 256GB, the AORUS Master is ready for memory-hungry workloads. AMD EXPO support ensures one-click overclocking, while ECC and non-ECC unbuffered DIMM compatibility adds flexibility for professionals.

PCIe 5.0 x16 slot for next-gen graphics cards, with x8/x8 bifurcation support
Four M.2 NVMe slots, including one PCIe 5.0 x4 for lightning-fast storage
Dual Ethernet: Marvell 10 GbE and Realtek 5 GbE for ultra-fast networking
Wi-Fi 7 and Bluetooth 5.3 for cutting-edge wireless connectivity
USB4 Type-C with DisplayPort Alt Mode for high-speed peripherals and video output

Who Is It For?

This motherboard targets enthusiasts, gamers, and creators who need uncompromising performance. The extensive back-panel I/O—including USB 3.2 Gen 2x2 Type-C, eight USB Type-A ports, and five audio jacks with optical S/PDIF—makes it easy to connect a full suite of peripherals. Onboard headers for front-panel USB-C and additional USB ports simplify cable management in spacious ATX cases.

Performance Highlights

Thanks to the X870E chipset, users benefit from PCIe 5.0 lanes directly from the CPU, ensuring maximum throughput for the latest SSDs and GPUs. The robust VRM design and comprehensive cooling solutions keep temperatures in check during sustained loads, while Q-Flash Plus and Clear CMOS buttons on the rear I/O allow for easy BIOS updates and troubleshooting without removing the side panel.

Ideal Use Cases

High-end gaming with Ryzen 7000/8000/9000 series processors
4K video editing and 3D rendering with fast NVMe storage
Virtualization and software development with up to 256GB DDR5
Home lab or workstation builds requiring dual LAN and Wi-Fi 7

With its blend of speed, connectivity, and build quality, the GIGABYTE X870E AORUS Master stands as a top choice for anyone building a no-compromise AM5 system.

Key Specifications

Form Factor: ATX

Socket: AM5

RAM Type: DDR5 8200+ OC (dual-channel, ECC & non-ECC unbuffered, AMD EXPO supported)

Max. RAM: 256GB

RAM Slots: 4

Chipset: AMD X870E

Connectivity

1X PCIe 5.0 x16 (CPU lane, supports x16 or x8/x8), 1X PCIe 4.0 x16 (chipset, operates at x4), 1X PCIe 3.0 x16 (chipset, operates at x4), 4X M.2 NVMe slots (1X PCIe 5.0 x4, 2X PCIe 4.0 x4, 1X PCIe 4.0 x4), 4X SATA 6 Gb/s ports, 1X Marvell 10 GbE LAN, 1X Realtek 5 GbE LAN, Wi-Fi 7 (802.11be) and Bluetooth 5.3, Graphics outputs: 1× HDMI, 1× USB4 Type-C with DisplayPort Alt Mode

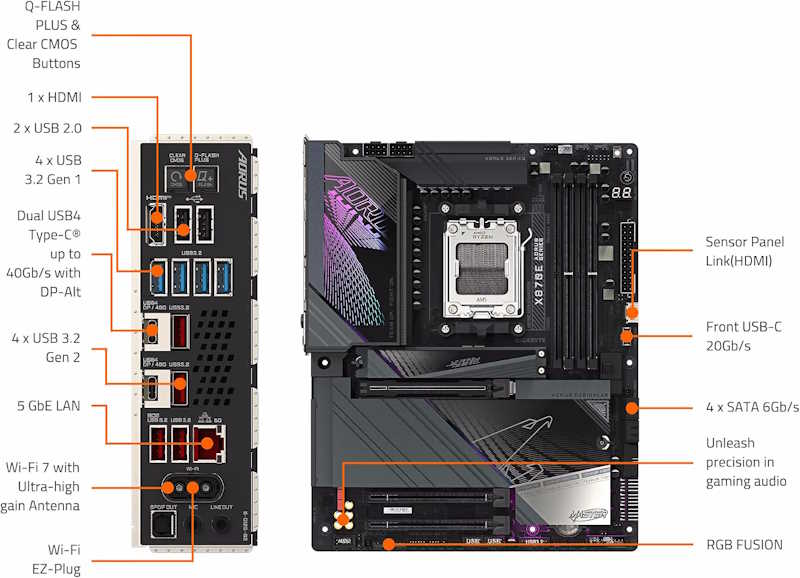

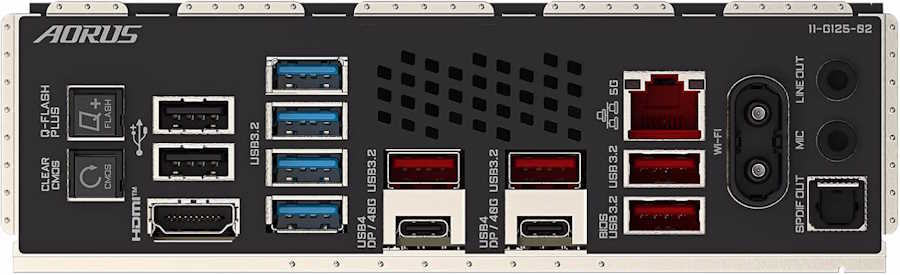

Back Panel IO

1X USB4 Type-C, 1X USB 3.2 Gen 2x2 Type-C, 4X USB 3.2 Gen 2 Type-A, 4X USB 3.2 Gen 1 Type-A, 2X USB 2.0 Type-A, 1X HDMI, 1X Marvell 10 GbE LAN, 1X Realtek 5 GbE LAN, 2X Wi-Fi antenna connectors, 5X audio jacks, 1X optical S/PDIF out, 1X Q-Flash Plus button, 1X Clear CMOS button

Onboard USB Headers: 1X USB 3.2 Gen 2x2 front-panel Type-C header 2X USB 3.2 Gen 1 headers (4 ports) 2X USB 2.0 headers (4 ports)

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 8200
ECC:: No
Chipset:: X870E
SupportedPlatforms:: AMD Consumer

Where to Buy

Amazon

Pros

Supports ultra-fast DDR5 8200+ OC memory for maximum performance
PCIe 5.0 x16 slot and PCIe 5.0 M.2 for future-proof expansion
Dual Ethernet (10G + 5G) and Wi-Fi 7 for exceptional networking
Comprehensive USB connectivity including USB4 Type-C
Robust power delivery and cooling for high-end CPUs

Cons

Premium price point may be overkill for budget builds
No Thunderbolt support (relies on USB4)
Limited to four SATA ports, which may be insufficient for some storage-heavy users

Frequently Asked Questions

Does the GIGABYTE X870E AORUS Master support Ryzen 9000 series processors?

Yes, the AM5 socket supports AMD Ryzen 7000, 8000, and 9000 series processors. A BIOS update may be required for newer CPUs, which can be applied via Q-Flash Plus without a CPU installed.

What is the maximum memory speed supported?

The board supports DDR5 memory up to 8200+ MT/s when overclocked, with AMD EXPO profiles for easy setup. Actual speeds depend on the CPU's memory controller and module quality.

Can I use both Ethernet ports simultaneously?

Yes, the Marvell 10 GbE and Realtek 5 GbE ports can be used at the same time, allowing for network segmentation, teaming, or failover configurations.

Does it have onboard Wi-Fi?

Yes, it features Wi-Fi 7 (802.11be) and Bluetooth 5.3, with two antenna connectors on the rear I/O for optimal signal strength.

How many M.2 slots are available?

There are four M.2 NVMe slots: one PCIe 5.0 x4 and three PCIe 4.0 x4, providing ample high-speed storage options.
