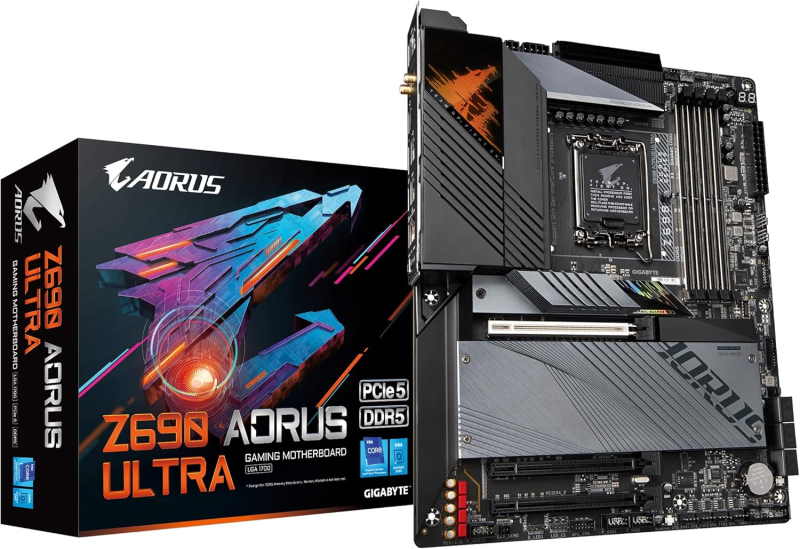

GIGABYTE Z690 AORUS Ultra LGA 1700

Motherboard • GIGABYTE • $ 302.22

Add to PC Build Add to Amazon Cart Compare

Overview

Unleash Your Intel 12th Gen Processor

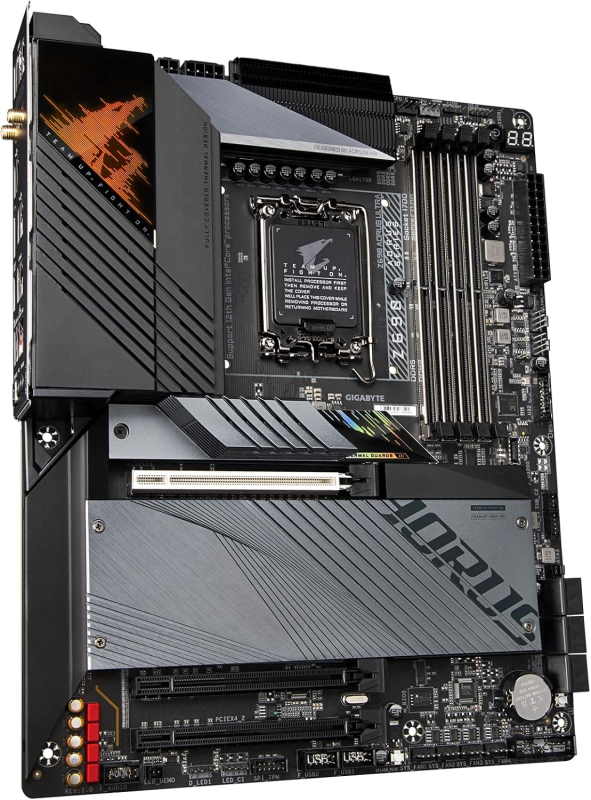

The GIGABYTE Z690 AORUS Ultra LGA 1700 is a premium ATX motherboard engineered for Intel's 12th Gen Core processors. With cutting-edge features like DDR5 memory support, PCIe 5.0 connectivity, and robust power delivery, this board is designed to maximize performance for gamers, content creators, and PC enthusiasts.

Key Features and Performance

DDR5 Overclocking: Supports DDR5 memory up to 6600+ MHz (OC) with XMP 3.0 profiles, delivering exceptional bandwidth for demanding applications.
PCIe 5.0 Ready: The primary PCIe x16 slot runs at full PCIe 5.0 speeds, ensuring compatibility with the latest graphics cards and NVMe SSDs.
Advanced Storage: Four M.2 slots (including one PCIe 5.0) and six SATA ports provide ample high-speed storage options.
Robust Power Design: A 19+1+2 phase VRM with premium components ensures stable power delivery even under heavy overclocking loads.
Next-Gen Connectivity: Dual Intel 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.2, and multiple USB 3.2 Gen 2x2 Type-C ports offer blazing-fast networking and peripheral support.

Built for Enthusiasts

Whether you're building a high-end gaming rig, a workstation for video editing, or a custom liquid-cooled showcase, the Z690 AORUS Ultra provides the foundation you need. Its comprehensive cooling options, including multiple fan headers and thermal sensor support, allow for precise thermal management. The onboard Realtek ALC4082 audio codec delivers immersive 7.1 surround sound, enhancing your gaming and media experience.

Easy to Use and Customize

GIGABYTE's intuitive BIOS and RGB Fusion 2.0 software make system tuning and personalization straightforward. The Q-Flash Plus button allows for easy BIOS updates without a CPU, while the pre-installed I/O shield simplifies installation. With its sleek black and silver design, the AORUS Ultra looks stunning in any build.

In summary, the GIGABYTE Z690 AORUS Ultra LGA 1700 is a feature-rich motherboard that offers exceptional performance, connectivity, and aesthetics for Intel's 12th Gen platform. It's an ideal choice for those who demand the best from their PC.

Key Specifications

Form Factor: ATX

Socket: LGA 1700

RAM Type: DDR5 up to 6600+ MHz OC (dual-channel, non-ECC unbuffered, XMP 3.0 supported)

Max. RAM: 128GB

RAM Slots: 4

Chipset: Intel Z690

Connectivity

1× PCIe 5.0 x16 (CPU, x16 mode), 1× PCIe 4.0 x16 (CPU, x8 mode), 1× PCIe 3.0 x16 (chipset, x4 mode), 1× PCIe 3.0 x1 (chipset), 4× M.2 slots (1× PCIe 5.0 x4 / PCIe 4.0 x4, 1× PCIe 4.0 x4, 2× PCIe 4.0 x4 / SATA), 6× SATA 6 Gb/s ports, 2× Intel 2.5 GbE LAN (Intel I225-V), Wi-Fi 6E (802.11ax, 2.4/5/6 GHz) + Bluetooth 5.2

Back Panel IO

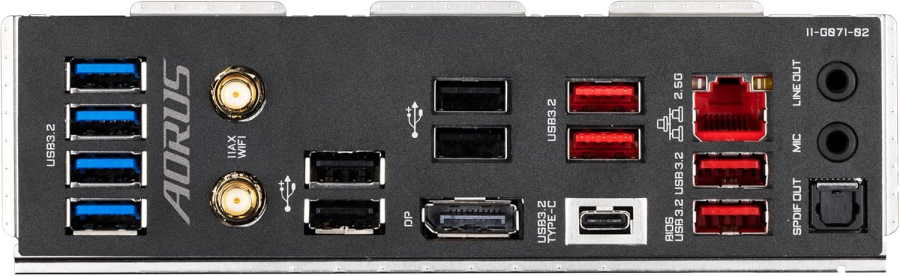

2× USB 3.2 Gen 2×2 Type-C (20Gbps), 2× USB 3.2 Gen 2 Type-A (10Gbps), 4× USB 3.2 Gen 1 Type-A (5Gbps), 2× USB 2.0 Type-A, 2× Intel 2.5 GbE LAN ports, 1× HDMI 2.1, 1× DisplayPort 1.4, 1× Optical S/PDIF audio out, 5× 3.5mm audio jacks, 1× Q-Flash Plus button

Onboard USB Headers: 1× USB 3.2 Gen 2×2 front-panel Type-C connector (20Gbps) 2× USB 3.2 Gen 1 headers (4 ports total) 2× USB 2.0 headers (4 ports total)

Audio: Realtek ALC4082 codec, 7.1 surround sound

VRM

19+1+2 power phases

Form Factor: ATX (305mm × 244mm)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1700
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 6600

Where to Buy

Amazon

Pros

Excellent VRM design for overclocking
Supports DDR5 up to 6600+ MHz
Four M.2 slots including PCIe 5.0
Dual 2.5GbE LAN and Wi-Fi 6E
Premium audio codec (ALC4082)

Cons

DDR5 memory and 12th Gen CPUs can be pricey
Only one PCIe 5.0 slot (shared with M.2)
No Thunderbolt 4 support

Frequently Asked Questions

Is the GIGABYTE Z690 AORUS Ultra compatible with Intel 13th Gen CPUs?

Yes, with a BIOS update, the Z690 AORUS Ultra supports Intel 13th Gen (Raptor Lake) processors, providing a great upgrade path.

Does the Z690 AORUS Ultra support DDR4 memory?

No, this board is designed exclusively for DDR5 memory. For DDR4 support, consider a different Z690 model like the AORUS Elite AX DDR4.

How many M.2 slots are there and what speeds do they support?

There are four M.2 slots: one supports PCIe 5.0 x4 (or PCIe 4.0), one supports PCIe 4.0 x4, and two support PCIe 4.0 x4 or SATA. All support NVMe SSDs.
