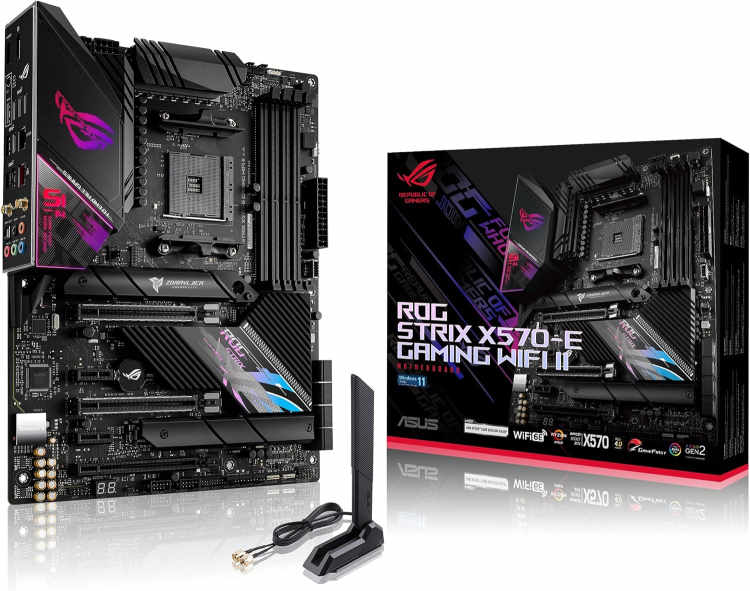

ASUS ROG Strix X570-E Gaming WiF AM4

Motherboard • MSI • $ 609.00

Add to PC Build Add to Amazon Cart Compare

Overview

The ASUS ROG Strix X570-E Gaming WiF AM4 motherboard is a premium ATX solution designed for AMD Ryzen enthusiasts who demand top-tier performance, connectivity, and aesthetics. Built on the AMD X570 chipset, it unlocks the full potential of PCIe 4.0, delivering blazing-fast data transfer speeds for GPUs and NVMe SSDs. Whether you're building a high-end gaming rig, a content creation workstation, or an overclocking powerhouse, this board offers the features and reliability to excel.

Key Features

PCIe 4.0 Support: Two steel-reinforced PCIe 4.0 x16 slots (from CPU) support multi-GPU configurations, while two PCIe 4.0 x1 slots (chipset) provide additional expansion.
Dual M.2 NVMe: Two M.2 slots support PCIe 4.0 x4 and SATA modes, enabling ultra-fast storage arrays with RAID 0/1/10 support.
Robust Power Delivery: 12+4 power stages with ProCool II power connectors ensure stable power for even the most demanding Ryzen 5000 series CPUs.
Advanced Networking: Dual LAN (2.5 GbE Realtek + 1 GbE Intel) and Wi-Fi 6 (802.11ax) with Bluetooth 5.0 provide low-latency online gaming and fast file transfers.
SupremeFX Audio: The S1220A codec delivers 7.1-channel HD audio with impeccable clarity, enhanced by premium Japanese capacitors.
Comprehensive Connectivity: A wide array of USB ports (including USB 3.2 Gen 2 Type-A and Type-C) and onboard headers ensure compatibility with all modern peripherals.
DIY-Friendly Design: Pre-mounted I/O shield, BIOS FlashBack, and Q-LED diagnostics simplify installation and troubleshooting.

Performance and Overclocking

With support for DDR4 memory up to 4600 MT/s (OC) and a maximum capacity of 128 GB, this motherboard allows enthusiasts to push their system to the limits. The optimized trace routing and ASUS OptiMem III technology ensure signal integrity, enabling higher memory frequencies and stability. Overclocking tools like AI Overclocking and the UEFI BIOS provide intuitive controls for both beginners and experts.

Target Audience and Use Cases

This motherboard is ideal for gamers who want to build a high-refresh-rate 1440p or 4K gaming system, content creators who need fast storage and rendering performance, and PC builders who appreciate premium aesthetics with customizable RGB lighting (Aura Sync). It's also a great choice for those planning to use multiple GPUs for compute or simulation tasks.

Conclusion

The ASUS ROG Strix X570-E Gaming WiF AM4 motherboard combines performance, connectivity, and style in a single ATX package. Its PCIe 4.0 support, dual LAN, Wi-Fi 6, and robust audio make it a future-proof foundation for any high-end AMD build. If you're seeking a reliable and feature-rich X570 board, this is a top contender.

Key Specifications

Form Factor: ATX

Socket: AM4

RAM Type: DDR4 (dual‑channel, XMP supported, up to 4600 MT/s OC)

Max. RAM: 128 GB

RAM Slots: 4

Chipset: AMD X570

Connectivity

1X PCIe 4.0 x16 (steel‑reinforced SafeSlot, from CPU), 1X PCIe 4.0 x16 (x8/x8 for dual GPU or x4 mode via chipset), 2X PCIe 4.0 x1 (chipset), 2X M.2 NVMe slots (PCIe 4.0 x4 & SATA modes), 8X SATA 6 Gb/s ports (RAID 0/1/10 support via X570 chipset), 1X 2.5 GbE LAN (Realtek RTL8125‑CG), 1X 1 GbE LAN (Intel I211‑AT), Wi‑Fi 6 (802.11ax) with MU‑MIMO, Bluetooth 5.0 (Intel AX200 platform), 7.1‑Channel HD Audio (SupremeFX S1220A codec)

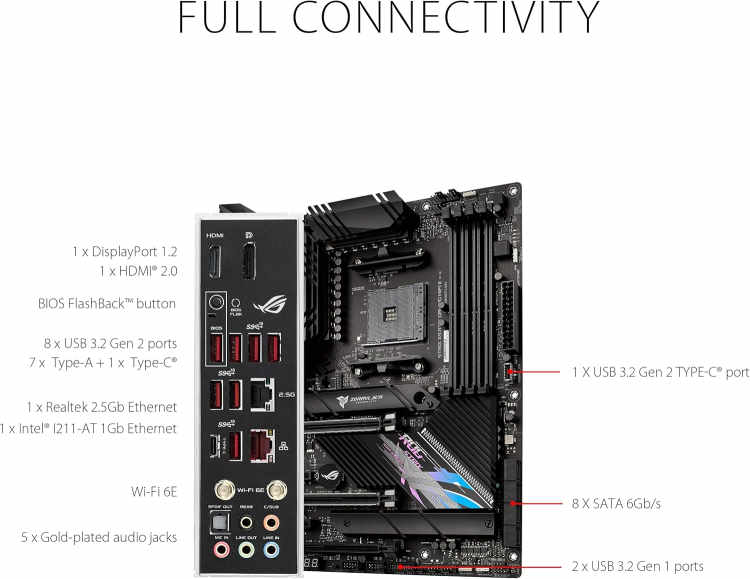

Back Panel IO

1X BIOS FlashBack™ Button, 1X DisplayPort 1.2 (4K@60 Hz via CPU iGPU), 1X HDMI 2.0 (4K@60 Hz via CPU iGPU), 7X USB 3.2 Gen 2 Type‑A (10 Gbps), 1X USB 3.2 Gen 2 Type‑C (10 Gbps), 4X USB 3.2 Gen 1 Type‑A, 4X USB 2.0 Type‑A, 1X RJ45 2.5 GbE LAN, 1X RJ45 1 GbE LAN, Wi‑Fi antenna connectors, 3X audio jacks + 1X optical S/PDIF‑Out

Onboard USB Headers: 1X USB 3.2 Gen 2 front-panel connector (Type‑C) 2X USB 3.2 Gen 1 headers (up to 4 ports total) 2X USB 2.0 headers (up to 4 ports total)

Detailed Parameters

Platform:: AMD
Socket:: AM4
RAM Type:: DDR4
Number of RAM Slots:: 4
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 4
Form Factor:: ATX
Maximum RAM Speed in MHz:: 4600

Where to Buy

Amazon

Pros

Excellent PCIe 4.0 support for GPUs and NVMe SSDs
Dual LAN (2.5 GbE + 1 GbE) and Wi-Fi 6 for versatile networking
Robust power delivery for overclocking high-core-count Ryzen CPUs
Premium SupremeFX audio with 7.1-channel output
Comprehensive USB connectivity including Type-C and many Gen 2 ports

Cons

X570 chipset fan may produce audible noise under load
No PCIe 5.0 support (limited to PCIe 4.0)
Price premium over B550 alternatives

Frequently Asked Questions

Does the ASUS ROG Strix X570-E Gaming WiF support Ryzen 5000 series CPUs?

Yes, with a BIOS update, it supports all AMD Ryzen 5000 series processors, including the Ryzen 9 5950X, providing excellent performance and features.

Can I use PCIe 4.0 SSDs on this motherboard?

Absolutely. The two M.2 slots support PCIe 4.0 x4 NVMe SSDs, delivering read speeds up to 7000 MB/s when paired with compatible drives.

Does this motherboard have Wi-Fi and Bluetooth?

Yes, it includes Intel Wi-Fi 6 (802.11ax) with MU-MIMO and Bluetooth 5.0, ensuring fast wireless connectivity and support for modern peripherals.

What is the maximum memory speed supported?

The motherboard supports DDR4 memory up to 4600 MT/s (overclocked) and a maximum capacity of 128 GB across four slots.
