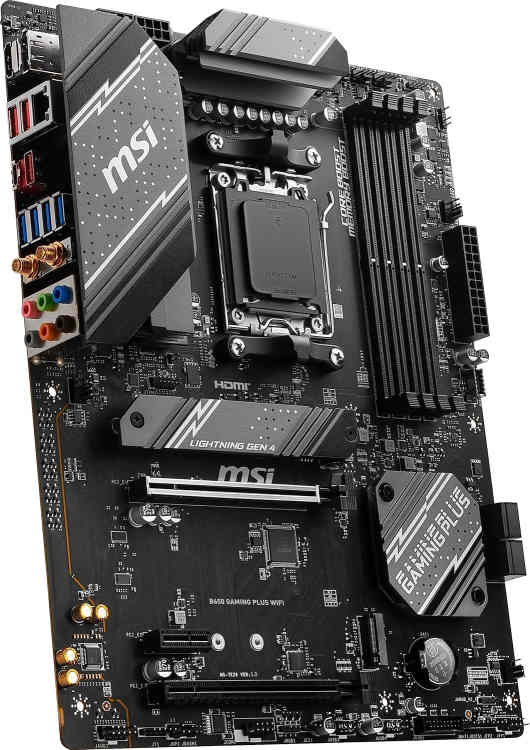

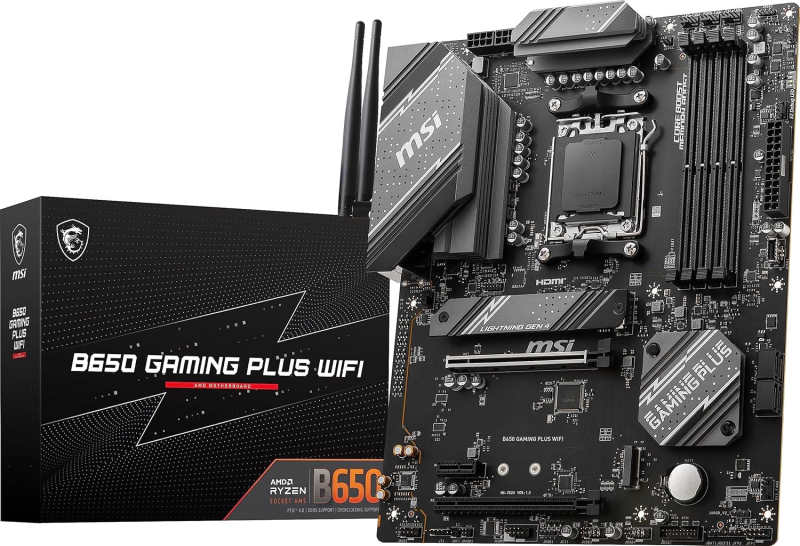

MSI B650 Gaming Plus WiFi
Overview
The MSI B650 Gaming Plus WiFi is a feature-rich ATX motherboard designed for AMD's AM5 platform, offering a perfect balance of performance, connectivity, and value for gamers and PC enthusiasts. Built around the AMD B650 chipset, it supports Ryzen 7000 and 8000 series processors, delivering exceptional gaming and productivity performance.
Key Features
- AMD AM5 Socket: Ready for Ryzen 7000/8000 series CPUs, ensuring a future-proof upgrade path.
- DDR5 Memory Support: Four DIMM slots support up to 128GB of DDR5 RAM with speeds up to 6600+ MT/s (OC) and AMD EXPO for one-click overclocking.
- PCIe 4.0 Connectivity: One PCIe 4.0 x16 slot from the CPU for your graphics card, plus an additional PCIe 4.0 x16 (x4 mode) and two PCIe 3.0 x1 slots for expansion.
- Triple M.2 NVMe Slots: Three M.2 slots (all PCIe 4.0 x4) provide blazing-fast storage options, with one directly connected to the CPU for maximum throughput.
- High-Speed Networking: Integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.3, plus a Realtek 2.5 GbE LAN port for lag-free online gaming.
- Comprehensive USB: Rear I/O includes USB 3.2 Gen 2x2 Type-C (20 Gbps), multiple USB 3.2 Gen 2 and Gen 1 ports, and front-panel headers for Type-C and USB expansion.
- Enhanced Audio: 7.1-Channel HD Audio with Audio Boost technology for immersive sound.
- Convenient Features: Flash BIOS button for easy BIOS updates, and a sleek black PCB with integrated I/O shield.
Performance and Use Cases
The MSI B650 Gaming Plus WiFi is ideal for building a high-performance gaming rig or a content creation workstation. With support for DDR5 memory and PCIe 4.0 SSDs, you'll experience faster load times, smoother multitasking, and improved frame rates in demanding titles. The robust power delivery design ensures stable performance even under heavy loads, making it suitable for overclocking enthusiasts.
Connectivity and Expansion

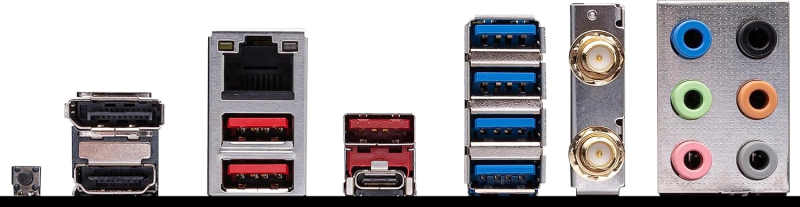

This motherboard offers extensive expansion options: three M.2 slots for NVMe SSDs, six SATA ports for traditional drives (with RAID 0/1/10 support), and multiple PCIe slots for additional cards. The rear panel is well-equipped with a USB-C 20 Gbps port, USB-A ports, HDMI and DisplayPort for integrated graphics, and audio jacks with optical S/PDIF.
Conclusion
Whether you're upgrading an existing system or building a new one, the MSI B650 Gaming Plus WiFi delivers a compelling combination of modern features, solid performance, and affordability. It's a smart choice for gamers who want to leverage the power of AMD's latest processors without breaking the bank.
Key Specifications
Detailed Parameters
- Platform:
- AMD
- Socket:
- AM5
- RAM Type:
- DDR5
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 32
- Maximum RAM Capacity in GB:
- 128
- PCI Express Version:
- 4
- Form Factor:
- ATX
- Maximum RAM Speed in MHz:
- 6600
Pros
- Supports DDR5 memory with EXPO and high overclocking potential
- Triple M.2 slots for fast NVMe storage
- Integrated Wi-Fi 6 and Bluetooth 5.3
- 2.5 GbE LAN for reliable wired networking
- Comprehensive USB connectivity including 20 Gbps Type-C
Cons
- Only PCIe 4.0, not PCIe 5.0 for GPU or M.2
- Audio codec is entry-level (ALC897/892)
- Limited PCIe x1 slots (only two)
