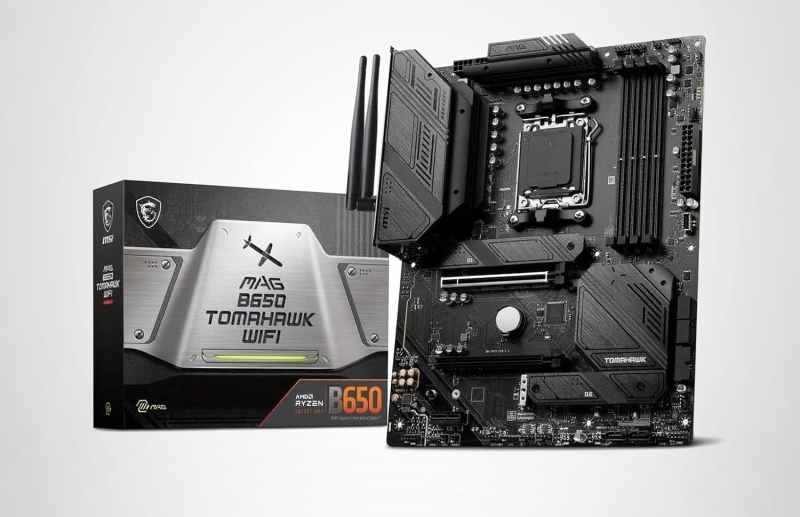

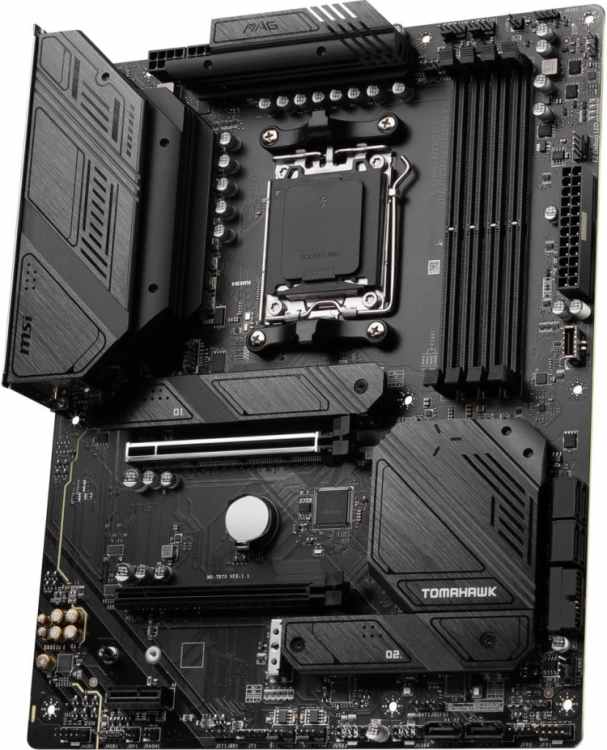

MSI MAG B650 Tomahawk WiFi

Motherboard • MSI • $ 175.99

Add to PC Build Add to Amazon Cart Compare

Overview

The MSI MAG B650 Tomahawk WiFi is a feature-rich ATX motherboard designed for AMD's AM5 platform, offering a perfect balance of performance, connectivity, and durability for gamers and PC builders. With support for the latest Ryzen 7000 and 8000 series processors, this board delivers exceptional value for those seeking a high-performance foundation without breaking the bank.

Key Features and Performance

Built around the AMD B650 chipset, the Tomahawk WiFi supports DDR5 memory with speeds up to 6400+ MHz (OC) and capacities up to 128GB across four DIMM slots. It also supports AMD EXPO and Intel XMP profiles for easy one-click overclocking. The board's robust power delivery system, featuring a 14+2+1 phase VRM design with premium chokes and capacitors, ensures stable power for even the most demanding CPUs.

For graphics and storage, the motherboard includes a PCIe 5.0 x16 slot for the latest GPUs, along with two M.2 slots—one supporting PCIe 5.0 x4 and the other PCIe 4.0 x4/SATA—for lightning-fast NVMe SSDs. Six SATA 6Gb/s ports provide ample room for additional storage drives.

Connectivity and Networking

Networking is a standout feature, with a Realtek 2.5 GbE LAN port for wired connections and built-in Wi-Fi 6E (2.4/5/6 GHz) plus Bluetooth 5.3 for wireless peripherals. The rear I/O panel includes a comprehensive selection of USB ports, including a USB 3.2 Gen 2x2 Type-C port, and video outputs (DisplayPort 1.4 and HDMI 2.1) for integrated graphics.

Audio is handled by the premium Realtek ALC4080 codec, delivering high-fidelity sound for immersive gaming and content creation.

Cooling and Build Quality

MSI has equipped the Tomahawk WiFi with extensive cooling solutions: enlarged VRM heatsinks, M.2 Shield Frozr heatsinks to keep SSDs cool, and a comprehensive array of hybrid fan headers with support for PWM/DC fans. The board also features a BIOS FlashBack button for easy BIOS updates without a CPU, making it future-proof for upcoming Ryzen processors.

Who Is It For?

This motherboard is ideal for gamers, content creators, and PC enthusiasts who want a reliable, feature-packed ATX board for their AM5 build. It offers excellent performance for gaming, streaming, and productivity tasks, with room for overclocking and expansion. Whether you're building a new system or upgrading, the MSI MAG B650 Tomahawk WiFi is a solid choice that balances cost and capability.

Key Specifications

Form Factor: ATX

Socket: AM5

RAM Type: DDR5 6400+ OC (dual-channel, non-ECC unbuffered, EXPO & XMP supported)

Max. RAM: 128GB

RAM Slots: 4

Chipset: AMD B650

Connectivity

1X PCIe 5.0 x16 (from CPU), 1X PCIe 4.0 x16 (slot, x4 mode from chipset), 1X PCIe 3.0 x1 (chipset), 2X M.2 slots (1X PCIe 5.0 x4 / 4.0 x4, 1X PCIe 4.0 x4 / SATA), 6X SATA 6 Gb/s ports, 1X Realtek 2.5 GbE LAN port, Wi-Fi 6E (2.4 GHz / 5 GHz / 6 GHz) + Bluetooth 5.3, Graphics outputs: 1X DisplayPort 1.4, 1X HDMI 2.1, Hybrid fan headers, VRM heatsinks, M.2 Shield Frozr heatsinks

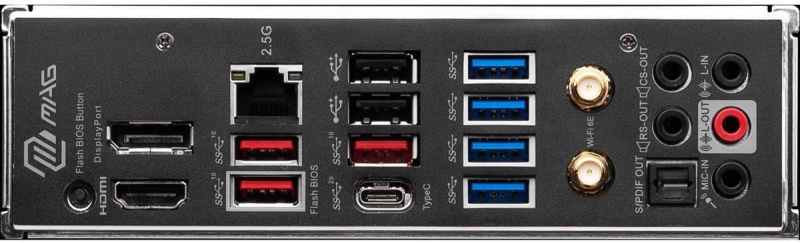

Back Panel IO

1X USB 3.2 Gen 2 Type-C, 2X USB 3.2 Gen 2 Type-A, 4X USB 3.2 Gen 1 Type-A, 4X USB 2.0 Type-A, 1X DisplayPort 1.4, 1X HDMI 2.1,, 1X 2.5 Gb Ethernet (RJ-45), Wi-Fi 6E antenna connectors, 1X BIOS FlashBack button, 1X Optical S/PDIF out, 5X Audio jacks (Realtek ALC4080 codec)

Onboard USB Headers: 1X USB 3.2 Gen 2×2 front-panel Type-C connector 2X USB 3.2 Gen 1 headers (4 ports total) 2X USB 2.0 headers (4 ports total)

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 128
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 6400

Where to Buy

Amazon

Pros

Robust VRM design (14+2+1 phase) for high-end Ryzen CPUs
PCIe 5.0 support for GPU and M.2 SSD
Wi-Fi 6E and 2.5 GbE LAN for fast networking
Comprehensive cooling with M.2 Shield Frozr and VRM heatsinks
BIOS FlashBack for easy updates without CPU

Cons

Only one PCIe 5.0 M.2 slot (second is PCIe 4.0)
No USB4 or Thunderbolt support
Realtek ALC4080 audio codec may require driver updates for best performance

Frequently Asked Questions

Does the MSI MAG B650 Tomahawk WiFi support AMD Ryzen 8000 series processors?

Yes, the MSI MAG B650 Tomahawk WiFi is compatible with AMD Ryzen 7000 and 8000 series processors, provided you update the BIOS to the latest version for optimal support.

What is the maximum RAM speed supported by this motherboard?

The motherboard supports DDR5 memory speeds up to 6400+ MHz (OC) when using EXPO or XMP profiles. Actual speeds may vary depending on the CPU and memory modules used.

Does the MSI MAG B650 Tomahawk WiFi have Wi-Fi and Bluetooth?

Yes, it includes built-in Wi-Fi 6E (2.4/5/6 GHz) and Bluetooth 5.3, providing fast wireless connectivity and support for modern peripherals.

How many M.2 slots are available and what speeds do they support?

There are two M.2 slots. The first supports PCIe 5.0 x4 (or PCIe 4.0 x4), and the second supports PCIe 4.0 x4 or SATA mode. Both are equipped with M.2 Shield Frozr heatsinks.
