MSI MAG X870E Tomahawk WiFi AM5

Motherboard • MSI • $ 244.15

Add to PC Build Add to Amazon Cart Compare

Overview

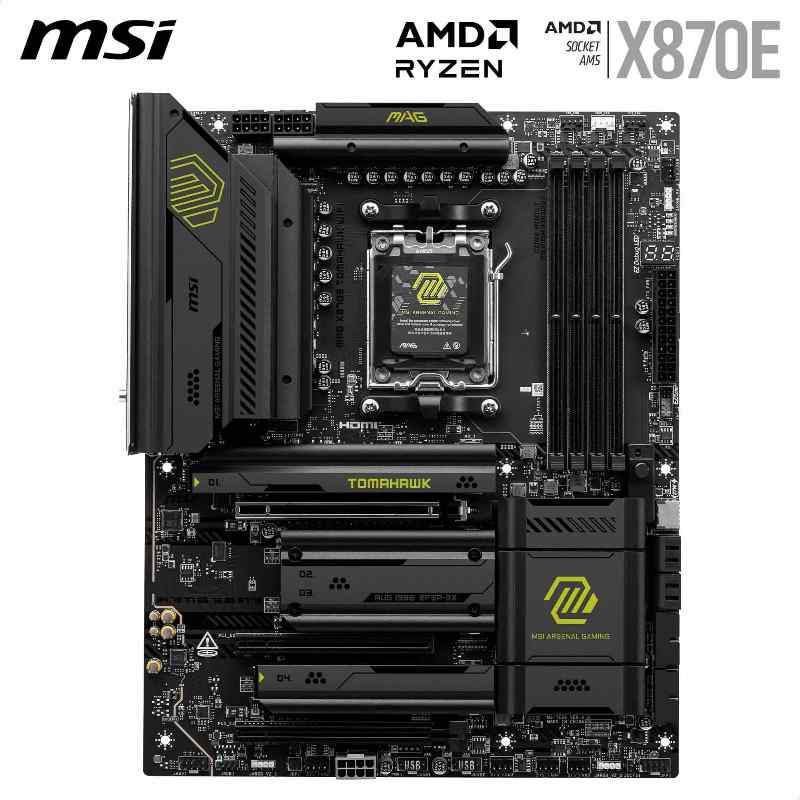

Unleash the Power of AMD Ryzen with the MSI MAG X870E Tomahawk WiFi

The MSI MAG X870E Tomahawk WiFi is a premium ATX motherboard designed for AMD's AM5 platform, built to maximize the potential of Ryzen 7000, 8000, and 9000 series processors. With the cutting-edge AMD X870E chipset, this board delivers exceptional performance, robust connectivity, and future-ready features that cater to gamers, content creators, and PC enthusiasts alike.

Key Features and Performance

Next-Gen PCIe 5.0: A steel-reinforced PCIe 5.0 x16 slot from the CPU ensures maximum bandwidth for the latest graphics cards, while additional PCIe 4.0 and 3.0 slots offer flexible expansion.
Blazing-Fast Storage: Four M.2 NVMe slots, including two PCIe 5.0 x4 slots, provide lightning-fast load times and massive storage capacity. RAID 0/1/10 support via the chipset adds data redundancy options.
High-Capacity DDR5 Memory: Four DIMM slots support up to 256GB of DDR5 RAM, with overclocking capabilities reaching 8400+ MT/s (OC) via XMP/EXPO profiles, ensuring smooth multitasking and high-frame-rate gaming.
Advanced Connectivity: Enjoy 5GbE LAN, Wi-Fi 7, and Bluetooth 5.4 for lag-free online gaming and high-speed file transfers. Dual USB4 Type-C ports (40 Gbps) deliver ultra-fast data transfer and display output.
Premium Audio: The 7.1-channel HD audio codec with S/PDIF-out provides immersive sound for gaming and entertainment.

Built for Enthusiasts

The MSI MAG X870E Tomahawk WiFi is engineered for demanding workloads. Its robust power delivery system ensures stable overclocking, while comprehensive cooling solutions, including large heatsinks and M.2 shields, keep temperatures in check. The board also features convenient onboard buttons for Flash BIOS and Clear CMOS, making system maintenance effortless.

Ideal Use Cases

Whether you're building a high-end gaming rig, a workstation for video editing, or a content creation powerhouse, this motherboard offers the versatility and performance you need. Its extensive I/O panel includes USB4, USB 3.2 Gen 2, and DisplayPort/HDMI via USB-C alt mode, making it perfect for multi-monitor setups and high-speed external storage.

Upgrade your build with the MSI MAG X870E Tomahawk WiFi and experience the pinnacle of AM5 performance.

Key Specifications

Form Factor: ATX

Socket: AM5

RAM Type: DDR5 (dual‑channel, XMP/EXPO support up to 8400+ MT/s OC)

Max. RAM: 256 GB

RAM Slots: 4

Chipset: AMD X870E

Connectivity

1X PCI Express 5.0 x16 (steel‑reinforced, from CPU), — Expansion: 3X PCIe slots: 2X PCIe 4.0 x16 (x4 mode, chipset), 1X PCIe 3.0 x1 (chipset), 4X M.2 NVMe slots:, – 2X PCIe 5.0 x4 (CPU lanes), – 2X PCIe 4.0 x4 (chipset lanes), 4X SATA 6 Gb/s, RAID 0/1/10 support (via chipset RAM/RAIDXpert2), 5 GbE LAN (Realtek controller), Wi‑Fi 7 (802.11be) and Bluetooth 5.4, 7.1‑Channel HD Audio with S/PDIF‑Out

Back Panel IO

1X Flash‑BIOS Button, 1X Clear‑CMOS Button, 2X USB4 Type‑C (40 Gbps), 1X USB 3.2 Gen 2 Type‑C (10 Gbps), 2X USB 3.2 Gen 2 Type‑A (10 Gbps), 3X USB 3.2 Gen 1 Type‑A (5 Gbps), 4X USB 2.0 Type‑A, 1X HDMI 2.1 (via USB‑C alt‑mode), 2X DisplayPort (via USB‑C alt‑mode), 1X RJ45 5 GbE LAN, Wi‑Fi/Bluetooth antenna connectors, 3X audio jacks + 1X optical S/PDIF‑Out

Onboard USB Headers: 1X USB 3.2 Gen 2 header (for front-panel Type‑C Gen 2×2 20 Gbps) 2X USB 3.2 Gen 1 headers (4 ports total) 2X USB 2.0 headers (4 ports total) 1X SPI TPM header

Detailed Parameters

Platform:: AMD
Socket:: AM5
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 64
Maximum RAM Capacity in GB:: 256
PCI Express Version:: 5
Form Factor:: ATX
Maximum RAM Speed in MHz:: 8400

Where to Buy

Amazon

Pros

Excellent PCIe 5.0 support for GPUs and NVMe SSDs
Dual USB4 ports with 40 Gbps transfer speeds
Wi-Fi 7 and 5GbE LAN for ultra-fast networking
Robust power delivery for overclocking high-end Ryzen CPUs
Four M.2 slots with ample cooling for high-performance storage

Cons

Only one PCIe 5.0 x16 slot (no multi-GPU support)
Limited SATA ports (4) compared to some competitors
Premium price point may be overkill for budget builds

Frequently Asked Questions

What CPUs are compatible with the MSI MAG X870E Tomahawk WiFi?

The MSI MAG X870E Tomahawk WiFi supports AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket. It is designed to fully utilize the latest Ryzen 9000 series with features like PCIe 5.0 and DDR5 memory.

Does the MSI MAG X870E Tomahawk WiFi support DDR5 memory overclocking?

Yes, it supports DDR5 memory overclocking via AMD EXPO and Intel XMP profiles. The board can handle speeds up to 8400+ MT/s (OC) when using compatible memory kits and a capable CPU.

How many M.2 slots does the MSI MAG X870E Tomahawk WiFi have?

It has four M.2 slots: two are PCIe 5.0 x4 (connected to the CPU) and two are PCIe 4.0 x4 (connected to the chipset). All slots support NVMe SSDs for high-speed storage.

Does the MSI MAG X870E Tomahawk WiFi have built-in Wi-Fi and Bluetooth?

Yes, it comes with Wi-Fi 7 (802.11be) and Bluetooth 5.4 built-in. The included antenna connectors ensure a stable wireless connection.

What are the USB ports on the back panel of the MSI MAG X870E Tomahawk WiFi?

The back panel includes two USB4 Type-C ports (40 Gbps), one USB 3.2 Gen 2 Type-C (10 Gbps), two USB 3.2 Gen 2 Type-A (10 Gbps), three USB 3.2 Gen 1 Type-A (5 Gbps), and four USB 2.0 Type-A ports.
