MSI PRO B760M-A WiFi DDR5

Motherboard • MSI • $ 64.99

Add to PC Build Add to Amazon Cart Compare

Overview

Powerful Performance for Modern Intel Builds

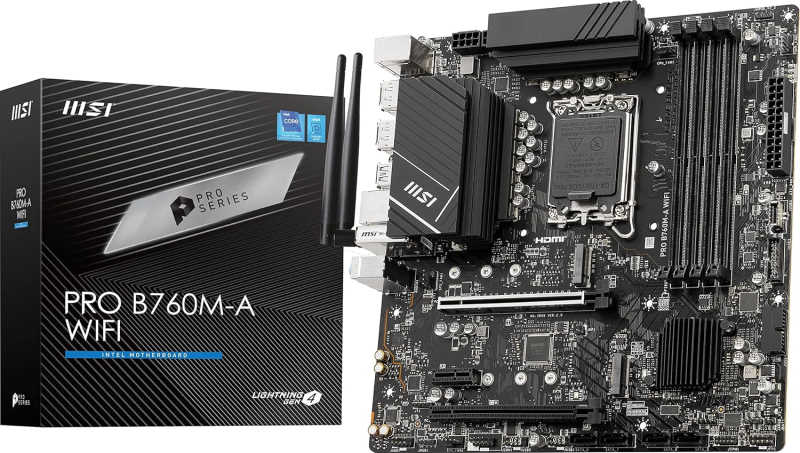

The MSI PRO B760M-A WiFi DDR5 is a feature-packed Micro-ATX motherboard designed to unlock the full potential of Intel's 12th, 13th, and 14th Gen processors. With its LGA 1700 socket and Intel B760 chipset, this board delivers exceptional performance for gaming, content creation, and productivity tasks. Supporting up to 192GB of DDR5 memory with speeds reaching 6800MHz (OC), it ensures lightning-fast data access and smooth multitasking.

Key Features and Connectivity

Memory: Four DDR5 slots with dual-channel architecture and Memory Boost technology for enhanced stability and speed.
Expansion Slots: One PCIe 4.0 x16 slot (Steel Armor reinforced) for graphics cards, plus a PCIe 3.0 x1 slot for additional peripherals.
Storage: Two M.2 NVMe slots (both PCIe 4.0 x4) and four SATA 6Gb/s ports with RAID 0/1/5/10 support for flexible storage configurations.
Networking: Realtek 2.5G LAN and Wi-Fi 6E (802.11ax) with Bluetooth 5.3 ensure high-speed, low-latency connections.
Audio: 7.1-Channel HD Audio with Audio Boost technology delivers immersive sound quality.

Designed for Versatility

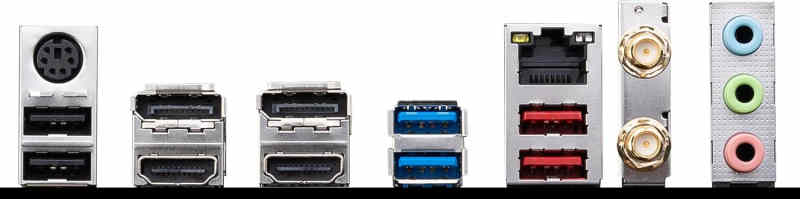

The MSI PRO B760M-A WiFi DDR5 offers a comprehensive set of rear I/O ports, including dual HDMI 2.1 and dual DisplayPort 1.4 for multi-monitor setups using Intel integrated graphics. Front-panel USB headers include a USB 3.2 Gen 1 Type-C header, making it easy to connect modern cases. The board's Micro-ATX form factor fits into a wide range of chassis while still providing ample connectivity.

Who Should Buy This Motherboard?

This motherboard is ideal for budget-conscious gamers, PC builders, and professionals who want a reliable foundation for their Intel build without sacrificing modern features. Whether you're assembling a compact gaming rig or a powerful workstation, the MSI PRO B760M-A WiFi DDR5 offers excellent value with its DDR5 support, PCIe 4.0, and robust networking options.

Performance and Reliability

With premium components and MSI's trusted design, this motherboard ensures stable performance under load. The Steel Armor PCIe slot protects against GPU sag, while the extended heatsink design keeps M.2 drives cool. The board also supports Intel Extreme Memory Profile (XMP) for easy one-click overclocking of DDR5 modules.

Upgrade your system with the MSI PRO B760M-A WiFi DDR5 and experience the perfect balance of performance, features, and affordability.

Key Specifications

Form Factor: Micro-ATX

Socket: LGA 1700

RAM Type: DDR5 (dual-channel, Memory Boost, XMP supported)

Max. RAM: 192GB

RAM Slots: 4

Chipset: Intel B760

Connectivity

1X PCIe 4.0 x16 (Steel Armor, from CPU), 1X PCIe 3.0 x1 (from chipset), 2X M.2 NVMe slots:, • M.2_1: PCIe 4.0 x4 (from CPU), • M.2_2: PCIe 4.0 x4 or SATA (from chipset), 4X SATA 6 Gb/s with RAID 0/1/5/10 support, 1X 2.5 GbE LAN (Realtek RTL8125BG), Wi-Fi 6E (802.11ax) with Bluetooth 5.3, 7.1-Channel HD Audio (Realtek codec, Audio Boost)

Back Panel IO

2X USB 3.2 Gen 2 Type-A, 2X USB 3.2 Gen 1, 2X USB 2.0 (rear), 2X HDMI 2.1, 2× DisplayPort 1.4 (via CPU iGPU), 1X RJ45 2.5 GbE LAN, Wi-Fi/Bluetooth antenna connectors, Audio jacks (rear panel)

Onboard USB Headers: 1X USB 3.2 Gen 1 Type-C front-panel header 1X USB 3.2 Gen 1 header (supports 2 ports) 2X USB 2.0 headers (supports 4 ports)

Detailed Parameters

Platform:: Intel
Socket:: LGA 1700
RAM Type:: DDR5
Number of RAM Slots:: 4
Maximum RAM/slot:: 48
Maximum RAM Capacity in GB:: 192
PCI Express Version:: 4
Form Factor:: Micro-ATX
Maximum RAM Speed in MHz:: 6800

Where to Buy

Amazon

Pros

Supports DDR5 up to 6800MHz with XMP and Memory Boost
Wi-Fi 6E and 2.5G LAN for fast, reliable networking
Dual M.2 slots with PCIe 4.0 for high-speed storage
Steel Armor PCIe slot for GPU protection
Rich rear I/O with HDMI 2.1 and DisplayPort 1.4

Cons

Only one PCIe 4.0 x16 slot (no second full-speed slot)
No USB4 or Thunderbolt support
Micro-ATX may limit expansion compared to ATX boards

Frequently Asked Questions

Does the MSI PRO B760M-A WiFi DDR5 support Intel 14th Gen processors?

Yes, the MSI PRO B760M-A WiFi DDR5 is compatible with Intel 12th, 13th, and 14th Gen processors (LGA 1700) after a BIOS update. It supports the latest Core i9-14900K and other Raptor Lake Refresh CPUs.

What is the maximum RAM speed supported by this motherboard?

The MSI PRO B760M-A WiFi DDR5 supports DDR5 memory up to 6800MHz (OC) when using XMP profiles. The maximum total capacity is 192GB across four slots, with each slot supporting up to 48GB modules.

Does the motherboard come with built-in Wi-Fi and Bluetooth?

Yes, the MSI PRO B760M-A WiFi DDR5 includes Wi-Fi 6E (802.11ax) and Bluetooth 5.3. The Wi-Fi module supports the 6GHz band for faster speeds and lower latency, and the antenna connectors are included on the rear I/O panel.

Can I use multiple monitors with the integrated graphics?

Absolutely. The motherboard has two HDMI 2.1 ports and two DisplayPort 1.4 outputs, allowing you to connect up to four displays simultaneously using Intel integrated graphics (if your CPU has an iGPU). This is great for productivity setups.
